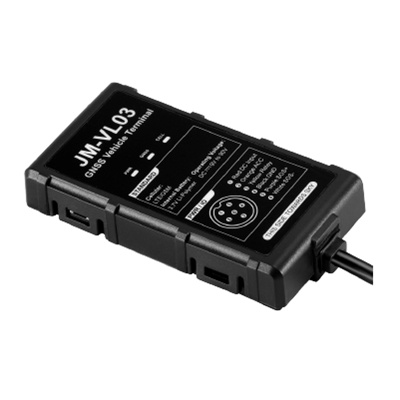

JimiLab JM-VL03 LTE Vehicle Tracker, LTE & GSM Network;Driving Behaviour, Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts;
JimiLab JM-VL03 LTE Vehicle Tracker, LTE & GSM Network;Driving Behaviour, Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts;
- Brand: JimiLab
- MPN: JM-VL03
- Part #: IPCJIM0003
- UPC:
View all shipping info
- Brand: JimiLab
- MPN: JM-VL03
- Part #: IPCJIM0003
- UPC:
What PB Tech customers are saying about this product...
See More Reviews
"I was really taken in by this product seeing that it doesn't require a monthly subscription. Put your own Sim card in it with a cheap plan and you're away!
The 10 year app service ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





JimiLab JM-VL03 LTE Vehicle Tracker, LTE & GSM Network;Driving Behaviour, Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts;
- Brand: JimiLab
- MPN: JM-VL03
- Part #: IPCJIM0003

Product URL: https://www.pbtech.com/au/product/IPCJIM0003/JimiLab-JM-VL03-LTE-Vehicle-Tracker-LTE--GSM-Netwo?qr=popular_related_products
Features
The JM-VL03 is a discreetly-installed 4G LTE GPS tracker designed for the management of vehicles of all types. The wide, 9-90V input voltage range is compatible with almost all vehicles, and the features of this device will prove valuable in managing mobile assets of all sorts. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases, and the advanced GPS antenna provides strong signal acquisition and more accurate positioning capability. In addition to these features, Driver Behavior Analysis (DBA) and the suite of event-triggered alerts will make the VL-03 a valuable part of your fleet management strategy.
Product is including the tracking platform of 10 years subscriptions. Contact [email protected], to register account for free softtware and APP.
Specifications
GNSS
Positioning system
GPS+BDS+LBS
Frequency
L1
Positioning accuracy
<2.5m CEP
Tracking sensitivity
-165dBm
Acquisition sensitivity
-148dBm
TTFF (open sky)
Avg. hot start =1sec
Avg. cold start =32sec
Cellular
Communication network
LTE/GSM
Frequency
JM-VL03E:
LTE-FDD: B1/B3/B5/B7/B8/B20
LTE-TDD: B34/B38/B39/B40/B41
GSM: GSM900/DCS1800
JM-VL03ME:
LTE-FDD: B1/B3/B7/B8/B20/B28
GSM: 850/900/1800/1900 MHz
JM-VL03MX:
LTE-FDD: B2/B4/B5/B7/B12/B13/B17
GSM: 850/900/1800/1900MHz
Power
Battery
60mAh/3.7V industrial-grade Li-Polymer battery
Input voltage
9-90VDC
Interface
LED indication
GNSS (Blue), Cellular (Green), Power (Red)
SIM
Micro-SIM
Data storage
64+128Mb
Digital inputs
ACC
Digital outputs
Relay
Physical specification
Dimensions
94.3 x 50.4 x 15.0mm
Weight
69.0g
Operating environment
Operating temperature
-20 to +70
IP rating
IP65
Feature
Sensors
Accelerometer
Scenarios
Vehicle movement alert, Over-speed alert, Geo-fence, Low battery alert, Power-off alert
Driving behavior analysis
Harsh acceleration, Harsh braking, Harsh cornering, Collision
