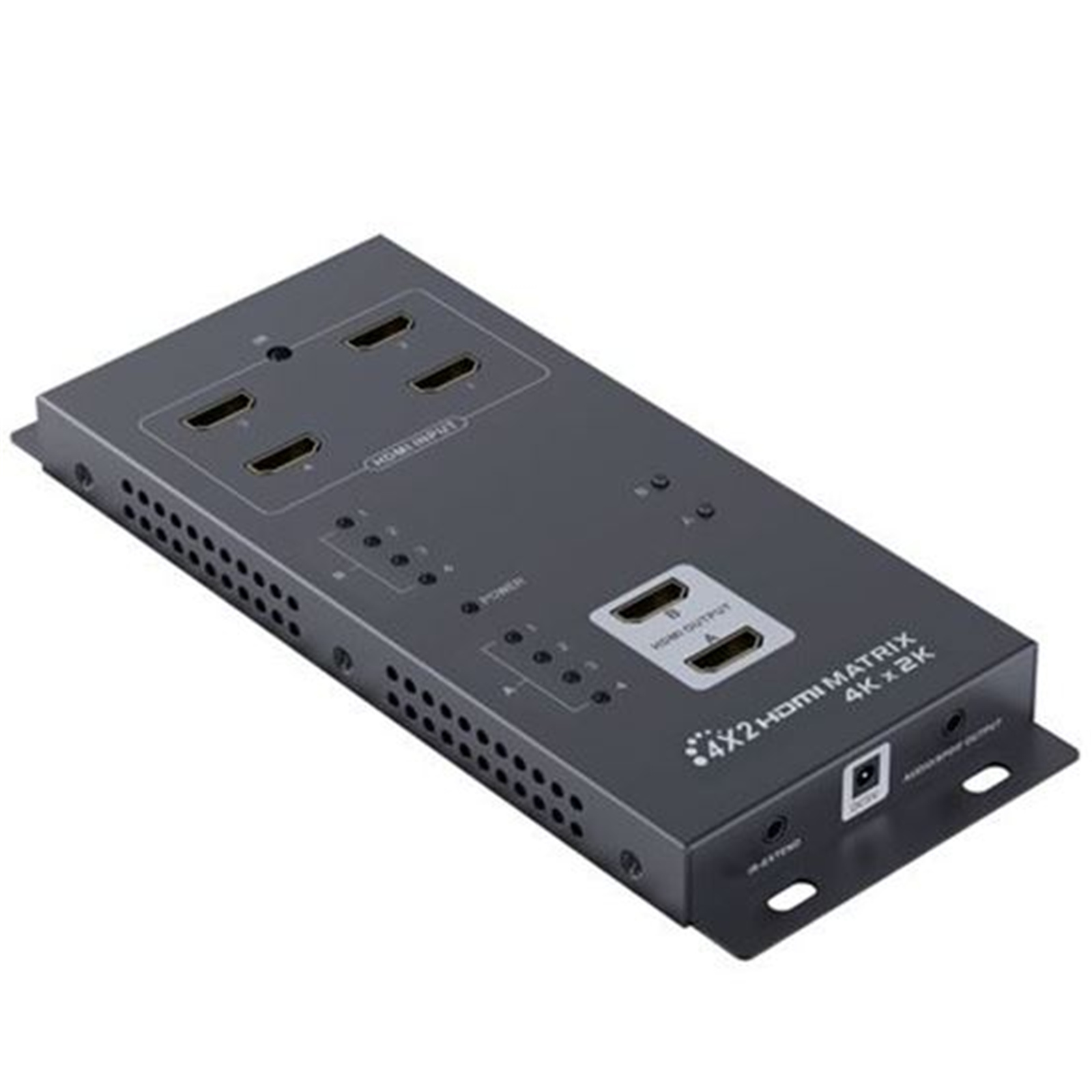

LENKENG LKV342PRO HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI Outputs
4x2 HDMI Matrix Switch - 4K30Hz
LENKENG LKV342PRO HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI Outputs
4x2 HDMI Matrix Switch - 4K30Hz
- Brand: LENKENG
- MPN: LKV342PRO
- Part #: KVMLNK1019
- UPC:
View all shipping info
- Brand: LENKENG
- MPN: LKV342PRO
- Part #: KVMLNK1019
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Amazing HDMI SWITCHER. Easily switches between my computer monitor and TV using a long hdmi cable. No loss in picture quality either. Also the blue light from it is a nice night li ...view more"
"Great connection and works very well."
"Product does what it says & is easy to set up. Saves disconnecting & reconnecting the different HDMI products to the two tvs. Easy to use with the remote."
COMBO DEALS: Frequently Bought Together




Dynamix C-HDMIHSE-5 10Gbps High-Speed Slimline HDMI Cable - with Ethernet - 5m Max Res 4K2K 24/30Hz ...
$10.50 +GST
$11.55
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular AV Splitters / Switches





LENKENG LKV342PRO HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI Outputs 4x2 HDMI Matrix Switch - 4K30Hz
- Brand: LENKENG
- MPN: LKV342PRO
- Part #: KVMLNK1019

Product URL: https://www.pbtech.com/au/product/KVMLNK1019/LENKENG-LKV342PRO-4-in-2-out-HDMI-Matrix-Switch
Features
https://www.lenkeng.com/p_detail/134/type/types
LENKENG HDMI Matrix Switch with 4x HDMI inputs & 2x HDMI Outputs. Supports up to UHD 4K2K@30Hz & 1080p Full HD. Supports 12-bit Deep Colour, CEC, HDCP, IR Remote Control. Includes remote.

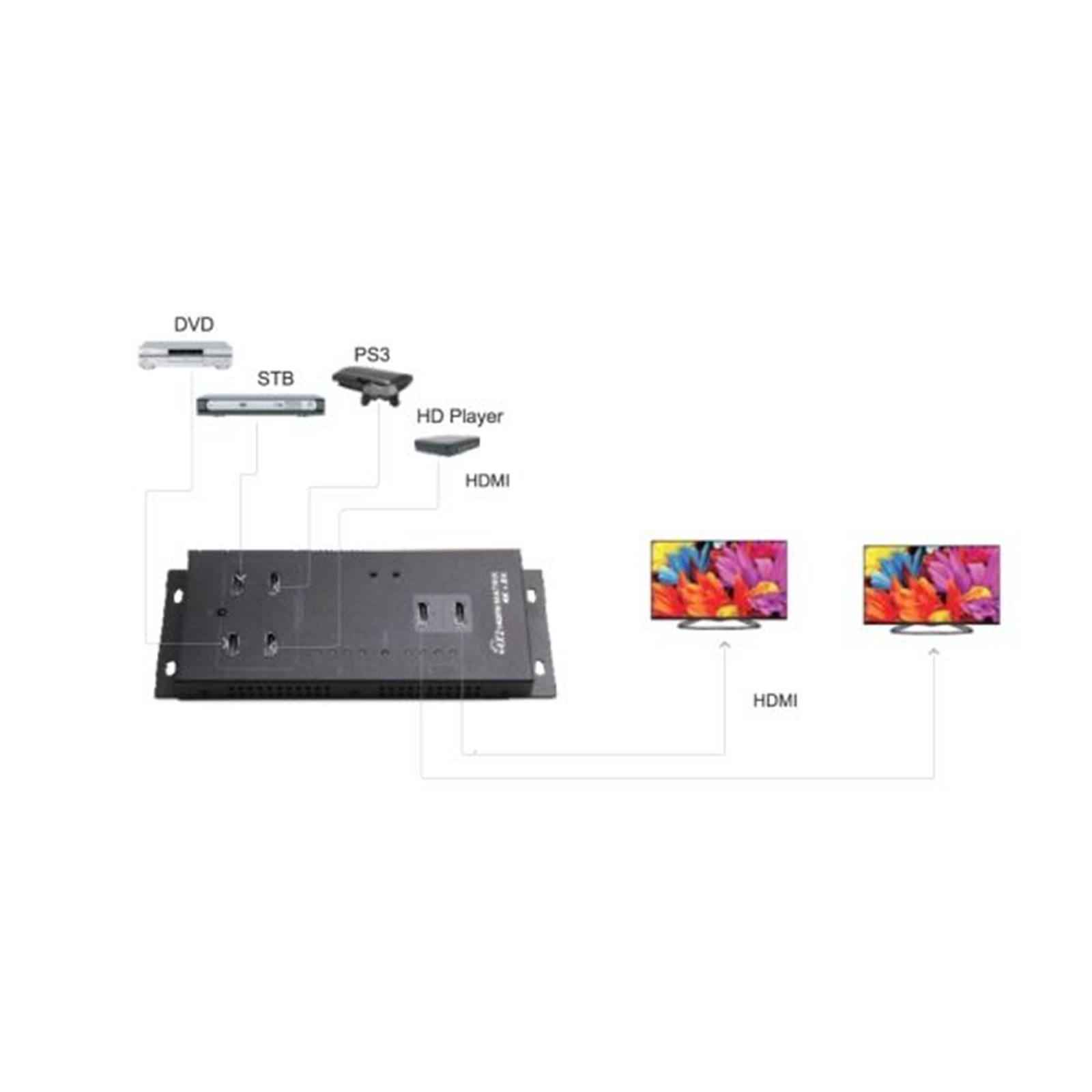

This 4x2 HDMI Matrix Switch has 4x HDMI inputs and 2x HDMI outputs. It is a true matrix switch and can distribute any one of 4x sources to any 2x displays and can work as a splitter to show the same source on 2x displays simultaneously. Analogue R/L audio and digital SPDIF audio can be extracted from HDMI signal. It supports 3D HDMI and HDMI1.4 (4K2K).
Features
- Routes four Ultra Hi-Def sources to two Ultra HD displays
- Supports resolutions up to Ultra HD 4K2K (3840 x 2160@30Hz) and 1080p Full HD
- Supports 12-bit Deep Color
- Supports PCM, Dolby Digital™ and DTS Digital Surround™
- Support audio output simultaneously (from output A)
- HDMI input/output cables may be up to 10/15m with a 1080p/8-bit resolution
- Supports HDMI/MHL dual mode input (input 1)
- Supports CEC
- Supports HDCP
- Supports IR remote control
- Supports surface-mountable
- Includes remote control (LKV342PRO-REMOTE)
The LENKENG LKV342PRO 4x2 HDMI Matrix Switch allows you to connect four HDMI sources (such as Blu-ray players, gaming consoles, or PCs) and output them to two displays (TVs or projectors). However, it does not support video merging or multi-view (e.g., displaying all four inputs on one screen at the same time).
What it Can Do:
? Switch between different HDMI sources to output to one or both displays.
? Send different sources to different outputs (e.g., Source 1 to TV 1, Source 2 to TV 2).
? Duplicate the same source to both outputs.
What it Cannot Do:
? Combine all four inputs into one single screen (like a video wall or multi-view mode).
? Support Picture-in-Picture (PIP) or Quad-view.
If you need to display all four sources on one screen simultaneously, you would need a multi-view HDMI processor instead of a matrix switch. Let me know if you need recommendations!
Specifications
Power Supply | 5V/3A |
Input Ports | HDMI x4 |
Output Ports | HDMI x2 |
Power Indicator LED | Yellow LED x1 |
Signal Indicator LED | Blue LED x8 |
Frequency Range | 25MHz~340MHz |
Max Transmission Rate | 3.4G x 3 = 10.2Gbps |
Colour Depth | Supports 12-bit DeepFull HD, Full 3D and 4K2K Video |
Audio | Supports Standard Audio and DSD (Direct Stream Digital) Audio and HD (HBR) Audio |
HDMI Resolution |
480i@60hz. 480o@60Hz, 576i@50Hz, 576P@50Hz, |
Dimension | 213 x 86 x 19mm |
Net Weight | 390g |
Colour | Black |
Working Temperature | 0°C~60°C |
