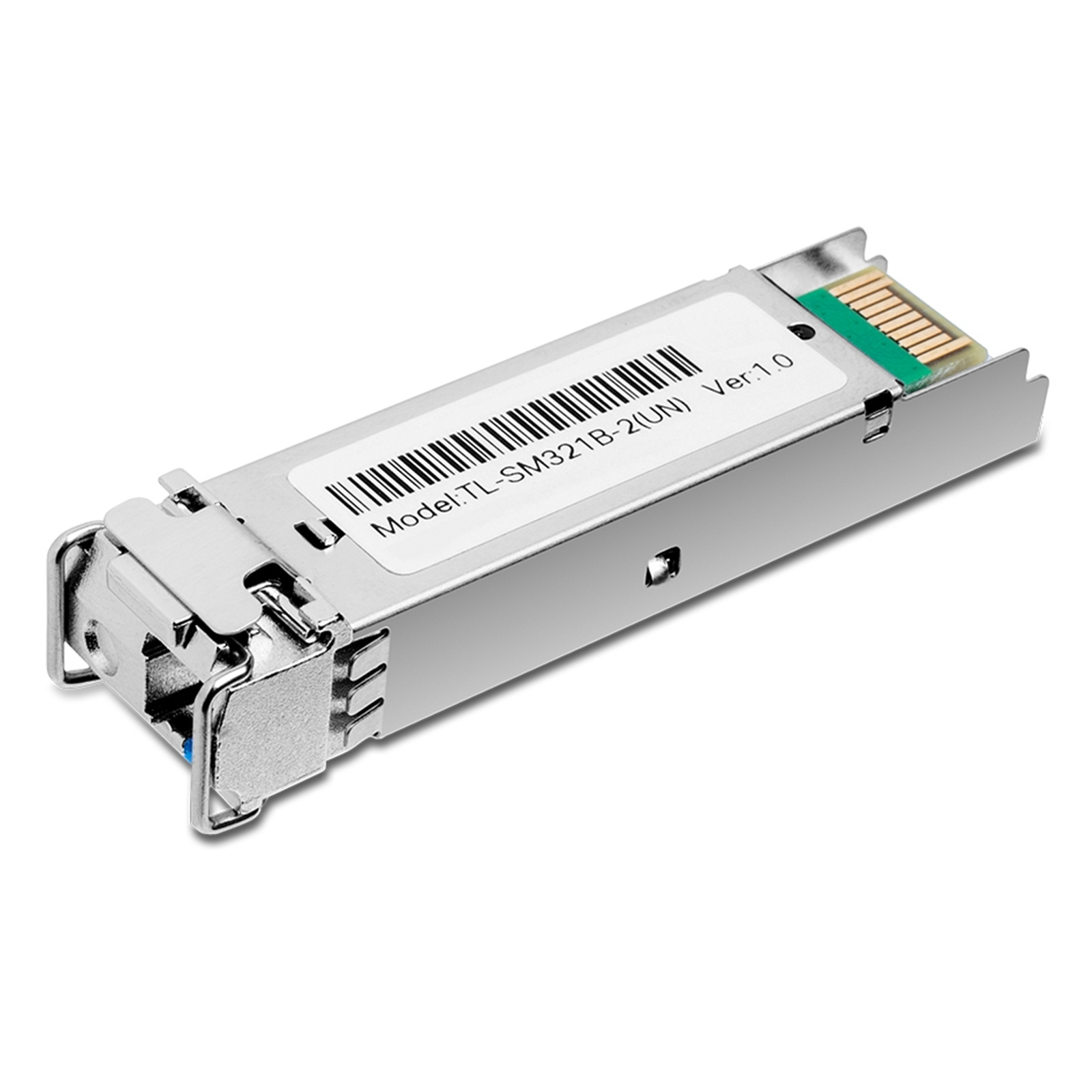

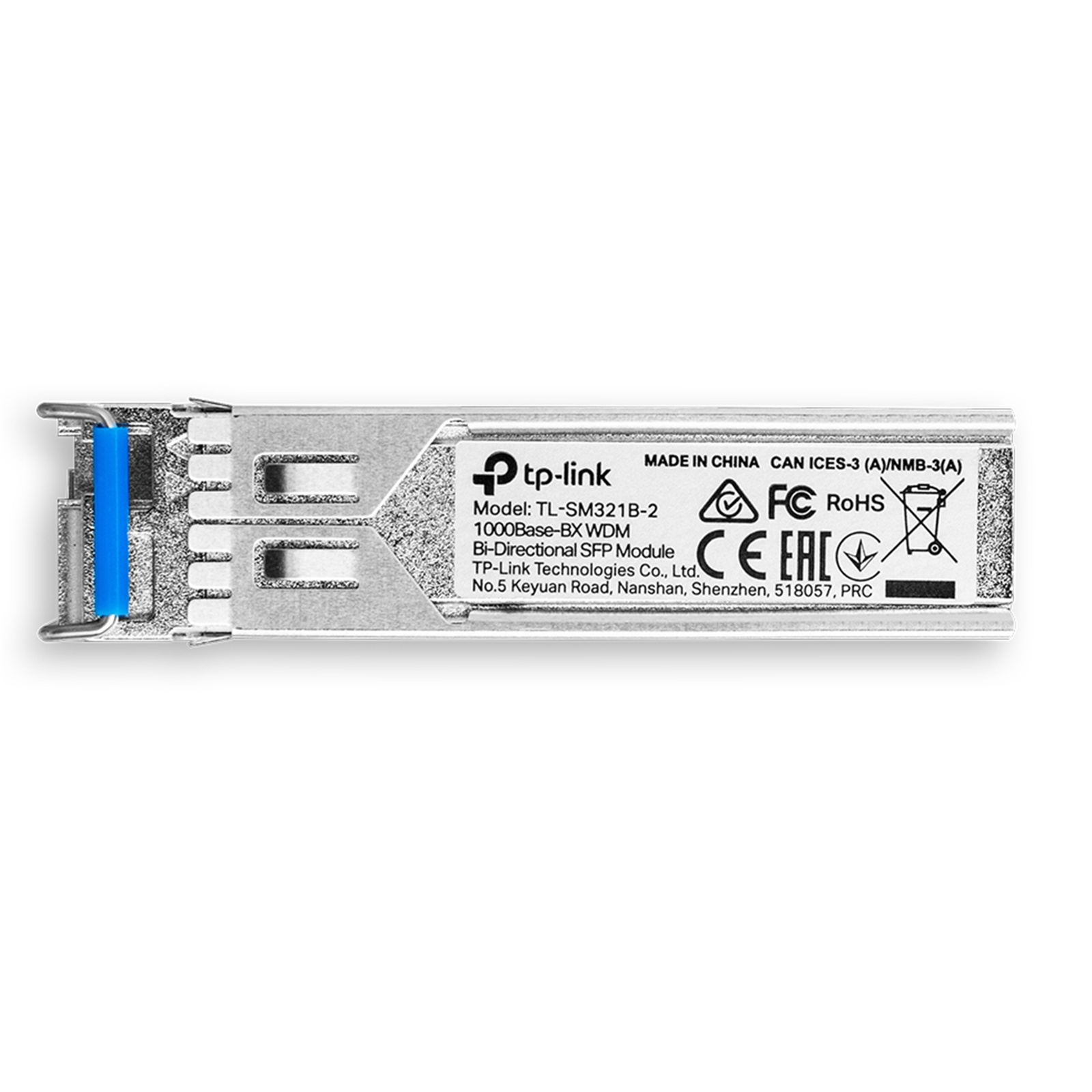

TP-Link Omada SM321B-2 Gigabit Single-Mode WDM Bi-Directional SFP Module - LC Connector, TX:1310nm/RX:1550nm, Single-mode, 2km

PB Tech price
PB Tech price
NZD $ 25 .22
$ 25 .22
$25.22  +GST
$25.22

TP-Link Omada SM321B-2 Gigabit Single-Mode WDM Bi-Directional SFP Module - LC Connector, TX:1310nm/RX:1550nm, Single-mode, 2km

  • Brand: TP-Link
  • MPN: SM321B-2
  • Part #: NETTPL03213
  • UPC:
PB Tech price
NZD $ 25 .22 $ 25 .22


Delivery: Order now and it ships on 15 Jun
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$25.22  +GST
$25.22

Features

TP-LINK´s TL-SM321B-2 and TL-SM321A-2 is designed to work in a pair to create an on-site gigabit fiber communication up to 2km (2,000 meters). With one single-mode fiber, the pair of modules can create a full-duplex gigabit path between your switches, storage devices, and server.

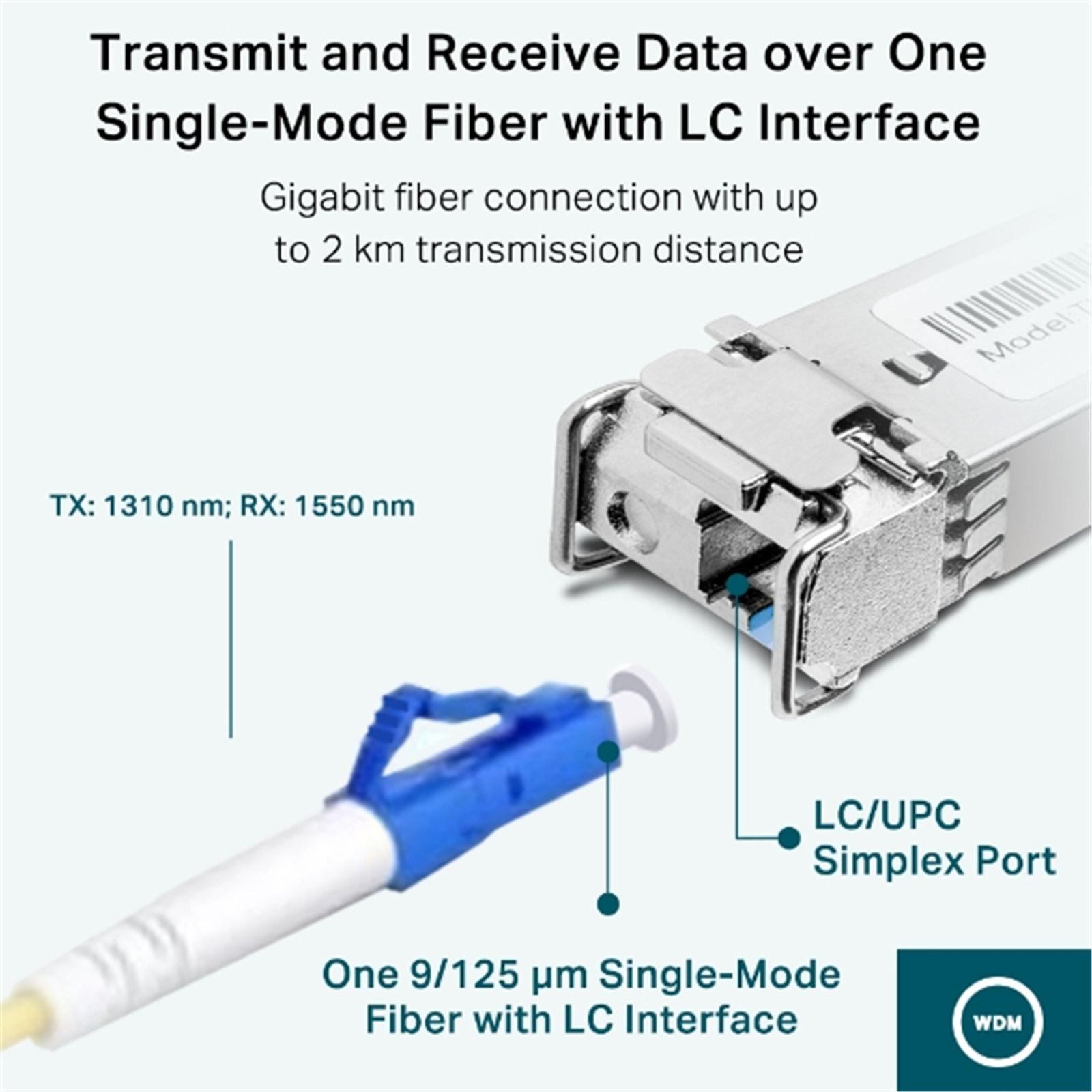

The TP-LINK´s TL-SM321B-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321B-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 µm SMF (Single-Mode Fiber).

Also, TL-SM321B-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.

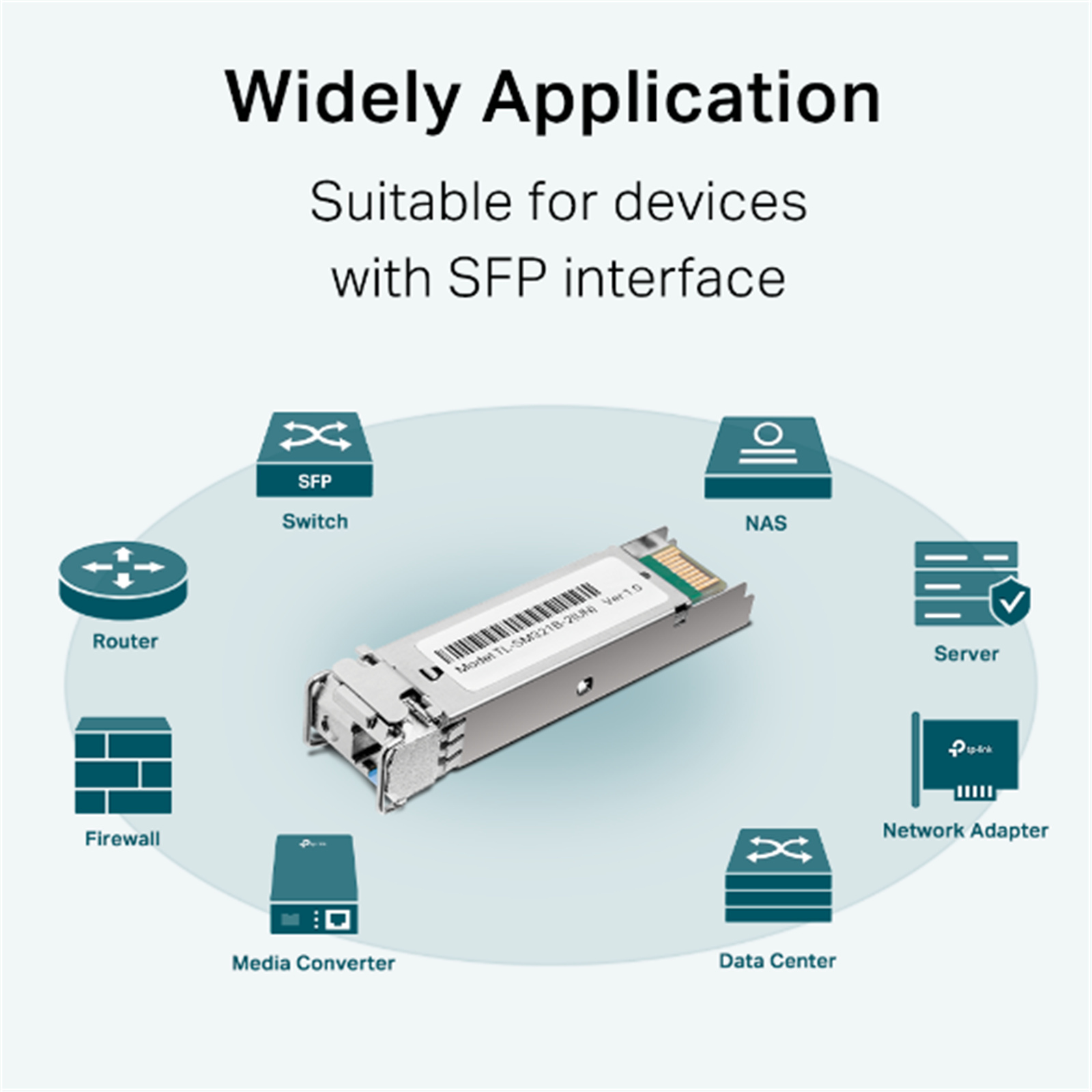

TP-Link's TL-SM321B-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.

- Designed for on-site gigabit fiber communication
- Up to 2 km transmission distance with 9/125 µm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-swappable module design
- Work with TL-SM321A-2 as a pair

Specifications

HARDWARE FEATURES

DDM

Yes

SFP-MSA

Yes

Hot Swappable

Yes

MEDIA CONVERTER & MODULE

Standards and Protocols

IEEE 802.3z, TCP/IP

Wave Length

Tx: 1310 nm
Rx: 1550 nm

Dimensions (W*D*H)

2.2*0.6*0.5 in (55.4*14.6*12.9 mm)

Power Supply

3.3V

Safety & Emission

FCC, CE

Cable

Single-Mode Fiber

Fiber Type

9/125 µm Single-Mode

Max. Cable Length

2 KM

Data Rate

1.25 Gbps

Port Type

LC Simplex

Environment

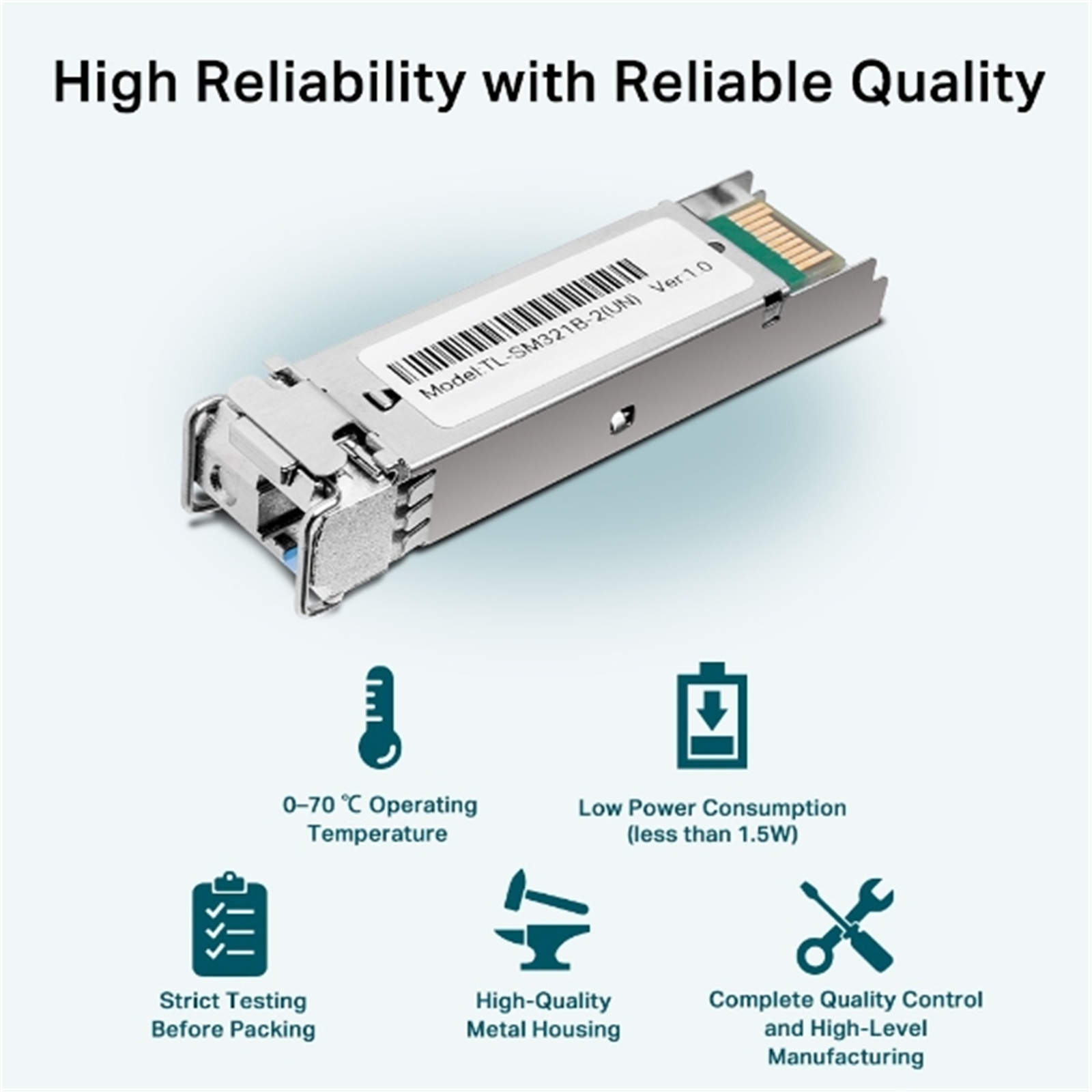

Operating Temperature: 0-70 °C (32-158 °F)
Storage Temperature: -40-85 °C ( -40-185 °F)
Operating Humidity: 10-90% RH, Non-Condensing
Storage Humidity: 5-90% RH, Non-Condensing

Manufacturer Part No:
SM321B-2
Brand:
Product Type:
-
UPC
-
Product Family:
Omada
Shipping Weight:
0.5 kg
PB Part No:
NETTPL03213
Product Model:
SM321B-2
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
