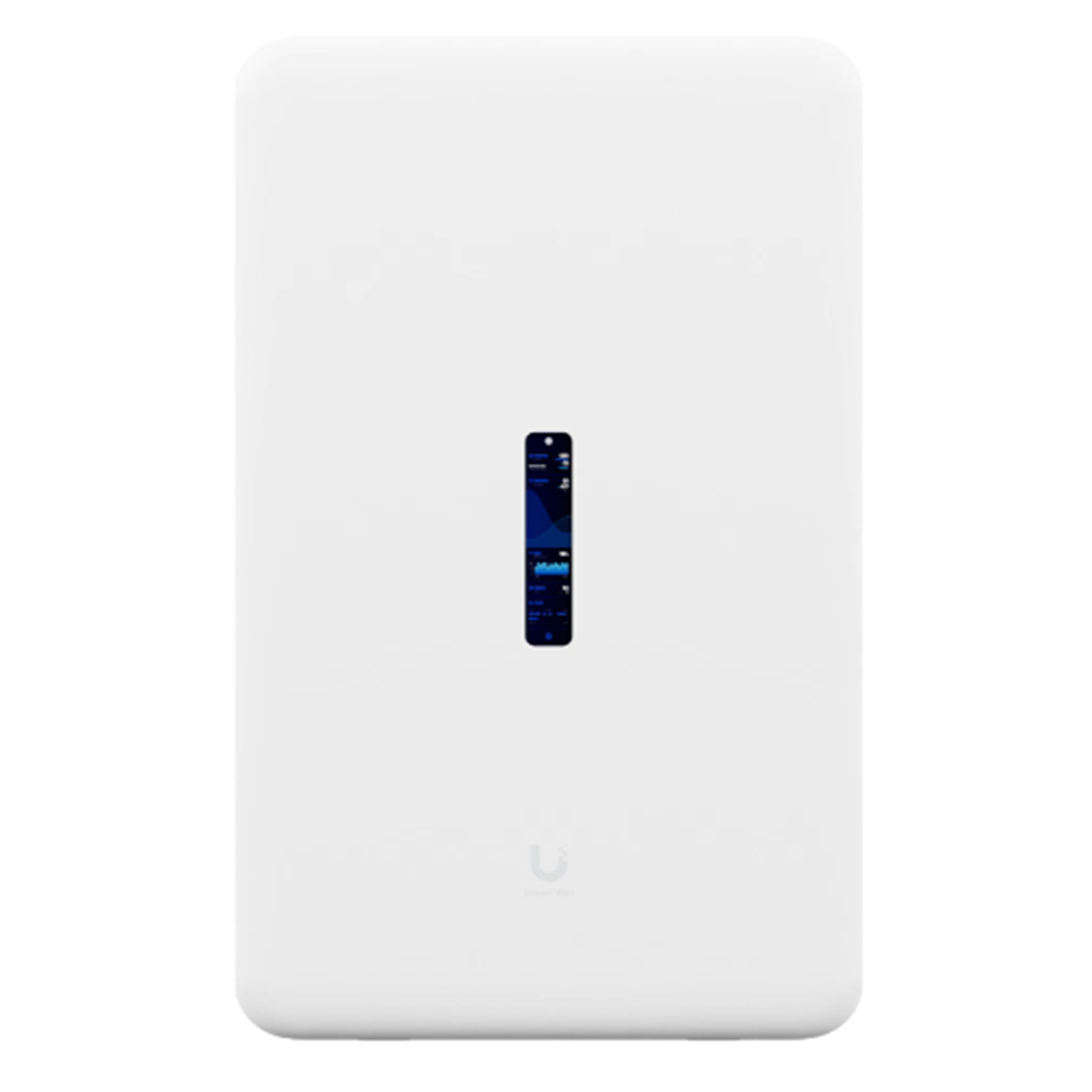

Ubiquiti UniFi (UDW) Dream Wall 10G Cloud Gateway with NVR

WiFi 6 Dual-Band AX2700 / 10G SFP+ x2 / 2.5GbE x1 / 1GbE x5 / 1GbE PoE++/PoE+/PoE x12 / MicroSD Slot

PB Tech price

NZD $ 1,871 .53

$ 1,871 .53

Ubiquiti UniFi (UDW) Dream Wall 10G Cloud Gateway with NVR

WiFi 6 Dual-Band AX2700 / 10G SFP+ x2 / 2.5GbE x1 / 1GbE x5 / 1GbE PoE++/PoE+/PoE x12 / MicroSD Slot

Brand: Ubiquiti
MPN: UDW
Part #: NETUBI2204
UPC: 810010079572

PB Tech price

NZD $ 1,871 .53

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: UDW
Part #: NETUBI2204
UPC: 810010079572

Be the first to review this product

Wireless Technology

WiFi 6 (802.11ax)

Ethernet Ports Per Unit

USB Ports

Wireless Transmission Speed

2400Mbps

WiFi Bands

Not Specified

Cellular Connectivity

N/A

HyperFibre Compatible

Hyperfibre 2000/4000/8000

Coverage Area

Up to 150m2

View full specs

Returns & Warranty Bulk Quote Print Page

Similar in-stock products available at PB Tech right now

ASUS ZenWiFi BQ16 (BE25000) Quad-Band WiFi 7 Whole Home Mesh System, White - 2 Pack

10GbE x2 / 1GbE x3 / USB 3.0 x1

HyperFibre Ready

1 review

Wishlist Compare

Wireless Technology:

WiFi 7 (802.11be)

Ethernet Ports Per Unit:

USB Ports:

Yes

Wireless Transmission Speed:

25000Mbps

WiFi Bands:

Quad

Cellular Connectivity:

N/A

HyperFibre Compatible:

Hyperfibre 2000/4000

Coverage Area:

Between 150m2 to 250m2

MPN:

ZenWiFi BQ16 -2PK

Part #:

NETAS57162

1 review

Special price

$1,946 .96

$1,946.96

1 review

Ships today

Wishlist Compare

Features

All-in-one internet gateway, WiFi access point, and UniFi Console with an abundance of PoE ports.

- Integrated Enterprise WiFi6 (4x4 MIMO)

- Full UniFi OS and UniFi application support

- 3.5+ Gbps routing

- (1) 10G SFP+, (17) GbE RJ45 LAN ports including (4) PoE++, (4) PoE+, and (4) PoE ports

- (1) 10G SFP+, (1) 2.5GbE RJ45 WAN ports

- 4.7" touchscreen for management

- Integrated 128 GB SSD & pre-installed 512 GB microSD card

Specifications

Mechanical

Dimensions

549 x 342 x 62 mm (21.6 x 13.5 x 2.4")

Weight

8.6 kg (19 lb)

Enclosure materials

Polycarbonate, galvanized steel, aluminum alloy

Mount material

Stainless steel

Hardware

Processor

Quad-core ARM® Cortex®-A57 at 1.7 GHz

System memory

4 GB DDR4

On-board storage

16 GB eMMC

Integrated

128 GB SSD
Pre-installed 512 GB microSD card
Expansion slot Micro SD memory card*
*Requires a memory card with at least 128 GB of storage.

Management interface

Ethernet
Bluetooth
WiFi

Networking interface

(17) LAN: GbE RJ45 ports
(1) WAN: 2.5 GbE RJ45 port

SFP+ interface

(1) LAN: 10G SFP+ port
(1) WAN: 10G SFP+ port

PoE interface

(4) PoE (Pair A 1, 2+; 3, 6-)
(4) PoE+ (Pair A 1, 2+; 3, 6-)
(4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Power method

Universal AC input 100-240V AC, 7A Max., 50/60Hz

Power supply

(2) Hot-Swappable AC/DC 550W PSU*

Max. power consumption

532W

Max. PoE wattage per port by PSE

PoE: 15.4W
PoE+: 30W
PoE++: 60W

Voltage range PoE mode

PoE: 44-57V
PoE+/PoE++: 50-57V

Max. TX power
2.4 GHz
5 GHz

23 dBm
26 dBm

MIMO
2.4 GHz
5 GHz

2 x 2
4 x 4

Throughput rate
2.4 GHz
5 GHz

300 Mbps
2.4 Gbps

Antenna gain
2.4 GHz
5 GHz

5.9 dBi
6 dBi

ESD/EMP protection

Air: ± 8kV, contact: ± 4kV

LCM display

(1) 4.7" touchscreen

Button

Factory reset

Mounting

Wall mount (included)

Operating temperature

-10 to 40° C (14 to 104° F)

Operating humidity

5 to 95% noncondensing

Software

WiFi standards

802.11a/b/g
WiFi 4/WiFi 5/WiFi 6

Wireless security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

300+

LEDs

Ethernet

White: link/activity

SFP+

White: link/activity

PSU

Blue: ready
Amber: failure

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

Manufacturer Part No:

UDW

Brand:

Ubiquiti

Product Type:

10G Cloud Gateway with NVR

UPC

810010079572

Product Family:

UniFi

Shipping Weight:

11.05 kg

PB Part No:

NETUBI2204

Product Model:

(UDW) Dream Wall

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
