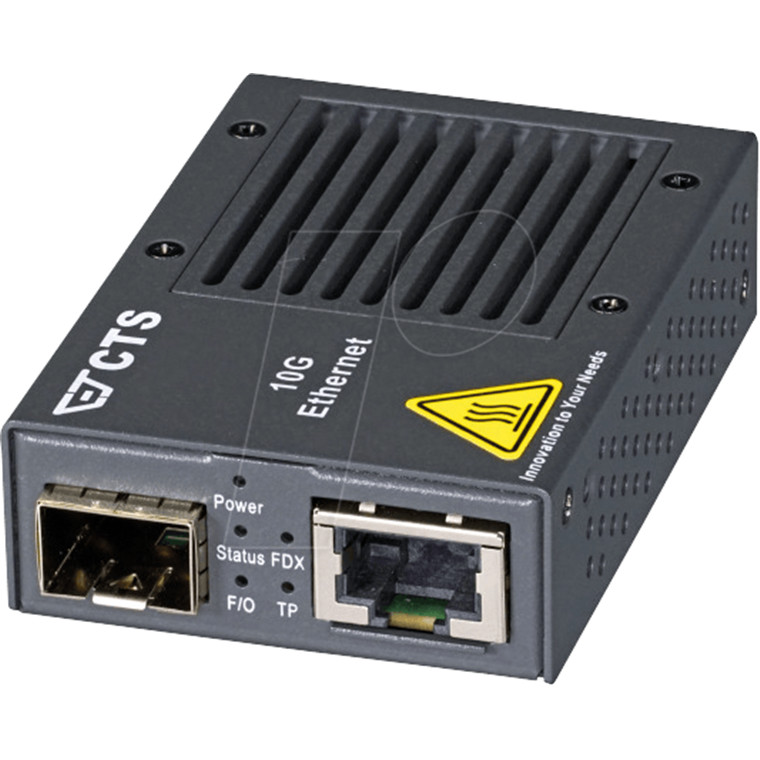

CTS MCT-5002SFPPLUS Compact 10G Ethernet Compact Media Converter

PB Tech price

AUD $ 533 .01

$ 533 .01

Out of stock

CTS MCT-5002SFPPLUS Compact 10G Ethernet Compact Media Converter

Brand: CTS
MPN: MCT-5002SFPPLUS
Part #: NETCTS0045
UPC:

PB Tech price

AUD $ 533 .01

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: CTS
MPN: MCT-5002SFPPLUS
Part #: NETCTS0045
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

CTS Compact 10G Ethernet Compact Media Converter

MCT-5002SFPPLUS is a 10G high-speed Ethernet media converter with IEEE 802.3bz 10G NBASE-T 5-speed (100M/1G/2.5G/5G/10G) Ethernet support, which is compatible with existing 1G network environment while upgrading to 2.5G/5G/10G without replacing current cabling infrastructure.

MCT-5002SFPPLUS supports one 10GBASE-R SFP+ optical interface, and it provides flexible options for 10GBASE-SR, 10GBASE-LR, 10GBASE-BR or 10G DAC (Direct Attached Cable) SFP+ transceiver.Owning to the compatibility with the transmission speed of the conversion, MCT-5002SFPPLUS in the best solution for upgrading your existing networking infrastructure through a wide range of 5 speed (100M/1G/2.5G/5G/10G) options.

Features:

- 1x 100M/1G/2.5G/5G/10G NBASE-T Auto-negotiation port
- 1x 10GBASE-R SFP+ Port
- Support Link alarm
- Support wire speed transplant
- support loopback mode in the fibre port that allows operators to use 3rd-party testing tools
- Comply with IEEE 802.3ae 10GBase-R: The SFP+ port supports multi-mode, single-mode, including CWDM/DWDM, or Direct Attached Cable (DAC).
- Comply with IEEE 802.3bz N-Base-T (Multi-Gigabit): The RJ45 port supports 100M/1G/2.5G/5G/10G 5 speeds and maximum distance is up to 100m.
- Jumbo frame & Transparent mode: Maximum MTU size up to 9K bytes also transparent to VLAN tagged packets.
- Loopback mode: Support loopback on 10G SFP+ interface, all frames received on loopback mode will be transmitted back.
- Link Alarm: Either Fiber or RJ45 when port link down is detected during operation, the other port will be automatically turned off to alert the user.
- Fully Compatible with MCT-RACK Chassis Series: Space-saving and budget-limited solution for MCT-RACK chassis series to mix the installation of MCT series converters.
- In Rack Management: Support CTS MCT-RACK management, it allows administrators to configure and monitor the slide-in media converters such as port speed, shutdown and SFP DDMIinformation.
- Full compatible with CTS MCT-RACK-12/MCT-RACK-18-MGM/MCT-RACK-2 chassis for in-rack management

Specifications

Interface

F/O Port (Type): 1x 10Gbps (SFP+)
TP Port (Type): 1x 100M/1G/2.5G/5G/10Gbps (RJ45)

Standards

IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3ae 10GBase-R
IEEE 802.3an 10GBase-T

H/W Specification

Jumbo frame: 9K Bytes

Auto

Auto-Cross Over for MDI/MDIX in TP Ports
Auto-Negotiation in TP Ports

Operation

Full/Half Duplex Mode Operation

LED

Power, TP Speed Link/Act, F/O Link/Act, Status, Duplex

Forward/Filter Rate

100M: 148,800/148,800pps
1G: 1,488,000/1,488,000pps
2.5G: 3,720,000/3,720,000pps
5G: 7,440,000/7,440,000pps
10G: 14,880,000/14,880,000pps

Ethernet Feature

DIP Switch

Power Requirement

AC to DC Power Adaptor
Input: 100V~240V AC, 50/60Hz
Input: 12V DC
Power Consumption: 8W

Environmental Condition

Operating Temperature: 0?~50?

Storage Temperature

-20?~60?

Humidity

5%~90%, non-condensing

Dimension

51x74x20mm (WxDxH)

Weight

0.13kg

EMC/Safety

FCC Class A, CE

Manufacturer Part No:

MCT-5002SFPPLUS

Brand:

CTS

Product Type:

UPC

Product Family:

Shipping Weight:

0.5 kg

PB Part No:

NETCTS0045

Product Model:

Warranty: 12 months *
