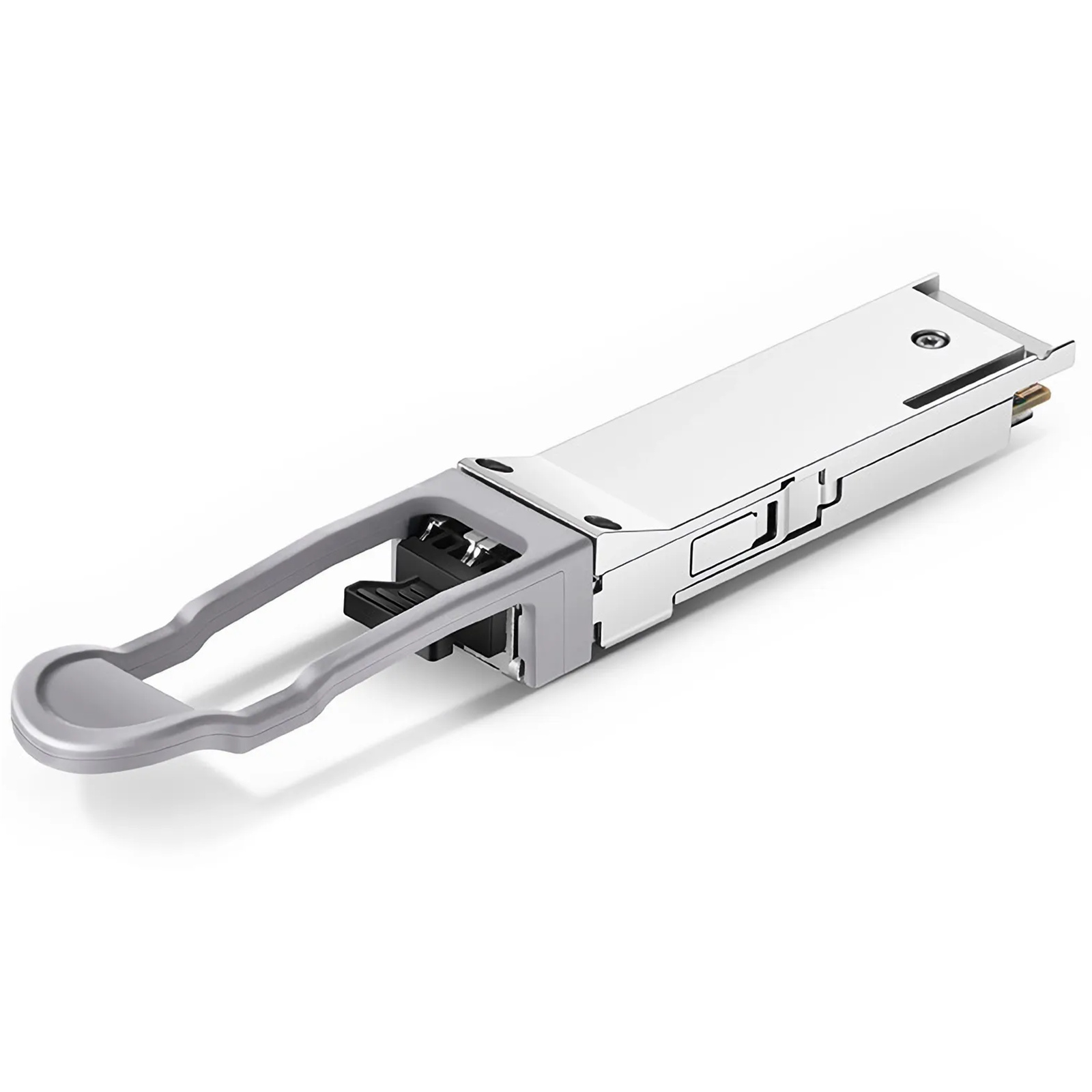

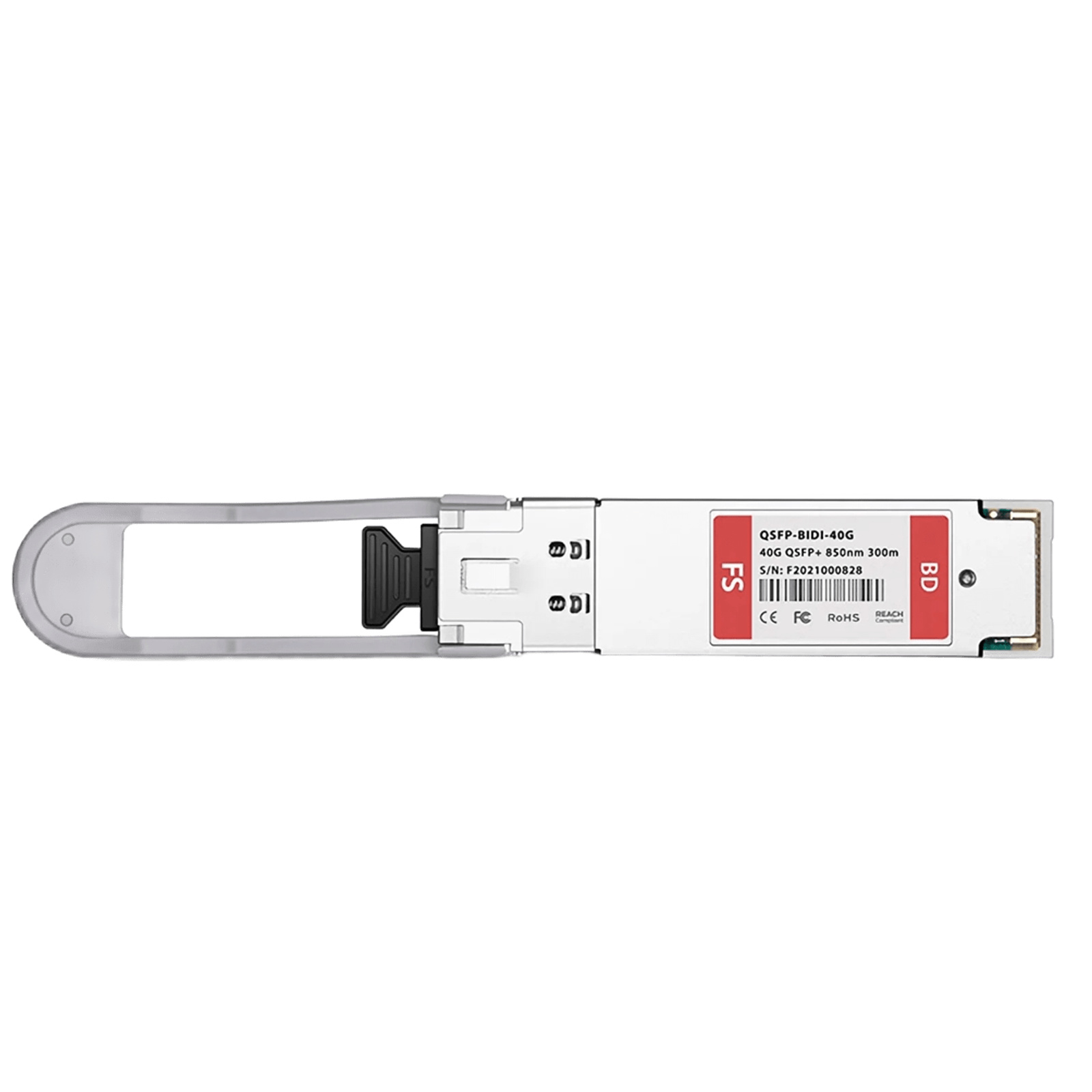

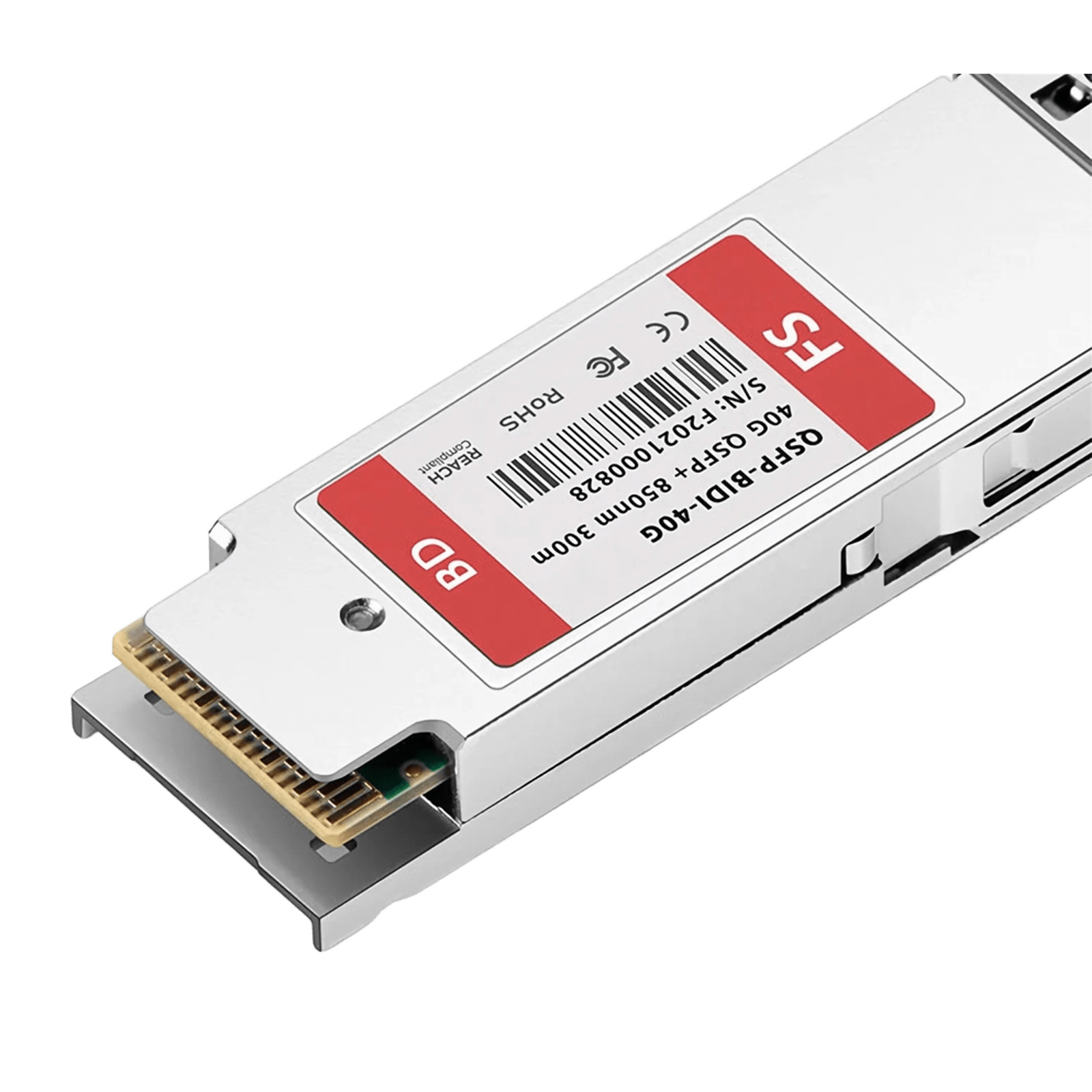

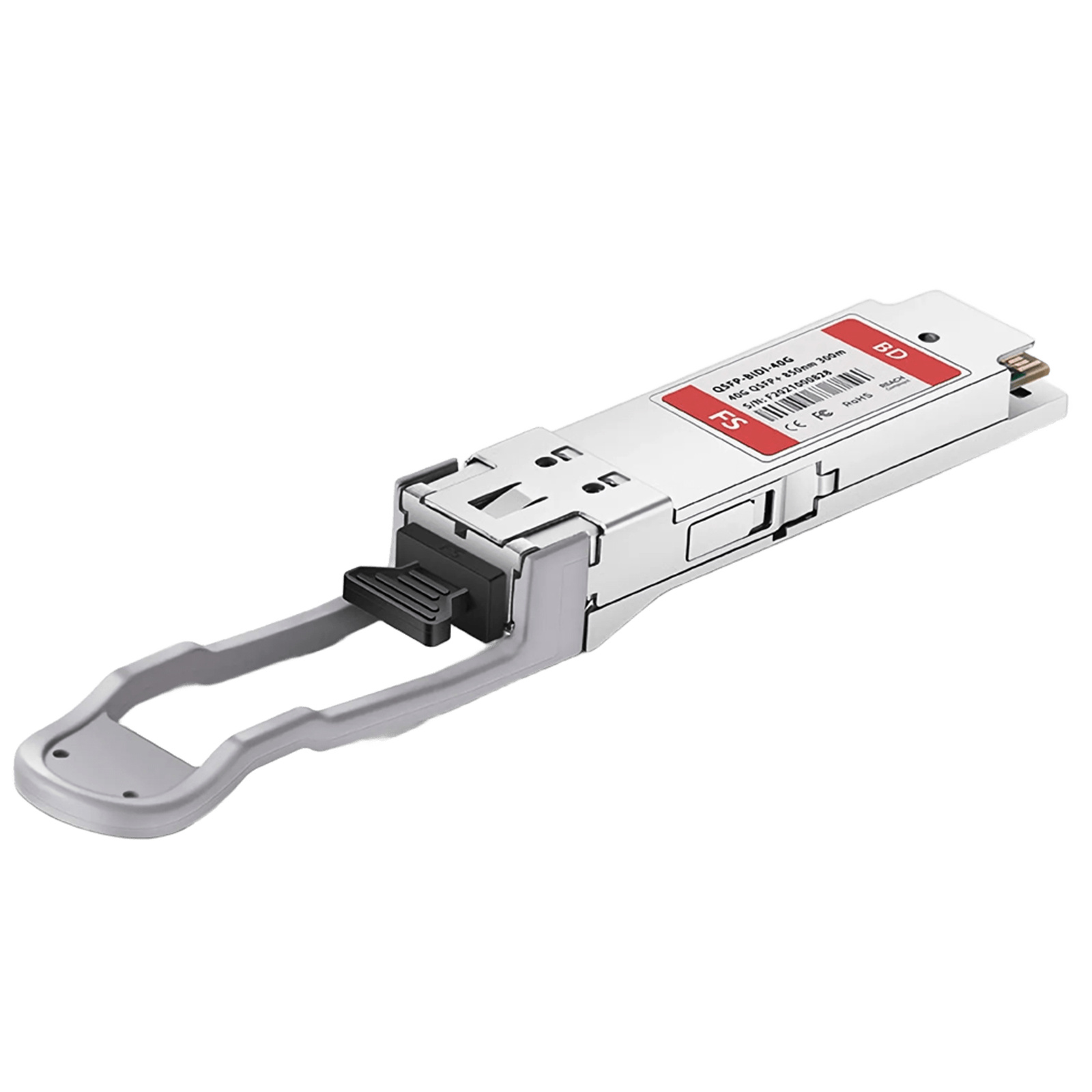

FS-135552 Cisco QSFP-40G-SR-BD Compatible 40GBASE-SR SWDM4 QSFP+ BiDi 850/880/910/940nm 300m DOM Duplex LC/UPC MMF Optical Transceiver Module

Cisco QSFP-40G-SR-BD Compatible 40GBASE-SR SWDM4 Bi-Directional QSFP+ Optical Transceiver Module (MMF, 850/880/910/940nm, 300m, LC, DOM)

The Cisco Compatible 40GBASE SWDM4 Bi-Directional QSFP+Transceiver is designed for use in 40 Gigabit Ethernet links over duplex multimode fibre (MMF). This transceiver is compliant with the QSFP+ MSA and IEEE 802.3ba XLPPI electrical interface. The SWDM4 transceiver enables reuse of its existing 10G duplex MMF infrastructure for migration to 40G with a path toward 100G. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parametres. It features a bi-directional design with the Tx port transmitting 40G data over four separate wavelengths (850nm, 880nm, 910nm, and 940nm).

With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 40G Ethernet and Enterprise Data Center.

- Built-in Macom Chip, Max. Power Consumption 3.5W
- Upgrade from 10G to 40G with a path to 100G Using the Existing Fiber Infrastructure
- 4x 10Gb/s 850nm VCSEL-based Transmitter
- Tested in Targeted Switches for Superior Performance, Quality, and Reliability
- Hot Pluggable QSFP+ Compliant to MSA and SFF-8436
- Class 1 Laser Safety
- Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

Note: FS QSFP-BIDI-40G transceiver must be interoperable with FS QSFP-BIDI-40G transceiver.

Seamless Upgrade to 40G/100G Network

40/100G SWDM4 BIDI offers data centre operators a compelling solution that enables reuse of their existing 10G duplex MMF infrastructure for migration to 40G with a path toward 100G.

Leading Performance and Quality for 40G

Built-in Macom Chip, the QSFP+ BiDi transceiver offers high-speed, and low-power in 40G links. Equipped with individually designed COB packaging.

- Inphi Macom Chip: Stable Transmission
- ≤3.5W: Low Power Consumption
- COB Packaging: High Integration

40G Connectivity for Data Center

The 40G SWDM4 can achieve 40G short-range transmission through duplex LC like 40G SRBD. But quad-band SWDM4 will not interoperate with dual-wavelength SRBD.

Tested in Host Devices for Proven Interoperability

Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

Comprehensive Testing Increases Reliability

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.

- Optical Spectrum Test: No Packet Loss & CRC
- Eye Pattern Test: Mask Margin >20%
- Bit Error Rate Test: BER 1E-12
- Temperature Test: 0~70°C

Certifications

Fully certified to meet strict international safety and quality standards for the industry.
