StarTech.com ICUSBAUDIO2D USB Sound Card Audio Adapter w/ SPDIF

PB Tech price
PB Tech price
NZD $ 67 .85
$ 67 .85
$67.85  +GST
$67.85

StarTech.com ICUSBAUDIO2D USB Sound Card Audio Adapter w/ SPDIF

  • Brand: StarTech.com
  • MPN: ICUSBAUDIO2D
  • Part #: ADPSTT2485383
  • UPC: 065030852296
3
PB Tech price
NZD $ 67 .85 $ 67 .85
In stock at NZ Logistics Centre
Delivery: Order now and it ships on 09 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$67.85  +GST
$67.85
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: StarTech.com
  • MPN: ICUSBAUDIO2D
  • Part #: ADPSTT2485383
  • UPC: 065030852296

Colour

Black

View full specs
Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"Works nicely, small, flawless install in win 11. Only thing not documented is that the SPDIF output is coax, no Toslink."

JV
By: JimV2 12/06/23
Verified Owner

"Much easier to install with the raspberry pi 4 than I expected. Much improved sound now."

G
By: Guest 19/12/19

"Product arrived quickly and works well. My mistake I realized I needed a mini toslink to connect into the 3.5mm jack instead of the digital RCA cable I have.
Returned product for ...view more"

RS
By: RussellS34 11/10/19
Verified Owner

Features

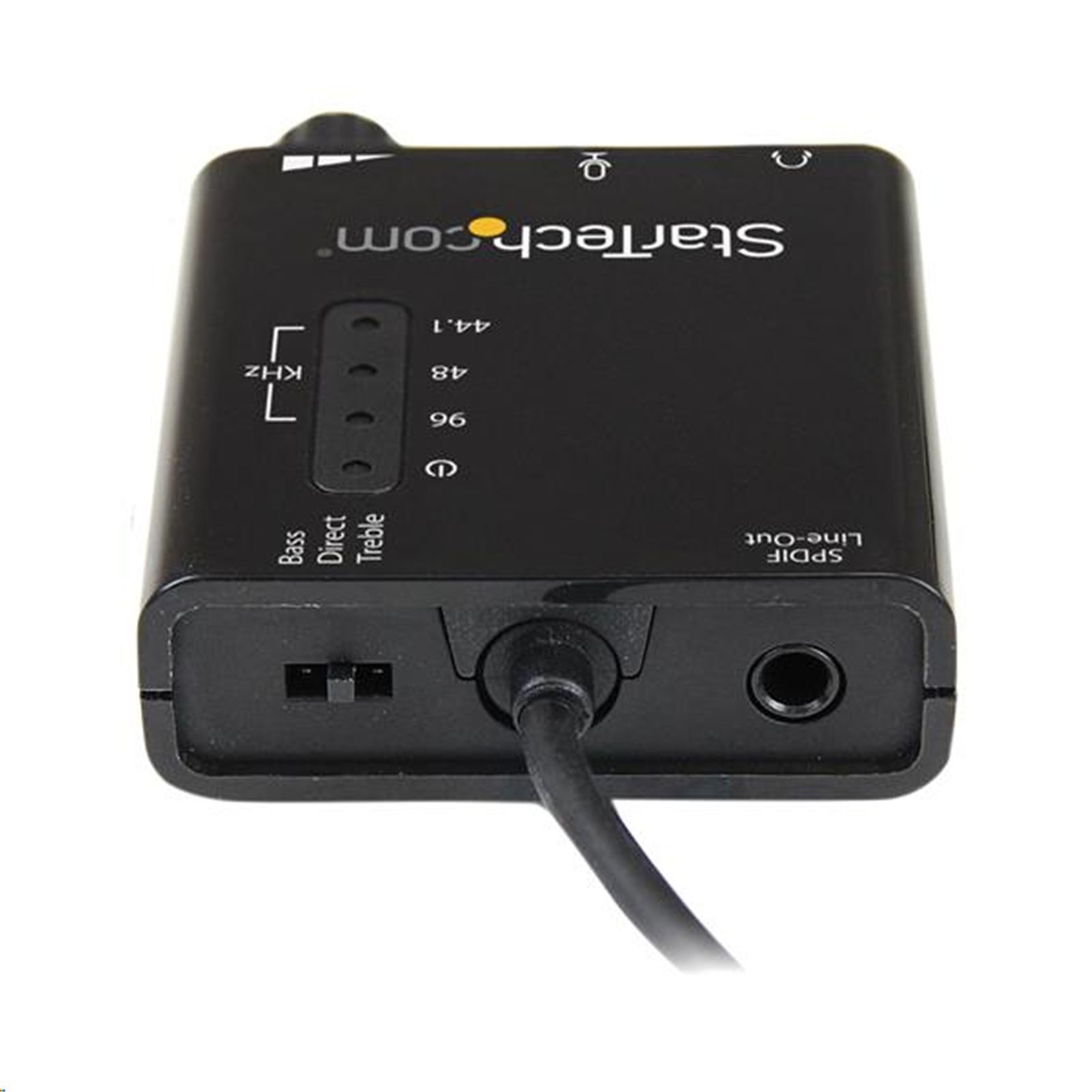

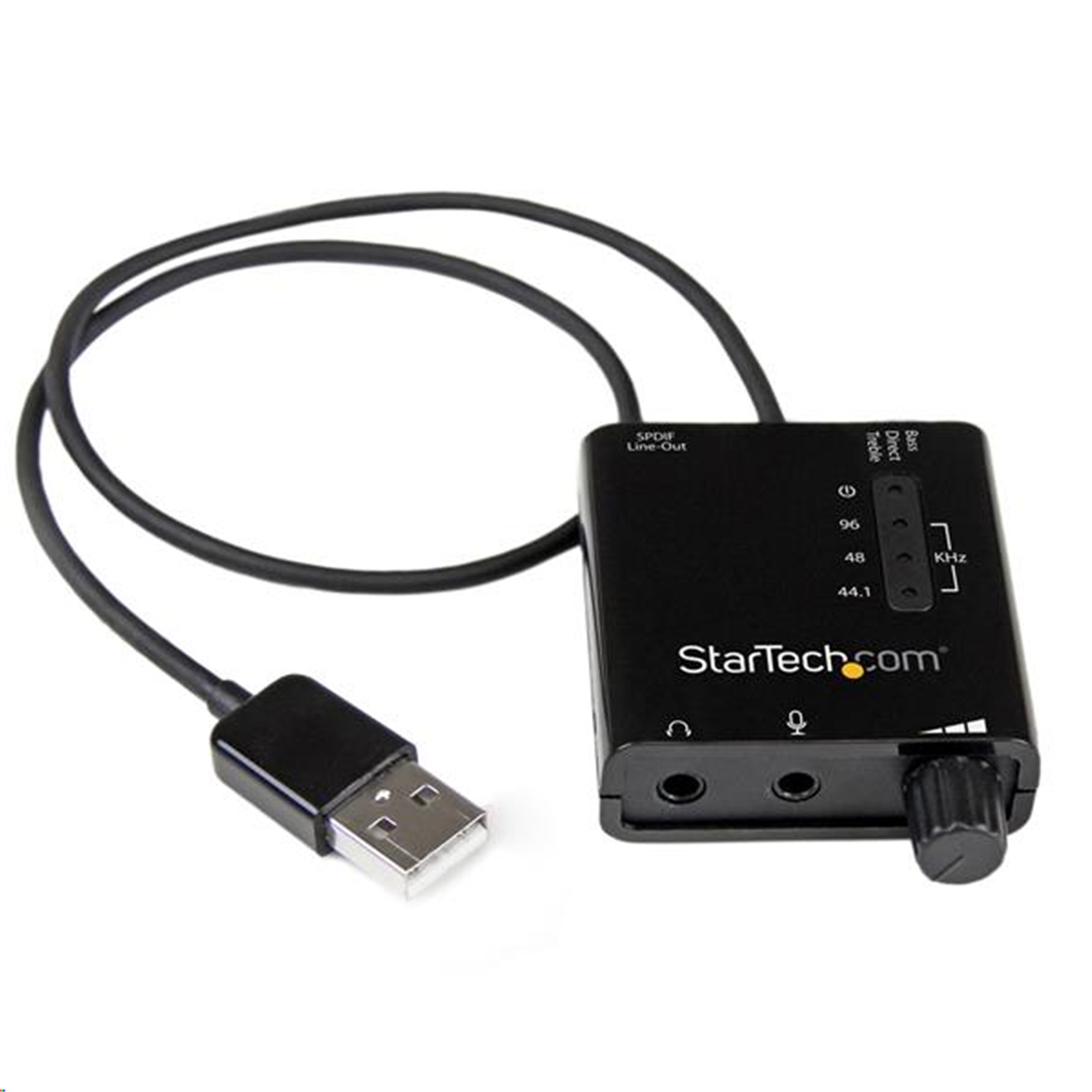

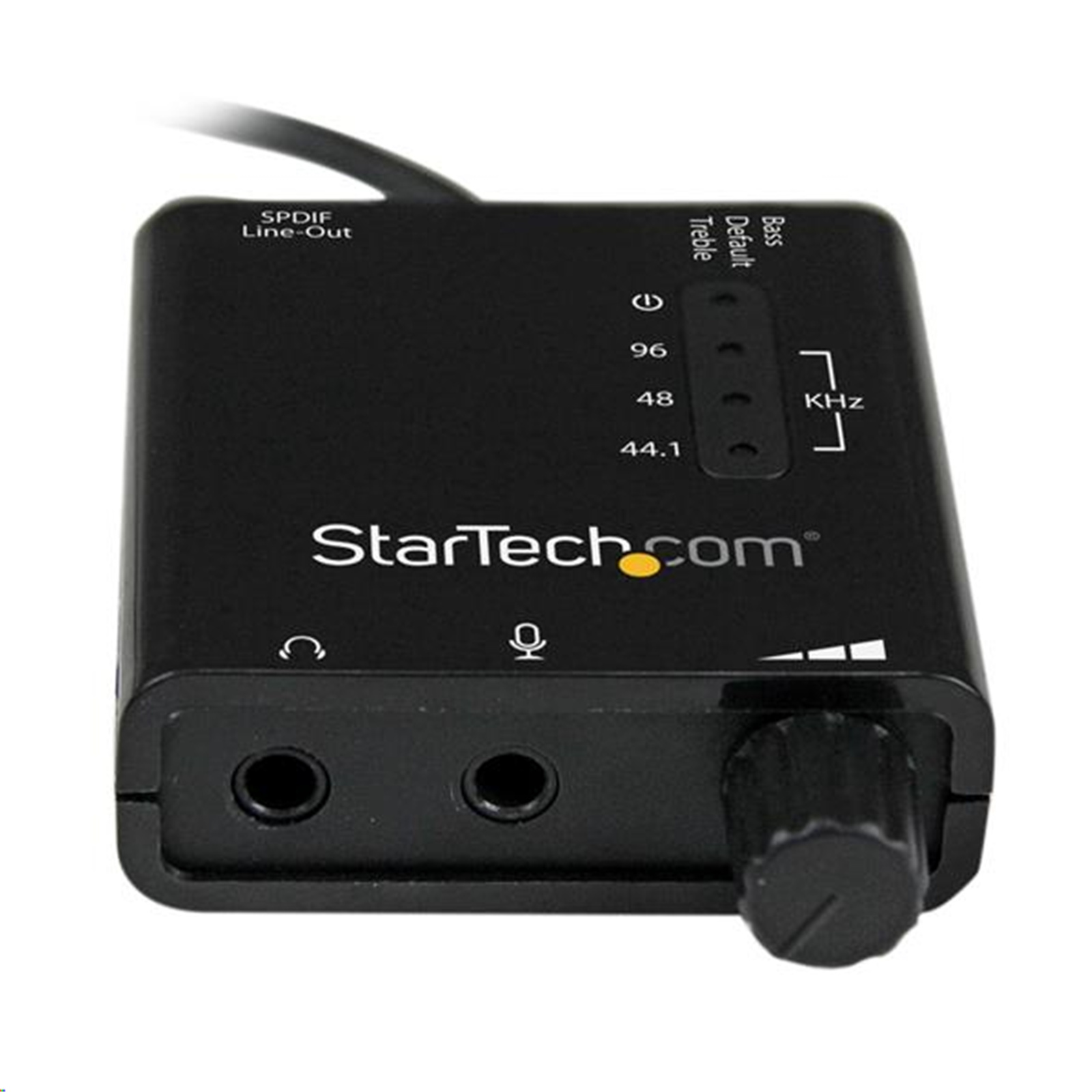

The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case. For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3) and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only). This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage

- Add home-theater surround sound support with the integrated digital S/PDIF output
- Replace an internal sound card easily with a compact external USB device
- Adjust sound output easily with external volume and EQ controls

Specifications

Hardware

Bus Type
USB 2.0
Chipset ID
VIA - VT1630A

Performance

Audio Specifications
96 KHz / 24-bit Sample Rate
Approx 91dB SNR (A-weighting)
16-100ohm Headphone Drive Ability

Connector(s)

Connector Type(s)
1 - 3.5 mm Mini-Jack (3 Position) Female
1 - 3.5 mm Mini-Jack (4 Position) Female
1 - 3.5mm Mini-Toslink (SPDIF, Optical) Female
1 - USB Type-A (4 pin) USB 2.0 Male

Software

OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS X® 10.6 to 10.8

Indicators

LED Indicators
1 - Power
3 - Playback / Recording sample rate

Power

Power Source
USB-Powered

What's in the Box

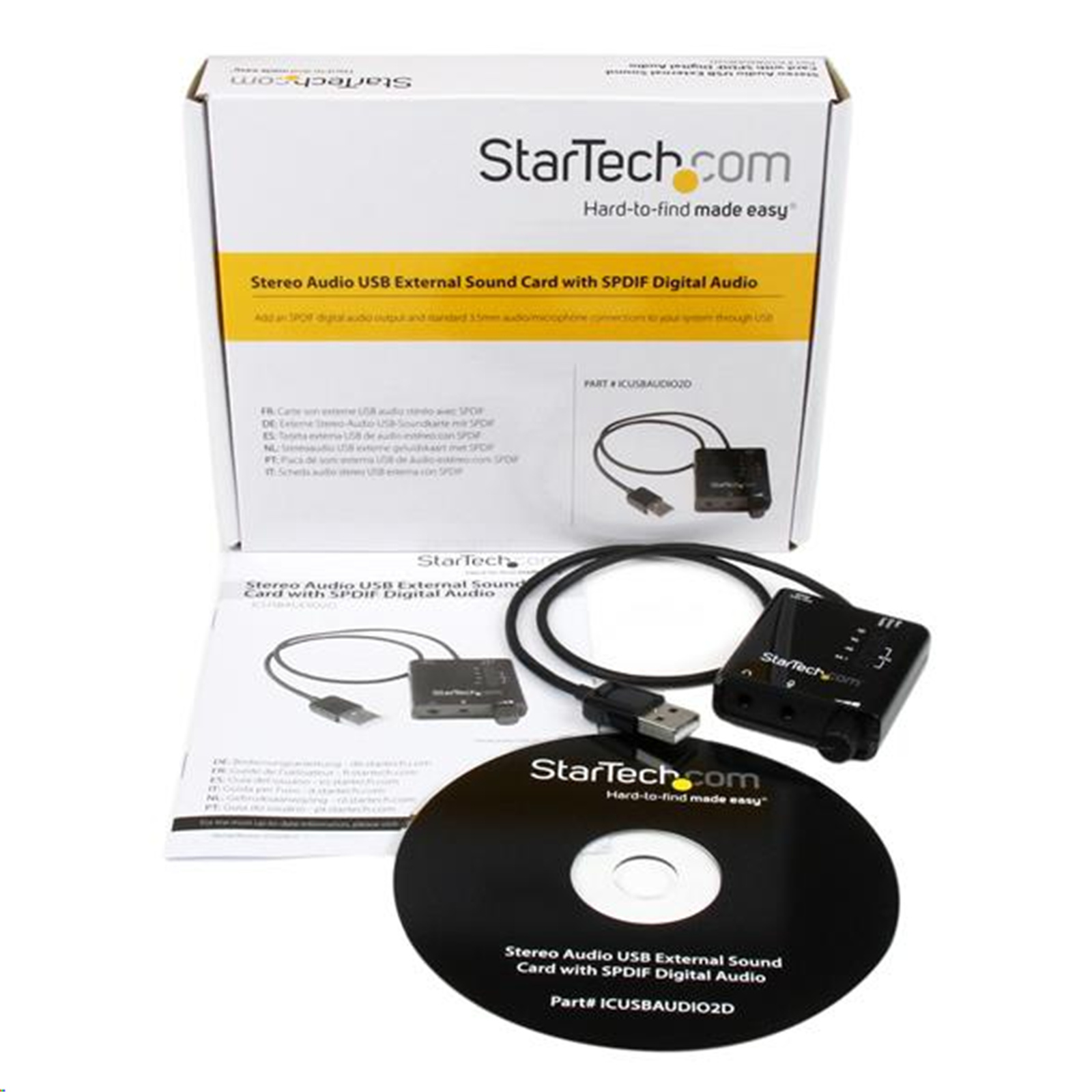

Included in Package
1 - USB Stereo Audio Adapter
1 - Software CD
1 - Instruction Manual

Manufacturer Part No:
ICUSBAUDIO2D
Brand:
StarTech.com
Product Type:
-
UPC
065030852296
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
ADPSTT2485383
Product Model:
ICUSBAUDIO2D
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.3 out of 5 Stars Based on 3 reviews
5 Stars
1
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
write a review
learn more

Does the job, painless install

Works nicely, small, flawless install in win 11. Only thing not documented is that the SPDIF output is coax, no Toslink.

JV
By: JimV2 12/06/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Easy to use good sound

Much easier to install with the raspberry pi 4 than I expected. Much improved sound now.

G
By: Guest 19/12/19
0 out of 0 users found this review helpful
Did you find it helpful?

Great service

Product arrived quickly and works well. My mistake I realized I needed a mini toslink to connect into the 3.5mm jack instead of the digital RCA cable I have.
Returned product for full refund even though not an ordered, not regularly sold item!

RS
By: RussellS34 11/10/19
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
