Phanteks Nexlinq Controller hub Hassle-Free Fan & Lighting Control
- Brand: Phanteks
- MPN: PH-NLHUB_01
- Part #: CAAPHA1117
- UPC:886523600428

Product URL: https://www.pbtech.com/pacific/product/CAAPHA1117/Phanteks-Nexlinq-Controller-hub-Hassle-Free-Fan--L?qr=popular_related_products
Features
NexLinq Hub - Hassle-Free Fan & Lighting Control
With the Phanteks Nexlinq Hub and Windows App, fan and lighting control becomes a breeze. Designed to be highly compatible with multiple input and control options such as the Phanteks Nexlinq Windows App, Mainboard or Windows Dynamic Lighting, users can decide how they want to control their fans and lighting in their system. Equipped with several output ports, the Nexlinq Hub can connect a broad range of fans and lighting accessories, allowing for precise RPM and lighting adjustments across the system.
The Phanteks Nexlinq Windows App is a very lightweight application taking very little resources yet presents a comprehensive overview of core system stats and powerful fan control settings. Users can automate fan RPMs through either automatic or manual PWM curves, based on CPU or GPU temperatures or whichever is higher. The lighting effects have been carefully curated to offer a wide range of tastefully executed options to personalize your build.

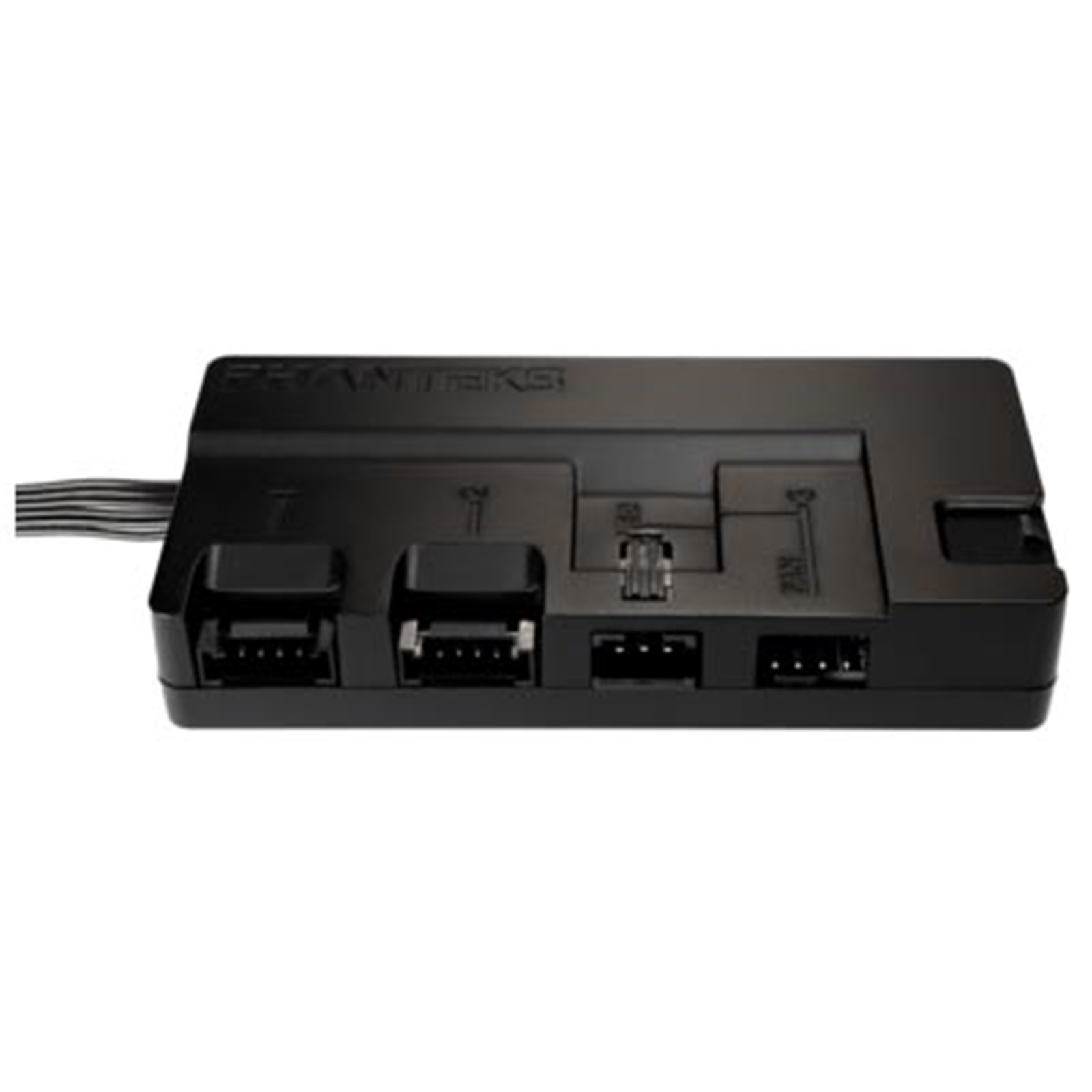

Multiple Output Ports
- Three seperate channels for flexible routing and connecting possibilities.
- Supports both LINQ6 and legacy products.
- Additionally use the mainboard adapter to sync all NexLinq products with third-party software.
NexLinq Hub Ecosystem

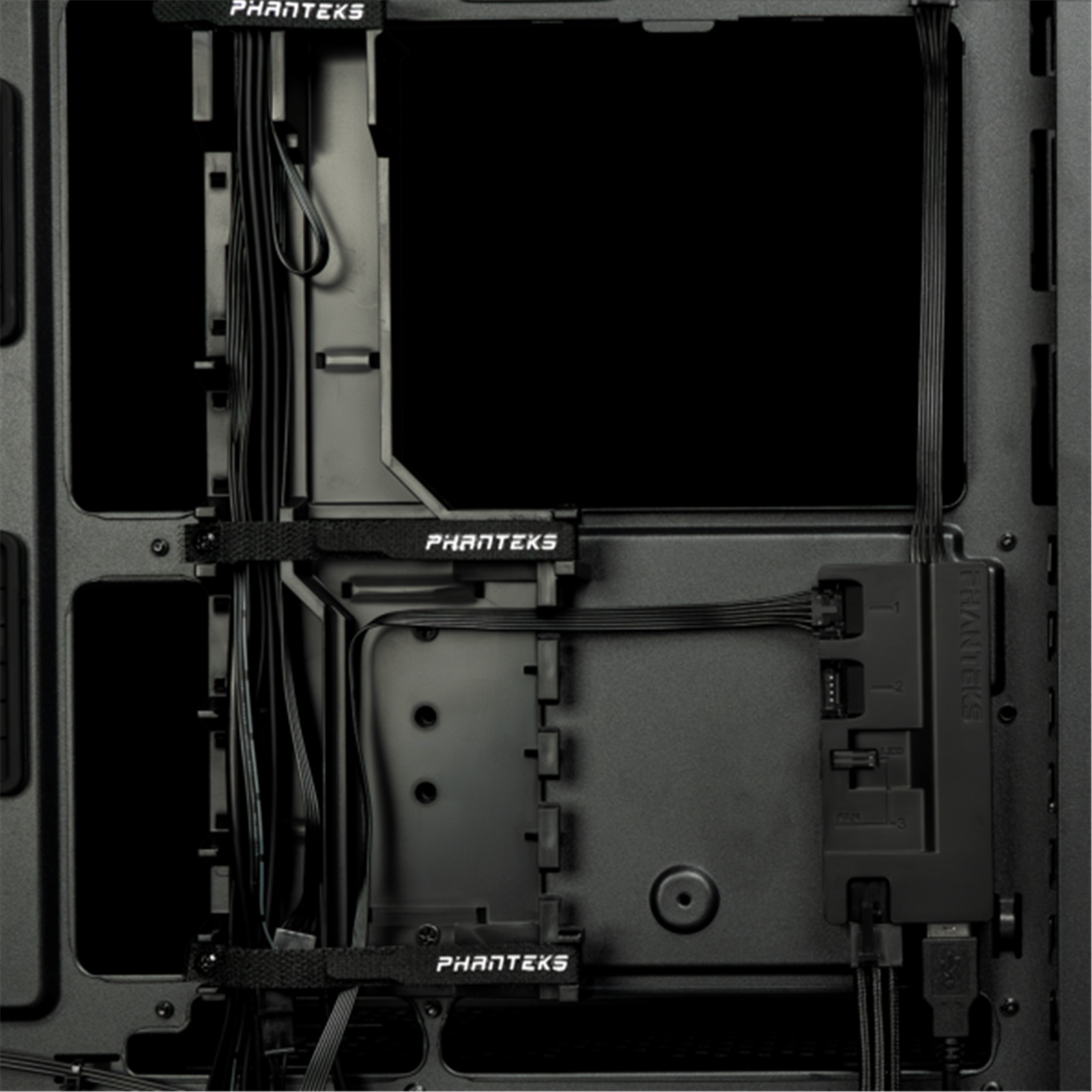

- Clean cable management, connect and control all fans easily with minimal cable usage.
- Connect intake fans on a separate channel to make the fan speed dependent on GPU temperature for optimal cooling performance.
- Create separate groups of connected fans or daisy-chain all fans together onto one single channel.
NexLinq Software
- The Nexlinq HUB makes both lighting and fan control a breeze with its lightweight software.
- Show the important stats of the hardware in one clean and simple to understand overview.
- Easily adjustable fan curves to create the perfect cooling environment.
- Multiple output ports to power a vast array of fan and lighting products.
- A wide range of tastefully executed lighting effects available.
- Highly compatible platform with support for Mainboards and Windows Dynamic Lighting input.
Specifications
General
Model No.
PH-NLHUB_01
Controller Hub Dimensions
94.5 x 45 x 18 mm | in
Materials
PC+ ABS_AC3100
Mounting
Magnet or Velcro Strip
Input Power Rating
12VDC | 9A
Input Rated Power
108W
Input Sources
Linq6 Mainboard Input
USB Nexlinq App
USB Windows Dynamic Lighting
Output Connector
Port 1 & 2 | Linq6 Connectors
Port 3 | 4-PIN PWM & DRGB 3-PIN JST
Output Rated
12VDC | 1.5A (Per port)
5VDC | 3A (Per port)
Output Rated Power
100W total
Extra
Net Weight
58.1 ± 5 g | 10.24 ± 0.17 oz
Gross Weight
168.5 ± 5 g | 5.94 ± 0.17 oz
Scope of Delivery
1x Nexlinq controller hub
1x USB 2.0 cable 600 mm
1x Linq6 Mainboard adapter 500 mm
1x Linq6 Output adapter 500 mm
1x Velcro strip 670 x 30 mm
