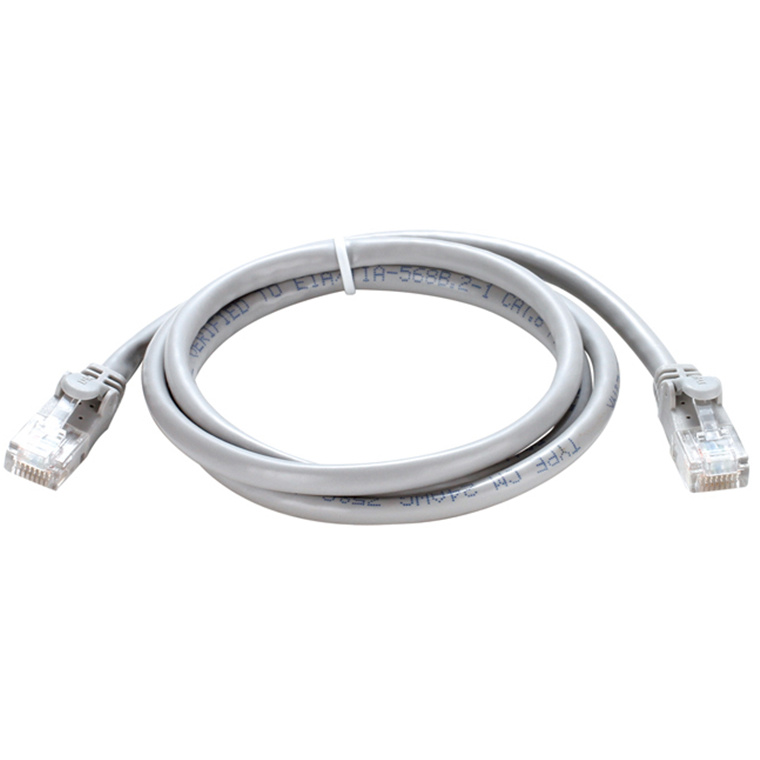

D-Link Cat6 UTP Patch Cord - 5m - Grey
- Brand: D-Link
- Part #: CABDLK170500
- UPC:754523501543

Product URL: https://www.pbtech.com/pacific/product/CABDLK170500/D-Link-Cat6-UTP-Patch-Cord---5m---Grey?is-review=1&qr=similar-w
Features
D-Link provides the best quality twisted-pair cable to transmit data through a local area network (LAN). This cable has passed the performance requirements specified by the TIA / EIA-568B.2, TIA / EIA-568C.2 and IEC 60603-7-4 standards.
Streaming video and multimedia over LAN is increasingly popular, users need faster data transfers and short waiting times. The D-Link cable is ideal for simple, cost-effective and high-speed transmission performance. Supports a higher signal-to-noise ratio, providing better reliability for current applications and higher data rates for future applications.
CAT6 cables reduce crosstalk interference and system noise levels with 24 AWG insulation for copper cables which can increase performance. Can transmit data at 1000 Mbps (~ 1 Gigabit per second) with a frequency of 250 MHz and is suitable for 10BASE-T, Fast Ethernet 100BASE-TX and 1000BASE-T / 1000BASE-TX (Gigabit Ethernet) applications
Specifications
Cable
4 Unshielded Twisted Pair (UTP)
Metal Conductor
Made of solid copper
Color Code
Gray
Patch Cord Cable Length
5 Meters
Maximum Data Transmission
1 Gbps
Conductor Size
24 AWG
Insulation Material
HD-PE
Cable Protective Jacket Material
PVC UL94V-0
Gold plated
30U "
Contact blade
Phosphor Bronze
Temperature range
-10 ~ 80C
Dielectric voltage withstanding
500V AC
Insulation resistance
35M Ohm (max.)
Durability
750 matching cycles
Cable-to-plug tensile strength
20lbs (89N) (min.)
UL applications
250V AC, 2A (max.)
Polycarbonate (PC)
UL94-V-0
Certification
UL 444 (for copper conductors)
UL 758 Style 2835
UL 1581 (Test standard)
Verified supports TIA / EIA-568C.2 standards by ETL, CUL listed, RoHS
