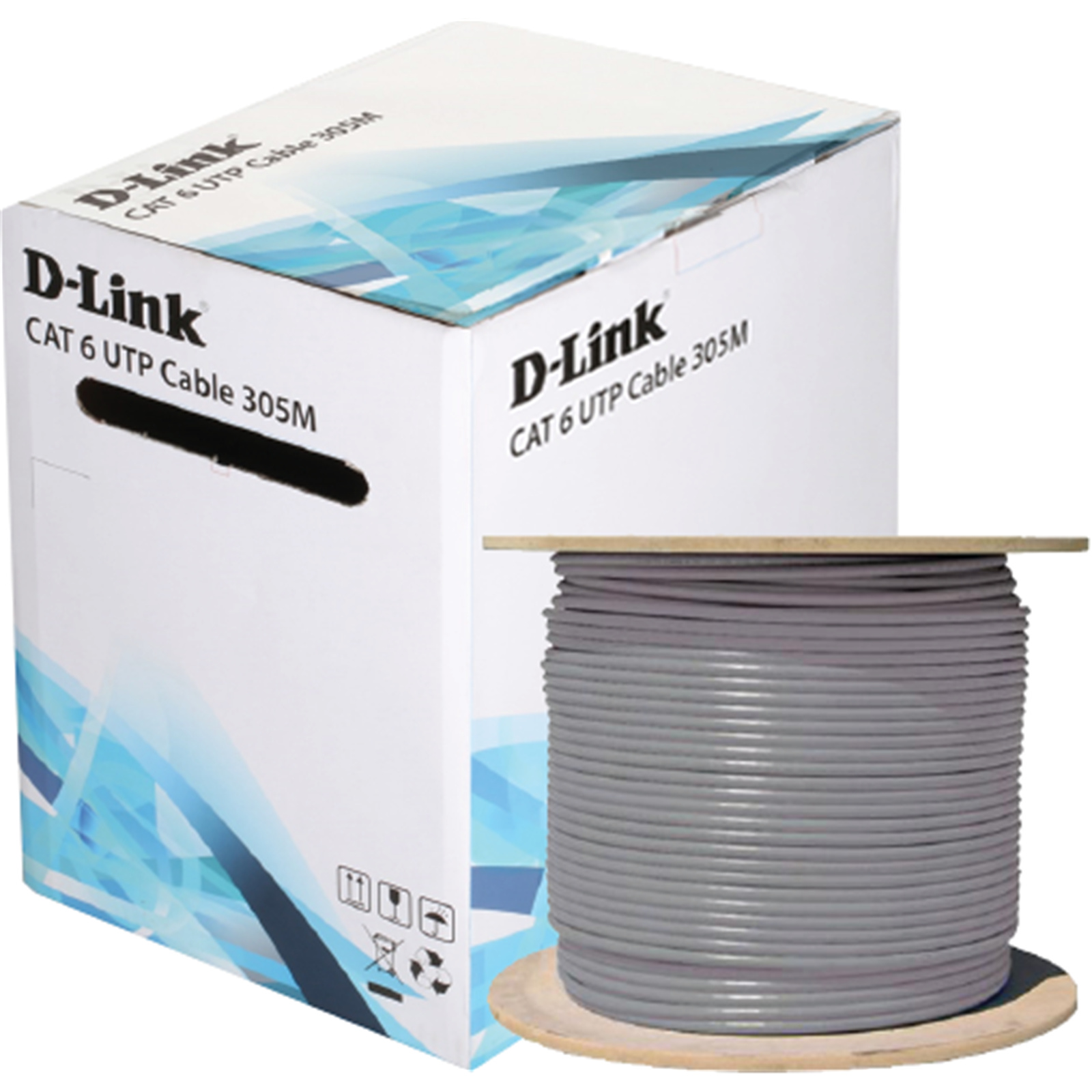

D-Link Cat6 UTP Solid Networking Cable - 305m - Grey
Full Copper - 250MHz - 23AWGx4P
D-Link Cat6 UTP Solid Networking Cable - 305m - Grey
Full Copper - 250MHz - 23AWGx4P
- Brand: D-Link
- Part #: CABDLK811353
- UPC: 790069357145
- Brand: D-Link
- Part #: CABDLK811353
- UPC: 790069357145
COMBO DEALS: Buy Together and SAVE!




$42.11
$42.11
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network & Telephone Cables





D-Link Cat6 UTP Solid Networking Cable - 305m - Grey Full Copper - 250MHz - 23AWGx4P
- Brand: D-Link
- Part #: CABDLK811353
- UPC:790069357145

Product URL: https://www.pbtech.com/pacific/product/CABDLK811353/D-Link-Cat6-UTP-Solid-Networking-Cable---305m---Gr?qr=similar-no-stock
Features
Professional Series CAT6 (UTP) 23AWG Grey Color, Easy Pull Box, 305m Box cable
- Category 6 Compliant TIA/EIA 568-C.2EN50173ISO IEC 11801
- Bare Copper
- Carton Packaging/Wooden Reel
- PVC
- Length 100M/305M/500M
- Unscreened Construction Specified to 250Mhz
D-Link provides the highest quality cable to transmit data through a local area network (LAN). This cable has exceeded the performance requirements specified by the TIA / EIA-568C.2, 568-D.2, EN50173 and ISO IEC 11801 standards. Using carton packaging / wooden reel making it an environmentally friendly product.
Streaming video and multimedia over LAN is increasingly popular, users are demanding faster data transfers and short waiting times. D-Link cables are ideal for simple, cost-effective and high-speed transmission performance. Providing better reliability for current applications and higher data rates for future applications.
CAT 5E and Cat 6 cables reduce crosstalk interference and system noise levels with insulation for copper cables will increase performance. Can transmit data at 1000 Mbps (~ 1 Gigabit per second) suitable for Fast Ethernet and Gigabit Ethernet) applications. CAT 6A support transmit data 10 Gb/s make it suitable for high speed network link such as data center or server connections. CAT 5E and CAT 6 Cable conductor material made from solid bare copper and jacket material from PVC by insulation HDPE. CAT 6A cable jacket support LSZH that contain the flame-retardant compound.
Specifications
Conductor
Size
23AWG
Material
Solid Bare Copper
Nom. O.D/mm
0.540 ± 0.02 mm
Insulation
Material HDPE
Nom. O.D/mm 0.96± 0.05 mm
Minimum Thickness
0.21 mm(REF)
Color
1P. White & Brown / Brown
2P. White & Blue / Blue
3P. White & Orange / Orange
4P. White & Green / Green
Filler
Material
RIP CORD
Construction
3*250D
Central Element
O.D
4.80 (REF)+CROSS
Jacket
Outer Sheath
PVC
Average Thickness
0.50± 0.05 mm
Overall Diameter
5.80± 0.20 mm
Color
Grey
