Panasonic VL-VC3535BX Door Station Passive POE
- Brand: Panasonic
- MPN: VL-VC3535BX
- Part #: CAMPAN3535

Product URL: https://www.pbtech.com/pacific/product/CAMPAN3535/Panasonic-VL-VC3535BX-Door-Station-Passive-POE?qr=popular_related_products
Features

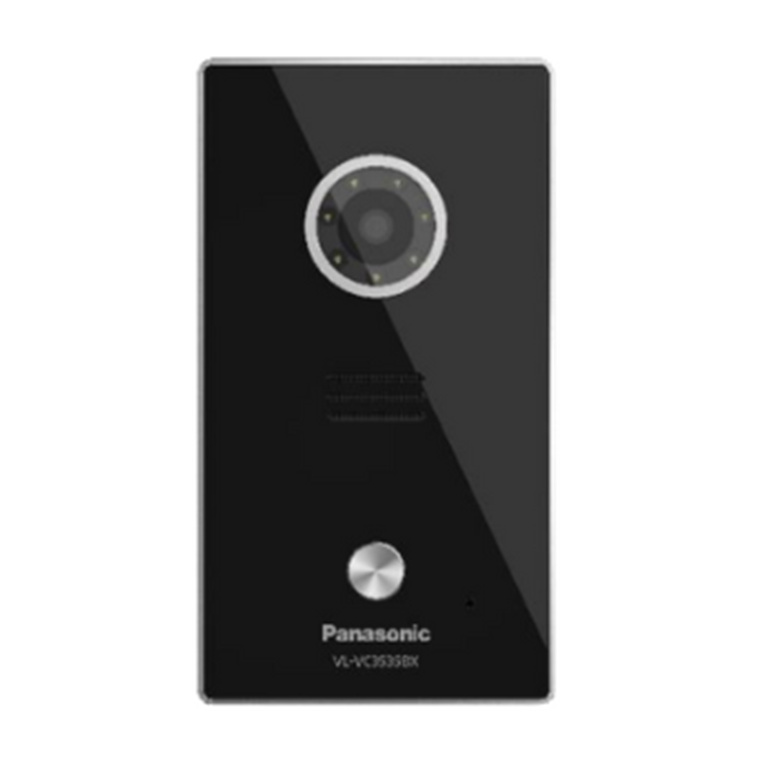

Panasonic Door Station (VL-VC3535BX)
- Camera: 2.0MP CMOS sensor (1/2.7")
- Video Quality: 1920 × 1080 pixels (Full HD)
- Illumination: Built-in IR night vision
- Audio: Noise reduction & echo cancellation
- Power Supply: PoE (IEEE 802.3af) or DC 12V
- Weather Resistance: IP55 (dust and water resistance)
- Impact Protection: IK08 (vandal-resistant)
- Installation: Wall-mount or flush-mount options
- Features:
- Live monitoring & two-way communication
- Motion detection and auto-recording
- QR code-based easy setup with mobile app
- Live monitoring & two-way communication
- Motion detection and auto-recording
- QR code-based easy setup with mobile app
- Video intercom: video communication, remote unlock.
- Vandal-resistant: If someone move the device, device will send alarm information to guard unit and software management
- Leave message: Visitor can leave a voice message with a photo
- External device: Access Controller, access Control Reader, Elevator Controller
- Web configuration: engineer can set parameters on webpage
- Support 2 locks: First lock connect to outdoor unit directly
- Elevator control: call elevator, control elevator (3rd Party Option)
Specifications
Basic information
Color
Black
Dimension
93mm*168mm*32mm
Embedded Box Dim
75mm*150mm*50mm
Material
AL+ Tempered glass
Installation
Flush mount
Parameters
Max consumption
=6W
Min consumption
=3W
Operation system
Linux
Color camera
2M pixels
Operation
Mechanical button
Voltage
12~24VDC±10%
Working Temp
-40°C~70°C
RAM
64MB
Flash
16MB
IP grade
IP54
Port
RJ45
Protocol
TCP/IP
Audio and video codec
G.711/H.264
