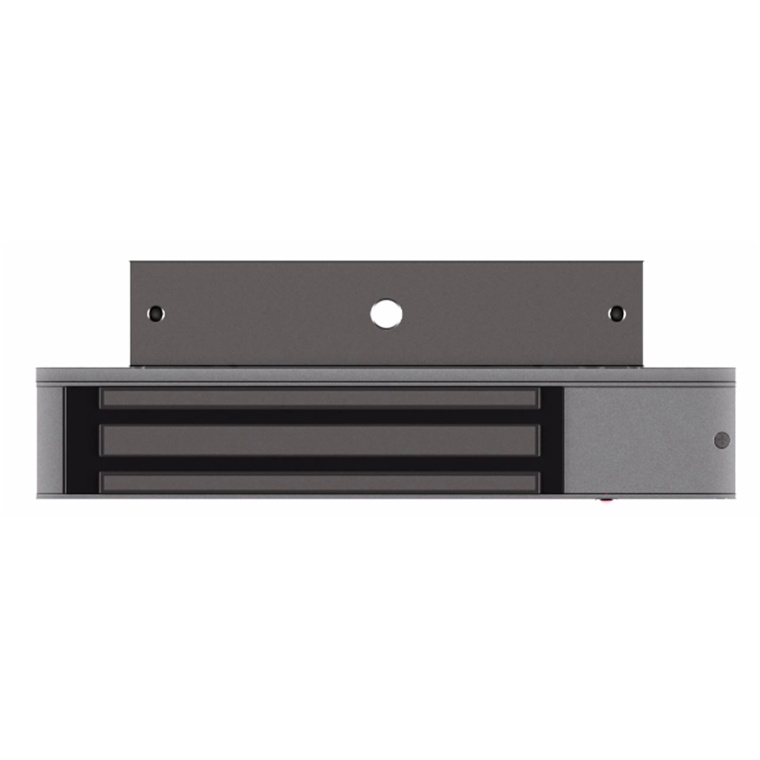

Ubiquiti UniFi Access Fail-Safe Magnetic Lock (Holds up to 270 kg)
Ubiquiti UniFi Access Fail-Safe Magnetic Lock (Holds up to 270 kg)
- Brand: Ubiquiti
- MPN: UA-Lock-Magnetic-270kg
- Part #: CCTUBI8007
- UPC: 810010076502
- Brand: Ubiquiti
- MPN: UA-Lock-Magnetic-270kg
- Part #: CCTUBI8007
- UPC: 810010076502
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Locks





Ubiquiti UniFi Access Fail-Safe Magnetic Lock (Holds up to 270 kg)
- Brand: Ubiquiti
- MPN: UA-Lock-Magnetic-270kg
- Part #: CCTUBI8007
- UPC:810010076502

Product URL: https://www.pbtech.com/pacific/product/CCTUBI8007/Ubiquiti-UniFi-Access-Fail-Safe-Magnetic-Lock-Hold?qr=popular_related_products
Features
Ubiquiti UniFi Access Fail-Safe Magnetic Lock
Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.
- Holds up to 270 kg
- Can be installed on a wide variety of door types* (all types including full glass)
Specifications
Brand
Ubiquiti
MPN
UA-Lock-Magnetic-270kg
Enclosure material
Device/brackets
Aluminum
Armature
Steel
Dimensions
Lock body
250 x 42.5 x 26 mm(9.8 x 1.7 x 1" )
Install plate
250 x 25x 5 mm (9.8 x 1 x 0.2" )
Armature
185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4")
Weight
Lock body
1 kg (2.2 lb)
Install plate
70 g (0.15 lb)
Armature
600 g (1.3 lb)
Hardware
Voltage
12V DC
Current power
800mA ±10%
Wiring connection
Connect below terminals to UA-Hub:
Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub)
Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub)
DPS/+ (DPS+ on UA-Hub)
DPS/-(DPS-onUA-Hub)
Lock type
Fail safe lock
Single door
Holding force
270 kg (600 lb)
LED
Green: unlocked
Red: locked
Suitability
Wooden/metal/glass door
Mounting accessories
L bracket : door thickness < 42 mm (< 1.7"), outward opening door
Z bracket: used with L bracket for inward opening door
U bracket: used with glass door
Environmental conditions
Ambient operating temperature
-10 to 50° C (14 to 122° F)
Ambient operating humidity
5 to 90% noncondensing
Certifications
Certifications
FCC, IC, CE
