Ubiquiti UniFi Protect UP-SuperLink Wireless Gateway for UniFi Protect Sensors

PB Tech price

NZD $ 289 .54

$ 289 .54

Ubiquiti UniFi Protect UP-SuperLink Wireless Gateway for UniFi Protect Sensors

Brand: Ubiquiti
MPN: UP-SuperLink
Part #: CCTUBI81009
UPC: 810084696347

PB Tech price

NZD $ 289 .54

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 09 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: UP-SuperLink
Part #: CCTUBI81009
UPC: 810084696347

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The UP-SuperLink is a proprietary, long-range, low-latency wireless gateway designed to extend connectivity across large areas for the upcoming UniFi Protect SuperLink Sensors. It supports both Bluetooth 5.2 and a custom sub-GHz SuperLink protocol, offering versatile, reliable sensor networking.

Device Capacity: Supports up to 96 proprietary SuperLink sensors + up to 7 legacy UP-Sense (BLE) sensors simultaneously.

Low Latency: Built for fast response times suited to security, alarms, and real-time automation.

Power Efficiency: Sub-GHz design enables multi-year battery life in endpoint sensors.

Deployment

Specifications

Mechanical

Dimensions

With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1")
With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5")
With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2")

Weight

179 g (6.3 oz)

Enclosure material

Polycarbonate, aluminum alloy

Mount material

Polycarbonate

Hardware

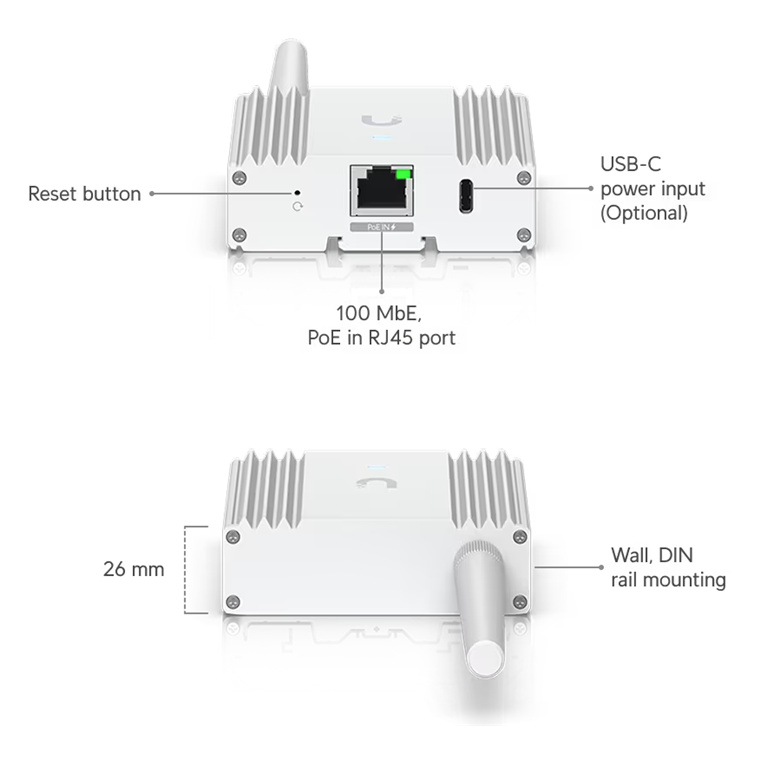

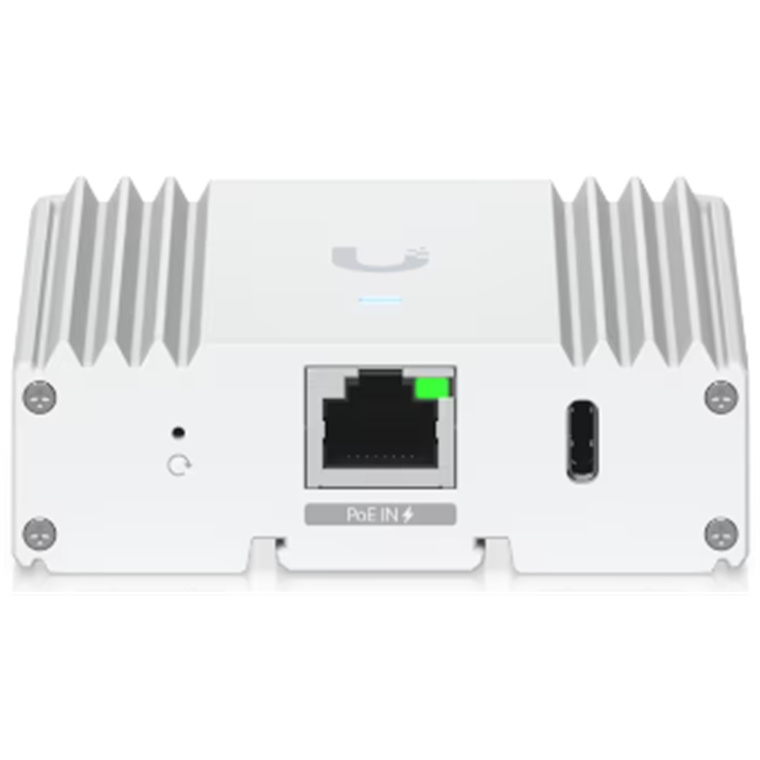

Networking interface

(1) 10/100 MbE RJ45 port

Management interface

Bluetooth® 5.2
SuperLink (Proprietary)

Power method

PoE
USB Type-C, 5V, 1A (Optional)

Max. power consumption

3.4W

ESD/EMP protection

Air: ± 8kV
Contact: ± 4kV

Antenna gain

Bluetooth: 3 dBi
SuperLink: 1 dBi

Max. TX power

Bluetooth: 10 dBm
SuperLink: 27 dBm

Max. client count

Bluetooth: 7
SuperLink: 96* (*SuperLink sensors are coming soon.)

LED

(1) Blue/white

Button

(1) Factory reset

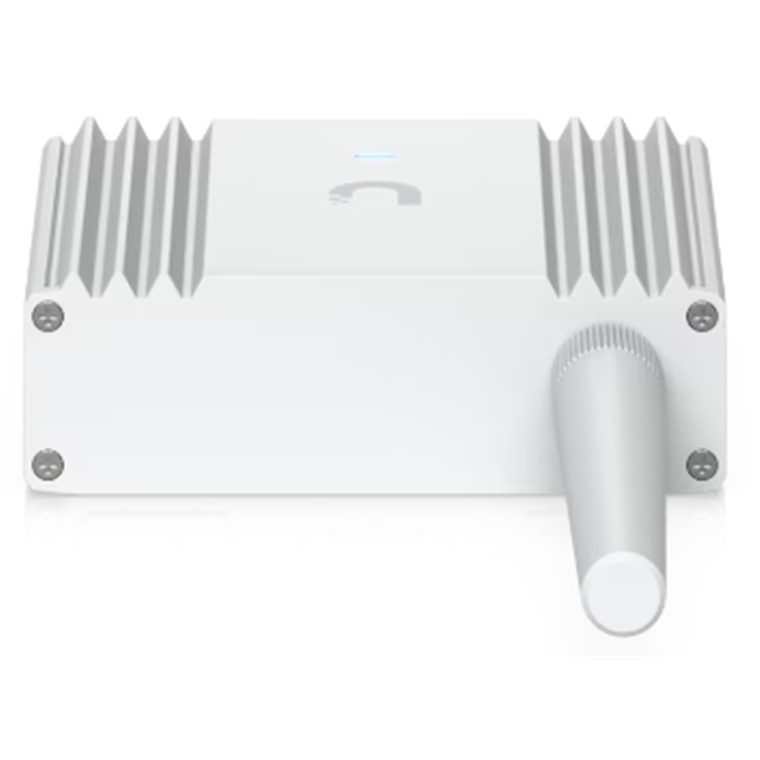

Mounting

Wall, DIN rail

Ambient operating temperature

0 to 40° C (32 to 104° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

FCC, IC, CE

NDAA Compliant

Yes

Software

Web application

UniFi Protect

Mobile app

UniFi Protect iOS™ and Android™

Manufacturer Part No:

UP-SuperLink

Brand:

Ubiquiti

Product Type:

UPC

810084696347

Product Family:

UniFi Protect

Shipping Weight:

0.35 kg

PB Part No:

CCTUBI81009

Product Model:

UP-SuperLink

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
