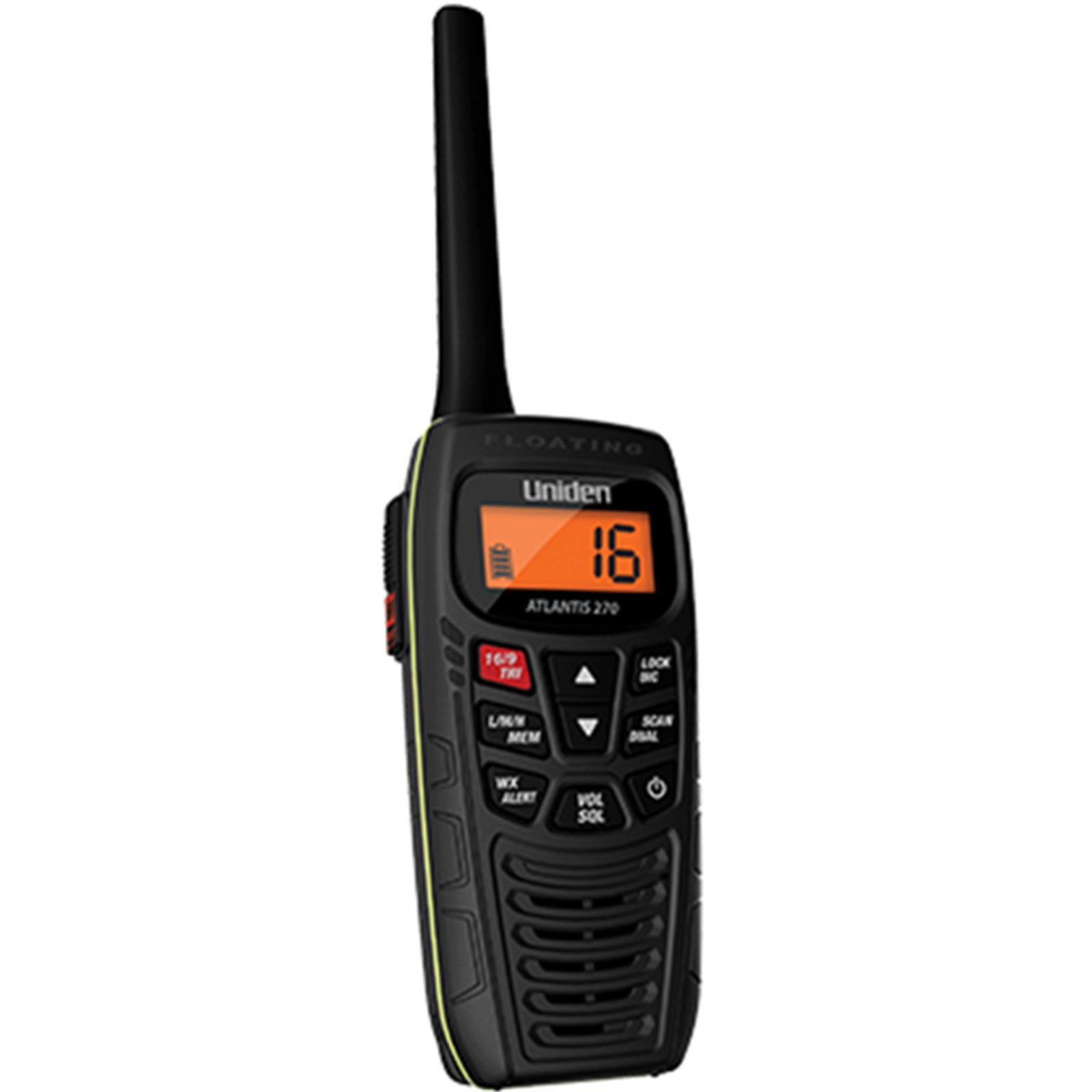

Uniden ATLANTIS 270 6W FLOATING VHF Handheld
Uniden ATLANTIS 270 6W FLOATING VHF Handheld
- Brand: Uniden
- MPN: ATLANTIS 270
- Part #: HHAUND1019
- UPC: 050633501634
What PB Tech customers are saying about this product...
See More Reviews"A good little radio, but the detachable clip to attach to my lifejacket is fragile, and looks like it could break easily. There is no built in loop as part of the surface of the ra ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular GPS Devices





Uniden ATLANTIS 270 6W FLOATING VHF Handheld
- Brand: Uniden
- MPN: ATLANTIS 270
- Part #: HHAUND1019
- UPC:050633501634

Product URL: https://www.pbtech.com/pacific/product/HHAUND1019/Uniden-ATLANTIS-270-6W-FLOATING-VHF-Handheld?qr=popular_related_products
Features
Atlantis 270
The Uniden Atlantis 270 features all USA, International and Canadian marine channels. It also meets IPX7 submersible waterproof standards. The Atlantis' brilliant backlit LCD display makes it easy to use, day or night for the power to go anywhere.
Key Features
- NEW Floating Design
- IPX7 Submersible Waterproof Level
- 10-Hour Battery Life
- Selectable 1 / 2.5 / 6 watt Transmit Power
- Display Size: 18mm x 37mm
- Large Easy-to-Read Backlit LCD
- Power Boost Key
- AC & DC Adapters Included
- Charging Cradle
- Glow Seals
Specifications
General
Channels
All US/International/Canada marine channels
9 Weather channels
Freq. Control
PLL
Freq. Tol.
Transmit: 1.5 PPM (at 25°C)
Receive: 1.5 PPM (at 25°C)
Oper. Temp.
-4°F (-20°C) to +131°F(+55°C)
Antenna
Flexible Whip
Microphone
Built-in Electret type
Display
Liquid Crystal Display
Speaker
8O 1 Watt
Power Source
Rechargeable Lithium Ion Battery
7.4V 1100 mAh
Size (without antenna)
5.35 (H) x 2.44 (W) x 1.53 (D) inch
136 (H) x 62 (W) x 39 (D) mm
Weight
8.46 oz (240g) (w/battery and antenna)
Transmitter
Frequency Range
156.05~162.550 MHz
Frequency Stability
±10 PPM
Power Output
1.0 W & 2.5W & 6W
Spurious Emissions
70 dBc
Current Drain
1500 mA (6W)
Receiver
Type
Direct Conversion Super Heterodyne
Phase Locked Loop system for Local Oscillator
Frequency Range
156~164 MHz
Sensitivity
0.20 µV for 12dB SINAD
Squelch Sensitivity
Threshold 0.2µV
Audio Frequency Response
+5.5 dB @ 500 Hz; -6.5 dB @
2000Hz
Adjacent Channel Selectivity
75 dB @ ±25 kHz
Audio Output Power
0.7 W @10% THD
Current Drain
Squelched: 60 mA; Max. Audio: 430 mA
