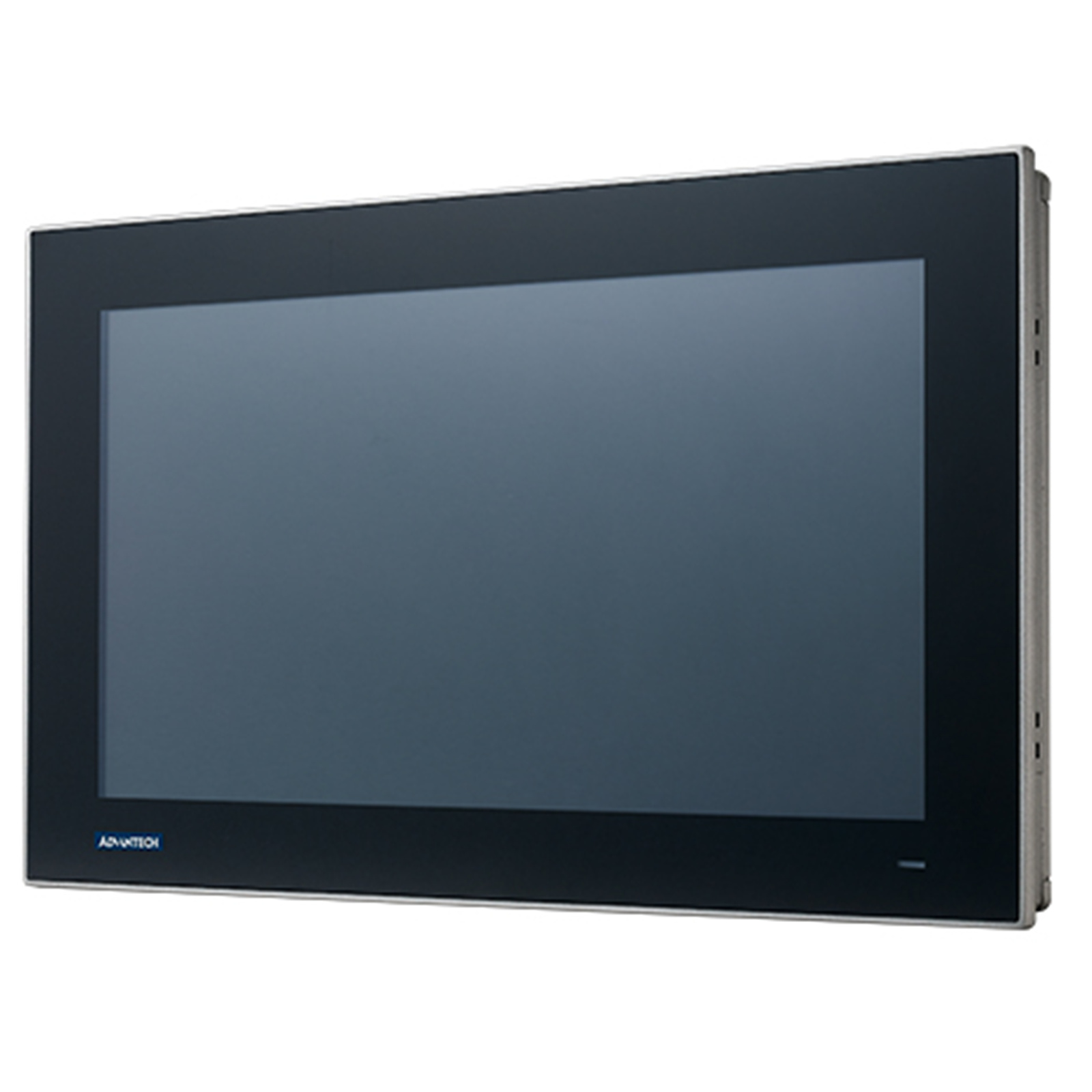

Advantech FPM-221W-P4AE 21.5" Full HD Industrial Monitor with P-CAP Touch Control, Direct HDMI Port
Advantech FPM-221W-P4AE 21.5" Full HD Industrial Monitor with P-CAP Touch Control, Direct HDMI Port
- Brand: Advantech
- MPN: FPM-221W-P4AE
- Part #: IPCAVH060005
- UPC:
- Brand: Advantech
- MPN: FPM-221W-P4AE
- Part #: IPCAVH060005
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech FPM-221W-P4AE 21.5" Full HD Industrial Monitor with P-CAP Touch Control, Direct HDMI Port
- Brand: Advantech
- MPN: FPM-221W-P4AE
- Part #: IPCAVH060005

Product URL: https://www.pbtech.com/pacific/product/IPCAVH060005/Advantech-FPM-221W-P4AE-215-Full-HD-Industrial-Mon?qr=popular_related_products
Features
21.5" Full HD Industrial Monitor with P-CAP Touch Control, VGA Port
In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-221W is an industrial-grade, widescreen monitor with sleek, simple lines and a true-flat touchscreen. Equipped with P-CAP 10-point multi-touch control and an IP66-rated front bezel, FPM-221W is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.
- 21.5" Full HD TFT LED LCD with true-flat touchscreen
- 16:9 wide screen aspect ratio, increases viewing area by 40%
- Supports 10-point multi-touch control via USB interface in Windows 7/8/10 OS
- Slim design enables easy installation
- Supports various mount options: panel, desktop, and VESA arm
- Touchscreen with reliable glass surface and P-CAP touch control
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
For more information: https://advdownload.advantech.com/productfile/PIS/FPM-221W/file/FPM-221W_DS(122622)20230106145928.pdf
Specifications
General
Certification
BSMI, CCC, CE, FCC Class A, UL, CB
Dimensions (W x H x D)
558.4 x 349.8 x 56.2 mm (21.98 x 13.77 x 2.21 in)
Enclosure
Front panel: Die-casting aluminium,
Rear cover: Die-casting aluminium
Mounting
Panel, VESA arm
Power Input
External 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included)
Video Port
HDMI
Weight (Net)
6 kg (13.23 lb)
Hardware
Video Port
HDMI
LCD Display
Display Type
Full HD TFT LED LCD
Display Size
21.5"
Max. Resolution
1920 x 1080
Max. Color
16.7M
Viewing Angle (H/V)°
178/178
Luminance (cd/m²)
250
Backlight Life (hrs)
50,000
Contrast Ratio
1000:1
Touchscreen
Type
Projected capacitive touch
Interface
USB
OS Support
Windows® 7, 8, 10, XPe, CE and Linux
Hardness
7H
Multi Touch
10 points, USB interface in Win 7/8/10, Linux
Environment
Operation Te2mperature
0 ~ 50°C (32 ~ 122°F)
Storage Temperature
-20 ~ 60°C (-4 ~ 140°F)
Humidity (Storage)
10 ~ 95% non-condensing
Waterproof
Front Panel IP66 Compliant
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
