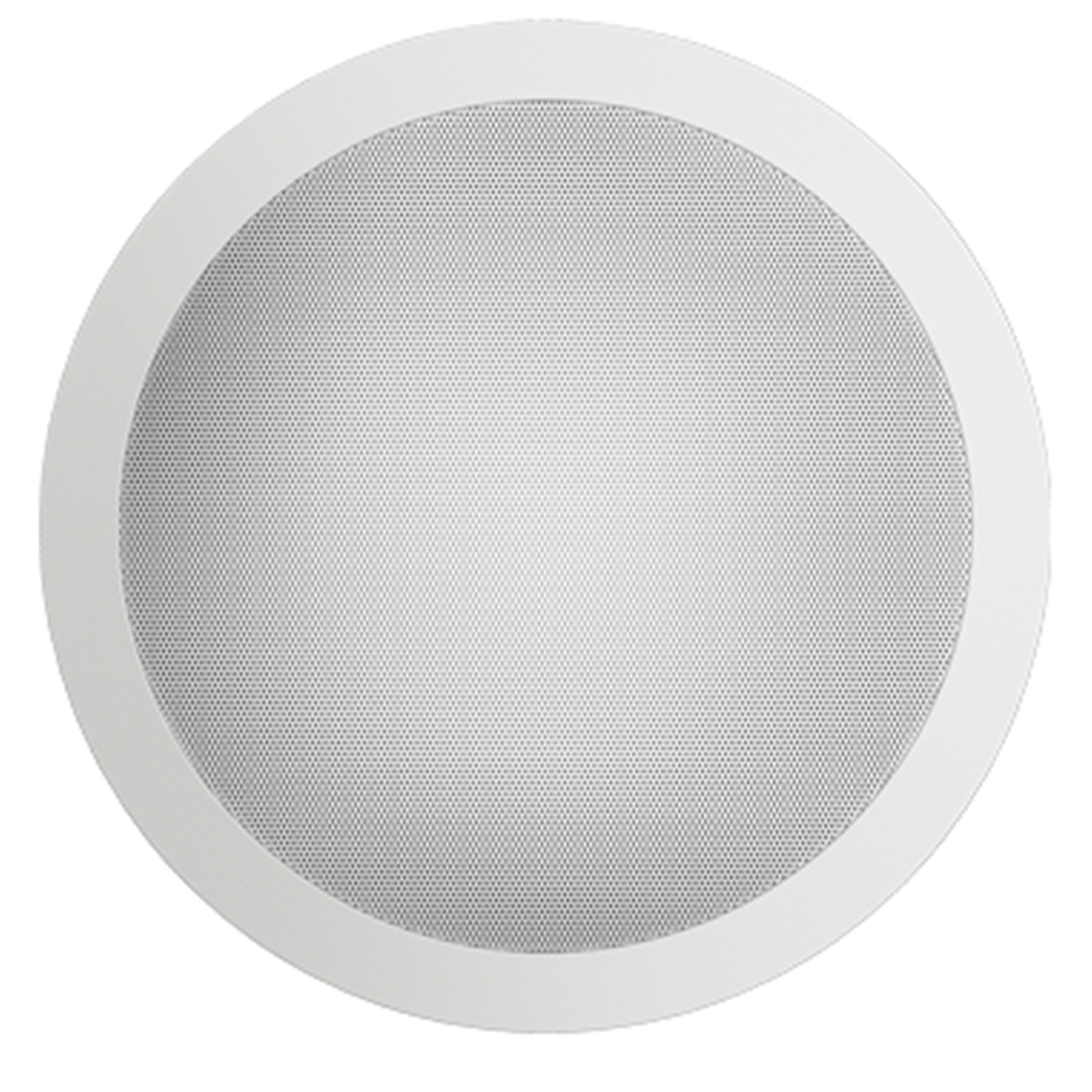

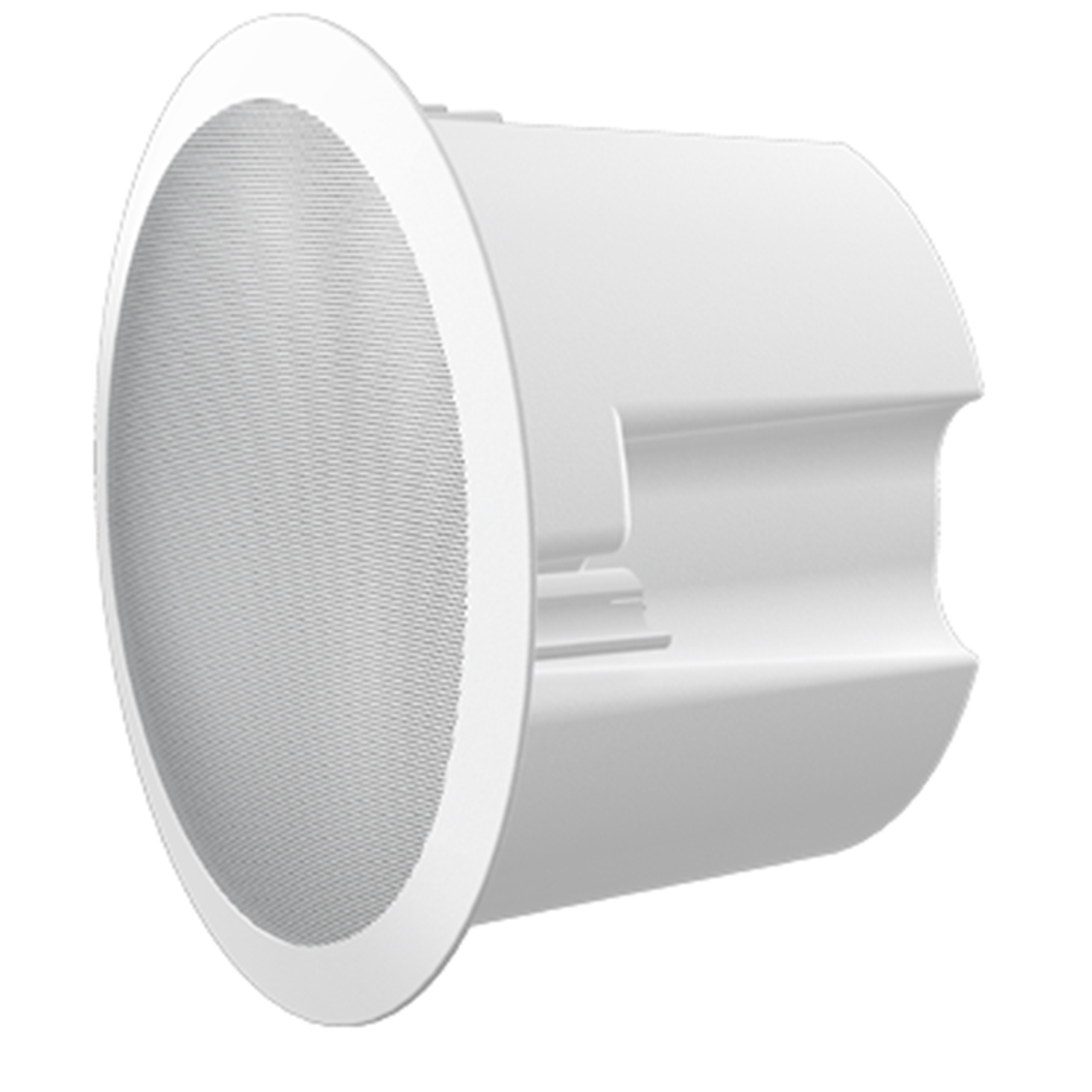

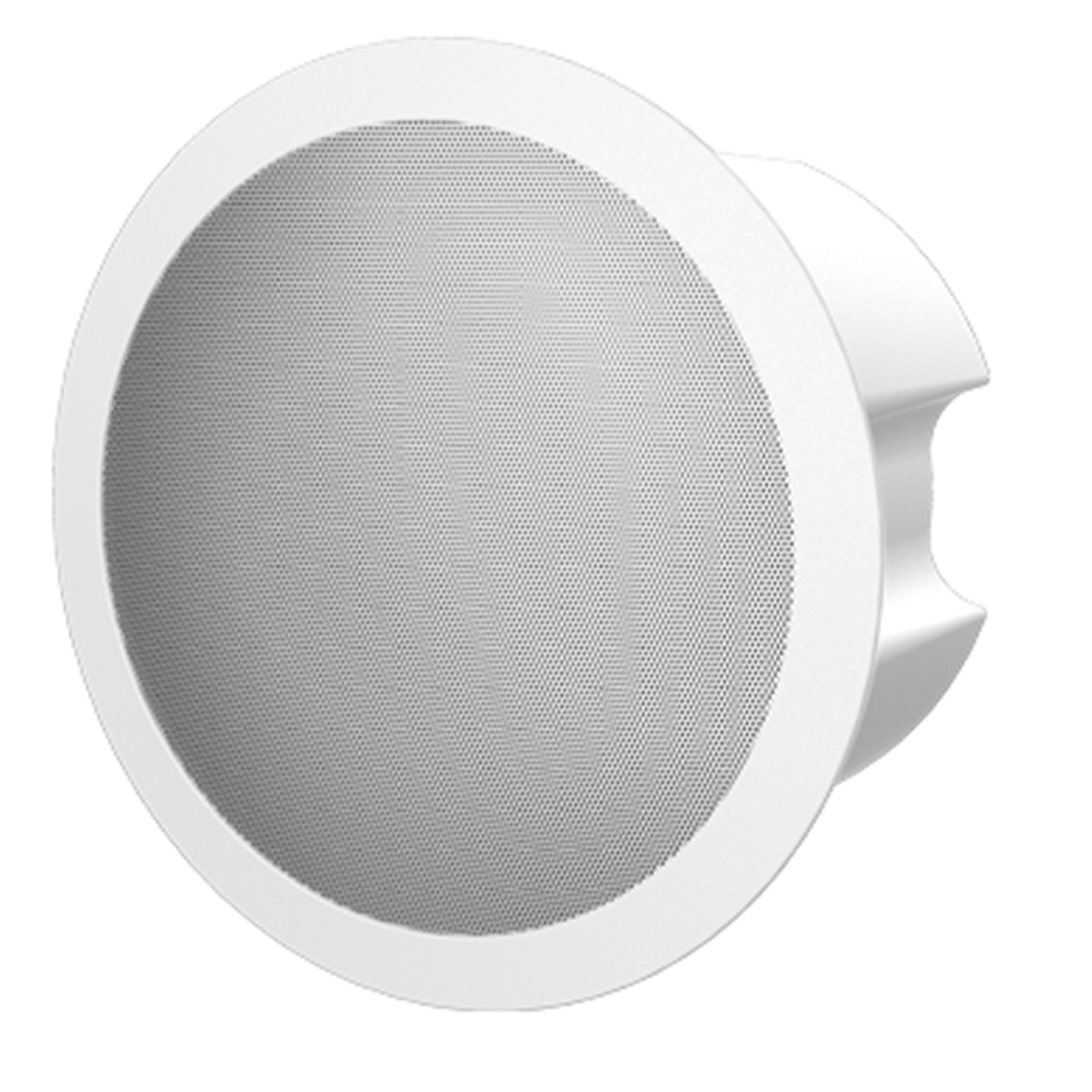

Fanvil FAN-FH-S01 SIP Ceiling Speaker

Featuring Paging - Multicasting (10 Zones) - Broadcasting & Talk Back Functionalities

PB Tech price

NZD $ 353 .91

$ 353 .91

Fanvil FAN-FH-S01 SIP Ceiling Speaker

Featuring Paging - Multicasting (10 Zones) - Broadcasting & Talk Back Functionalities

Brand: Fanvil
MPN: FAN-FH-S01
Part #: IPHFAN1095
UPC:

PB Tech price

NZD $ 353 .91

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 24 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Fanvil
MPN: FAN-FH-S01
Part #: IPHFAN1095
UPC:

Be the first to review this product

Colour

White

Sound Mode

Not Specified

Power Output (RMS)

Not Specified

Wireless Technology

Not Specified

3.5mm Connector

Not Specified

Optical Connector

Not Specfied

RCA Connector

Not Specified

TRS Connector

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Fanvil FH-S01 SIP ceiling speaker

This is a SIP ceiling speaker featuring paging, multicasting, broadcasting and talkback functionalities. It supports up to 10 multicast zones with prioritization. It delivers high-intelligibility performance with G.722&Opus codecs. Adopted standard SIP 2.0(RFC3261) and related RFC protocols, it has strong compatibility and scalability.

Specifications

General

SIP Line

HD Audio(G.722)

G.722 ,Opus

Built-in Electric Relay

Yes

Access control

Power Supply PoE

Yes

Power Supply 12V DC

16-18V 2A

Wide Temperature Range

-20°~50°

Power Amplifier

Maximum 20W

Short Circuit Output

Short Circuit Input

Auto-Provisioning via DHCP/TR069/SIP PNP

Yes

Integration with Third Party Systems

Yes

MP3 broadcasting

Yes

Audio codecs

G.711A/U, G.729A/B, iLBC, G.723,
G.726-32K,G.722, Opus

Speaker

Frequency respons

100-20KHz

Sensitivity

89dB±3dB 1m/1W

Impedance

MAX SPL

96 dB

Audio Power

PoE/10W,12V/10W,18V/15W,24V/20W ; related to power supply voltage.

Mic

Omni-Directional
Sensitivity:-36±3dB, impedance 2.2k ohm, bias voltage 2V

Physical Specifications

DC port x1

DC power input
Port:2 Pin terminal socket

RJ45 port x1

connect the network
Power over Ethernet(IEEE 802.3af, class 0)

Short circuit input and output port x1(built in relay)

Relay:MAX DC30V/2A
Port:terminal socket

Blue LED x1

Power status

DC power input

DC 12~24V/2A

Power Consumption (PoE)

1.31~11.82W

Power Consumption (Adapter)

0.76~14.71W

Working temperature

-20?~ 50?

Storage temperature

-30?~ 60?

Working humidity

10~95%

Installation

Ceiling-mounted

Color

White

Device overall dimensions

238.5mm x 238.5mm x 148.3mm

Device back box dimensions

202.5mm x 202.5mm x 139mm

Manufacturer Part No:

FAN-FH-S01

Brand:

Fanvil

Product Type:

SIP Ceiling Speaker

UPC

Product Family:

Shipping Weight:

5 kg

PB Part No:

IPHFAN1095

Product Model:

FAN-FH-S01

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
