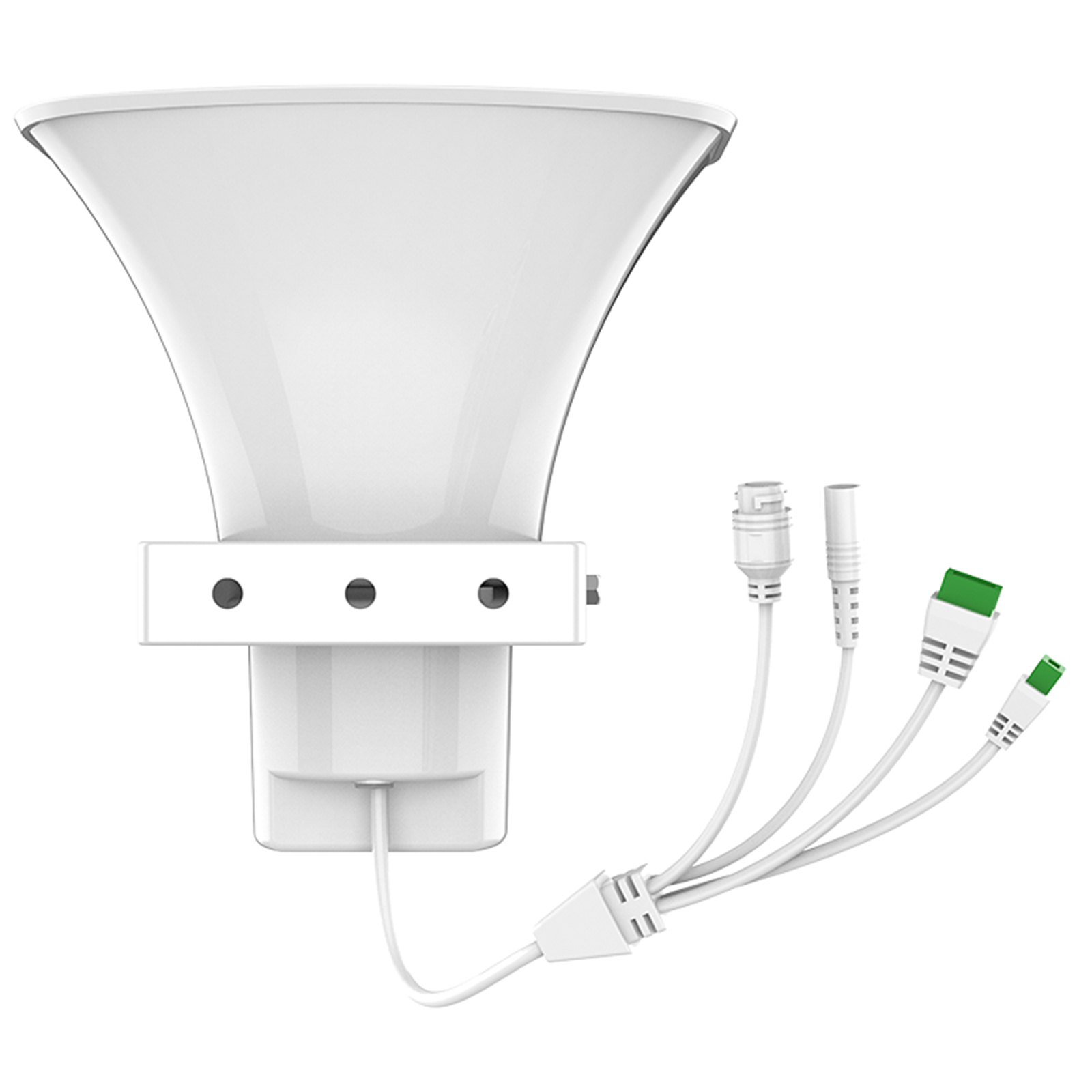

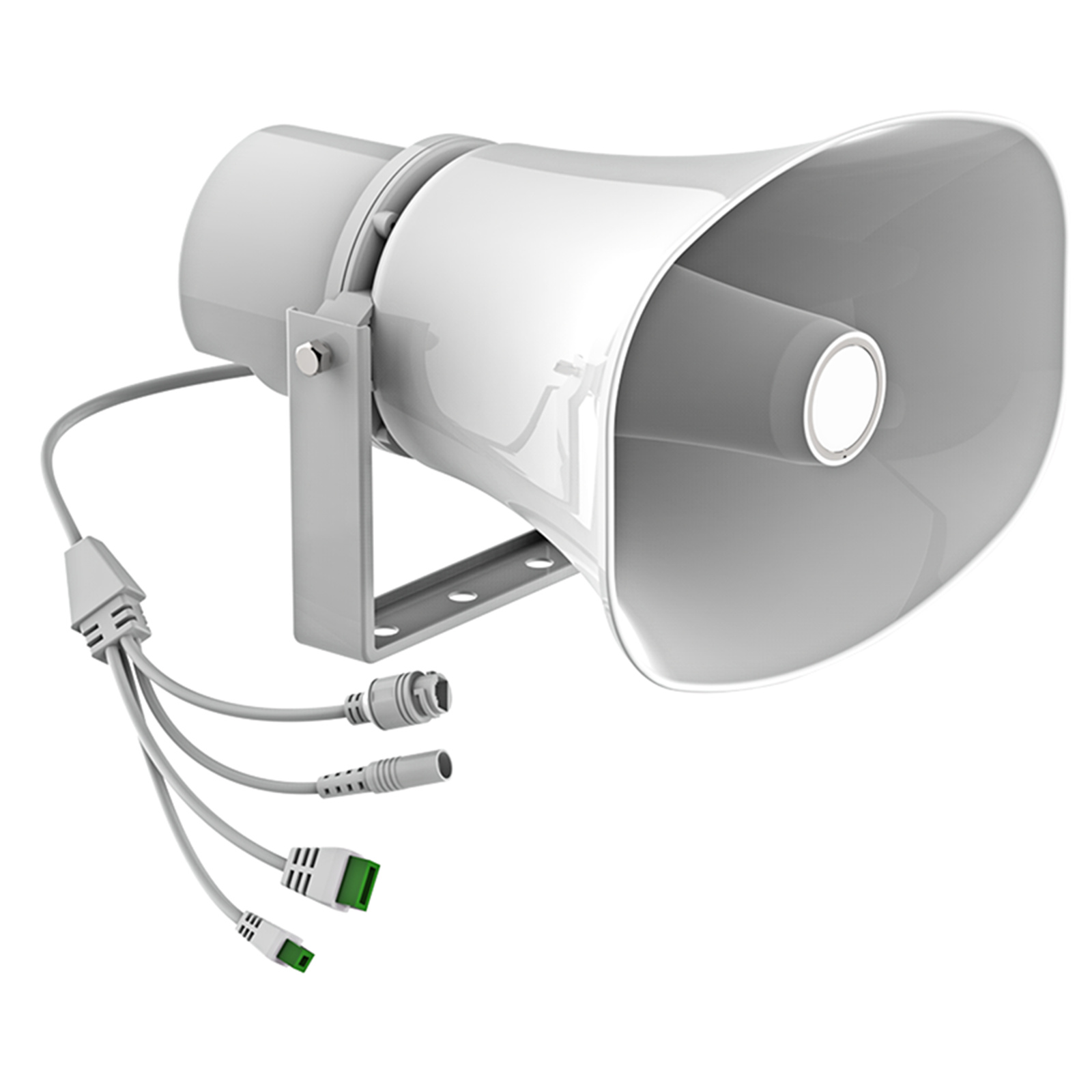

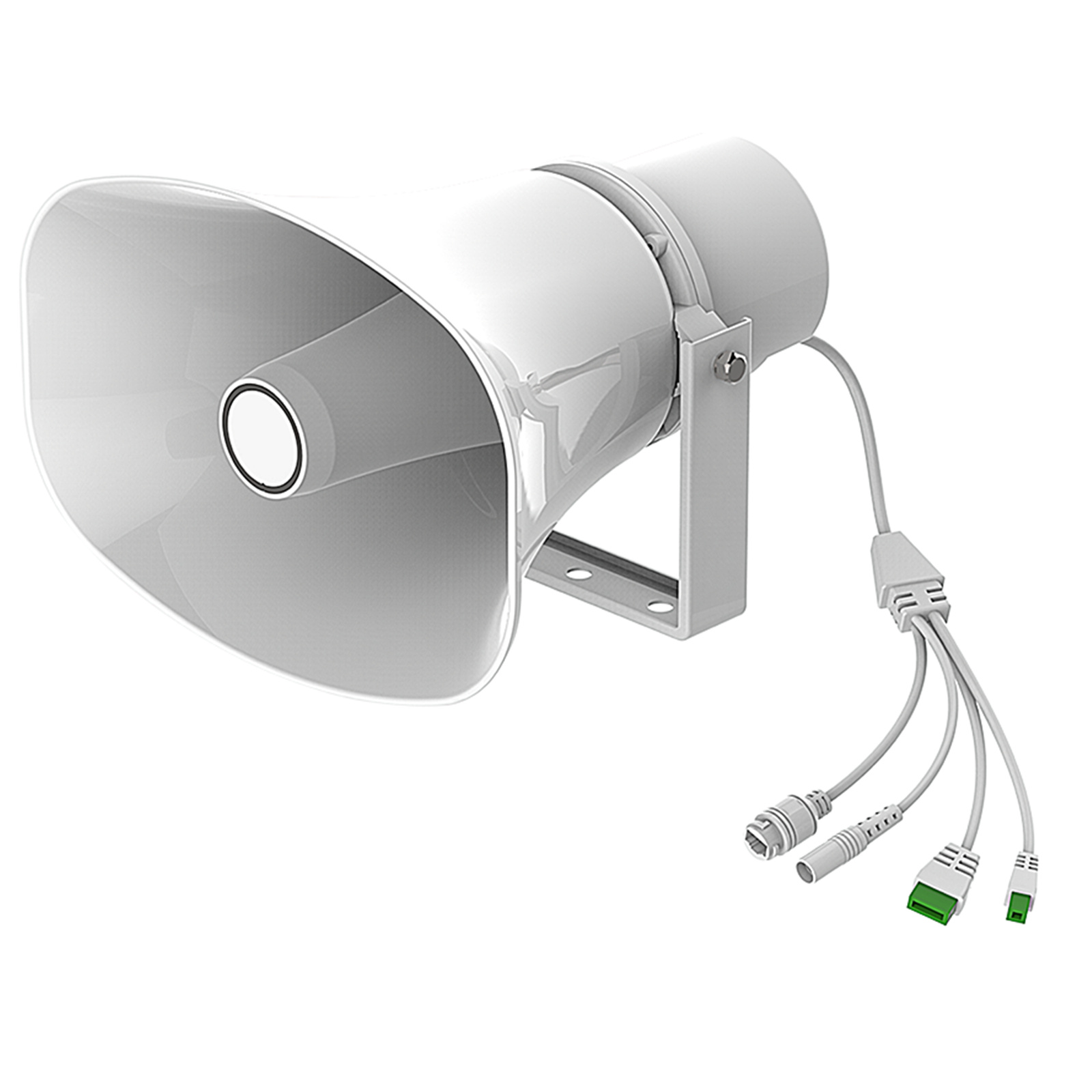

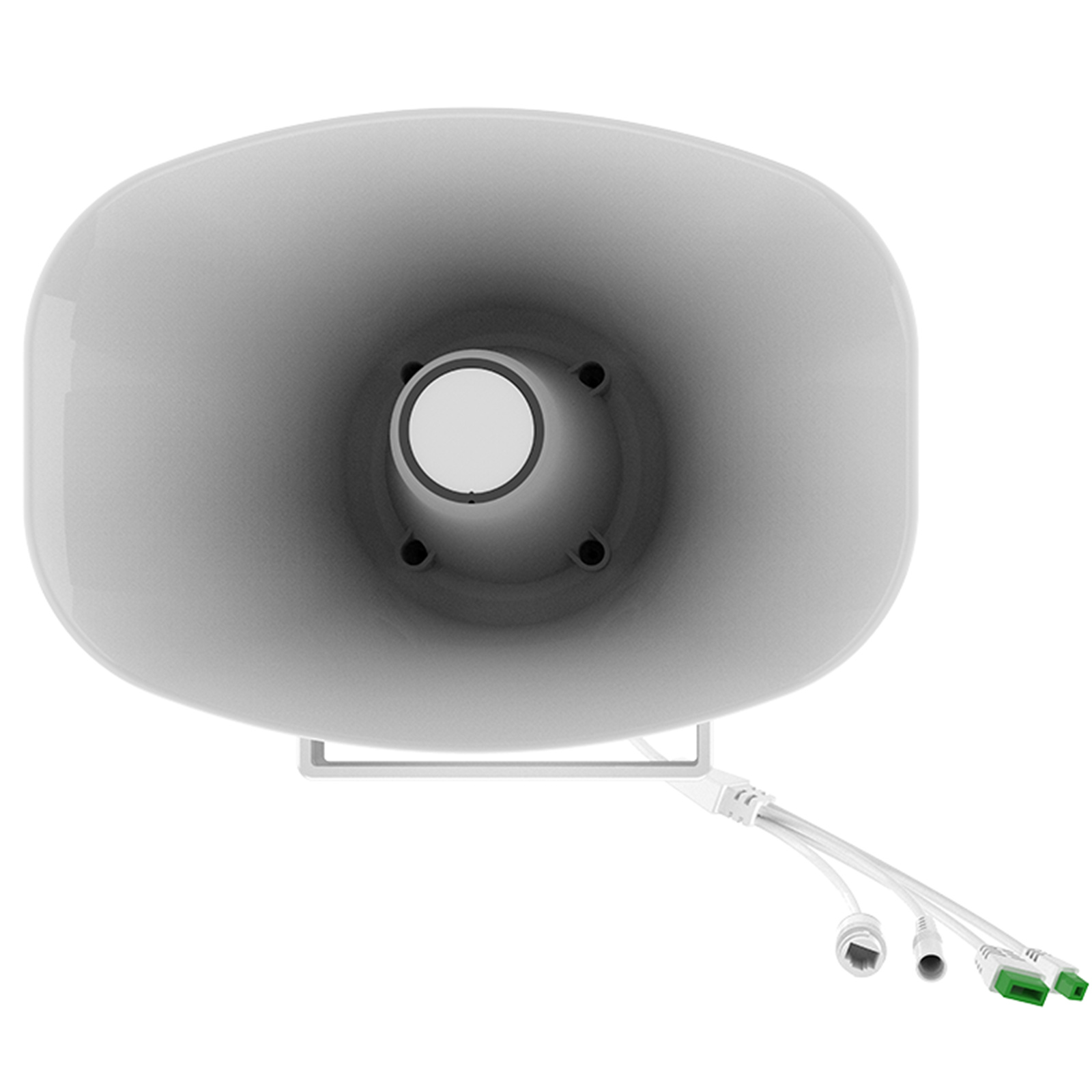

Fanvil A233 Broadcasting Device (White)

PB Tech price
PB Tech price
NZD $ 398 .26
$ 398 .26
$398.26  +GST
$398.26

Fanvil A233 Broadcasting Device (White)

  • Brand: Fanvil
  • MPN: FAN-A233W
  • Part #: IPHFAN1164
  • UPC:
PB Tech price
NZD $ 398 .26 $ 398 .26


Delivery: Order now and it ships on 12 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$398.26  +GST
$398.26
  • Brand: Fanvil
  • MPN: FAN-A233W
  • Part #: IPHFAN1164
  • UPC:

Colour

White

Interface

RJ45

Microphone

Yes

Microphone Noise Cancelling

Not Specified

Noise Cancelling

N/A

Sound Mode

N/A

Wireless Technology

N/A

Features

Fanvil A233 horn speaker is a commercial-grade IP audio terminal. It can function independently as an audio system or integrate with external systems such as unified communication systems, video surveillance systems, Fanvil broadcast & intercom system, access control systems, digital billboards, and fire alarm systems, facilitating unified configuration and operation. The IP66 protection rating ensures effective waterproofing and dustproofing, making it suitable for most outdoor environments.

Specifications

Installation

U-bracket installation

Microphone

Yes

Speaker power

15W PoE+; 30W DC24V

Frequency response

350-7.5KHz

Sensitivity

107dB±3dB 1M/1W

Audio filesstorage

24MB

Support protocol

SIP/Onvif

Maximum SPL

120dB(1m / 30W)

Short circuit input

1

Short circuit output

1

Audio line in/output

No

Power supply

PoE + / 24V DC 2A

Protection Level

IP66

Working temperature

-30?~ 60?

Weight

1.90kg

Dimension(w×h×d)

285×285×205mm

Manufacturer Part No:
FAN-A233W
Brand:
Fanvil
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
2.5 kg
PB Part No:
IPHFAN1164
Product Model:
A233
Warranty: 12 months *
