NEAT Frame - A Beatiful Way to Meet
- Brand: NEAT
- MPN: NEATFRAME-SE
- Part #: IPHNET1017

Product URL: https://www.pbtech.com/pacific/product/IPHNET1017/NEAT-Frame---A-Beatiful-Way-to-Meet?qr=popular_related_products
Features

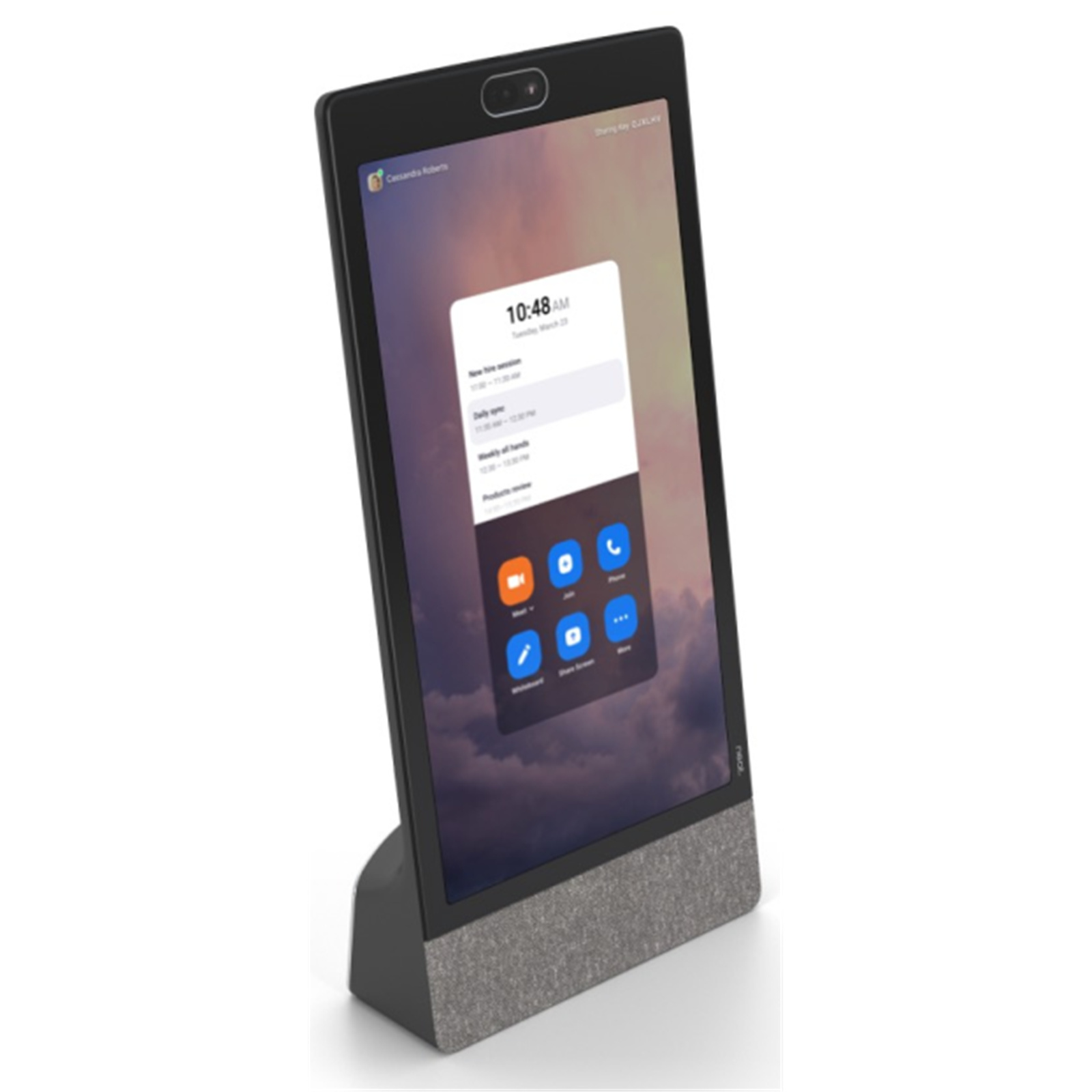

NEAT Frame
Work efficiently.
Pair with your laptop, and free it up for other tasks.
Every subtle gesture.
The 15.6-inch portrait screen provides an optimal layout balance, enabling more direct conversation in larger meetings, picking up every facial expression or gesture with a brilliant 450 nits of brightness.
Example spaces
Neat Frame packs powerful technology into an all in one compact and convenient meeting device that enables you to free up your computer for other tasks.
* Feature is not yet supported by Microsoft Teams
** Needs to be purchased from Zoom or Microsoft
Networking & ports
- WiFi
- Bluetooth
- AC Power (internal power supply)
- USB-C
- 4-pin mini-jack
Privacy cover
Size & weight
- Width: 8,8 inches (222,5 mm)
- Height: 17,5 inches (445 mm)
- Depth: 4,4 inches (111,2 mm)
- Weight: 7,6 pounds (3,45 kg)
Specifications
General
15,6-inch capacitive multi-touch LED screen
450 NITS Screen
Resolution 1080x1920, 60Hz
9:16 aspect ratio
Anti-glare and anti-fingerprint coating
Camera LED
System LED
Ambient light sensor
Depth sensor (time-of-flight VGA 60° FOV)
Temperature sensor (*)
Humidity sensor (*)
Air Quality sensor (*)
Tripod mount (1/4-20 UNC threads)
Privacy shutter
Audio
Two-way loudspeaker system with minimal distortion
1 tracking mic
3 beamforming microphones angled in an end-fire array
Support for wired and wireless headphones
Hardware accelerated audio processing
Echo cancellation
Noise suppression
Automatic gain control
Dereverberation
Video
4x digital zoom
50MP capture resolution
113° horizontal field of view
Automatic people framing
Hardware accelerated video encode and decode
Distortion correction
Noise reduction
Chromatic aberration correction
Automatic white balance and color correction
People video resolution: Up to 1080p / 30
Content video resolution: 720p / 60, 1080p / 30
Electrical and environmental requirements
100-240V ~ 50/60Hz 2.5A
Ambient operating temperature: 32° to 95° F (0° - 35° C)
Storage temperature: -4° to 140° F (-20° to 60° C)
Relative humidity: 10% to 90%
Network standby: 8W
Built-in power supply
Power consumption
Idle: 10W
Idle screen off: 3,5W
In call: 14-16W
In the box
Neat Frame:
Power cord (9.8 feet / 3 meters)
What you need:
Internet connection
License for Zoom Rooms or Microsoft Teams (**)
