Aten CS682 2Port USB2.0 DVI Cable KVM Switch

PB Tech price
PB Tech price
NZD $ 109 .35
$ 109 .35
$109.35  +GST
$109.35

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

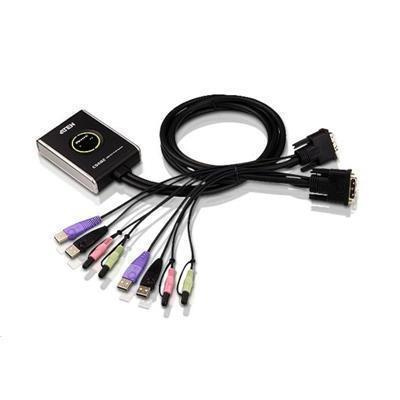

Aten CS682 2Port USB2.0 DVI Cable KVM Switch

  • Brand: Aten
  • MPN: CS682
  • Part #: KVMATN0682
  • UPC: 672792110559
PB Tech price
NZD $ 109 .35 $ 109 .35
Hurry, only 1 unit left!


Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$109.35  +GST
$109.35

Features

The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.

Furthermore, the CS682 features enhanced Video DynaSync technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. Also, in addition to new hotkeys, the CS682 offers the latest mouse port-switching function - simply double-click on the scroll wheel of a USB mouse to change ports. Finally, the CS682's new Power on detection feature means that if one of the computers is powered off, switch will automatically switch to the other powered-on computer.

Featuring an unbeatable combination of DVI functionality, USB 2.0 peripheral sharing convenience, and enhanced user-friendly operations, the CS682 allows users to keep up with the latest innovations in desktop multimedia applications.

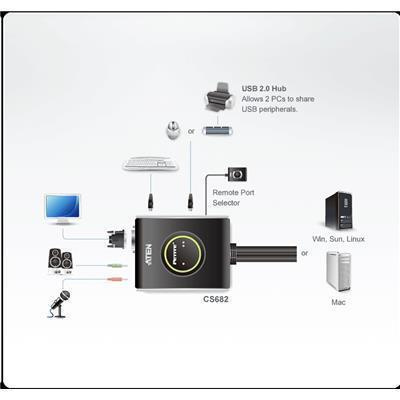

- One DVI video console controls two USB computers
- Fully DVI-Digital specification compliant
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
- Computer selection via remote port selector, hotkeys, and USB mouse
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support - Windows, Linux, Mac and Sun
- Compact design, built-in all-in-on cables (2 x 1.2 m)
- Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
- Superior video quality - up to 1920 x 1200
- Compatible with widescreen LCD monitors
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
- Supports multimedia keyboards
- Supports wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac/Sun keyboard support and emulation**
- HDCP Compliant
- Non-Powered
- Firmware upgradable

Specifications

Computer Connections
2

Port Selection
Remote port selector, Mouse, Hotkeys


Connectors

Console Keyboard
1 x USB Type A Female (Silver)

Video
1 x DVI-D Female (White)

Mouse
1 x USB Type A Female (Silver)

Speakers
1 x Mini Stereo Jack Female (Green)

Microphone
1 x Mini Stereo Jack Female (Pink)


KVM Ports

Keyboard
2 x USB Type A Male (Purple)

Video
2 x DVI-D Male (Black)

Mouse
2 x USB Type A Male (Black)

Speakers
2 x Mini Stereo Jack Female (Green)

Microphone
2 x Mini Stereo Jack Female (Pink)

Remote Port Selector
1 x Mini Stereo Jack


LEDs

KVM
2 (Green)

Remote Port Selector
2 (Green)


Cable Length

KVM
2 x 1.2 m

Remote Port Selector
1.8 m


Emulation

Keyboard / Mouse
USB

Video
1920 x 1200

Scan Interval
3, 5, 10, 20 secs. (default 5 secs.)

Power Comsumption
5V, 3.05W


Environment

Operating Temp.
0 - 50C

Storage Temp.
-20 - 60C

Humidity
0 - 80% RH, Non-condensing

Physical Properties
Housing Plastic

Weight
0.50 kg

Dimensions ( L x W x H )
11.15x7.80x2.49cm


Package Contents

1x CS682 2-Port USB 2.0 DVI KVM Switch
1x Remote Port Selector
1x User Instructions

Manufacturer Part No:
CS682
Brand:
Product Type:
-
UPC
672792110559
Product Family:
-
Shipping Weight:
0.533 kg
PB Part No:
KVMATN0682
Product Model:
CS682
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
