LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 4K 30Hz. Zero Latency, Send Signal up to70m,Built-in 3.5mm Input, IR Passback, HDMI Loop-out, EDID Pass Through. Includes TX & RX. Supports POC

PB Tech price
PB Tech price
NZD $ 117 .30
$ 117 .30
$117.30  +GST
$117.30

LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 4K 30Hz. Zero Latency, Send Signal up to70m,Built-in 3.5mm Input, IR Passback, HDMI Loop-out, EDID Pass Through. Includes TX & RX. Supports POC

  • Brand: LENKENG
  • MPN: LKV223P
  • Part #: KVMLNK1169
  • UPC:
3
PB Tech price
NZD $ 117 .30 $ 117 .30
In stock
Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$117.30  +GST
$117.30
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: LENKENG
  • MPN: LKV223P
  • Part #: KVMLNK1169
  • UPC:
Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"I'm using it to output the feed from a security camera NVR onto a monitor in a different room, and so far it seems to work perfectly. The passthrough on the transmitter means I can ...view more"

IO
By: IanO7 18/04/25
Verified Owner

"I used this to run the video signal from my TV to my projector through the walls/ceiling with Cat6 cable. Works well, and it's nice that the receiver is powered over the Cat6 as it ...view more"

MG
By: MalcolmG49 08/11/24
Verified Owner

"arrived on time looks great works even better, amazing"

MG
By: MartinG57 17/07/23
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 4K 30Hz. Zero...
LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 4K 30Hz. Zero Latency, Send Signal up to70m,Built-in 3.5mm Input, IR Passback, HDMI Loop-out, EDID Pass Through. Includes TX & RX. Supports POC
Dynamix C-HDMI2FL-0 18Gbps High Speed HDMI 2.0 Flexi Lock Cable - with Ethernet - 50cm Max Res 4K2K 30/60Hz - 32 Audio Channels - 10/12bit Colour Depth - Supports CEC 2.0 / 3D / ARC - 2x Simultaneous Video Streams
Total:
NZD $ 125 .97
NZD $ 125 .97
Buy together and save $0.84 $0.84
Dynamix C-HDMI2FL-0 18Gbps High Speed HDMI 2.0 Flexi Lock Cable - with Ethernet - 50cm Max Res 4K2K 30/60Hz - 32 Audio Channels - 10/12bit Colour Depth - Supports CEC 2.0 / 3D / ARC - 2x Simultaneous Video Streams
Dynamix C-HDMI2FL-0 18Gbps High Speed HDMI 2.0 Flexi Lock Cable - with Ethernet - 50cm Max Res 4K2K 30/60Hz - 32 Audio Channels - 10/12bit Colour Depth - Supports CEC 2.0 / 3D / ARC - 2x Simultaneous Video Streams

Dynamix C-HDMI2FL-0 18Gbps High Speed HDMI 2.0 Flexi Lock Cable - with Ethernet - 50cm Max Res 4K2K...

Ships today
NZD

$8.67

$8.67

You save 8% You save 8%

Features

LENKENG HDMI & IR Extender Kit over Cat6/6a/7 up to 1080P@60Hz. Zero Latency, Send Signal up to 70m, Built-in 3.5mm Input, IR Passback, HDMI Loop-out, EDID Pass Through. Includes TX & RX

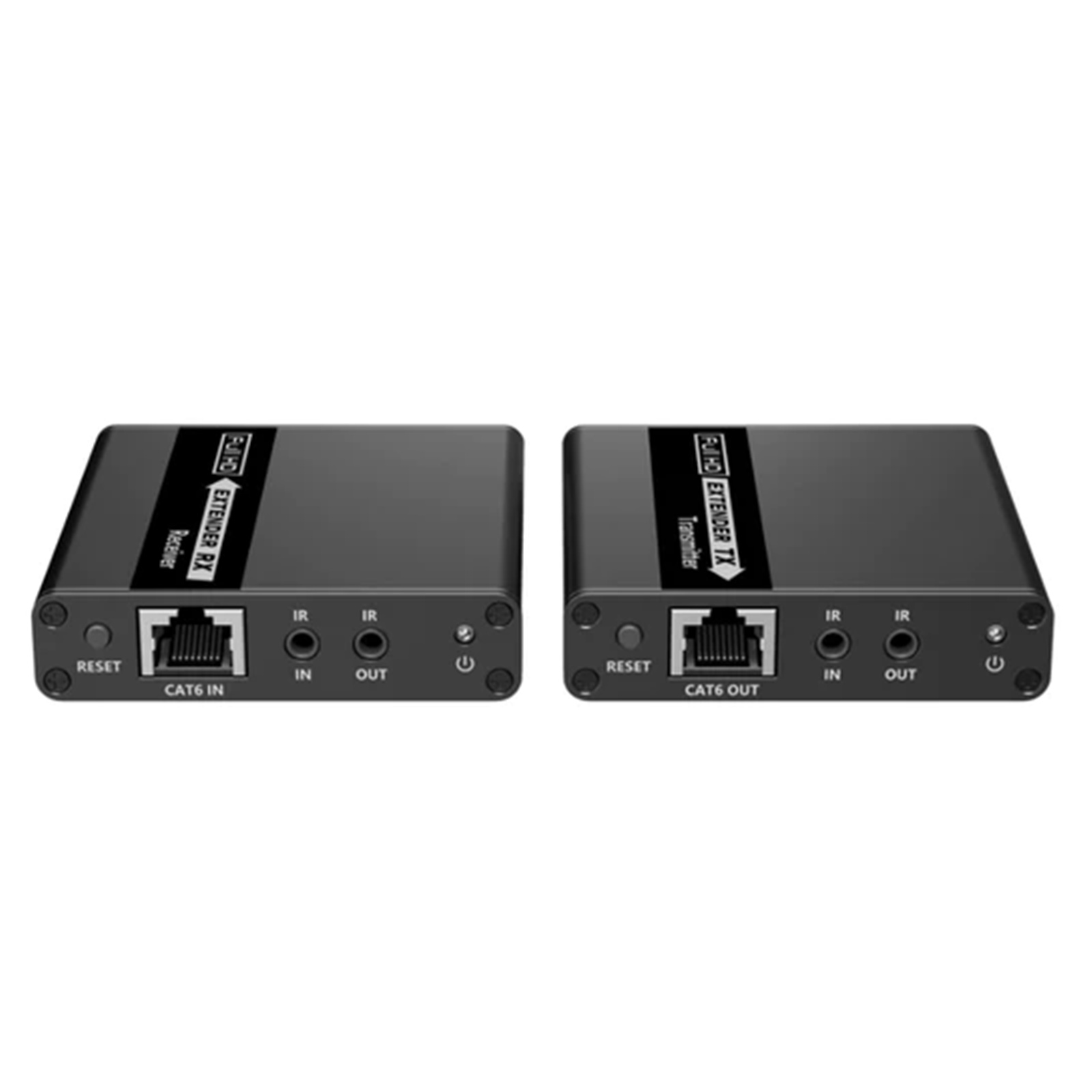

This HDMI Extender includes a transmitter unit and a receiver unit, allows the HDMI signal to be transmitted up to 70 meters at 1080p resolution using a Cat6/6A/7 network cable. It adopts a point-to-point connection configuration, supports bi-directional.

- Zero-latency
- Support up to 1080p@60Hz resolution
- Supports Cat6/6A/7 network cables, the transmission distance is up to 70 meters
- Support bi-directional IR pass-back function (20~60KHz).
- Support 1080p HDR10, YUV4:4:4. 6. Support EDID passthrough.
- Transmitter supports HDMI loop-out.
- Receiver supports 3.5mm stereo audio output.
- Audio formats supported: PCM, LPCM, DTS HD, DTS Audio.
- Automatically adjusts parameters to match different network cables and achieve the best display performance.
- Lightning Protection, Surge Protection, ESD Protection

Specifications

HDMI compliance

HDMI1.4

HDCP compliance

HDCP1.4

Transmission medium

CAT6/CAT6A/CAT7

Transmission distance

1080@60Hz Transmission = 70 meters; 4K@30Hz Transmission = 40m

Video bandwidth

10.2Gbps

Video support

800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 4K@24/25/30Hz

Audio support

PCM/LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 5.1CH

1080P HDR10 (YUV4:4:4)

Support

HDMI Loop-out

Support

EDID through

Support

Bi-directional IR passback

Support

Input TMDS signal

0.7~1.2Vp-p

Input DDC signal

5Vp-p

Input

HDMI×1, DC2.1×1, 3.5mm jack ×1 (IR)
DC2.1×1, RJ45×1, 3.5mm jack ×1 (IR), 3.5mm L/R ×1

Output

HDMI×1, RJ45 ×1, 3.5mm jack ×1 (IR)
HDMI×1, RJ45×1, 3.5mm jack ×1 (IR)

HDMI connector

Type A 19 Pins, Female

Network cable standard

CAT5E/CAT6/CAT6A/CAT7 , follow IEEE-5688 standard

Housing

Aluminium alloy material+crystal panel

Dimensions (L×W×H mm)

80.0 (L) x 75.0 (W) x 18.0 (H) mm

Net weight

160g

Power supply

5V/2A

Power consumption

<4W

Operation tempertaure

-20°C~60°C

Storage temperature

-30°C~70°C

Relative humidity

0%~90% (no condensation)

Manufacturer Part No:
LKV223P
Brand:
LENKENG
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
KVMLNK1169
Product Model:
-
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 3 reviews
5 Stars
3
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
write a review
learn more

Works as intended

I'm using it to output the feed from a security camera NVR onto a monitor in a different room, and so far it seems to work perfectly. The passthrough on the transmitter means I can have the security cam output displayed both in the other room, and on a monitor next to the NVR / server at the same time.

I only wish that all input/output ports were on the same side of the device to make cable management neater.

IO
By: IanO7 18/04/25
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Works well for projector connection

I used this to run the video signal from my TV to my projector through the walls/ceiling with Cat6 cable. Works well, and it's nice that the receiver is powered over the Cat6 as it means there's no need for an additional power supply in the ceiling.

MG
By: MalcolmG49 08/11/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

does what it says

arrived on time
looks great
works even better,
amazing

MG
By: MartinG57 17/07/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
