Gigabyte B860M EAGLE WIFI6 mATX Motherboard For Intel LGA1851 - B860 Chipset - PCIE 5.0 - 2x M.2, 2x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 6 + BT
Gigabyte B860M EAGLE WIFI6 mATX Motherboard For Intel LGA1851 - B860 Chipset - PCIE 5.0 - 2x M.2, 2x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 6 + BT
- Brand: Gigabyte
- MPN: B860M EAGLE WIFI6
- Part #: MBDGBM62410
- UPC: 889523046647
What PB Tech customers are saying about this product...
See More Reviews"No hassles, does the job. Paired with new Ultra CPU, PCIe5 N ...view more"
"Great motherboard performs perfectly, cables hiding is quite easy with this"
"The Gigabyte B860M EAGLE WIFI6 motherboard is a micro-ATX bo ...view more"
COMBO DEALS: Buy Together and SAVE!
Intel Core Ultra 5 245KF CPU 14 Cores / 14 Threads - 24MB Cache - LGA 1851 Socket - Intel 800 Series...
$468.00
$468.00
Corsair NAUTILUS 360 360mm AiO Water Cooler with RS120 high airflow low noise fans, For Intel Socket...
$155.29
$155.29
G.SKILL Ripjaws S5 32GB DDR5 Desktop RAM Kit for XMP / EXPO - Black 2x 16GB - 6000Mhz - CL36 - 1.35V...
$169.00
$169.00
Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 6+1+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN Wi-Fi 6
- Extended Connectivity : HDMI, DisplayPort
Infinite Memory Performance
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Steady Power
Better Play EAGLE Series, steady power keeps your computing smooth.
Digital VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Comprehensive Thermal
EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
4X larger surface area for enhanced heat dissipation
- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
Multi-cut design with channels for improved airflow
- More grooves, more airflow.
- Better airflow, cooler system.
5 W/mK thermal pad for efficient thermal conductivity
- High-performance thermal pad
- Keeps your system cool and running at peak efficiency
RL-ILM design
The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.
Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing users with a platform that's not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel.
Specifications
Reviews
Do you own this product?
Great
Great motherboard performs perfectly, cables hiding is quite easy with this
Decent board to upgrade into PCIe 5 speeds and tech
No hassles, does the job. Paired with new Ultra CPU, PCIe5 NVMe, DDR5 RAM and a PCIe 5 GPU.
Getting all the hardware in and setup. Benches and Diags tell me all hardware is running at their optimum configurations.
Does what it supposed to. All good.
A Compact Powerhouse for Modern Builds
The Gigabyte B860M EAGLE WIFI6 motherboard is a micro-ATX board designed to support Intel’s Core Ultra (Series 2) processors, utilizing the LGA1851 socket. It offers a blend of modern features suitable for both gamers and professionals seeking a reliable and efficient system foundation.
Equipped with two DDR5 DIMM slots, the B860M EAGLE WIFI6 supports dual-channel memory configurations, allowing for high-speed data processing and multitasking capabilities. For expansion, it provides a PCIe 5.0 x16 slot for graphics cards and a PCIe 4.0 x4 slot for additional peripherals, ensuring compatibility with the latest hardware components.
The mo...view more
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Intel Desktop Motherboards
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
Gigabyte B860M EAGLE WIFI6 mATX Motherboard For Intel LGA1851 -...
Gigabyte B760M Gaming X WIFI6E DDR4 GEN5 mATX Motherboard Intel...
Gigabyte B760 DS3H WIFI6E GEN5 ATX Motherboard Intel B760,...
MSI Z890 GAMING PLUS WIFI ATX Motherboard For Intel LGA1851 -...
Gigabyte B860M EAGLE WIFI6 mATX Motherboard For Intel LGA1851 - B860 Chipset - PCIE 5.0 - 2x M.2, 2x DDR5, 2x Internal USB 2.0 Header, 1x Internal USB 3.2 Header, 1x Internal Type C Header, Wifi 6 + BT
- Brand: Gigabyte
- MPN: B860M EAGLE WIFI6
- Part #: MBDGBM62410
- UPC:889523046647
Product URL: https://www.pbtech.com/pacific/product/MBDGBM62410/Gigabyte-B860M-EAGLE-WIFI6-mATX-Motherboard-For-In?qr=popular_related_products
Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 6+1+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN Wi-Fi 6
- Extended Connectivity : HDMI, DisplayPort
Infinite Memory Performance
EAGLE motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Steady Power
Better Play EAGLE Series, steady power keeps your computing smooth.
Digital VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Comprehensive Thermal
EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
4X larger surface area for enhanced heat dissipation
- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
Multi-cut design with channels for improved airflow
- More grooves, more airflow.
- Better airflow, cooler system.
5 W/mK thermal pad for efficient thermal conductivity
- High-performance thermal pad
- Keeps your system cool and running at peak efficiency
RL-ILM design
The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.
Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing users with a platform that's not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel.
Specifications
CPU
LGA1851 socket: Support for Intel ® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset
Intel ® B860 Express Chipset
Memory
Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface
CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

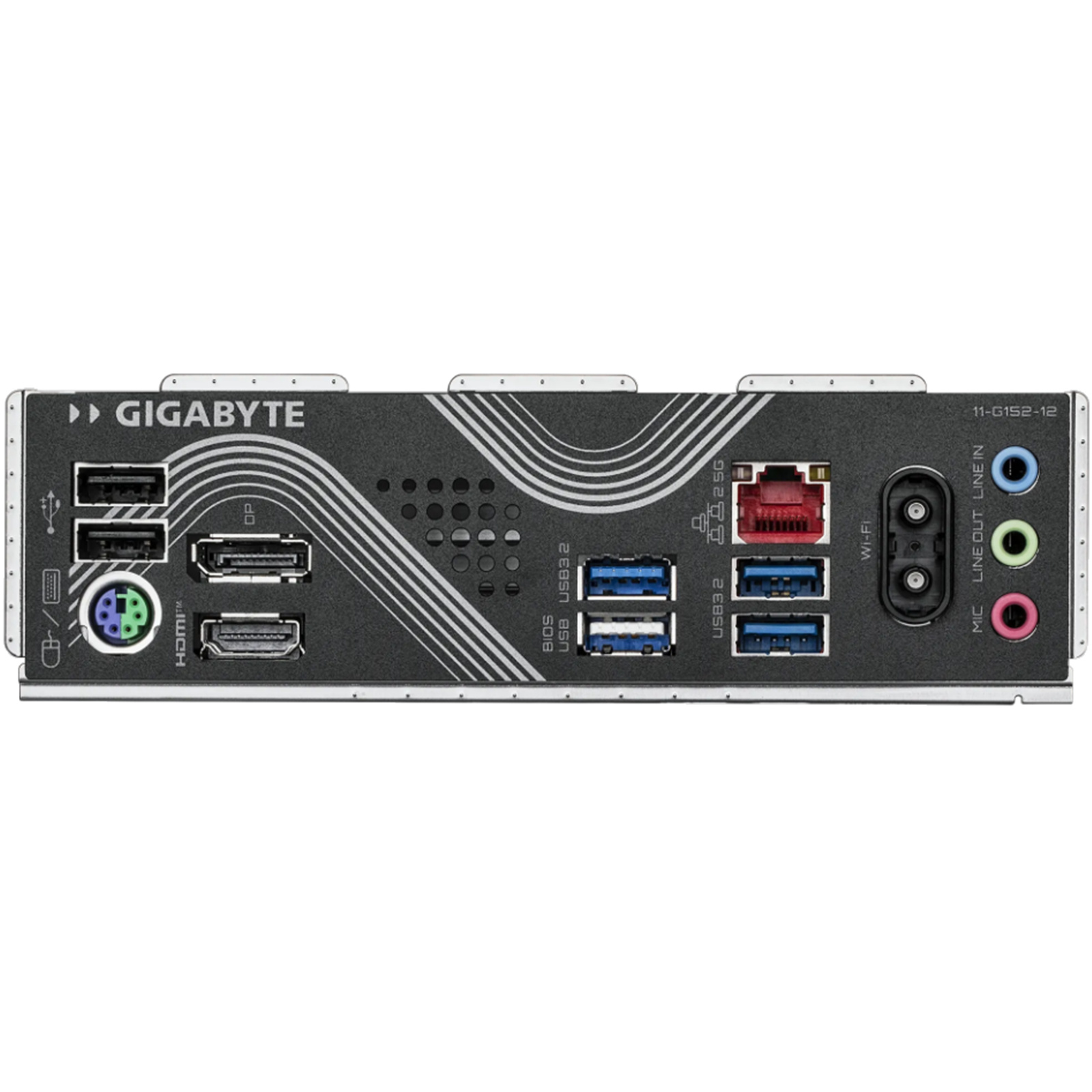

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port*
1 x DisplayPort*
3 x USB 3.2 Gen 1 ports
3 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
* Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
* The Intel® NPU driver is only supported on Windows 11.
Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm
