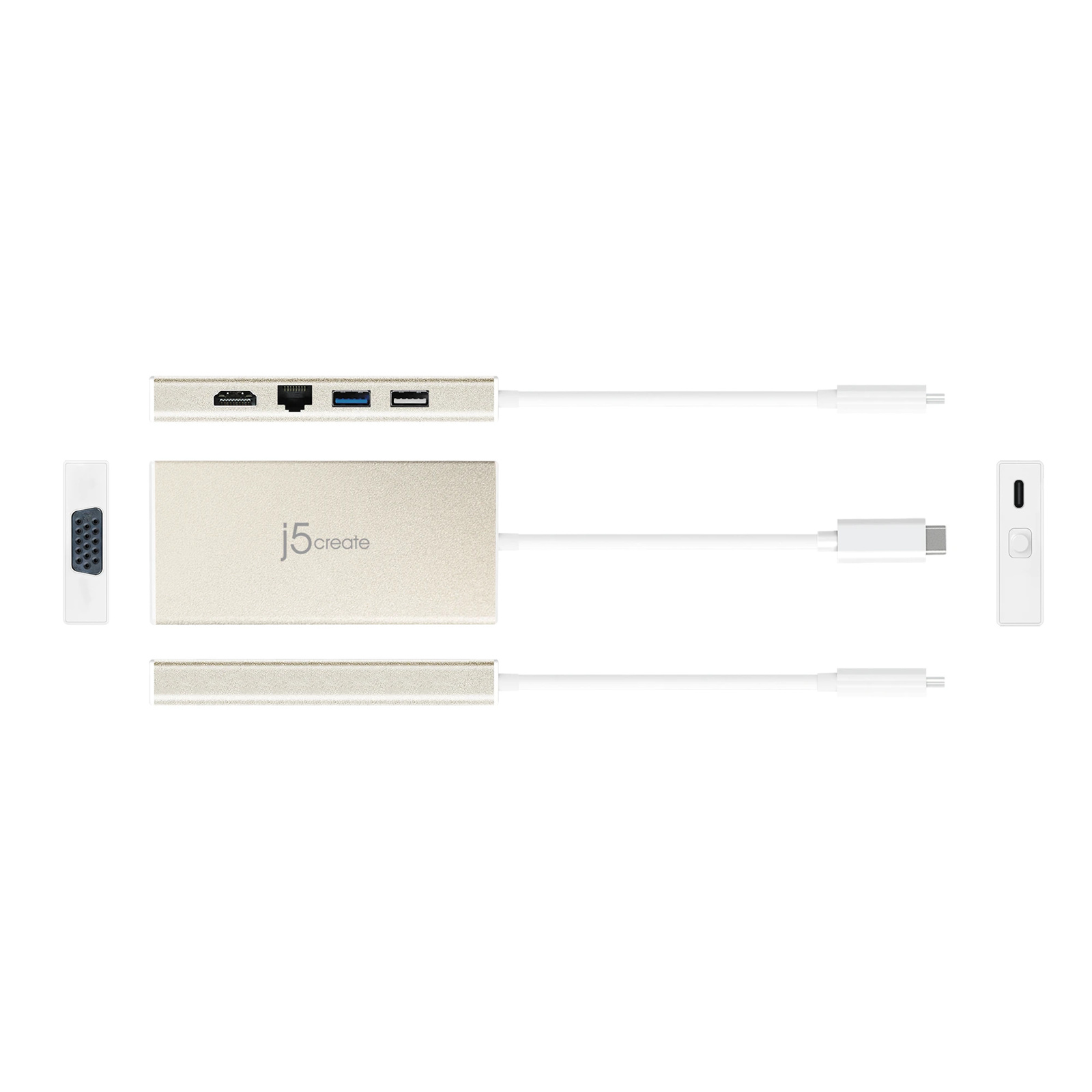

J5create USB-C 3.1 60W Power Delivery Multi Adapter Mini Docking Station, 1x 4K HDMI or 1x FullHD VGA, 1x USB3.0, 1x USB2.0, 1x Gigabit Ethernet, 1x USB-C PD
J5create USB-C 3.1 60W Power Delivery Multi Adapter Mini Docking Station, 1x 4K HDMI or 1x FullHD VGA, 1x USB3.0, 1x USB2.0, 1x Gigabit Ethernet, 1x USB-C PD
- Brand: J5create
- MPN: JCD376
- Part #: NBDJ5C1376
- UPC: 847626001963
What PB Tech customers are saying about this product...
See More Reviews"Looks elegant"
"Works well. Very today setup. Well priced"
"Works great with MB Pro with M2 chip. USB C hub with power delivery."
COMBO DEALS: Buy Together and SAVE!






Unitek Y-A025CGY USB3.1 USB-A to Type-C Adapter - Converts USB-C to USB-A - Suitable for all Type...
$7.03
$7.03


Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG -...
$68.69
$68.69


Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz
$8.24
$8.24
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular USB-C Docking Stations





J5create USB-C 3.1 60W Power Delivery Multi Adapter Mini Docking Station, 1x 4K HDMI or 1x FullHD VGA, 1x USB3.0, 1x USB2.0, 1x Gigabit Ethernet, 1x USB-C PD
- Brand: J5create
- MPN: JCD376
- Part #: NBDJ5C1376
- UPC:847626001963

Product URL: https://www.pbtech.com/pacific/product/NBDJ5C1376/J5create-USB-C-31-60W-Power-Delivery-Multi-Adapter?qr=similar-w
Features
USB-C™ Multiport Adapter with Power Delivery
DisplayPort™ Alt Mode / USB™ Power Delivery Compatible
This USB-C™ 3.1 mini docking station converts your laptop's USB-C™ port into six individual ports, allowing you to create a workstation when you are on the move! Now you can leave those single-function adapters at home.
The mini dock features an HDMI™ and VGA port so you can easily connect a 4K HDMI™ or a 1080p VGA monitor. It also adds wired network connectivity with an ethernet port and two USB™ Type-A ports for additional peripherals. With USB™ Power Delivery 2.0, you can power and charge your laptop while using the mini dock by simply connecting a USB-C™ power adapter to the USB-C™ power delivery port.
The JCD376 is perfect for small workspaces, home offices and for on-the-go!
UHD 4K HDMI™ Display
Connect your USB-C™ laptop to a 4K monitor transform your laptop into a workstation. Work more efficiently and get more done with a secondary display connected to your laptop.
4K HDMI™ or 1080p VGA
Featuring two single video output options (HDMI™ or VGA) for your convenience.
USB-C™ 3.1 Gen 1
Additional USB-C™ port supports up to 900 mA downstream charging, Power Delivery 2.0, and data transfer up to 5 Gbps.
Charge Your Laptop
With 60W USB™ Power Delivery, you can power and charge your USB-C™ laptop by simply connecting the adapter to your available USB-C™ port, then connecting a USB-C™ power adapter.
Connect Multiple Peripherals Simultaneously
Optional USB-C™ Power in port helps supply additional power when using it with high-powered USB™ devices or with multiple peripherals at once.
Environmentally Friendly
Recyclable aluminum enclosure is non-toxic and safe for the environment.
Work Anywhere
Its compact and lightweight design allows you to quickly create a mobile workstation anywhere you go.
Specifications
System Requirements
- Available USB-C™ port that supports DisplayPort™ alt mode and USB™ Power Delivery 2.0 (USB™ 3.1 is recommended). Please refer to the manufacturer of your hardware for more information on your device.
- Required graphics card:
- DisplayPort™ 1.2 is required to achieve 4K resolution @ 30 Hz
- DisplayPort™ 1.1 is required to achieve 1920 x 1200 resolution @ 60 Hz
Hardware
Audio Supported
Yes
Host Connector
USB-C™ 3.1 Gen 1 Male
Network Interface
RJ45 (Gigabit Ethernet)
Ports
1 - HDMI™
1 - VGA
1 - USB-C™ 3.1 Gen 1 with PD 2.0
1 - USB™ 3.0 Type-A
1 - USB™ 2.0 Type-A
1 - RJ45 Gigabit Ethernet
Power Source
Bus-powered or self-powered
Video Output
1 - HDMI™ Female
1 - VGA Female
Performance
Audio Channel
2.1 via HDMI™
Compatible Networks
10/100/1000 Mbps
Displays Supported
1 (HDMI™ or VGA)
Max Data Transfer Rate
5 Gbps
Max Display Refresh Rate
HDMI™ @ 30 Hz
VGA @ 60 Hz
Max Display Resolution
HDMI™: 3840 x 2160
VGA: 1920 x 1080
Power
Input Current
Up to 3A
Input Voltage
Up to 20V
Output Current
Up to 3A
Output Voltage
Up to 20V
Power Consumption
= 500 mA
Power Delivery
Up to 60W via USB-C™
Physical Specifications
Cable Length
7.87 in. (200 mm)
Color
Champagne Metallic
Enclosure Type
Aluminum
Operating Humidity
< 85% non-condensing
Operating Temperature
32 to 104°F (0 to 40°C)
Product Depth
0.6 in. (15.2 mm)
Product Height
4.53 in. (115 mm)
Product Weight
3.35 oz (95g)
Product Width
2.1 in. (53.3 mm)
Storage Humidity
< 85% non-condensing
Storage Temperature
14 to 149°F (-10 to 65°C)
Other
Special Notes
- A 4K-capable display is required for obtaining the 3840 x 2160 resolution
- If you are using a high-powered USB™ device, attach a USB-C™ power adapter to the power delivery port to ensure maximum performance. When using the USB-C™ power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.
- To ensure files copy completely, do not remove the USB-C™ power adapter while copying files
Package Contents
1 - JCD376 USB-C™ 3.1 Mini Dock
1 - Quick Installation Guide
