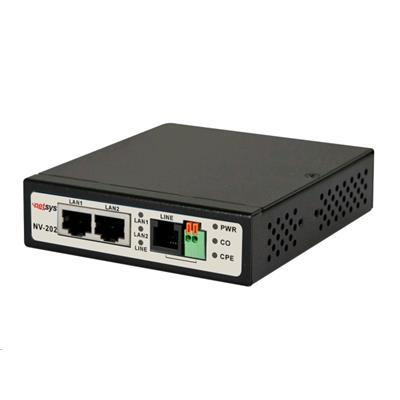

Netsys NV-202 VDSL2 Bridge

DIP Switch for CPE/CO Modes

PB Tech price
PB Tech price
NZD $ 233 .81
$ 233 .81
$233.81  +GST
$233.81

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Netsys NV-202 VDSL2 Bridge

DIP Switch for CPE/CO Modes

  • Brand: Netsys
  • MPN: NV-202
  • Part #: NETNTS2020
  • UPC:
2
PB Tech price
NZD $ 233 .81 $ 233 .81
Hurry, only 3 units left!
In stock
Delivery: Order now and it ships tomorrow
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$233.81  +GST
$233.81
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Netsys
  • MPN: NV-202
  • Part #: NETNTS2020
  • UPC:

Wireless Technology

N/A

Ethernet Ports Per Unit

2

USB Ports

No

Wireless Transmission Speed

N/A

WiFi Bands

N/A

Cellular Connectivity

N/A

HyperFibre Compatible

No

Coverage Area

N/A

View full specs
Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"Does exactly what it says. Handy for using existing phone wiring. Also works on active analogue phone line (still requires filter for this use). Just plug and play and away you go."

G
By: Guest 21/07/25

"Very satisfied with the quality of this product. Running 100Mbit/s through two wires of shared Cat 5e cable, which also handles a three wire serial bus for a solar setup with no is ...view more"

G
By: Guest 09/09/19

Features

NV-202 is a VDSL2 single port bridge equipped with two 10/100Mbps Ethernet ports that provide an economical solution for commercial-grade applications. Compliant with ITU-T G.993.2 VDSL2 standard, the NV-202 supports a maximum bandwidth of up to 100Mbps symmetric in VDSL2 Profile (30a) solution. The NV-202 also supports both central office (CO) and customer-premises equipment (CPE) modes selectable through DIP Switch.

Since VDSL2 has the characteristic of higher bandwidth over shorter distances, the ideal architecture for Telcoms is to use fiber optic lines as the backbone and a VDSL2 line as the last mile into the home or office. With outstanding throughput, the NV-202 can complement a fiber network to offer the best solution for delivering Triple play(Video/Voice/Data) or home entertainment services.


Key Features & Benefits

- Supports RJ-11/Terminal Block combo for Line port.
- Supports high bandwidth up to 100Mbps symmetric over Line ports
- Support long reach mode up to 3 km with 24 gauge phone wire
- Support auto speed for Line port and Interleave mode selectable through CO side DIP switch
- DIP switch with CO and CPE mode selectable
- Supports interleave / INP & noise margin config by DIP Switch
- Supports Surge protection
- Supports wall mounting
- Supports DIN-Rail mount installation (Optional)
- Compact size and metal case design
- Supports point-to-point applications

Specifications

Standard:
IEEE802.3 standard
IEEE802.3u standard
G993.2 VDSL2 standard

Physical Interface:
2 x RJ-45 10/100Mbps auto-negotiation Ethernet port
1 x RJ-11/Terminal Block connector for VDSL2 line port
1 x DIP Switch
1 x Power Jack

LED indication:
1 x Power LED
2 x Link/Active Status for Ethernet port
1 x Link LED for VDSL2 port
1 x CO Mode indicator LED
1 x CPE Mode indicator LED

Power Requirement:
Input Voltage: 12VDC / 1A

VDSL2 Line Code:
Discrete multitone (DMT) modulation

VDSL2 Transmission Mode:
Packet Transfer Mode (PTM)

Operating Temperature:
0°C~ 50°C (32°F ~ 122°F)

Storage Temperature:
-20°C ~ 70°C (-4°F ~ 158°F)

Humidity:
10 to 90% (non-condensing)

EMC: EMI Compliant:
FCC Class B

EMS Compliant:
CE mark

Dimensions:
95 x 110 x 27 mm (3.74" x 4.33" x 1.06")

Manufacturer Part No:
NV-202
Brand:
Netsys
Product Type:
Bridge
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
NETNTS2020
Product Model:
NV-202
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
write a review
learn more

Does exactly what it says.

Does exactly what it says. Handy for using existing phone wiring. Also works on active analogue phone line (still requires filter for this use). Just plug and play and away you go.

G
By: Guest 21/07/25
0 out of 0 users found this review helpful
Did you find it helpful?

A product that actually does what the specs say

Very satisfied with the quality of this product. Running 100Mbit/s through two wires of shared Cat 5e cable, which also handles a three wire serial bus for a solar setup with no issues at all. Highly recommended.

G
By: Guest 09/09/19
0 out of 0 users found this review helpful
Did you find it helpful?
