TP-Link Archer NX200 5G Release-15 AX1800 Wi-Fi 6 Router
1GbE x3 / Nano-SIM Slot / SMA x2 for External Cellular Antenna
TP-Link Archer NX200 5G Release-15 AX1800 Wi-Fi 6 Router
1GbE x3 / Nano-SIM Slot / SMA x2 for External Cellular Antenna
- Brand: TP-Link
- MPN: Archer NX200
- Part #: NETTPL45200
- UPC:
- Brand: TP-Link
- MPN: Archer NX200
- Part #: NETTPL45200
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular 4G / 5G Routers





TP-Link Archer NX200 5G Release-15 AX1800 Wi-Fi 6 Router 1GbE x3 / Nano-SIM Slot / SMA x2 for External Cellular Antenna
- Brand: TP-Link
- MPN: Archer NX200
- Part #: NETTPL45200

Product URL: https://www.pbtech.com/pacific/product/NETTPL45200/TP-Link-Archer-NX200-5G-Release-15-AX1800-Wi-Fi-6?qr=popular_related_products
Features
5G AX1800 Wireless Dual-Band Gigabit Router
- Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
- AX1800 Dual-Band Wi-Fi 6 Speed - 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Plug & Play - Enjoy 5G network right after inserting a SIM card.
- EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
- Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.
Superior 5G - A Revolutionary Experience
Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX200 is backward compatible with 4G mode.
Share 5G Speed with Reliable Wi-Fi
Thanks to cutting-edge 5G tech, NX200 boosts up to 4.67 Gbps download speeds fulfills your devices' needs. Armed with WiFi 6 technology, NX200 is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.
Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer NX200 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
Available WAN Connection Backup
The gigabit WAN/LAN port enables NX200 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/LTE connection works as a backup to provide a sustained and reliable internet connection for you.
Easy Setup and Use
Set up the Archer NX200 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
Specifications
HARDWARE FEATURES

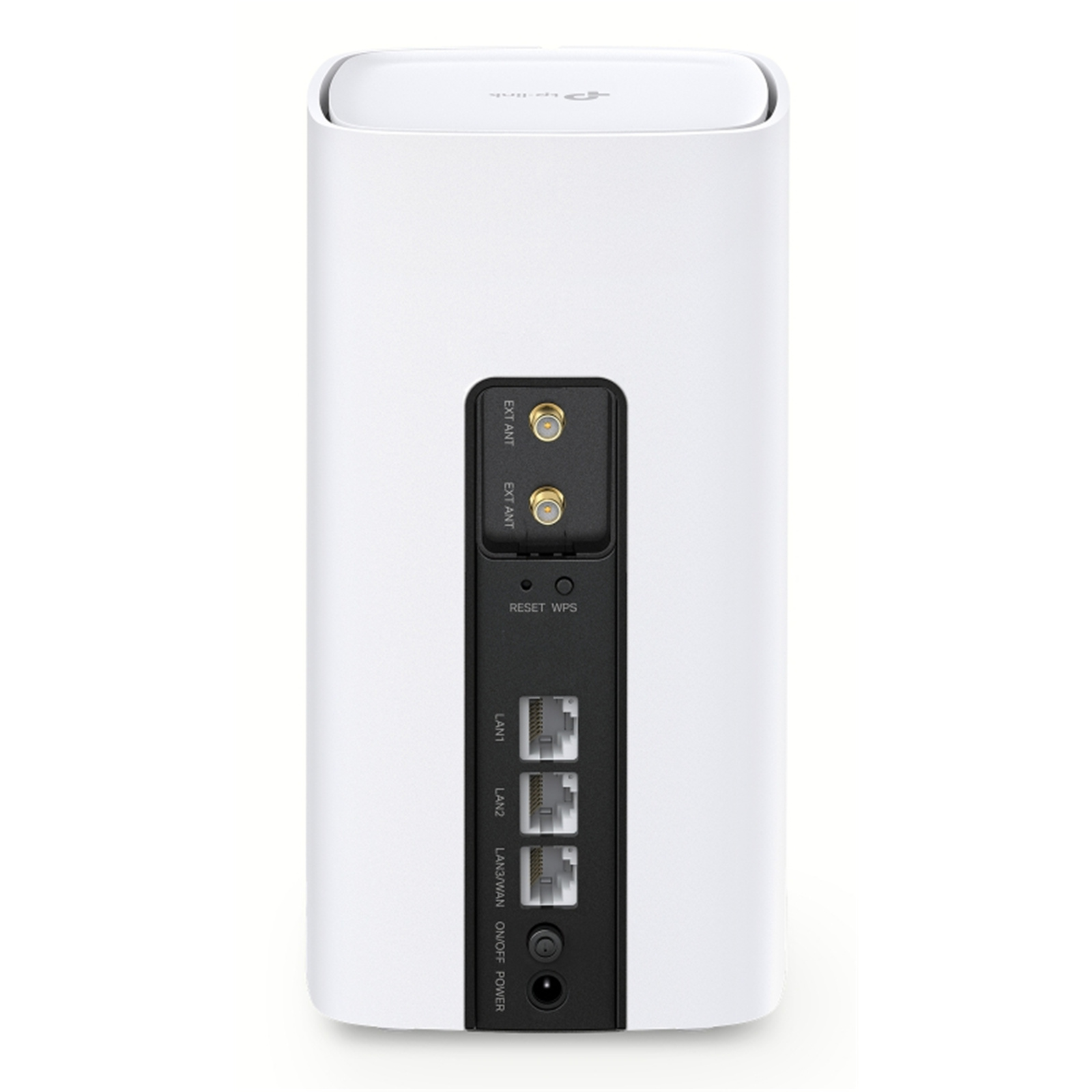

Interface
1 × 10/100/1000 Mbps LAN/WAN Port
2 × 10/100/1000 Mbps LAN Ports
1 × Micro SIM Card Slot
2 × 5G/4G External Antenna Ports
Button
WPS Button, Reset Button, Power On/Off Button
External Power Supply
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 1.5A
Dimensions ( W x D x H )
3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)
Antenna
8 × 5G/LTE Antennas
WIRELESS FEATURES
Wireless Standards
IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4 GHz and 5 GHz
Signal Rate
574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
Reception Sensitivity
5 GHz: 11a 54M: -74 dBm
11ac HT20: -66 dBm
11ac HT40: -63 dBm
11ac HT80 : -59 dBm
11n HT20: -73 dBm
11n HT40: -70 dBm
2.4 GHz: 11g 54M: -74 dBm
11n HT20: -72 dBm
11n HT40: -69 dBm
Transmit Power
< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover
Yes
Wireless Security
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Network Type
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
SOFTWARE FEATURES
Quality of Service
Prioritizes network traffic by device or application
Security
DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management
TP-Link Cloud, Local Management, Remote Management
DHCP
Server, DHCP Client List, Address Reservation
Port Forwarding
ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS
TP-Link, DynDns, NO-IP
VPN
PPTP VPN, IPSec VPN , OpenVPN
Access Control
Parental Control, Local Management Control
Firewall Security
DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols
IPv4, IPv6
Guest Network
2.4 GHz Guest Network x 1
5 GHz Guest Network x 1
OTHERS
Certification
CE, RoHS
Package Contents
5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
System Requirements
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Micro SIM Card
Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
