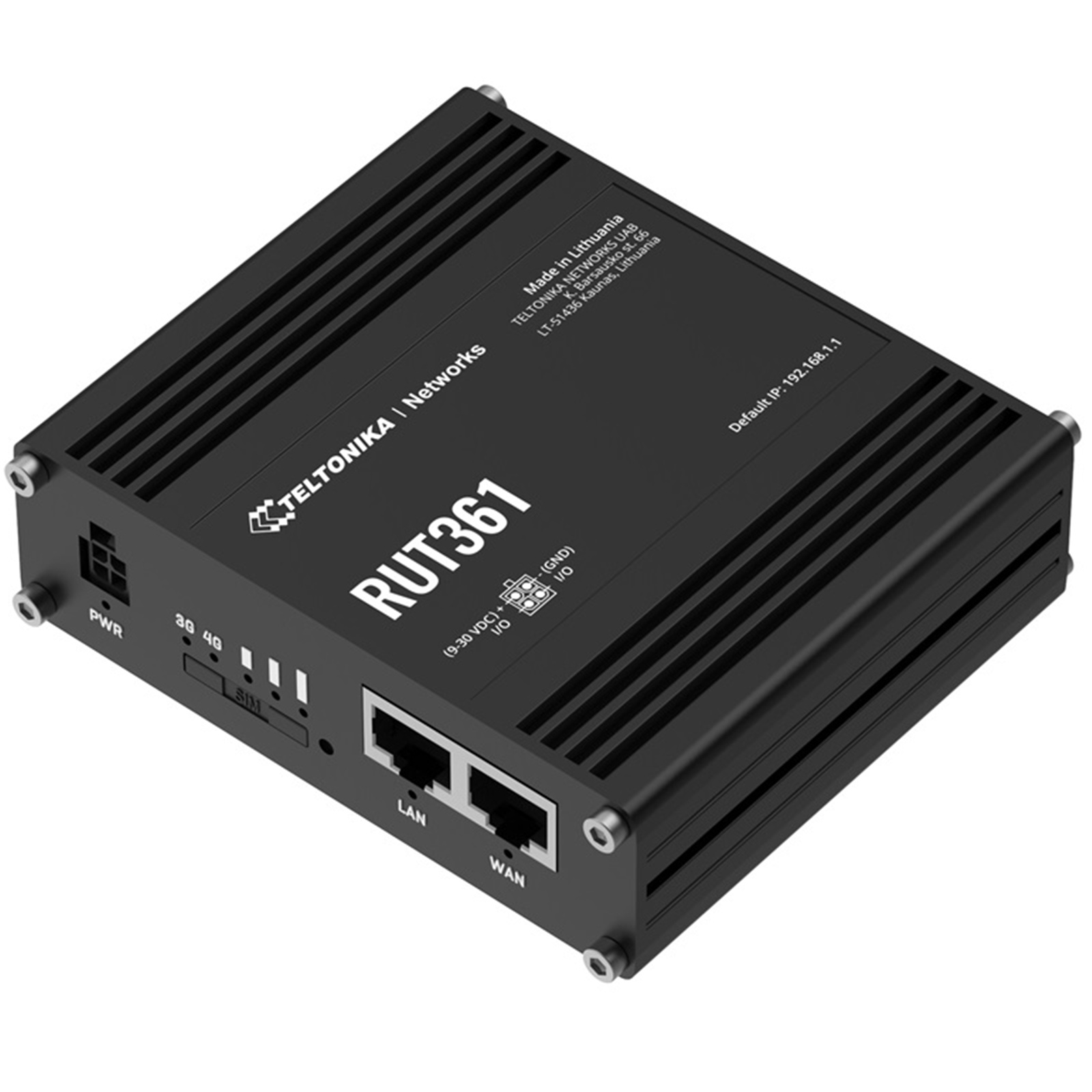

Teltonika RUT361 4G/LTE Cellular CAT 6 WiFi Router

CPU

Mediatek, 580 MHz, MIPS 24KEc

RAM

128 MB, DDR2

FLASH storage

16 MB serial NOR flash

Mobile module

4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps

3GPP Release

Release 12

Bands

4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B321, 4G (LTE-TDD): B38, B40, B41, B42, B43

SIM PIN code management

SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

APN

Auto APN

Bridge

Direct connection (bridge) between mobile ISP and device on LAN

Passthrough

Router assigns its mobile WAN IP address to another device on LAN

Wireless mode

802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)

WAN

1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

LAN

1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Inputs

Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

Output

Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA

Events

Email, RMS, SMS

I/O juggler

Allows to set certain I/O conditions to initiate event

Routing Static

routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

DHCP

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

Load balancing

Balance Internet traffic over multiple WAN connections

Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Firewall

Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VPN

OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale

MODBUS Supported modes

Server, Client

DATA TO SERVER Protocol

HTTP(S), MQTT, Azure MQTT

Data to server

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Server through MQTT broker

Teltonika Networks Web API (beta) support

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data

Monitoring & Management

WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS

Power Connector

4-pin industrial DC power socket

Input voltage range

9 - 30 VDC, reverse polarity protection, voltage surge/transient protection

PoE (passive)

Passive PoE (Optional - different hardware required; contact your sales manager)

Power consumption

Idle: < 2.4 W, Max: < 4.7 W

I/O's

2 x Configurable I/O pins on 4-pin power connector

Status LEDs

2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power

SIM

1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder

Antennas

2 x SMA for LTE, 2 x RP-SMA for Wi-Fi

Reset

Reboot/User default reset/Factory reset button

Casing material

Aluminium housing

Dimensions (W x H x D)

100 x 30 x 85 mm

Weight

243 g

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30
