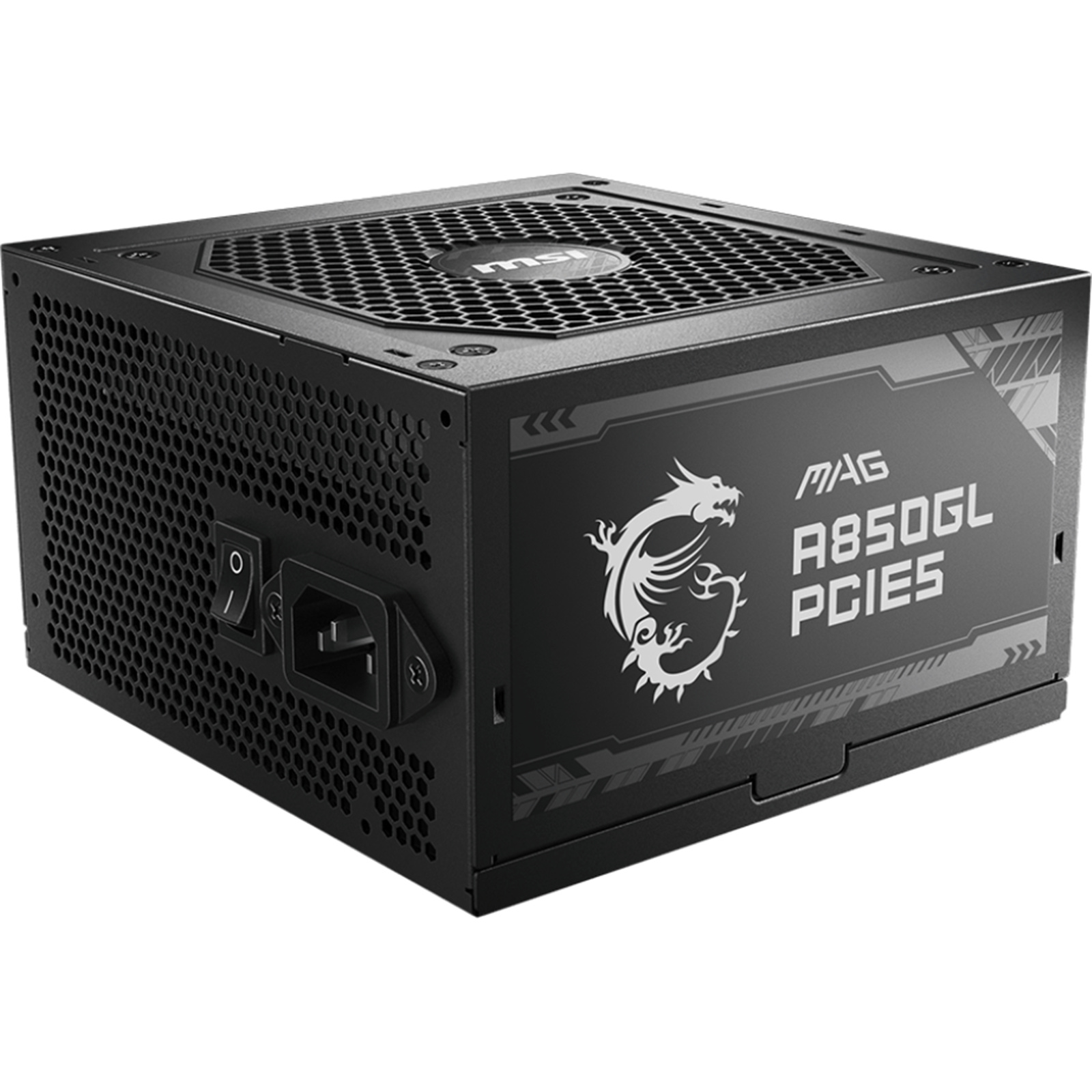

MSI MAG 850W Power Supply
80 Plus Gold - ATX 3.1 PCIe 5.0 Ready - 12VHPWR 12+4-Pin - Full Modular Design - Industrial Level Protection with OVP / OCP / OPP / OTP / SCP / UVP - 7 years Warranty
MSI MAG 850W Power Supply
80 Plus Gold - ATX 3.1 PCIe 5.0 Ready - 12VHPWR 12+4-Pin - Full Modular Design - Industrial Level Protection with OVP / OCP / OPP / OTP / SCP / UVP - 7 years Warranty
- Brand: MSI
- MPN: MAG A850GL PCIE5
- Part #: PSUMSI1020
- UPC: 824142319222
- Brand: MSI
- MPN: MAG A850GL PCIE5
- Part #: PSUMSI1020
- UPC: 824142319222
What PB Tech customers are saying about this product...
See More ReviewsCustomer Review Summary
"This power supply is lauded for its performance, design, and value for money. Customers appreciate the modular design for easy cable management and its silence of operation. It pro ...view more"
"Works really well, no issues with power"
"Very high quality PSU - quiet too"
COMBO DEALS: Buy Together and SAVE!
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox...
$53.67
$53.67
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
$6.50
$6.50
Features
MAG A850GL PCIE5
- ATX 3.1 Ready, native PCIe 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 / 50 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
MAG - UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.1 READY
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
DUAL-COLOR 16-PIN CABLE
The 16 Pin PCIe cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly. Besides, the patented pending Dual-color 16-pin cabledual-color also won Wccftech awards in the 2023 COMPUTEX
LEVEL UP YOUR GAME
With native 16 PIN PCIe connector this power supply is ready for NVIDIA® GeForce RTX™ 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.1 graphics cards.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
*The photo is only for illustration
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
*The photo is only for illustration

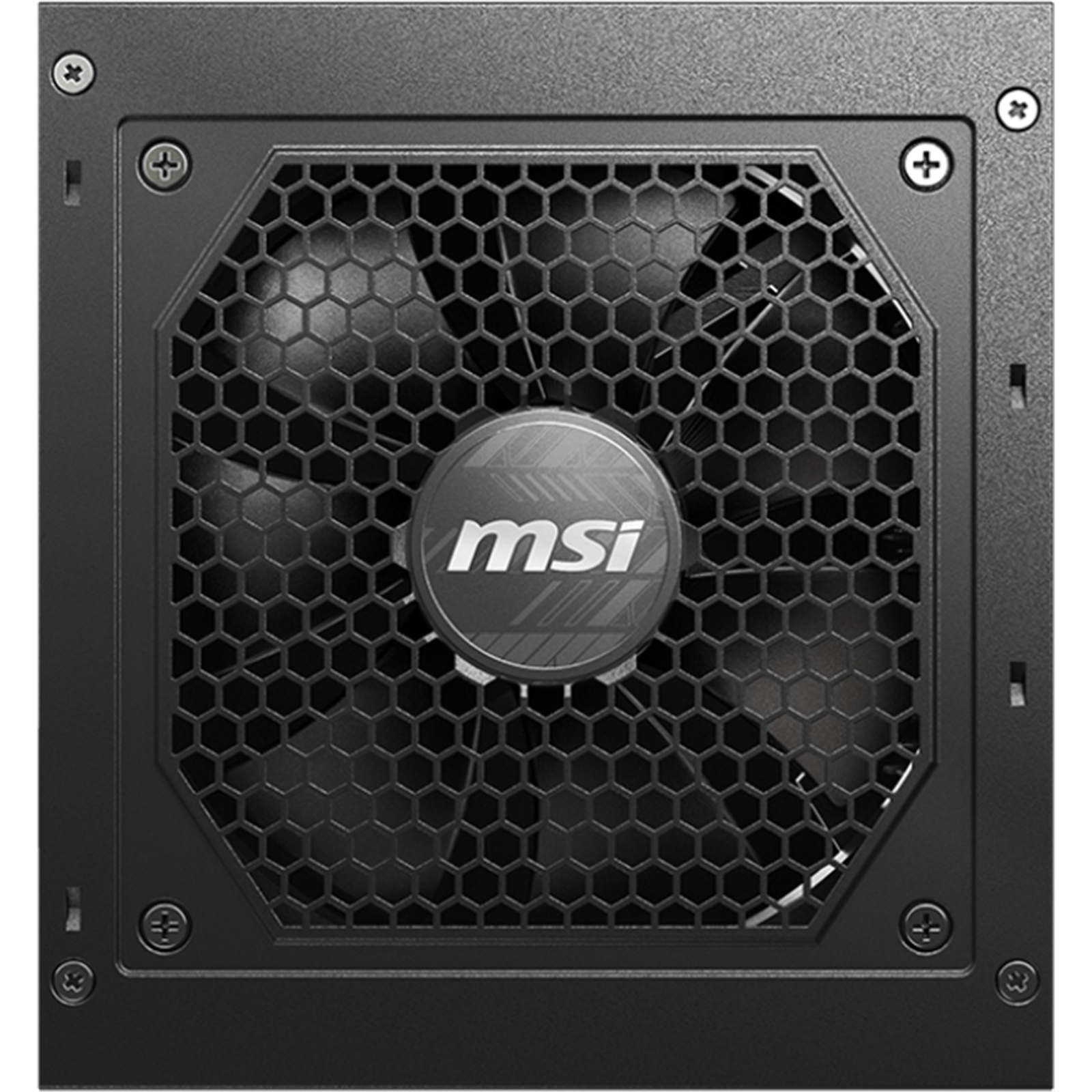

FLUID DYNAMIC BEARING
The power supply's fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
*The picture is for illustrative only.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
- OCP Over Current Protection
- OTP Over Temperature Protection
- OVP Over Voltage Protection
- OPP Over Power Protection
- UVP Under Voltage Protection
- SCP Short Circuit Protection

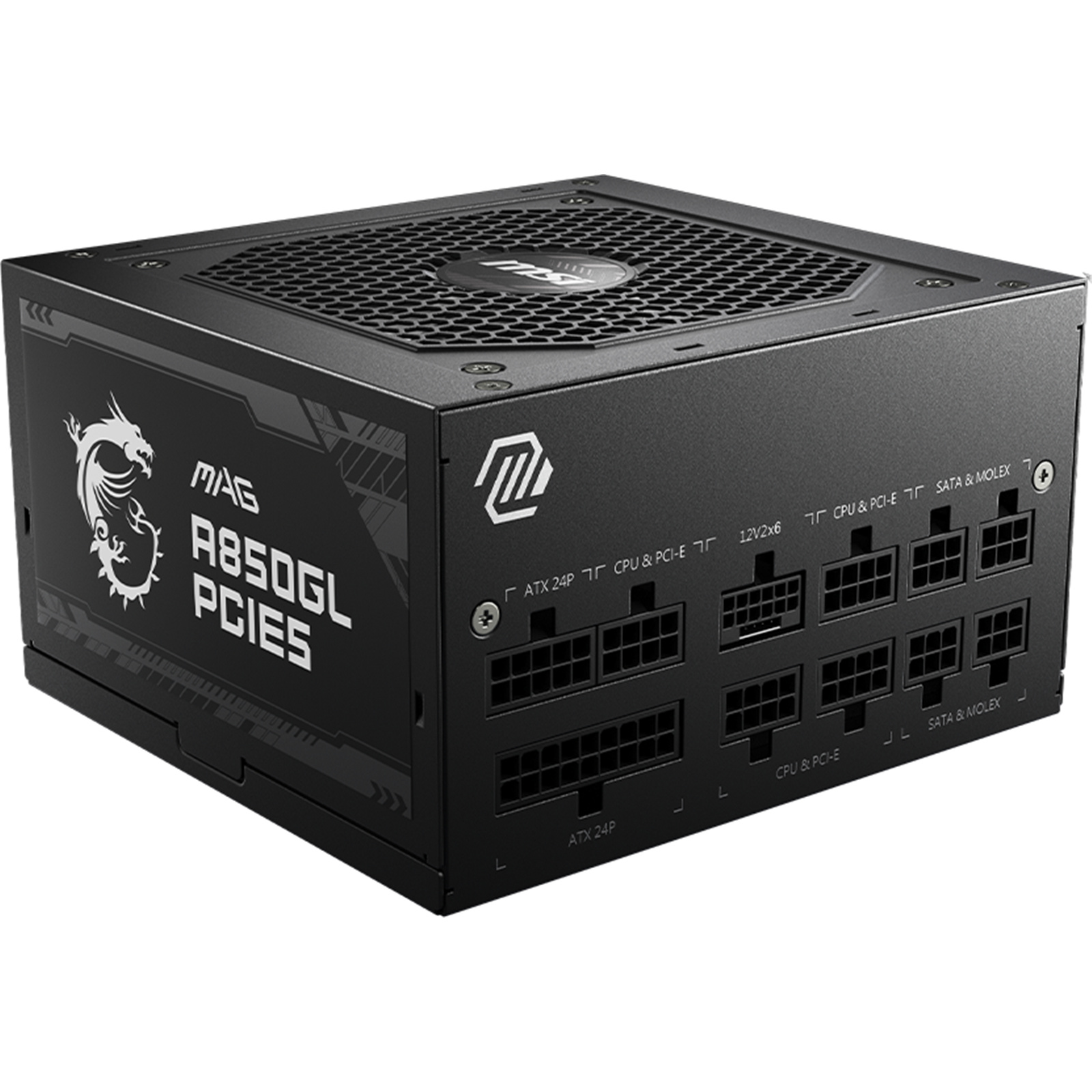

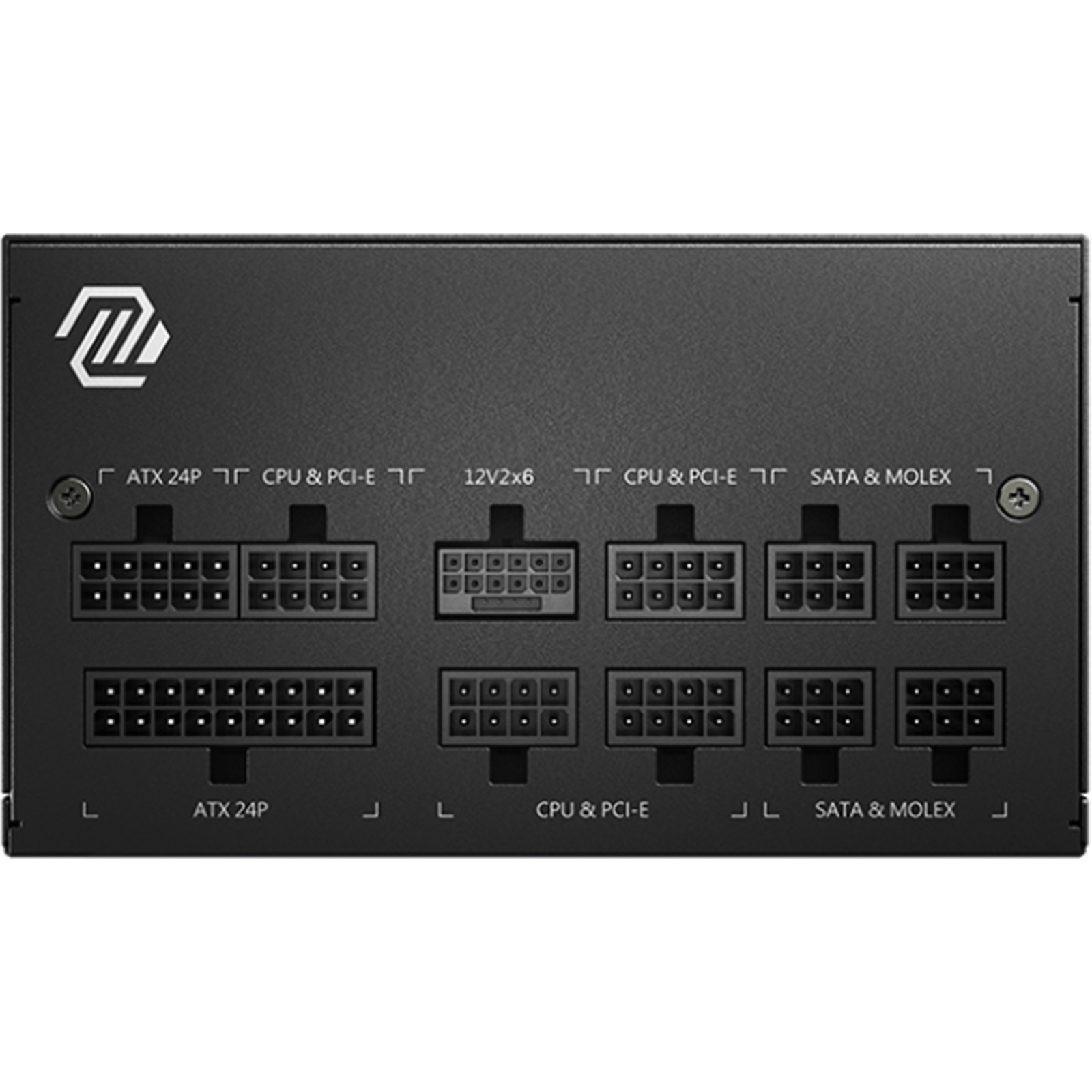

CONNECTORS
Specifications
Reviews
Do you own this product?
Customer Review Summary
This power supply is lauded for its performance, design, and value for money. Customers appreciate the modular design for easy cable management and its silence of operation. It provides ample wattage for most systems, including those intended for future upgrades. It's praised for having clear markings for easy and correct plug-in. The power supply also comes with an easily fit cable bag and is suitable for mid to upper-range builds. While some find the cables could aesthetically be improved, overall, this power supply is highly recommended for its functionality, quality, and price point.
A very well made product!
Nice modular design PSU with a coloured native 16 PIN PCIe connector! It can help users to ensure the cable is firmly plugged into the GPU to avoid the risk of melting connector. Overall very satisfied with the purchase!
A must for any upgrade
Had to upgrade CPU and MB. Put in a new GPU so why not PSU. Better to have to much power and not need it than to need it and not have it. Will only draw what is needed. Future proof.
Highy Recommend
Works great for the price
This power supply is very quiet and performs well. It's very well priced for a gold rated power supply.
Just a great product
Had absolutely no issues with this. I specifically purchased it because it was on sale for Black Friday and it had everything I needed. It's modular, has a 16-pin. I got the 750W variant because it leaves lots of room for more power consuming components later on.
So far so good
PSU runs well with my current setup. No issues what so ever. Runs how it should at a reasonable price.
Only downside is slightly stiff cables but not a big issue for me.
Easy purchase from PBTech St lukes
Does what it says
Some people seem to have a problem with the noise? Mine doesn't make any noise.
Good price, no issues.
Thanks, PB!
Good price to performance.
This was purchased for future-proofing. Handles power delivery extremely well. I can recommend it for any mid to upper-range build.
Needed an upgrade
My son told me I needed more power for my PC so I went out and purchased a bigger unit, I had a 400 watt unit and upgraded to a 750watt unit which made a big difference. Great price and quick delivery.
Great power supply
Works really well, no issues with power
Would recommend
Very high quality PSU - quiet too
Quality product with a resonable price
Works well with my build and is very quiet, fully modular so cable management was easy to set up.
Just what I needed
Great product, works well, more than enough power for my GPU
Delivery & Pick-up
Returns & Warranty
Popular Desktop Power Supplies
DEEPCOOL PL750D 750W ATX 3.1 Power Supply 80 Plus Bronze - MEPS...
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full...
MSI MAG 650W Power Supply 230V - 80 Plus Bronze - MEPS Approved -...
Corsair RM750x 750W ATX 3.1 Power Supply Cybenetics Gold...
MSI MAG 850W Power Supply 80 Plus Gold - ATX 3.1 PCIe 5.0 Ready -...
MSI MAG 850W Power Supply 80 Plus Gold - ATX 3.1 PCIe 5.0 Ready - 12VHPWR 12+4-Pin - Full Modular Design - Industrial Level Protection with OVP / OCP / OPP / OTP / SCP / UVP - 7 years Warranty
- Brand: MSI
- MPN: MAG A850GL PCIE5
- Part #: PSUMSI1020
- UPC:824142319222
Product URL: https://www.pbtech.com/pacific/product/PSUMSI1020/MSI-MAG-850W-Power-Supply-80-Plus-Gold---ATX-31-PC?qr=popular_related_products
Features
MAG A850GL PCIE5
- ATX 3.1 Ready, native PCIe 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 / 50 Series graphics cards
- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency
- Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
MAG - UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.1 READY
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
DUAL-COLOR 16-PIN CABLE
The 16 Pin PCIe cable's connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly. Besides, the patented pending Dual-color 16-pin cabledual-color also won Wccftech awards in the 2023 COMPUTEX
LEVEL UP YOUR GAME
With native 16 PIN PCIe connector this power supply is ready for NVIDIA® GeForce RTX™ 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.1 graphics cards.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
*The photo is only for illustration
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
*The photo is only for illustration
FLUID DYNAMIC BEARING
The power supply's fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
*The picture is for illustrative only.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
- OCP Over Current Protection
- OTP Over Temperature Protection
- OVP Over Voltage Protection
- OPP Over Power Protection
- UVP Under Voltage Protection
- SCP Short Circuit Protection
CONNECTORS
Specifications
EFFICIENCY RATING
80 PLUS Gold (up to 90%)
MODULAR
Yes (full modular)
FAN SIZE
120 mm
FAN BEARING
Fluid Dynamic Bearing
DIMENSIONS (DXWXH)
140 x 150 x 86 mm
PFC TYPE
Active PFC
INPUT VOLTAGE RANGE
100~240 VAC
POWER WATT
850W
POWER EXCURSION
1700W (*up to 200% of the PSU's rated power for 100µs)
INPUT FREQUENCY RANGE
47-63Hz
PROTECTION
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN)
1
EPS (4+4 PIN)
2
PCI-E 5.0 (16 PIN)
1 (600W)
PCI-E (6+2 PIN)
4
SATA (15 PIN)
8
MOLEX (4 PIN)
4
FDD (4 PIN)
1
