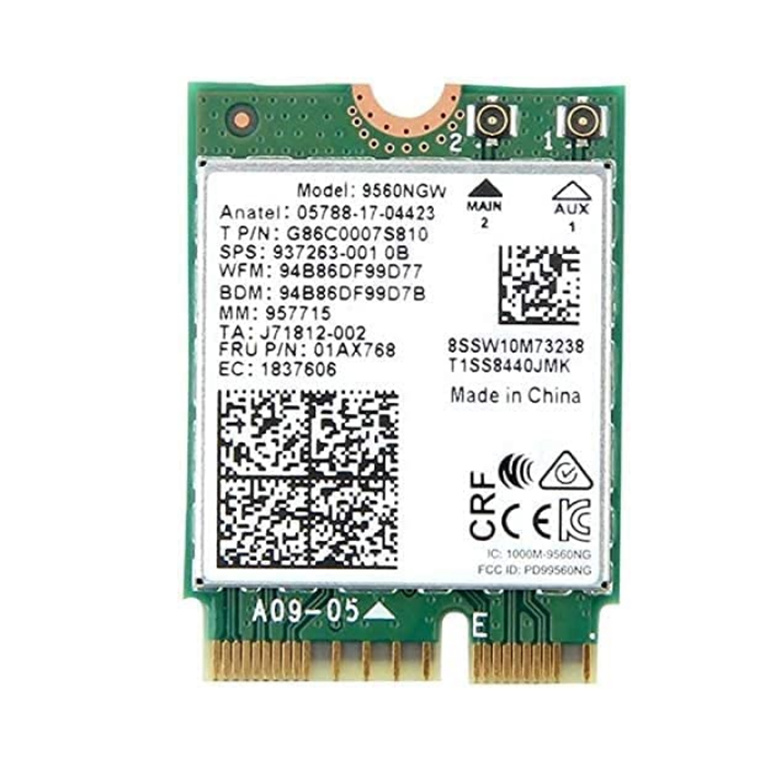

Intel 9560 WiFi 5 + Bluetooth 5.1 Internal M.2 Wireless Adapter
9560NGW 802.11AC - PN: T0HRM / 0T0HRM / 01AX768 / 937263-001 (OEM Package)
Intel 9560 WiFi 5 + Bluetooth 5.1 Internal M.2 Wireless Adapter
9560NGW 802.11AC - PN: T0HRM / 0T0HRM / 01AX768 / 937263-001 (OEM Package)
- Brand: Intel
- MPN: SEVOEM5W003
- Part #: SEVOEM5W003
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"The existing Wifi card all of a sudden stopped working. Ther new card was loaded with ease and worked without any additional steps to be taken by me as a user. So far, a great prod ...view more"
"Bought to fix my laptop's broken wifi (ROG GL504). Replaced it with this. Everything seems to work as it should. Meets intended internet speeds, but more importantly I can actually ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular M.2 WiFi & Bluetooth Adapters





Intel 9560 WiFi 5 + Bluetooth 5.1 Internal M.2 Wireless Adapter 9560NGW 802.11AC - PN: T0HRM / 0T0HRM / 01AX768 / 937263-001 (OEM Package)
- Brand: Intel
- MPN: SEVOEM5W003
- Part #: SEVOEM5W003

Product URL: https://www.pbtech.com/pacific/product/SEVOEM5W003/Intel-9560-WiFi-5--Bluetooth-51-Internal-M2-Wirele?qr=popular_related_products
Features
Model: Wireless-AC 9560NGW 2. WiFi Standard: IEEE 802.11AC WiFi 5 3. Hardware Interface: NGFF M2 A-E Key
Major Chipset: Intel Wireless-AC 9560NGW 5. Target Users: Intel CPU Laptop PCs after 2018
Peak Speed: 2.4GHz 300Mbps & 5GHz 160MHz 1730Mbps 7. WiFi Encryption: 64bit and 128-bit WEP, AES-CCMP and TKIP
Provides Bluetooth 5 and 2x2 802.11ac Wi-Fi including Wave 2 functions such as 160 MHz channel.
Fast download and long battery life.
The M.2 2230 module provides flexibility in system configuration
1. only support windows 10 64bit
Motherboard with CNVI interface only
Support part of Lenovo and HP machines, please check before buying or message us 3.
Specifications:
Condition: Brand New
Model: 9560NGW
SPS: 937263-001 0b
FRU P/N: 01AX768
Interface: NGFF Key E, 22x30mm
IEEE WLAN Standards: IEEE 802.11a / b / g / n / ac
MU-MIMO: Support
Antenna Diversity: Support
Wireless On/Off Control: Support
Connector Face: M.2: CNVio
Operating Temperature (Adapter Shield): 0 - 80 (Celsius)
Supported Operating Systems: Only work with Microsoft Windows 10
Note: Windows 7/8/8.1 is not supported
Operating frequency band: 2.4G / 5G (160Mhz)
Transmission speed: up to 1730Mbps (router must be 160Mhz )
Bluetooth: 5.0
Size: Approx. 1.2 x 0.8 x 0.2 inches (30 x 20 x 5 mm).
Weight: Approx. 0.1 oz
Compatibility:
Works with Samsung / Dell / Sony / ACER / ISUS / MSI / Clevo / Terransforce / Hasee etc.
Asus tuf b360m plus gaming
Asus Z390I
Gigabyte h370n wifi itx
For Gigabyte Z390I
Z390I b360 m aorus pro
Dell 3060m
Dell 7060m
Dell G7
Dell g3 3579
MSI Z390 TOMAHAWK
ASRock deskmini 310
For ASRock J4105-itx, J5005-itx, B360m pro4
2018 Hasee K680E, t96e
Intel Wireless-AC 9560NGW NGFF M2 CNVI interface CRF WiFi Adapter-2030Mbps Max Speed
The Wireless-AC 9560NGW is an NGFF M2 CNVI interface CRF (companion RF module) WiFi card. It is based on Intel Wireless-AC 9560NGW major chipset. It will provide IEEE 802.11AC WiFi 5 2X2 MU-MIMO 2030Mbps total bandwidth wireless network connection speed. It is the best option to add wireless AC network on laptop computers and industrial devices for online gaming, video streaming, online phone calls and home-office internet surfing. It also comes with WiFi Audio Adapter technology for WiFi headphones, TWS earphones, speakers, home audio systems etc audio source transmission.
Drivers & Software Downloads:
https://www.intel.com/content/www/us/en/products/sku/99446/intel-wirelessac-9560/downloads.htmlInstallation Notes:
Specifications
TX/RX Streams
2x2
Bands
2.4, 5 GHz (160 MHz)
Max Speed
1.73 Gbps
Wi-Fi CERTIFIED
Wi-Fi 5 (802.11ac)
Compliance
FIPS, FISMA
Bluetooth Version
5.1
Integrated Bluetooth
Yes
MU-MIMO
Yes
Supported Under Intel vPro® Technology
Yes
