Raspberry Pi 5 Official M.2 HAT+ M Key Supports 2230 or 2242 Form Factor, M.2 - Format PCIe / NVMe SSD and Other PCIe Accessories

PB Tech price

NZD $ 21 .62

$ 21 .62

Raspberry Pi 5 Official M.2 HAT+ M Key Supports 2230 or 2242 Form Factor, M.2 - Format PCIe / NVMe SSD and Other PCIe Accessories

Name: Raspberry Pi 5 Official M.2 HAT+ M Key Supports 2230 or 2242 Form Factor, M.2 - Format PCIe / NVMe SSD and Other PCIe Accessories
Brand: Raspberry Pi
SKU: SEVRBP0533
Price: 21.62 NZD
Availability: InStock
Rating: 4.8 (5 reviews)

Brand: Raspberry Pi
MPN: SC1166
Part #: SEVRBP0533
UPC:

PB Tech price

NZD $ 21 .62

In stock

Delivery: Order now and it ships today

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Raspberry Pi
MPN: SC1166
Part #: SEVRBP0533
UPC:

5 reviews

Case Colour

N/A

Memory Size

N/A

PSU Colour

N/A

Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"Super easy to install and allows me to now boot off my RPi SSD and get rid of my microSD card. I have this sitting in the official red/white case with the top held on with a rubber ...view more"

By: dpDesignz 12/03/25

Verified Owner

"Purchased the HAT with a RPi 5 starter kit. Easy to put together and had things up an running within an hour.

This HAT doesn't suit the case that comes with the starter kit but I ...view more"

By: Guest 26/01/25

"Works as expected, easy to set up and configure."

By: JoeS196 06/01/25

Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Raspberry Pi 5 Official M.2 HAT+ M Key Supports 2230 or 2242 Form...

Raspberry Pi 5 Official M.2 HAT+ M Key Supports 2230 or 2242 Form Factor, M.2 - Format PCIe / NVMe SSD and Other PCIe Accessories

Total:

NZD $ 164 .82

Buy together and save $4.76 $4.76

Raspberry Pi Official SSD NVMe 256GB M.2 2230 PCIe 2.0

Ships today

$52.78 $52.78

NZD

$51.30

Raspberry Pi Official SSD NVMe 512GB M.2 2230 PCIe 2.0

Ships today

$79.03 $79.03

NZD

$77.39

Kingston Canvas Select Plus microSDXC Memory Card - 64GB Includes SD Adapter - UHS-I - Class 10 -...

Ships today

$9.90 $9.90

NZD

$8.90

You save 10% You save 10%

Dynamix A-HDMI-MINI HDMI Female to HDMI Mini Male Adapter

Ships today

NZD

$5.61

You save 10% You save 10%

Features

Raspberry Pi 5 Official SSD sold separately. 256GB, 512GB.

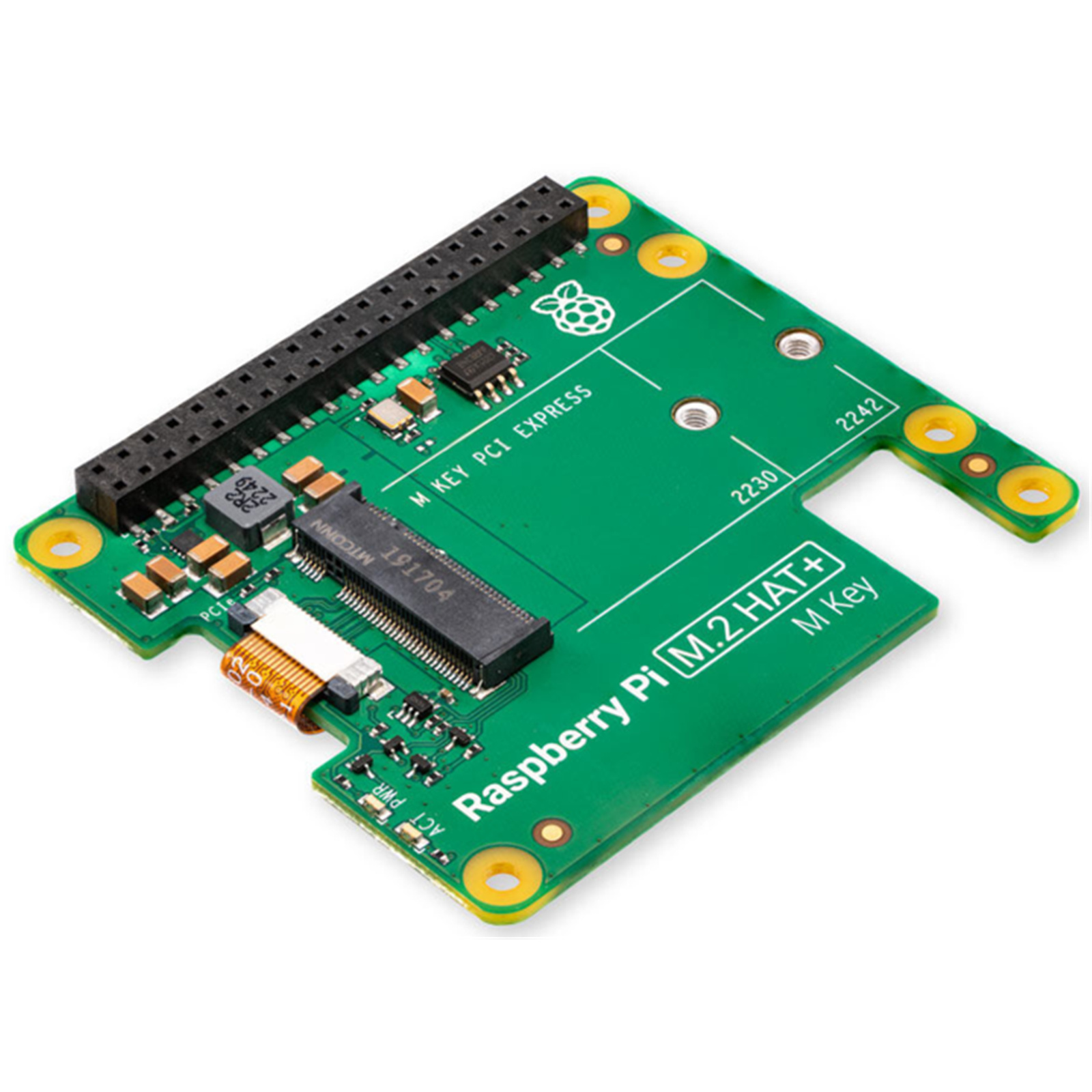

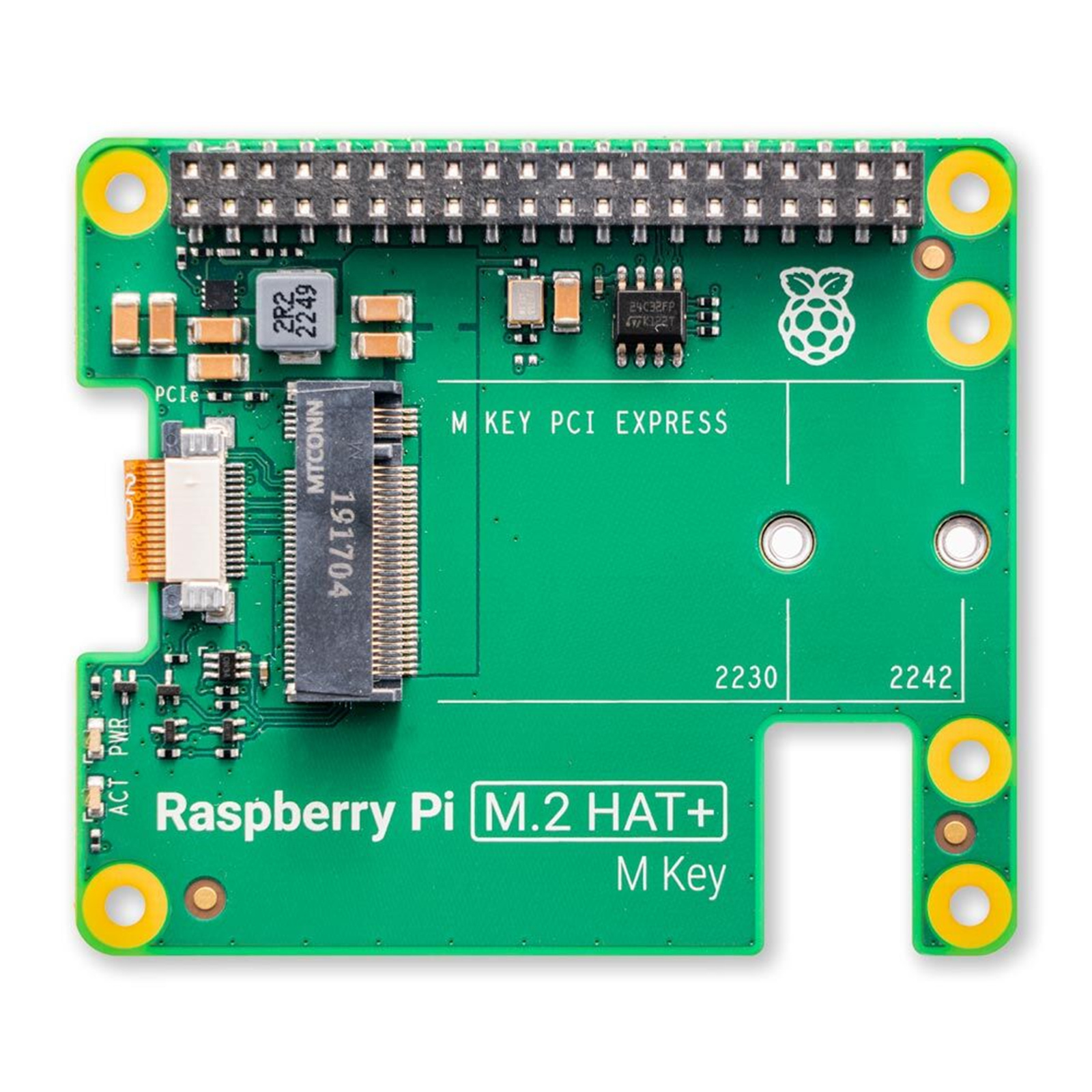

The Raspberry Pi M.2 HAT+ enables you to connect M.2 peripherals such as NVMe drives and AI accelerators to Raspberry Pi 5's PCIe 2.0 interface, supporting fast (up to 500 MB/s) data transfer to and from NVMe drives and other PCIe accessories.

Overview

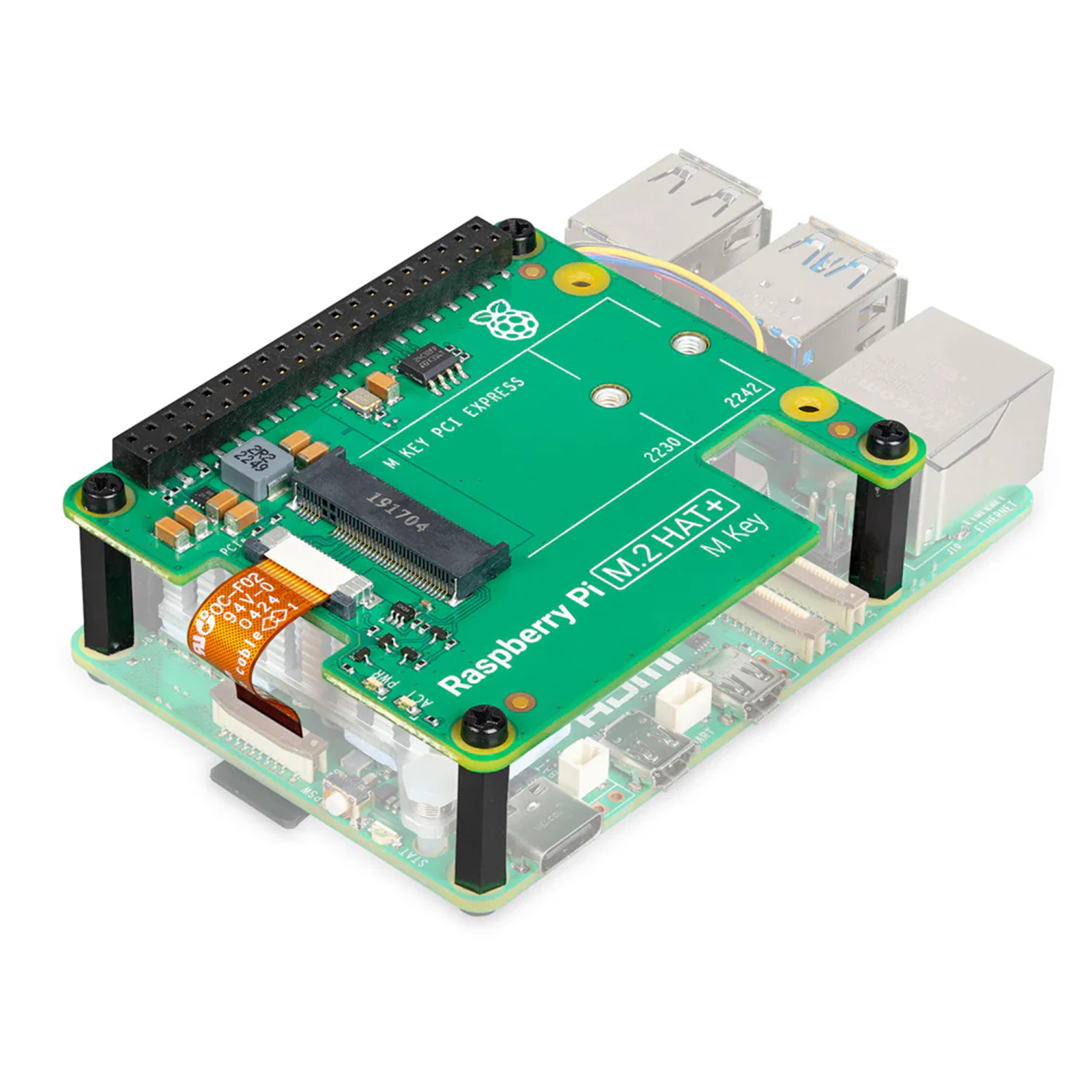

Raspberry Pi 5's single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm- pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices.

The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.

- Supports a single-lane PCIe 2.0 interface with a maximum transfer rate of 500 MB/s.
- Compatible with M.2 M Key edge connector devices.
- Suitable for devices in 2230 and 2242 form factors.
- Provides up to 3A of power to connected M.2 devices.
- Includes power and activity indicators.
- Meets Raspberry Pi HAT+ specification standards.

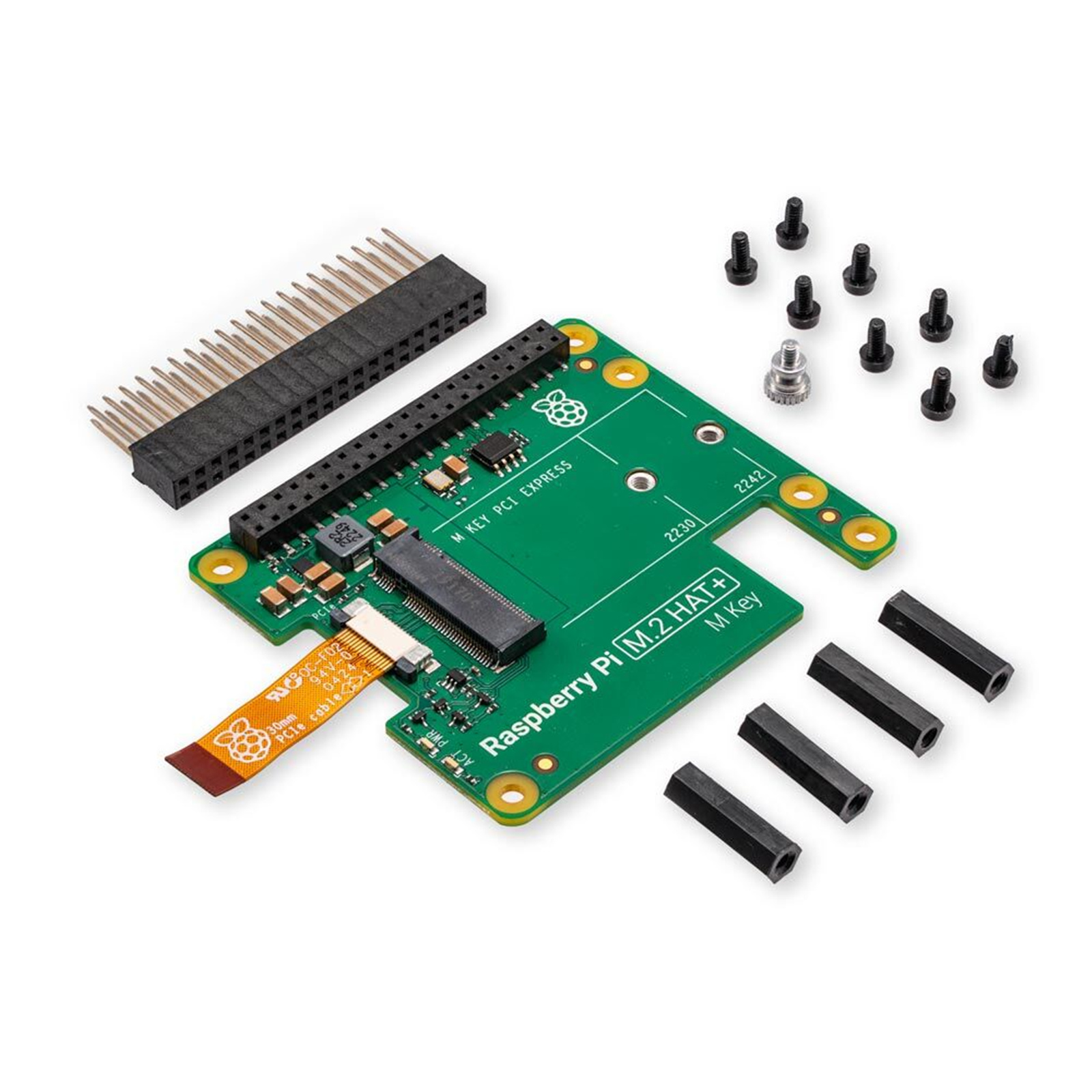

- Comes with installation accessories such as a ribbon cable, 16mm stacking header, threaded spacers, screws, and a knurled double-flanged screw for securing the M.2 peripheral.
- Operates within a temperature range of 0°C to 50°C.

Documents:

Raspberry Pi M.2 HAT+ product brief

Raspberry Pi M.2 HAT+ assembly instructions

Raspberry Pi M.2 HAT+ schematics

Specifications

Manufacturer

Raspberry Pi

Product No.

SC1165

Manufacturer Part No:

SC1166

Brand:

Raspberry Pi

Product Type:

M.2 HAT+ M Key

UPC

Product Family:

Shipping Weight:

0.1 kg

PB Part No:

SEVRBP0533

Product Model:

Official

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.8 out of 5 Stars Based on 5 reviews

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

write a review

learn more

SORT BY

Verified Owners Only Images Only

Easy to install

Super easy to install and allows me to now boot off my RPi SSD and get rid of my microSD card. I have this sitting in the official red/white case with the top held on with a rubber band as it still fits, just doesn't clip on.

By: dpDesignz 12/03/25

Verified Owner

1 out of 1 user found this review helpful

Nice accessory to the Raspberry Pi 5

Purchased the HAT with a RPi 5 starter kit. Easy to put together and had things up an running within an hour.

This HAT doesn't suit the case that comes with the starter kit but I made it work.

By: Guest 26/01/25

1 out of 1 user found this review helpful

About time...

Works as expected, easy to set up and configure.

By: JoeS196 06/01/25

Verified Owner

0 out of 0 users found this review helpful

Makes the Pi5 so much more useful

This allows one to add memory to the pi5 allowing it to be so much more useful. It really shows how far the Raspberry pis have become..

Price is small. It fits onto the pi5 with a few screws and stand offs. The slightly harder part is ti ensure that the PCI ribbon connection is connected first as per instructions and that the ribbon is connected. It is alot easier to do this at this stage than after fitting the HAT.

The had makes the pi5 very solid and brick like. No problems is connecting the cables to the pi5.

By: GordonT258 14/12/24

Verified Owner

0 out of 0 users found this review helpful

Works

Card works as expected. Now running 3 pi5s with 128G M.2 cards

Can't put the lid on the case though. This card get in the way.

By: RobertB77 18/10/24

Verified Owner

0 out of 0 users found this review helpful
