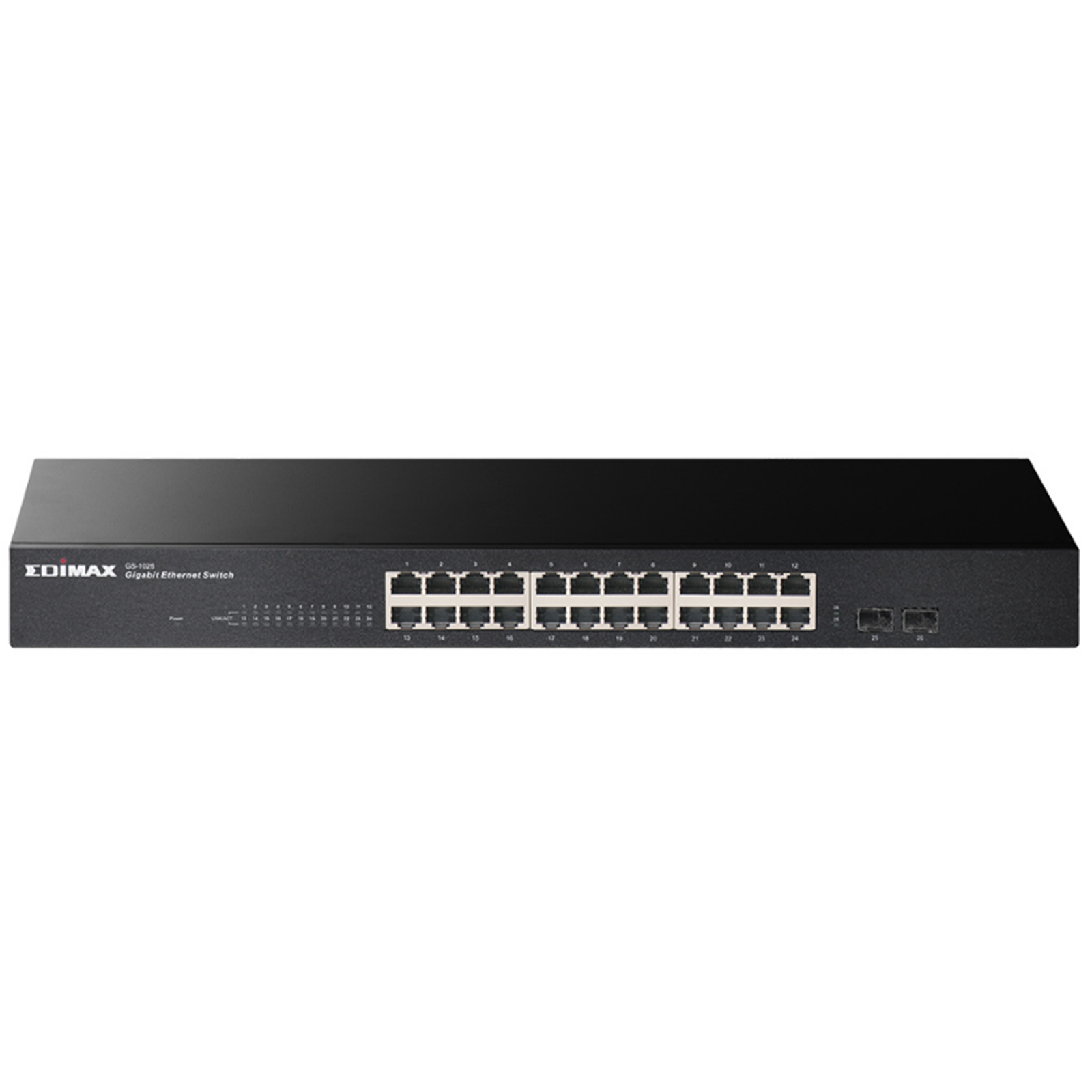

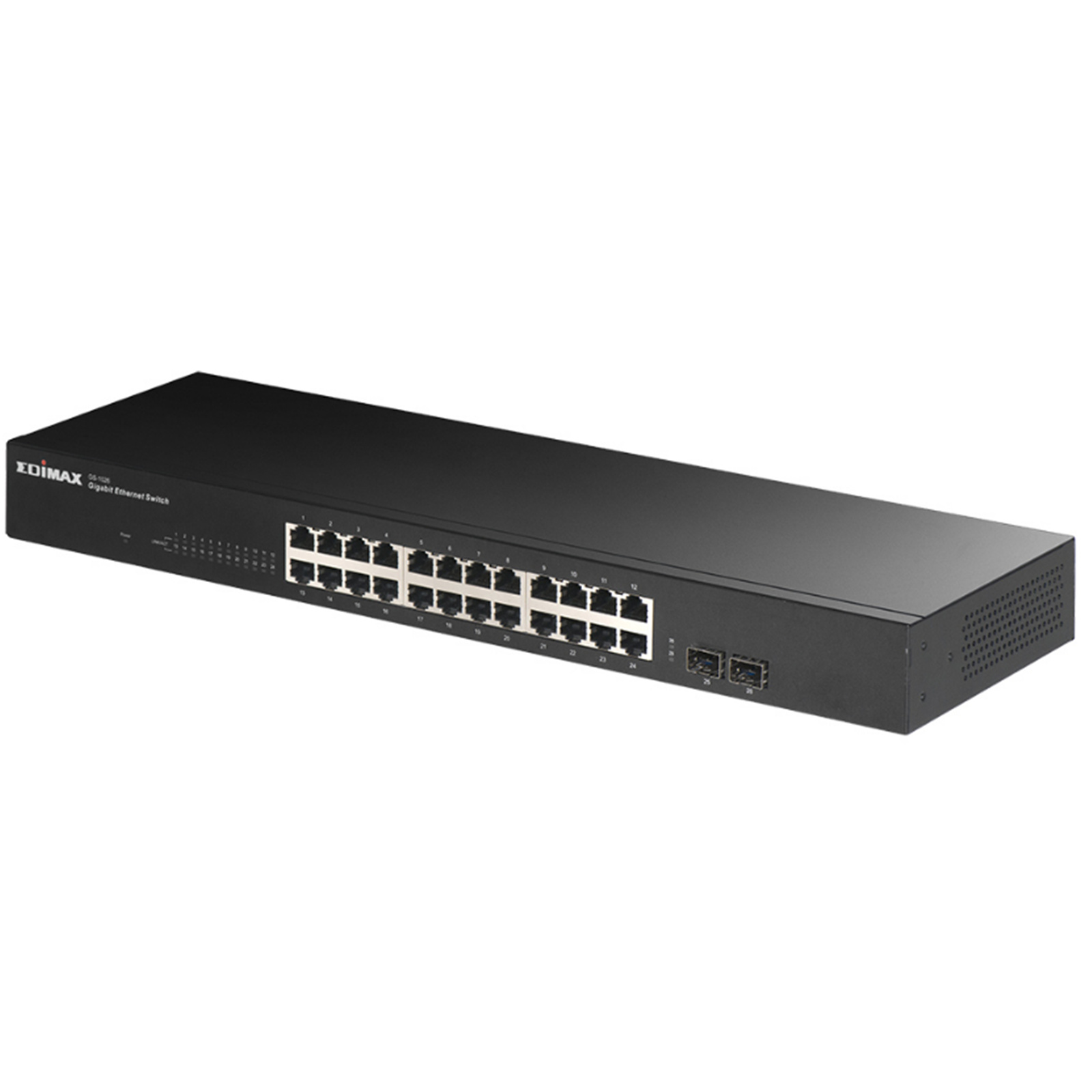

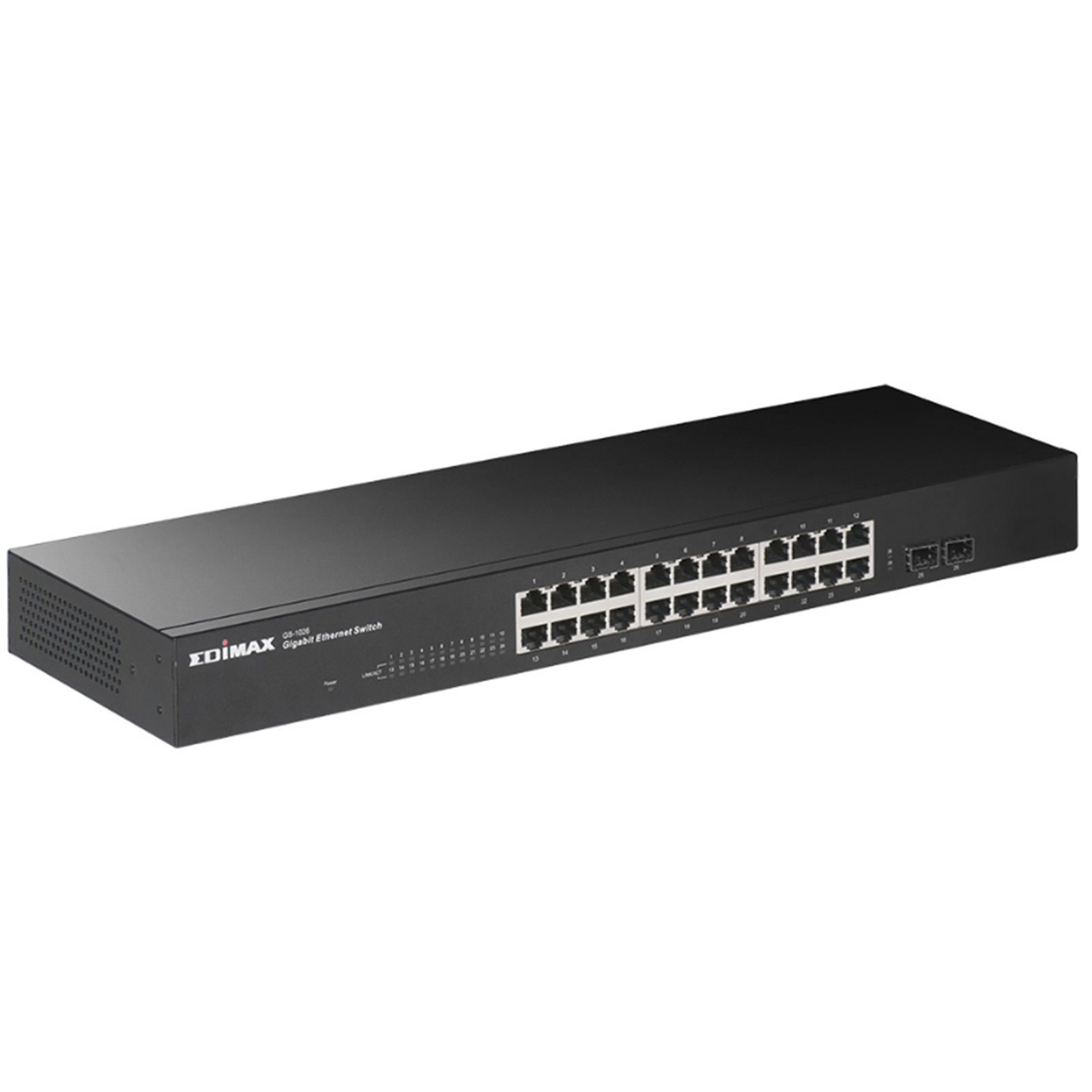

Edimax GS-1026 v3 24 Port Gigabit Rack-Mount Unmanaged Switch + 2 SFP Ports High-Speed Networking and Jumbo Frames. Designed for Medium /Large Network Environments. Includes Brackets.
Edimax GS-1026 v3 24 Port Gigabit Rack-Mount Unmanaged Switch + 2 SFP Ports High-Speed Networking and Jumbo Frames. Designed for Medium /Large Network Environments. Includes Brackets.
- Brand: Edimax
- MPN: GS-1026V3
- Part #: SWHEDM1046
- UPC:
- Brand: Edimax
- MPN: GS-1026V3
- Part #: SWHEDM1046
- UPC:
Features
EDIMAX 24 Port Gigabit Rack-Mount Unmanaged Switch + 2 SFP Ports. High-Speed Networking and Jumbo Frames. Designed for Medium /Large Network Environments. Includes Brackets.
Features:
- Gigabit High Speed & Long Distance SFP Uplinks: Equipped 24 Gigabit Ethernet ports and 2 SFP ports/uplinks featuring full-duplex and 10KB jumbo frames for high-speed networks
- QoS for Improved Traffic: Supports IEEE802.1p QoS for ensuring priority for video and voice traffic
- High Performance & Reliable Connection: Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection
- Energy Efficient & Power Saving: Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
- Plug-and-Play & Flexible Deployment: No software or configuration required and designed for desktop or rack-mounted flexible deployment
Efficiently Upgrade or Expand Networks with High-Performance Gigabit Speed
For Home, Small Office and Enterprise
Gigabit High-Speed Network
Delivers up to 2000Mbps of throughput per port at full-duplex mode to servers, workstations and other attached devices to save time when transferring large files.
Supports 802.1p QoS for ensuring first priority for voice and video traffic for reduced package loss, lower latency and jitter on the network.
High Performance and Reliable Connection
Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.
Energy Efficient and Power Saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard to reduce energy consumption and save costs.
Plug-and-Play & Flexible Deployment
No software or configuration required, designed for desktop or rack-mount for flexible deployment.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax GS-1026 v3 24 Port Gigabit Rack-Mount Unmanaged Switch + 2 SFP Ports High-Speed Networking and Jumbo Frames. Designed for Medium /Large Network Environments. Includes Brackets.
- Brand: Edimax
- MPN: GS-1026V3
- Part #: SWHEDM1046
Product URL: https://www.pbtech.com/pacific/product/SWHEDM1046/Edimax-GS-1026-v3-24-Port-Gigabit-Rack-Mount-Unman?qr=similar-w
Features
EDIMAX 24 Port Gigabit Rack-Mount Unmanaged Switch + 2 SFP Ports. High-Speed Networking and Jumbo Frames. Designed for Medium /Large Network Environments. Includes Brackets.
Features:
- Gigabit High Speed & Long Distance SFP Uplinks: Equipped 24 Gigabit Ethernet ports and 2 SFP ports/uplinks featuring full-duplex and 10KB jumbo frames for high-speed networks
- QoS for Improved Traffic: Supports IEEE802.1p QoS for ensuring priority for video and voice traffic
- High Performance & Reliable Connection: Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection
- Energy Efficient & Power Saving: Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
- Plug-and-Play & Flexible Deployment: No software or configuration required and designed for desktop or rack-mounted flexible deployment
Efficiently Upgrade or Expand Networks with High-Performance Gigabit Speed
For Home, Small Office and Enterprise
Gigabit High-Speed Network
Delivers up to 2000Mbps of throughput per port at full-duplex mode to servers, workstations and other attached devices to save time when transferring large files.
Supports 802.1p QoS for ensuring first priority for voice and video traffic for reduced package loss, lower latency and jitter on the network.
High Performance and Reliable Connection
Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.
Energy Efficient and Power Saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard to reduce energy consumption and save costs.
Plug-and-Play & Flexible Deployment
No software or configuration required, designed for desktop or rack-mount for flexible deployment.
Specifications
HARDWARE
Ports
24 x RJ-45 10/100/1000Base-T ports
2 x SFP ports
Transmission Method
Store and forward
LED Indicator
Per port: Link/Act
Per unit: Power
Power Input
100-240V AC, 50-60Hz, internal power supply
Mounting
Desktop / rack-mount (rack-mount kit included)
Housing
Metal
Fan
Fanless
Dimension
441(W) x 44(H) x 131(D) mm
Weight
1.83kg
PERFORMANCE
Switching Capacity
52Gbps
MAC Address
8K
Buffer Memory
4.1Mb
Jumbo Frame
10K (Bytes)
Filtering / Forwarding Rates
Max. 38.6Mpps
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
OTHERS
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
?IEEE 802.3z 1000BaseSX/LX
IEEE 802.3p QoS (Quality of Service)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy efficient Etherent
Environmental Condition
Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -40~158°F (-40~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
