Ubiquiti UniFi USW-Flex-2.5G-8 10-Port 10G L2 Managed Switch - 10GbE PoE+/SFP+ Combo x1, 2.5GbE x8

PB Tech price

NZD $ 312 .70

$ 312 .70

Ubiquiti UniFi USW-Flex-2.5G-8 10-Port 10G L2 Managed Switch - 10GbE PoE+/SFP+ Combo x1, 2.5GbE x8

Hybrid Power - PoE+ / USB-C

Brand: Ubiquiti
MPN: USW-Flex-2.5G-8
Part #: SWHUBI10568
UPC: 810084696149

PB Tech price

NZD $ 312 .70

In stock

Delivery: Order now and it ships today

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: USW-Flex-2.5G-8
Part #: SWHUBI10568
UPC: 810084696149

Be the first to review this product

10 Gigabit Ports

Not Specified

10 Gigabit

Not Specified

Form Factor

Not Specified

Management Level

Number of Ports

8 Ports

PoE Ports

1 Ports

PoE Budget

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Flex 2.5G

Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.

- (8) 2.5 GbE ports
- (1) 10 GbE PoE+ input port for power / SFP+ port combo
- Optional powering with included 5V, 3A USB-C adapter

Specifications

Mechanical

Dimensions

212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3")

Weight

420 g (14.8 oz)

Enclosure material

Polycarbonate

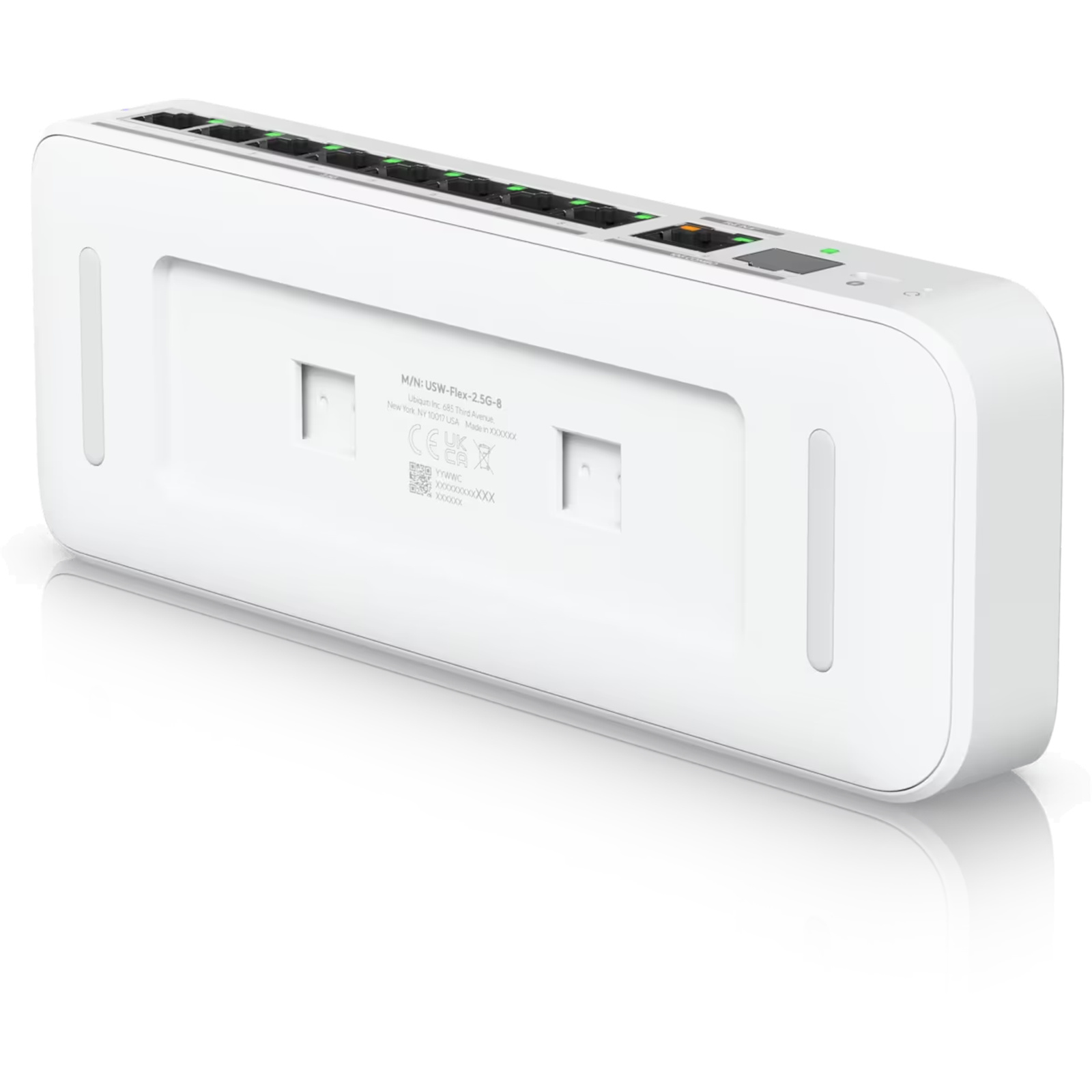

Mounting

Wall-mountable (kit included)
DIN rail-mountable (sold separately)

Hardware

Management interface

Ethernet In-Band

Networking interface

(8) 2.5/1 GbE RJ45 ports
(1) 10G SFP+ or 10/5/2.5/1 GbE RJ45 combination port*
While only one is active, RJ45 can receive power and SFP+ can be utilized for data.

Total non-blocking throughput

30 Gbps

Switching capacity

60 Gbps

Forwarding rate

44.64 Mpps

Power method

(1) AC power adapter, 5V DC, 3A
(1) PoE+ (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-)

Power supply

External AC/DC adapter
UniFi PoE switch

Supported voltage range

AC/DC input: 5V DC
PoE input: 42.5-57V DC

Max. power consumption

14W

Button

Factory reset

Ambient operating temperature

-20 to 45° C (-4 to 113° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 features

STP / RSTP with priorities and port-level disable
Storm control
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Proprietary loop protection
Port isolation
Port mirroring

LEDs

System

Blue/white: power
Blinking white: bootup in progress
Blinking blue: firmware upgrading
Steady white: factory defaults; unit is awaiting adoption
Steady blue: unit is adopted

Ethernet

Link/activity
PoE input

SFP+

Link/activity

Application Requirements

UniFi Network

Version 9.0.108 and later

Manufacturer Part No:

USW-Flex-2.5G-8

Brand:

Ubiquiti

Product Type:

UPC

810084696149

Product Family:

UniFi

Shipping Weight:

0.8 kg

PB Part No:

SWHUBI10568

Product Model:

USW-Flex-2.5G-8

Warranty: 12 months *
