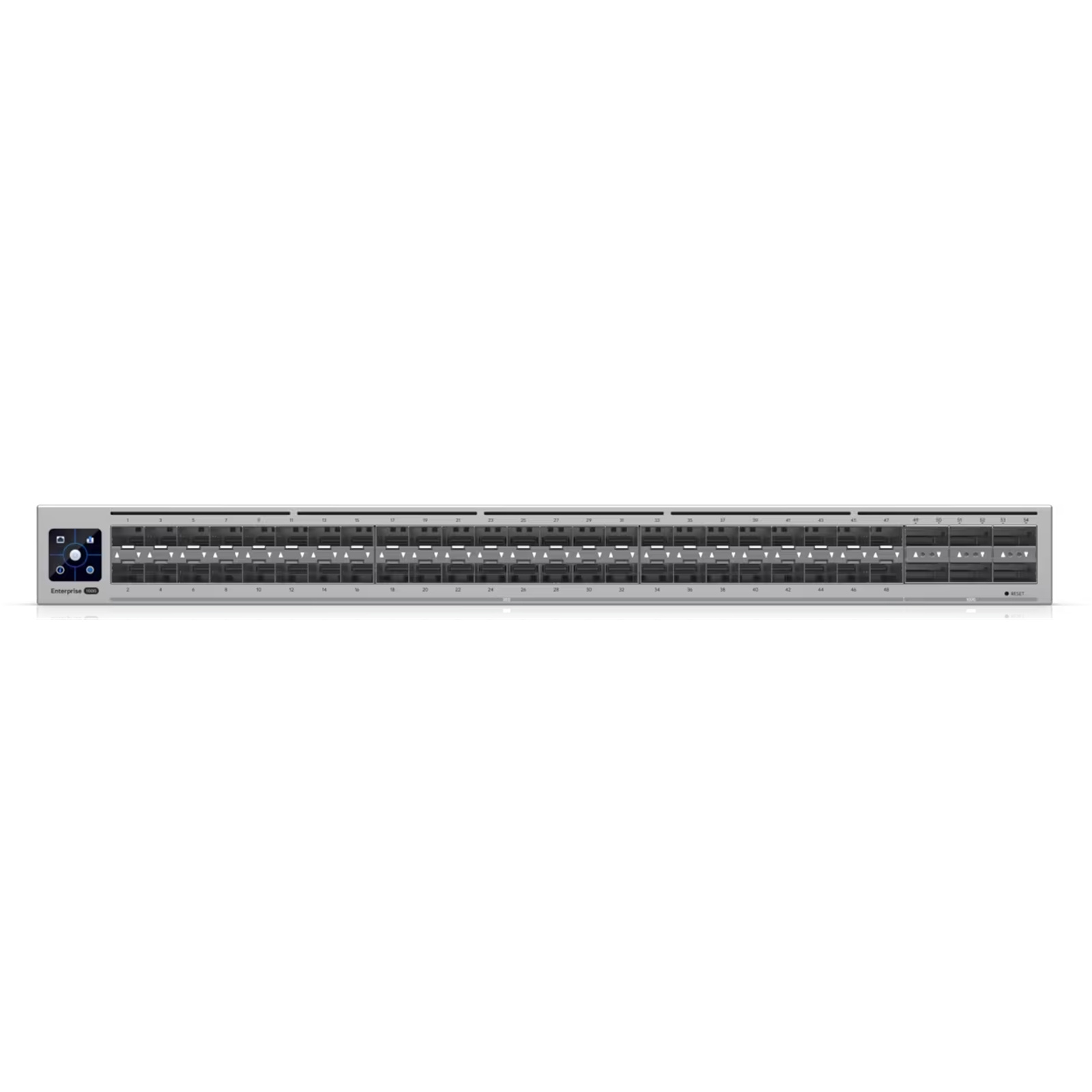

Ubiquiti UniFi ECS-Aggregation 54-Port 100G L3 Managed Switch - QSFP28 x6, SFP28 x48

550W Hot-Swappable PSU x2, Hot-Swappable Fan x5

Brand: Ubiquiti
MPN: ECS-Aggregation
Part #: SWHUBI250303
UPC: 810084697160

In stock

Delivery: Order now and it ships today

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: ECS-Aggregation
Part #: SWHUBI250303
UPC: 810084697160

Be the first to review this product

10 Gigabit

Not Specified

10 Gigabit Ports

Not Specified

Form Factor

Not Specified

Management Level

Managed

Number of Ports

54 Ports

PoE Ports

Not Specified

PoE Budget

Not Specified

View full specs

Returns & Warranty Bulk Quote Print Page

Features

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.

Specifications

Overview

Dimensions

442.4 x 43.7 x 496 mm
(17.4 x 1.7 x 19.5")

Port Layout

25G SFP28
48
100G QSFP28
6

Redundancy

Multi-Chassis Link Aggregation (MC-LAG)
(2) Hot-Swappable PSUs
(5) Hot-Swappable Fans

Layer 3

Yes

Form Factor

Rack mount (1U)

Etherlighting™

Yes

Performance

Switching Capacity

3.6 Tbps

Total Non-Blocking Throughput

1.8 Tbps

Forwarding Rate

2.4 Bpps

Supported VLANs

1,000

MAC Address Table Size

256,000

L3 Table Size

ARP Entries

512,000

IPv4 Routes

512,000

Packet Buffer Size

24 MB

Layer 3 Features

DHCP Server (Local Networks)

Yes

DHCP Relay

Yes

Inter-VLAN Routing (Local Networks)

Yes

Static Routing (Local Networks)

Yes

Layer 2 Features

LACP Port Aggregation

Yes

MC-LAG

Yes

STP & RSTP

Yes

IGMP Snooping

Yes

MAC-Based ACLs & Device Isolation

Yes

DHCP Snooping & Guarding

Yes

Egress Rate Limit

Yes

Flow Control

Yes

IP-Based ACLs & Network Isolation

Yes

MAC-Based Port Restriction

Yes

Port Isolation

Yes

Port Mirroring

Yes

Jumbo Frames

Yes

LLDP-MED

Yes

Voice VLAN

Yes

Loop Protection

Yes

Hardware

Max. Power Consumption

340W

Power Method

(2) Universal input, 100-240V AC, 50/60 Hz

Power Input Method

(2) AC input, Hot-swappable power modules

Power Supply

(2) Hot-swappable AC/DC 550W power modules

Supported Voltage Range

100-240V AC

Management

Ethernet

Heat Dissipation (Excluding PoE Output)

1160.08 BTU/hr

Weight

Without mounting brackets: 9.9 kg (21.8 lb)
With mounting brackets: 10kg (22.04 lb)

Enclosure Material

SGCC steel

Supported Rack Depth

482.6 mm (19") four-post racks
Posts depths ranging from 650 to 1,000 mm (25.6-39.4")

LCM Display

1.3" touchscreen

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

ESD/EMP Protection

Air: ± 12kV, contact: ± 8kV

Ambient Operating Humidity

10 to 95% noncondensing

Certifications

CE, FCC, IC

Etherlighting™

SFP+

Yes

SFP28

Yes

QSFP28

Yes

Software

Application Requirements

UniFi Network Version 8.5.6 and later

Manufacturer Part No:

ECS-Aggregation

Brand:

Ubiquiti

Product Type:

ECS-Aggregation 54-Port 100G L3 Managed Switch

UPC

810084697160

Product Family:

UniFi

Shipping Weight:

17.3 kg

PB Part No:

SWHUBI250303

Product Model:

Warranty: 12 months *
