Unitek 4-Bay M.2 SSD USB4 Docking Station. Supports M Key/M+B Key for Multiple M.2 Sizes inPCIe4.0x4, 40Gbps Ultrafast Data Transfer, 1-to-3 One Key Offline Clone. Space Grey

PB Tech price
PB Tech price
NZD $ 252 .29
$ 252 .29
$252.29  +GST
$252.29

Unitek 4-Bay M.2 SSD USB4 Docking Station. Supports M Key/M+B Key for Multiple M.2 Sizes inPCIe4.0x4, 40Gbps Ultrafast Data Transfer, 1-to-3 One Key Offline Clone. Space Grey

  • Brand: Unitek
  • MPN: S1243B
  • Part #: UNI11548
  • UPC:
PB Tech price
NZD $ 252 .29 $ 252 .29
Hurry, only 1 unit left!
In stock
Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$252.29  +GST
$252.29
Add To Compare
Stock Alerts
+ 3 More
Click or hover over image to enlarge
  • Brand: Unitek
  • MPN: S1243B
  • Part #: UNI11548
  • UPC:

4K Support

No

DisplayPorts

N/A

HDMI Ports

N/A

Google Chrome Support

N/A

Intel Driven Apple Support

N/A

M1 Driven Apple Support

N/A

Microsoft Windows Support

N/A

View full specs
Returns & Warranty Bulk Quote Print Page

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Unitek 4-Bay M.2 SSD USB4 Docking Station. Supports M Key/M+B Key for...
Unitek 4-Bay M.2 SSD USB4 Docking Station. Supports M Key/M+B Key for Multiple M.2 Sizes inPCIe4.0x4, 40Gbps Ultrafast Data Transfer, 1-to-3 One Key Offline Clone. Space Grey
Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - Grommet or Clamp Installation
Total:
NZD $ 329 .22
NZD $ 329 .22
Buy together and save $6.86 $6.86
Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz
Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz

Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz

Ships today
$9.88 $9.88
NZD

$8.24

$8.24

You save 16% You save 16%
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - Grommet or Clamp Installation
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - Grommet or Clamp Installation

Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG -...

Ships today
$73.91 $73.91
NZD

$68.69

$68.69

You save 7% You save 7%

Features

USB4 4-Bay M.2 SSD Docking Station supports simultaneous read and write for four M.2 SSDs at speeds up to 40Gbps. It features a 1-to-3 offline cloning function, allowing easy cloning from one SSD to three others. Expand your storage up to 32TB (4 x 8TB) with this versatile M.2 dock.

40Gbps Ultrafast Data Transfer

The 4-Bay M.2 SSD Docking Station is equipped with a 40Gbps USB input interface in total, and each bay supports a transmission speed of up to 16Gbps.

Supports USB 4 and Thunderbolt 3

This docking station supports USB4 and Thunderbolt 3, while also being backward compatible with USB 3.2 and older versions, ensuring versatile connectivity for all your USB-C devices.

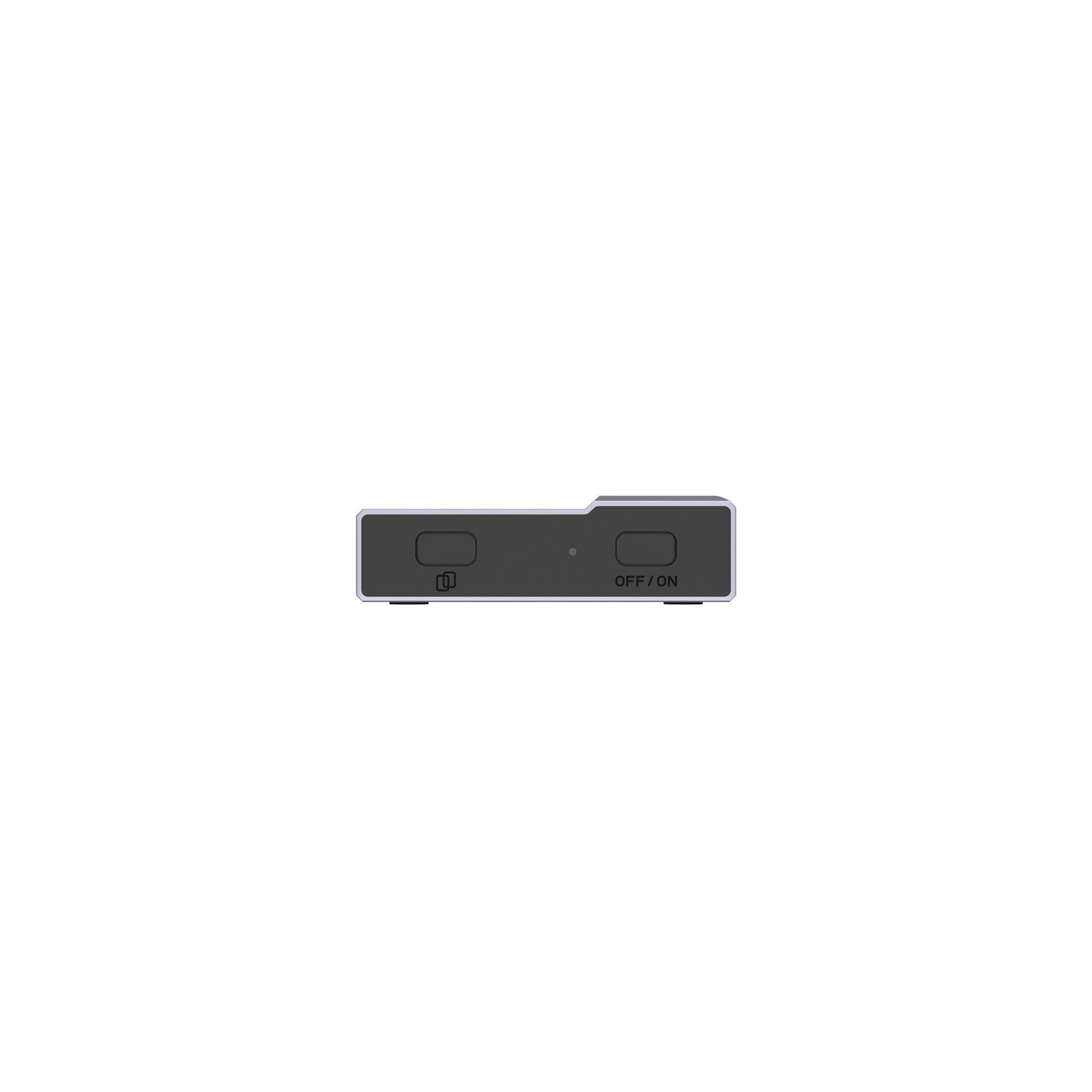

1-to-3 One-Key Offline Clone

The One-Key Offline Clone function enables easy data duplication without a computer. Simply insert the M.2 SSDs, connect the power supply, and activate the device. Press the cloning button to start the process, indicated by illuminated lights. Cloning is complete when all progress lights are lit, providing a quick and straightforward backup solution.

Enhance SSD Performance

This docking station supports UASP and TRIM for optimal SSD performance. UASP accelerates data transfer rates, while TRIM boosts write efficiency, maximizes SSD capacity, and extends lifespan.

Wide Compatibility

Compatible with M-Key and B+M Key NVMe SSDs with all dimensions of 2030/2242/2260/2280/22110mm.

Tool-Free NVMe Enclosure

No drivers installation required, the tool-free M.2 SSD docking station allows for quick installation and removal without tools, making it perfect for home or office use. Just insert the hard disk into the slot for easy operation.

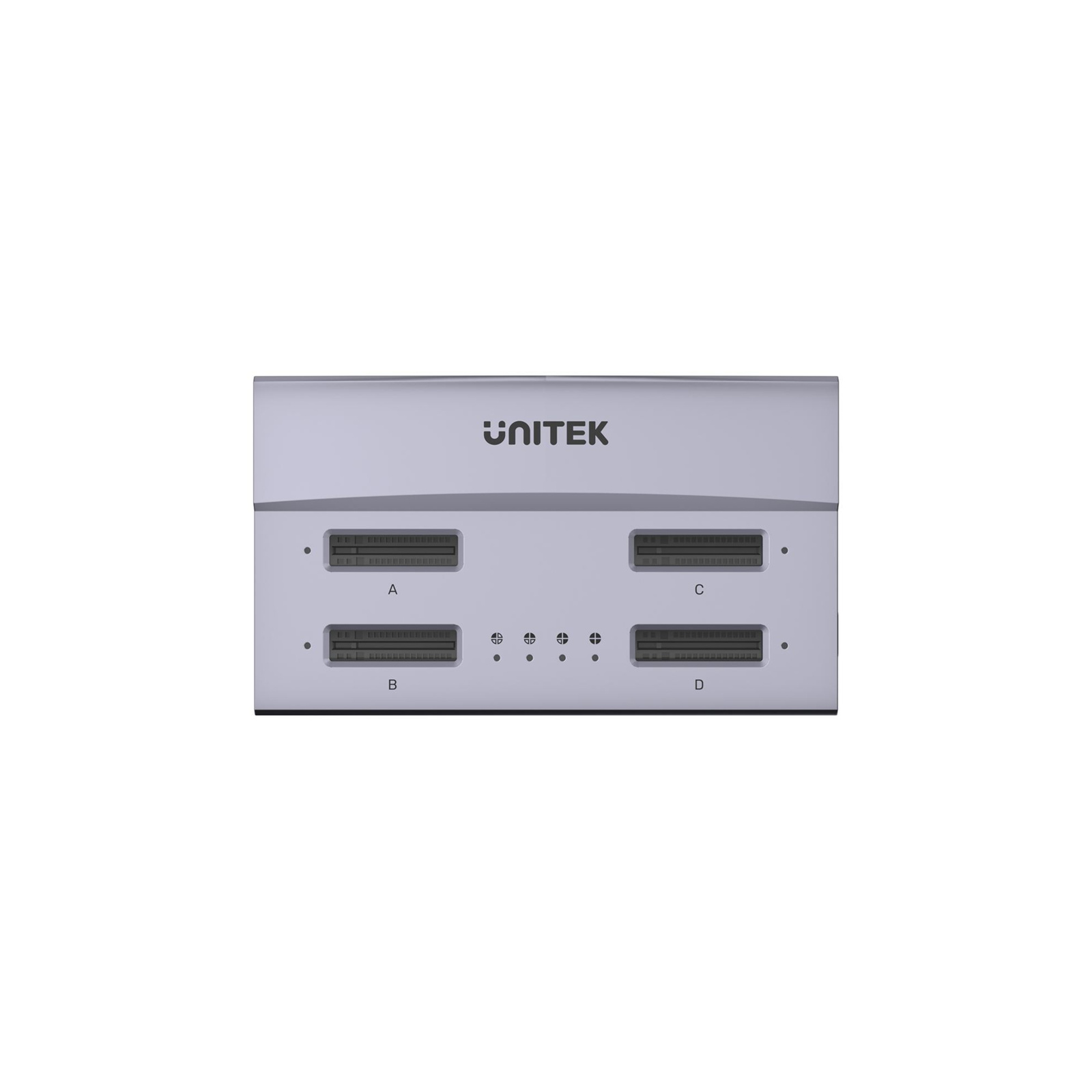

LED Indicator Lights

LED indicators show power and data transfer status for each M.2 SSD, allowing for easy monitoring of activity and performance.

Auto Sleep Mode

If there is no reading or writing activity for 30 minutes, it will automatically enter sleep mode to conserve energy and extend battery life.

High-quality Materials & Portable

USB4 4-Bay M.2 SSD Docking Station features an aluminum alloy shell with a premium metal design, ensuring durability and excellent heat dissipation.

Specifications

Dimensions

98.0mm x 57.0mm x 16.8mm

Upstream

USB4 40Gbps

Downstream

4* NVMe M.2 (PCle Gen4x1) Female

DC Power

12V 3A Power Adapter

Cable Length

80cm

Material / Colour

Aluminium Alloy/ Space Grey

Manufacturer Part No:
S1243B
Brand:
Unitek
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.4 kg
PB Part No:
UNI11548
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
