Abeeway DEABE309-20-4AS LoRaWAN AS923 Smart IoT GPS Tracker Badge with Panic Button
- Brand: Abeeway
- MPN: DEABE309-20-4AS
- Part #: ABW1005

Product URL: https://www.pbtech.com/pacific/product/ABW1005/Abeeway-DEABE309-20-4AS-LoRaWAN-AS923-Smart-IoT-GP
Features

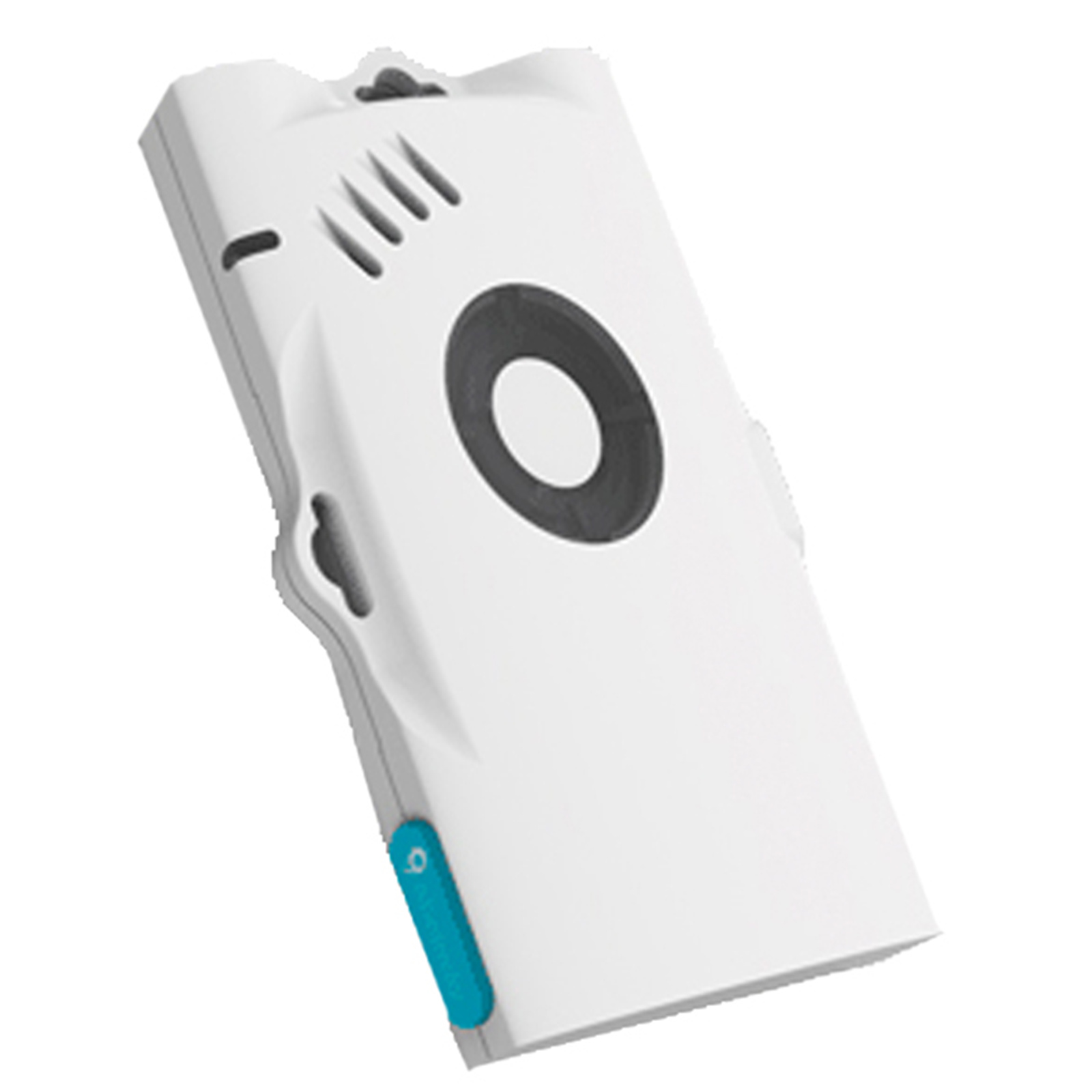

Abeeway LoRaWAN AS923 Smart IoT GPS Tracker Badge with Panic Button. The Abeeway Smart Badge is a portable multi-mode IoT GPS tracker in ID card format with embedded sensors combining multi-constellation GNSS, Low-power GPS, Wi-Fi Sniffer, BLE and LoRaWAN® TDoA geolocation technologies, supporting seamless outdoor and indoor geolocation.
This device is ideal for contact back-tracing, zone notification and monitoring of workforce safety and security. Simple to use, a single button gives you access to the numerous functionalities you may personalize for your needs, e.g. as a Panic/SOS Button. A local zoning feature is able to signal danger zones with a 96 dBa buzzer. It has a robust, industrial grade magnetic connector for recharging the battery, and optional multi-slot charging/upgrade dock.
Please note that this device does not include a data/power cable. This will need to be purchased separately. See related products below.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API's for third party connectivity.
Consult with Scopious IoT today!
- Motion Tracking: Real-time position when motion is detected
- Permanent tracking: Regular interval real time position
- Start/End motion tracking: Receive position messages during motion start and end events
- Fix on demand: Obtain tracker position when needed (very low power operating mode)
- Activity tracking: Monitor activity rate with embedded sensors
- Dust-proof and powerful water jets - (IP 65)
- LoRaWANTM Class A radio
- Geofencing zone detection
- Proximity detection
Specifications
Details | |
---|---|
Product Code | DEABE309-20-4AS |
Size | 90mm x 65 mm x 11 mm (L x l x h) |
Weight | 64g |
IP Rating | IP65 |
Operating temperatures | -10°C to 55°C |
Charging temperatures | 0°C to 45°C |
Storage temperature | 10°C to 30°C (recommended) |
Time storage | max 6 months |
Humidity | 5% to 95% non-condensing |
GNSS Position Accuracy | (50%-90%) 10 to 20 meters |
Time To First Fix | Cold start 30-50 seconds |
Hot start | 5 seconds |
Acquisition sensitivity | -140 dBm |
Position Accuracy | (50%-90%) 15 - 30 meters |
Time To First Fix | 10 seconds |
Acquisition sensitivity | -144 dBm |
Indoor and Deep Urban Position Accuracy | 20 - 50 meters |
Time to get a position | 3 seconds |
Sensitivity | -86 dBm |
BLE Indoor Position Accuracy | 5 - 15 m |
Time to get a position | 1 second |
LoRaWAN® Modem | Semtech SX1261 transceiver |
Protocol | LoRaWAN Class A |
LoRaWAN® frequency | AS923MHz |
Configuration supported LoRaWAN® | OTA or ABP |
RF power | 14 dBm / 18 dBm (max) |
Min sensitivity | -130 dBm in SF 10 |
LoRaWAN® receiver | -135 dBm in SF 12 |
Wi-Fi Frequency band | 2412 - 2472MHz |
BLE sensitivity | -88 dBm |
BLE RF output power | 4 dBm max |
BLE frequency band | 2402 - 2480MHz |
Radio regulatory certification | EC, FCC, IC, TELEC, IMDA |
