Cruxtec DT3H-8K-SG DP 1.4 to 3x DP1.4 Adaptor
- Brand: Cruxtec
- MPN: DT3D-8K-SG
- Part #: ADPCXT2523
- UPC:712179497665

Product URL: https://www.pbtech.com/pacific/product/ADPCXT2523/Cruxtec-DT3H-8K-SG-DP-14-to-3x-DP14-Adaptor
Features

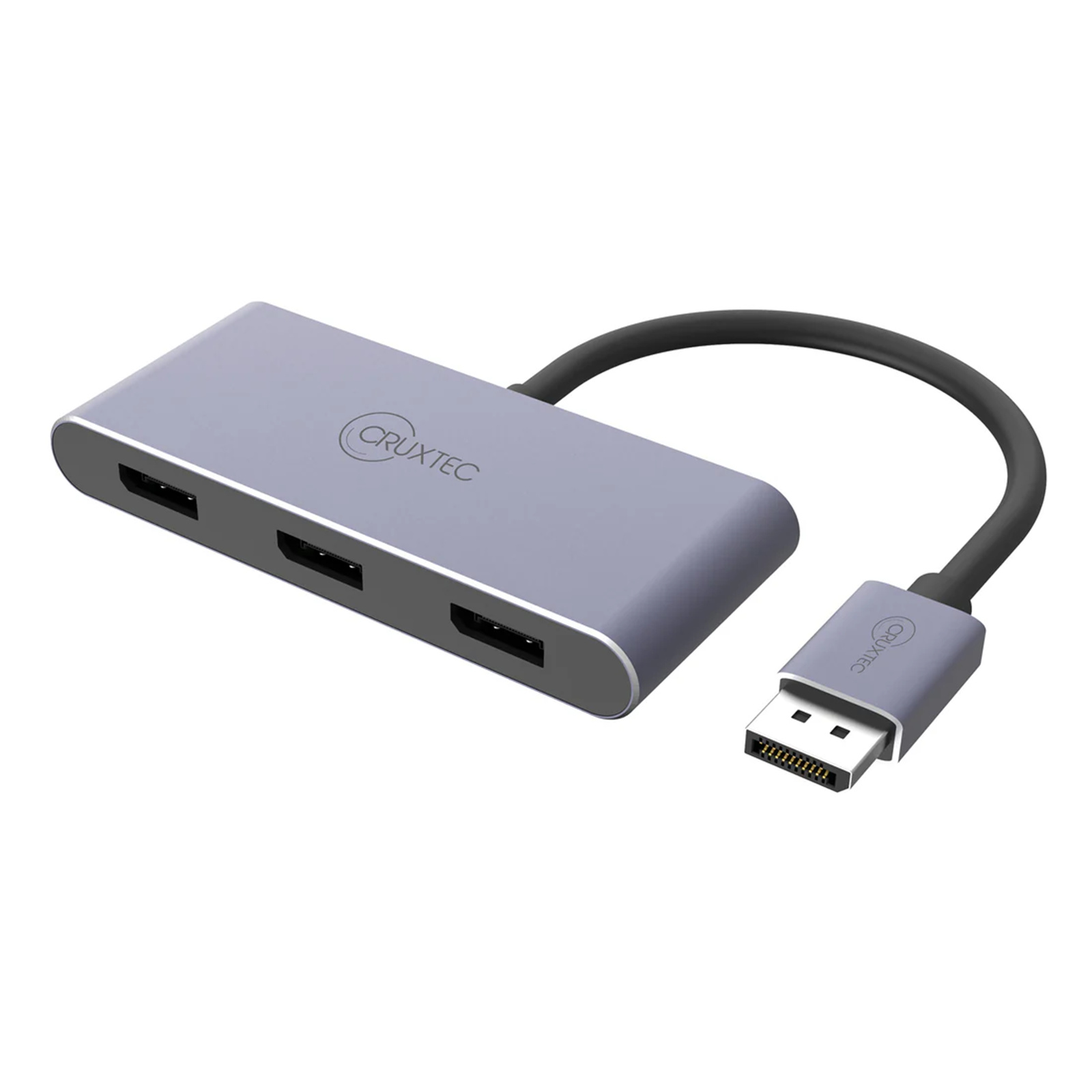

Cruxtec DisplayPort to 3 x DisplayPort Multi-Monitor 8K Adapter
The Cruxtec splitter adapter connects a device to three external monitors simultaneously via a single DisplayPort, with a maximum resolution of 4K @ 144Hz/8K @ 60Hz.
Expand three DisplayPort through one DisplayPort interface
Supports up to 4K @ 144Hz/8K @ 60Hz.
In multi-screen application scenarios, it greatly enhances the device's display scalability.
Supports MST/SST on Windows; Supports resolution up to 4K @ 120Hz in dual-output or 4K @ 60Hz in triple-port output; the device needs to support HBR3 bandwidth or above.
On Mac OS with M1 CPU, supports only 1 external monitor display; Supports resolutions up to 4K @ 144Hz.On Mac OS with M2/M3 CPUs, supports multi-screen mirroring or extending; Supports resolutions up to 4K @ 144Hz in multi-port output.

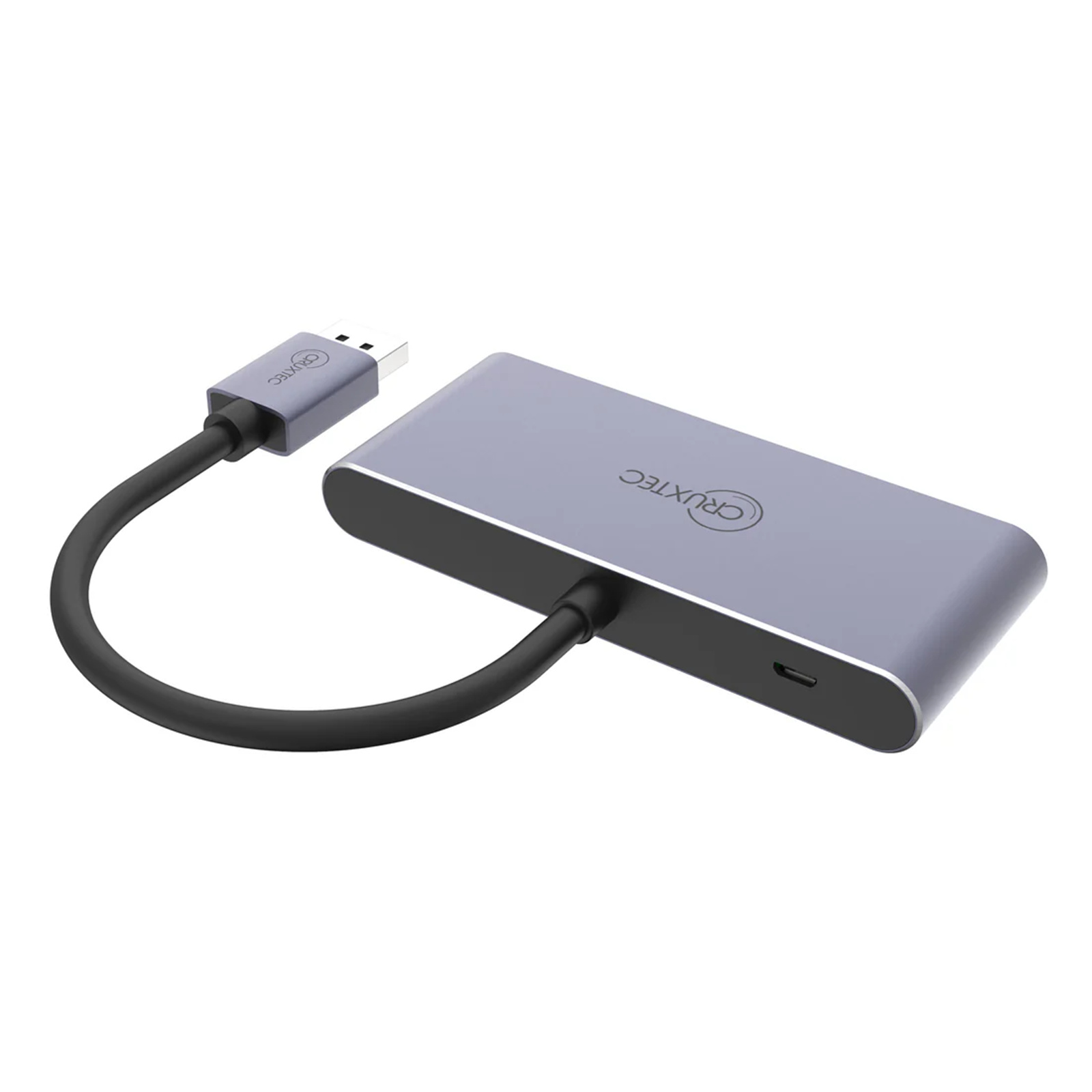

Independent micro USB power input, improves the stability of high resolution and refresh rate
Specifications
Tech Specs
1 x DisplayPort 1.4 input for host connection.
3 x DisplayPort 1.4 outputs, each port supports up to 4K @ 144Hz/8K @ 60Hz.
1 x Micro USB 5V1A Charging Port.
Supports Display Stream Compression (DSC).
Supports MST/SST on Windows; Supports resolution up to 4K @ 120Hz in dual-output or 4K @ 60Hz in triple-port output; the device needs to support HBR3 bandwidth or above.
On Mac OS with M1 CPU, supports only 1 external monitor display; Supports resolutions up to 4K @ 144Hz.
On Mac OS with M2/M3 CPUs, supports multi-screen mirroring or extending; Supports resolutions up to 4K @ 144Hz in multi-port output.
Using the same model of monitors, updating the graphics card driver will reduce compatibility issues
Chip solution
Realtek.
Cable length
15 cm.
