StarTech.com SV565DUTPU USB Dual VGA over Cat5 KVM Extender

PB Tech price

NZD $ 776 .52

$ 776 .52

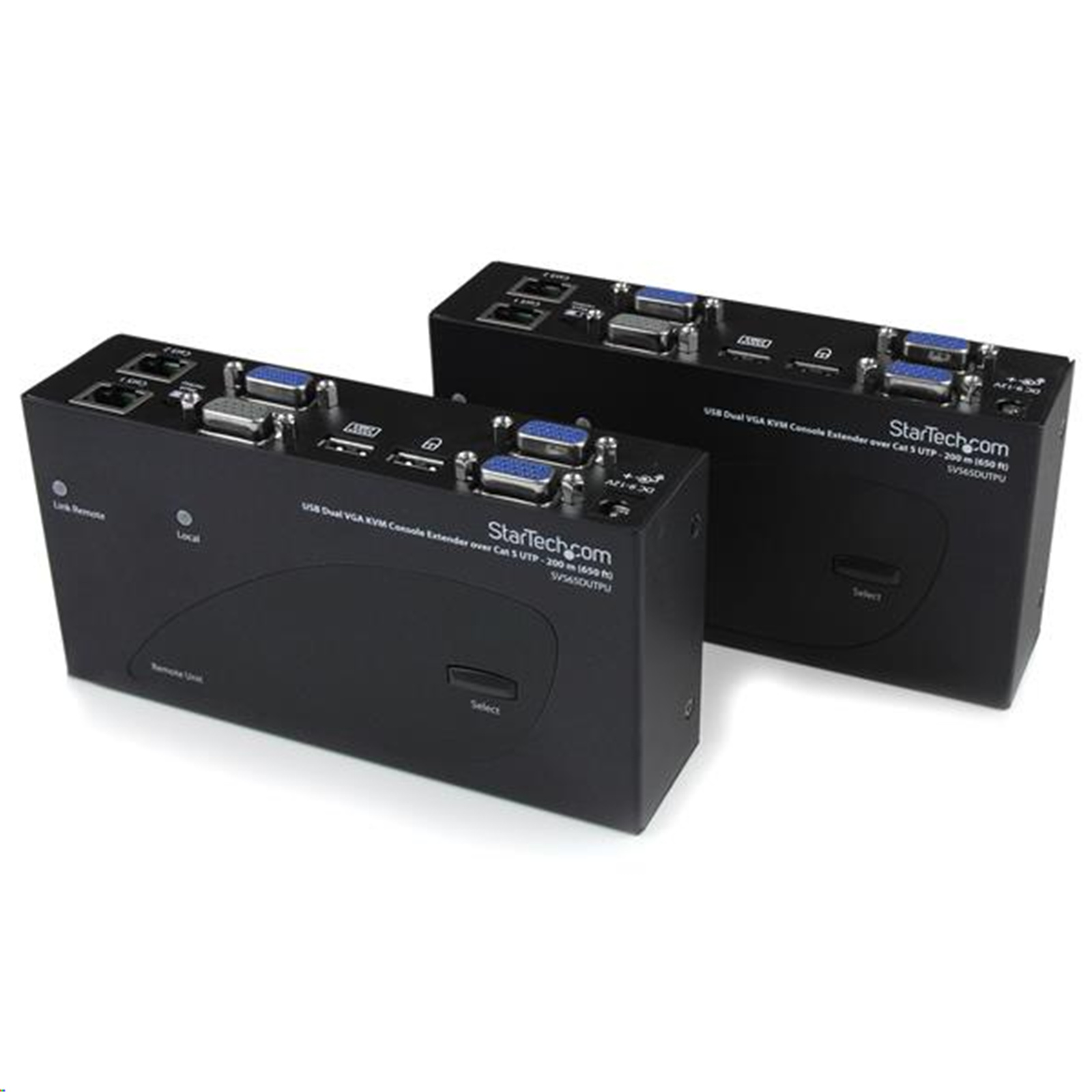

StarTech.com SV565DUTPU USB Dual VGA over Cat5 KVM Extender

Brand: StarTech.com
MPN: SV565DUTPU
Part #: ADPSTT2086140
UPC:

PB Tech price

NZD $ 776 .52

In stock at Supplier

Delivery: Order now and it ships on 19 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: StarTech.com
MPN: SV565DUTPU
Part #: ADPSTT2086140
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.

The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch. Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware's capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations

Specifications

Audio
No

Cables Included
Yes

KVM Ports
2

Number of Monitors Supported
2

PC Interface
USB

PC Video Type
VGA

Rack-Mountable
No

IP Control
No

Max Transfer Distance
200 m (656 ft)

Maximum Analog Resolutions
1920x1200

MTBF
65,000 hrs

Supported Resolutions
1920x1200 @ 650 ft (200m)

Console Interface(s)
2 - USB Type-A (4 pin) USB 2.0 Female
2 - VGA (15 pin, High Density D-Sub) Female

Host Connectors
2 - VGA (15 pin, High Density D-Sub) Female

Other Interface(s)
2 - RJ-45 Female

OS Compatibility
OS independent; No software or drivers required

Center Tip Polarity
Positive

Input Current
0.2A

Input Voltage
110V-240V AC

Output Current
0.6A

Output Voltage
9 DC

Plug Type
M

Power Consumption (In Watts)
5.4

Power Source
AC Adapter Included

Humidity
0~80% RH

Operating Temperature
0°C to 40°C (32°F to 104°F)

Storage Temperature
-10°C to 60°C (14°F to 140°F)

Colour
Black

Enclosure Type
Steel

Humidity
0~80% RH

Operating Temperature
0°C to 40°C (32°F to 104°F)

Storage Temperature
-10°C to 60°C (14°F to 140°F)

Included in Package
1 - local unit
1 - remote unit
2 - 6 ft 2-in-1 USB VGA KVM cables
1 - universal power adapter (NA/EU/UK/AU)
8 - rubber feet
1 - instruction manual

Manufacturer Part No:

SV565DUTPU

Brand:

StarTech.com

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

ADPSTT2086140

Product Model:

SV565DUTPU

Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
