StarTech.com ST124PRO 4 PORT HIGH RES VGA VIDEO SPLITTER

With promo code $54.07

Save 29%

NZD $ 77 .04

$ 77 .04

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

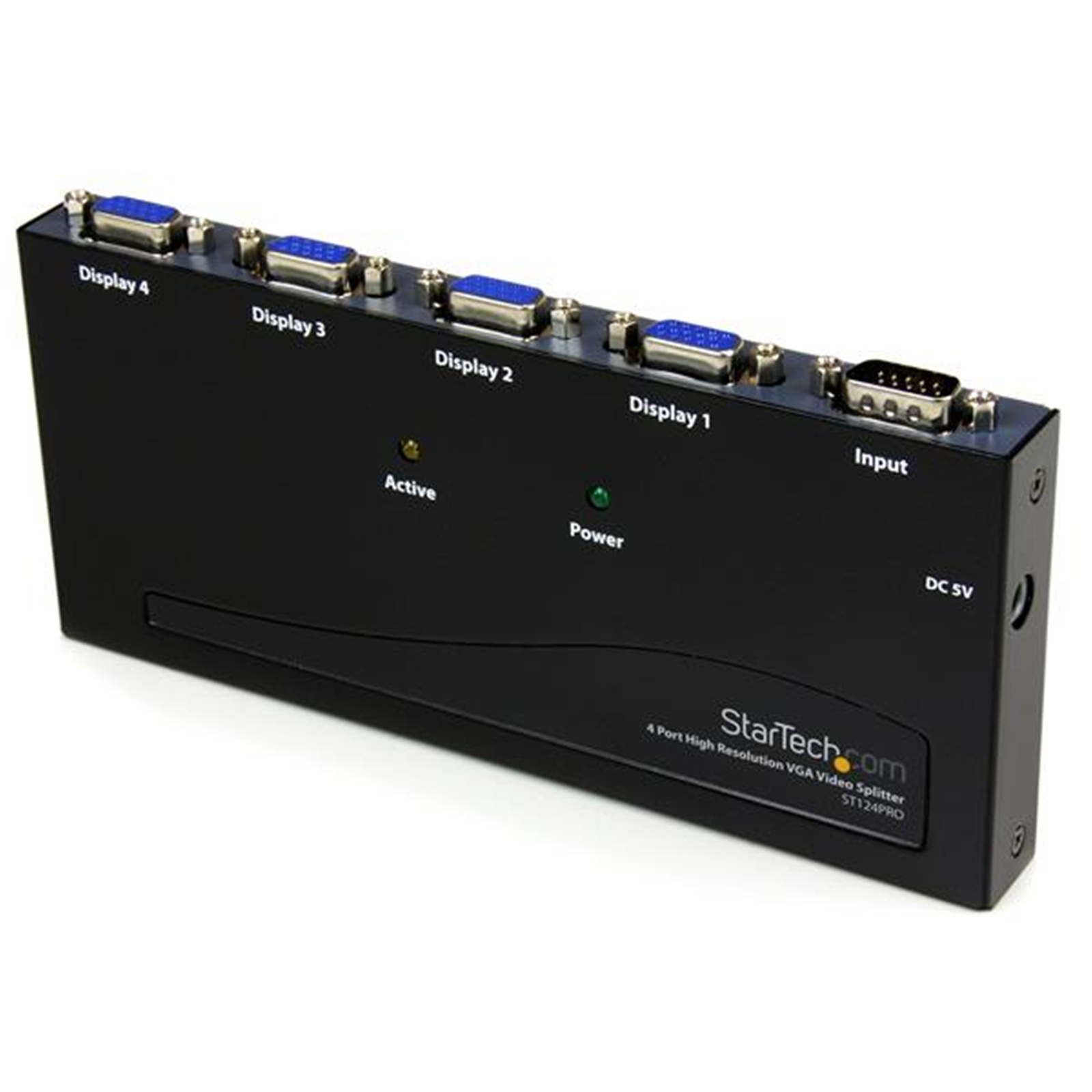

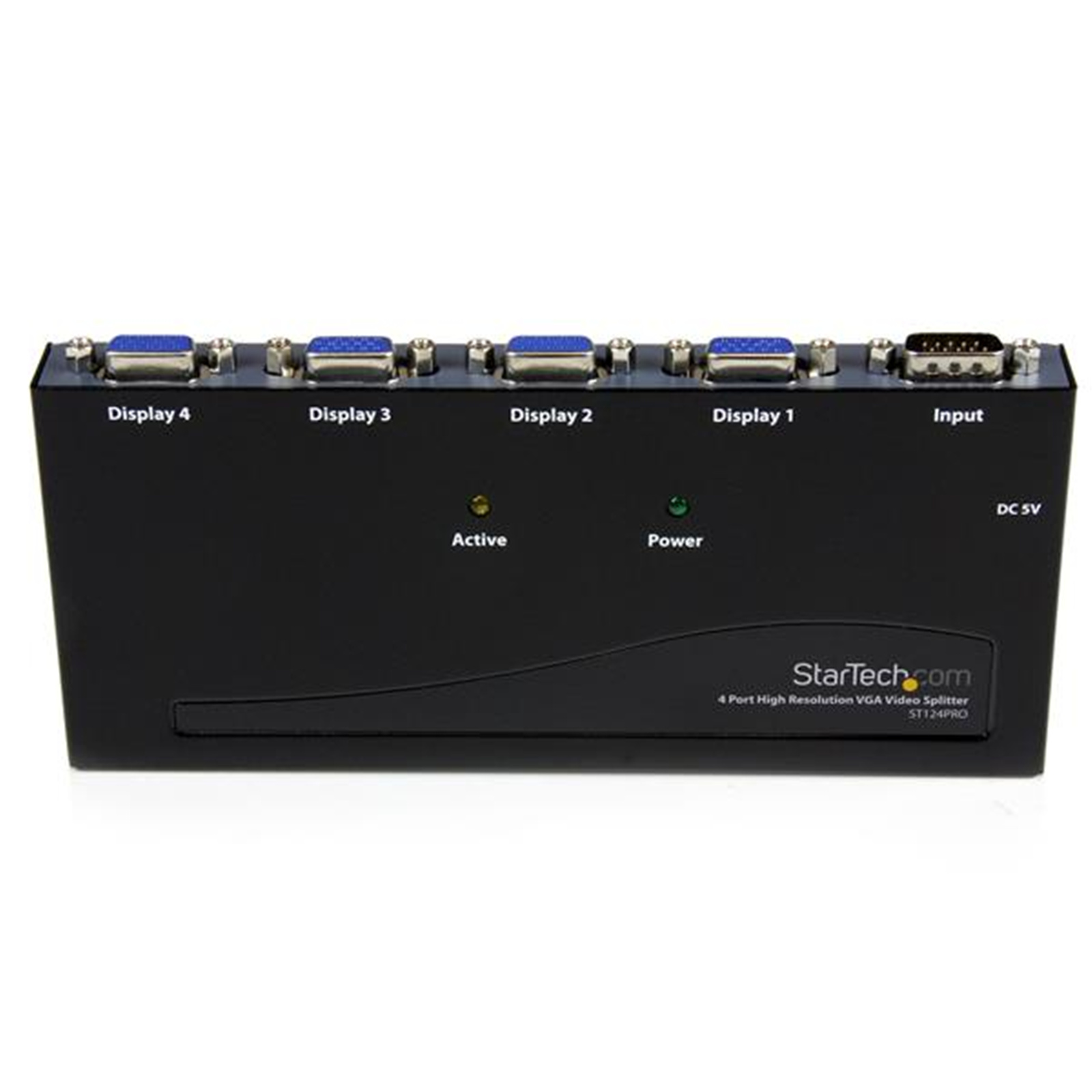

StarTech.com ST124PRO 4 PORT HIGH RES VGA VIDEO SPLITTER

Brand: StarTech.com
MPN: ST124PRO
Part #: ADPSTT2977641
UPC: 065030783101

CLEARANCE

With promo code $54.07

Save 29% with code CLEARANCE

Without promo code

NZD $ 77 .04

Part of Clearance Zone

In stock

Delivery: Order now and it ships tomorrow

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: StarTech.com
MPN: ST124PRO
Part #: ADPSTT2977641
UPC: 065030783101

Be the first to review this product

Input Connector

VGA (Male)

Output Connector

4x VGA (Female)

Returns & Warranty Bulk Quote Print Page

Features

The ST124PRO 4 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 4 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed. This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.

The StarTech.com Advantage

- An integrated signal amplifier boosts your connection range to 210 feet (65 meters)
- High quality construction and high resolution support maintains signal strength for crisp, sharp imaging
- Multiple screens let you broadcast your message to large audiences with greater impact

Specifications

Hardware

Industry Standards
DDC compatible - all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1
Ports
4
Regulatory Approvals
FCC Part 15 Class A, CE Mark

Performance

Bandwidth
350MHz
General Specifications
Male to Female VGA extension cable required (MXT101HQ)
Maximum Analog Resolutions
2048x1536 @ 80Hz
Maximum Cable Length
210 ft [64 m]

Connector(s)

Connector Type(s)
1 - VGA (15 pin, High Density D-Sub) Male
4 - VGA (15 pin, High Density D-Sub) Female

Power

Input Current
0.2A
Input Voltage
100 ~ 240 AC
Output Current
0.6 A
Output Voltage
5 DC
Plug Type
N
Power Consumption (In Watts)
3
Power Source

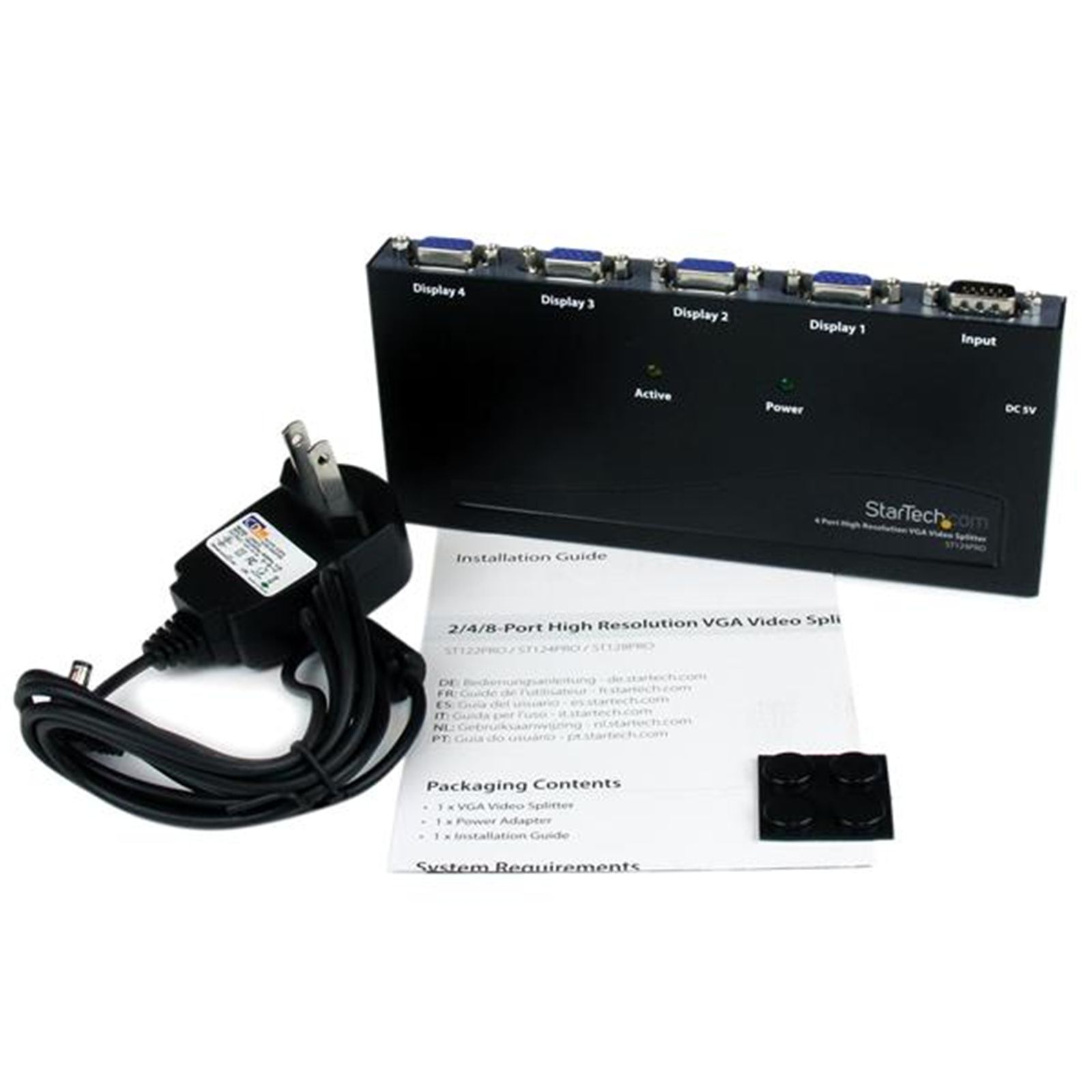

AC Adapter Included

Environmental

Humidity
0~80% RH non-condensing
Operating Temperature
5°C to 40°C (41°F to 104°F)

Physical Characteristics

Color
Black
Product Height
0.8 in [21 mm]
Product Length
7.2 in [182 mm]
Product Weight
38.3 oz [1085 g]
Product Width
3.1 in [80 mm]

Manufacturer Part No:

ST124PRO

Brand:

StarTech.com

Product Type:

UPC

065030783101

Product Family:

Shipping Weight:

1 kg

PB Part No:

ADPSTT2977641

Product Model:

ST124PRO

Warranty: 24 months *
