StarTech.com DSATPMOLP4 Dual SATA Power to 4-pin Molex Power Adapter

PB Tech price

NZD $ 35 .65

$ 35 .65

Out of stock

StarTech.com DSATPMOLP4 Dual SATA Power to 4-pin Molex Power Adapter

Brand: StarTech.com
MPN: DSATPMOLP4
Part #: ADPSTT4936424
UPC:

PB Tech price

NZD $ 35 .65

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: StarTech.com
MPN: DSATPMOLP4
Part #: ADPSTT4936424
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Dual SATA to LP4 Power Doubler Cable Adapter - 2 SATA to 4 Pin LP4 Internal PC Peripheral Power Supply Connector - SATA Y Cable - Male/Female - 18 AWG Wire - 9 Amps/108W

SATA Power Y Cable | PVC Jacket | 18 AWG

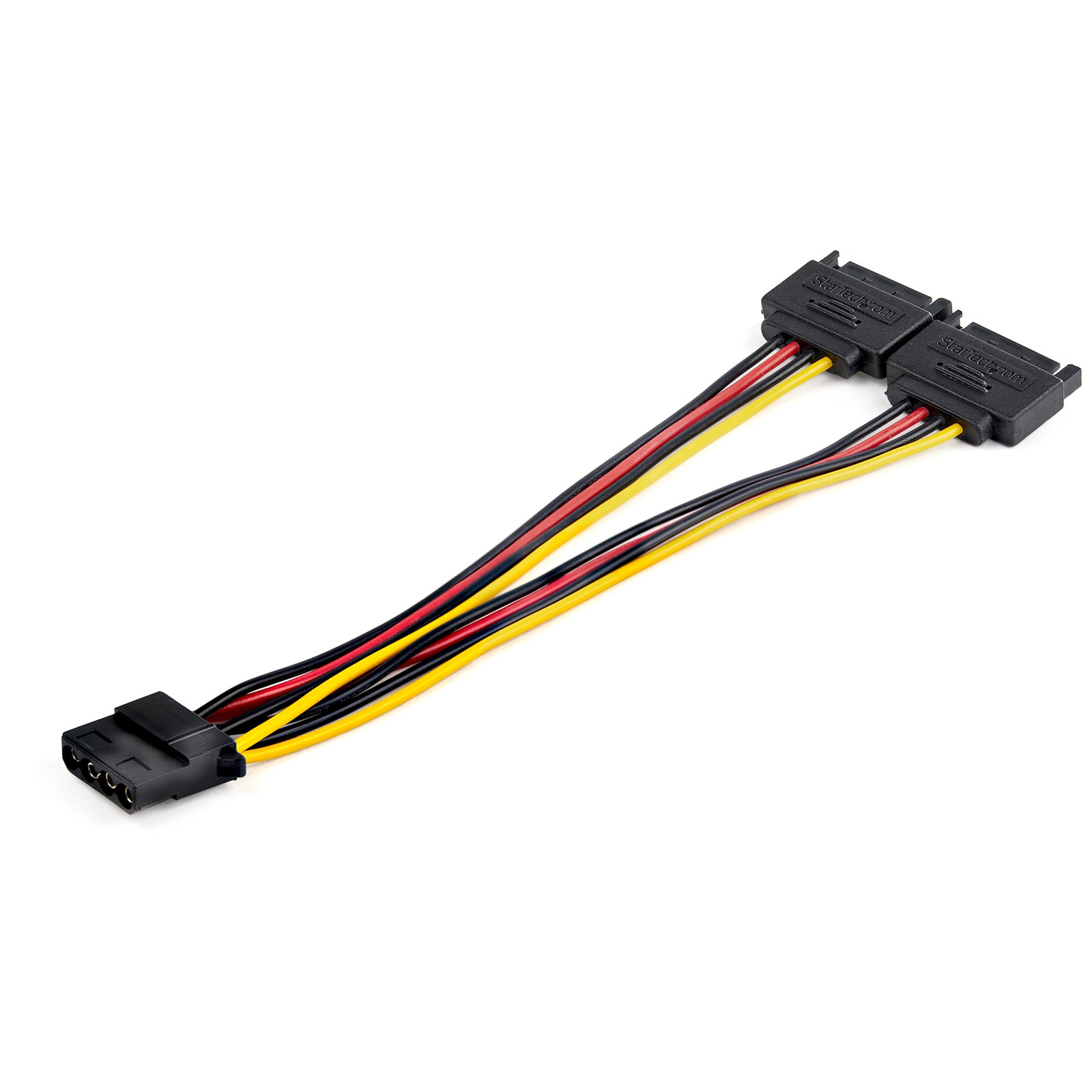

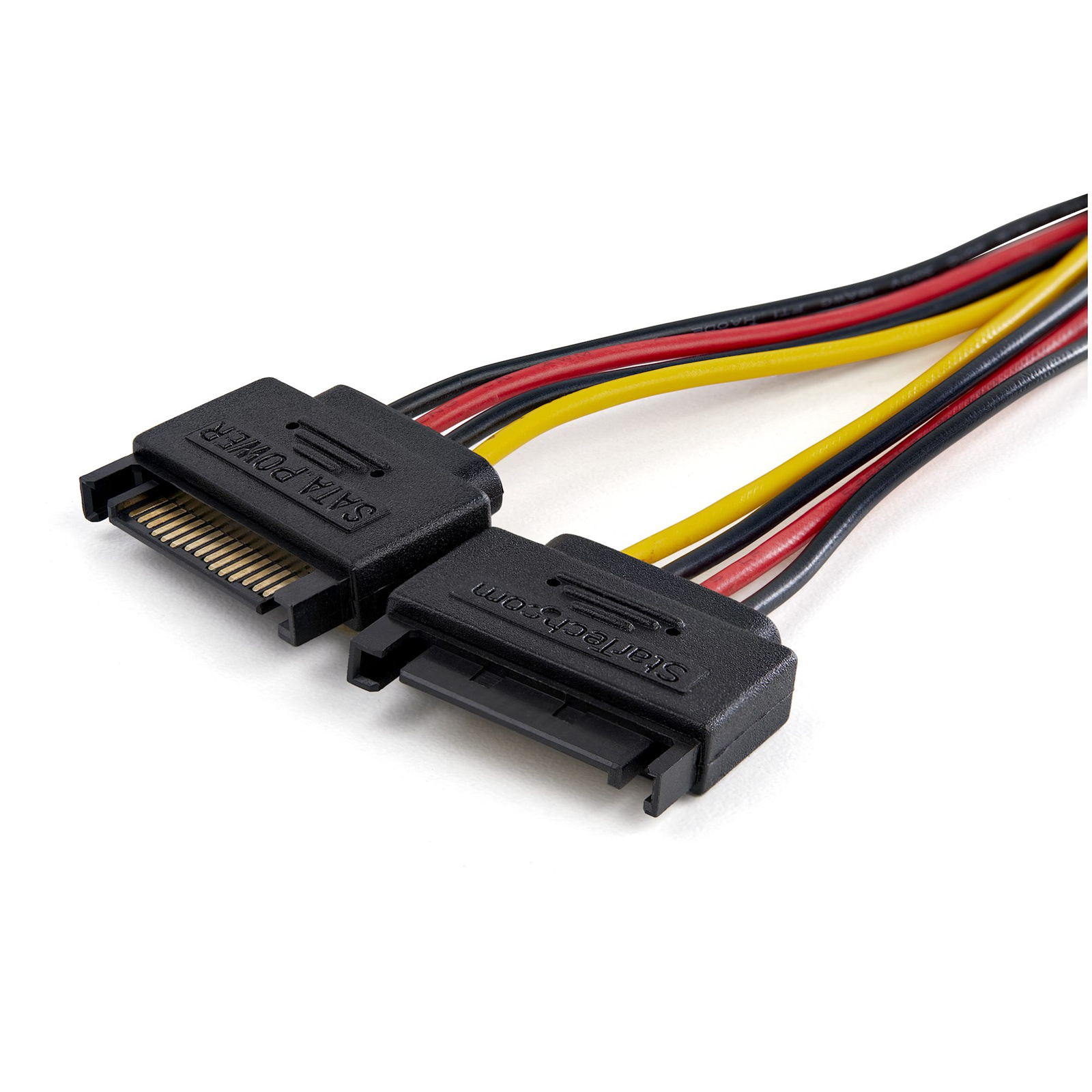

The SATA power to LP4 power cable adapter features two male SATA power connectors and one female LP4 power connector.

DUAL SATA TO LP4 POWER CABLE: This power supply doubler adapter cable overcomes SATA Power supply (ATX) output limits by combining 2 SATA power connections into one 4-Pin LP4 connector, providing extra power to drive backplanes & storage peripherals

DUAL SATA PROVIDES 150W TO LP4 DEVICE: Dual SATA Power inputs provide additional 5V and 12V power lines, providing extra 4.5A current per line, giving a total power output of 108W (9A at 12V) and 45W (9A at 5V)

EXTRA POWER FOR 4-Pin LP4 BACKPLANES: The double SATA power supply to LP4 adapter cable provides extra power to mobile rack multi-drive (SSD/HDD) Backplanes that utilize LP4 Power such as StarTech.com SATSASBP425

HIGH QUALITY CONSTRUCTION: 100% copper 18AWG UL1007 wires with PVC insulation, allowing max current of 4.5A per wire, Insulation tested upto 300V DC and connectors made from high strength LD-PE that can withstand high voltage and current ratings

Robust Power Connectivity

The pc internal power cable eliminates the need to upgrade your power supply for peripherals that require additional power via the LP4 connector. This enables you to extend your power connections and allows you to position your internal PC devices (i.e. hard drive, DVD-ROM drive, add-in card, etc.) inside the system case. In addition, the dual SATA power cable offers 6-inches in cable length from each of the SATA connector to the 4 pin LP4 peripheral power connector.

Constructed of only top-quality materials and designed for optimum performance and reliability, this power supply SATA cable is the perfect connectivity solution for demanding devices.

Applications

- Provides flexibility in LP4 device and cable placement when building or upgrading systems
- Extend the connection distance of your 4 pin LP4 devices by 6 inches from your SATA power

Specifications

Connector(s)

2 - Connector A

SATA Power (15 pin)

1 - Connector B

LP4 (4 pin; Large Drive Power)

Environmental

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-20°C to 70°C (32°F to 158°F)

Humidity

Humidity: 0% to 95% RH (non-condensing) at 25°C

Packaging Information

Package Height

0.0 in [0.1 mm]

Package Length

8.7 in [22.0 cm]

Shipping (Package) Weight

1.2 oz [33.0 g]

Package Width

5.0 in [12.8 cm]

Physical Characteristics

Product Height

0.4 in [9.4 mm]

Product Length

7.5 in [19.1 cm]

Weight of Product

1.1 oz [30.0 g]

Product Width

1.1 in [29.0 mm]

Wire Gauge

18 AWG

Cable Length

5.9 in [15 cm]

What's in the Box

1 - Included in Package

Dual SATA to LP4 Adapter

Manufacturer Part No:

DSATPMOLP4

Brand:

StarTech.com

Product Type:

UPC

Product Family:

Shipping Weight:

0.5 kg

PB Part No:

ADPSTT4936424

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

write a review

learn more
