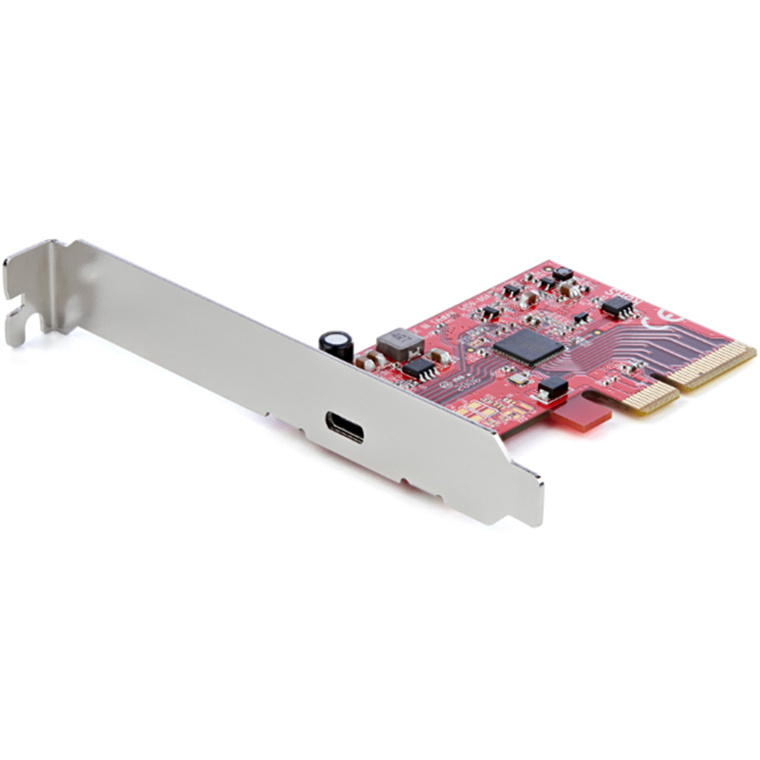

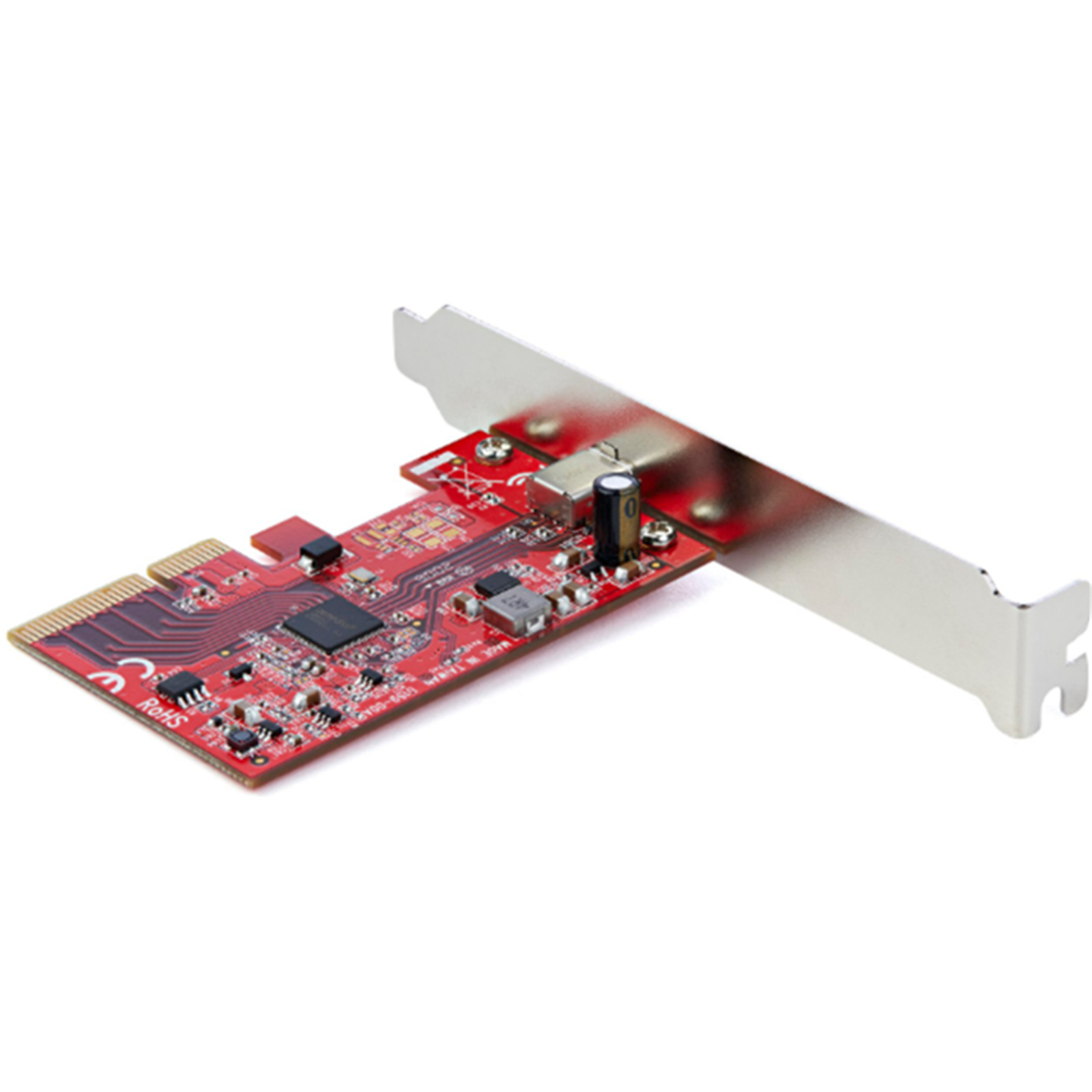

StarTech.com PEXUSB321C 1-Port USB 3.2 Gen 2x2 PCIe Card - USB-C SuperSpeed 20Gbps PCI Express 3.0 x4 Host Controller Card

PB Tech price
PB Tech price
NZD $ 109 .55
$ 109 .55
$109.55  +GST
$109.55

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

StarTech.com PEXUSB321C 1-Port USB 3.2 Gen 2x2 PCIe Card - USB-C SuperSpeed 20Gbps PCI Express 3.0 x4 Host Controller Card

  • Brand: StarTech.com
  • MPN: PEXUSB321C
  • Part #: ADPSTT5196140
  • UPC: 065030891264
1
PB Tech price
NZD $ 109 .55 $ 109 .55


Delivery: Order now and it ships on 08 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$109.55  +GST
$109.55
  • Brand: StarTech.com
  • MPN: PEXUSB321C
  • Part #: ADPSTT5196140
  • UPC: 065030891264

Features

This PCIe USB 3.2 Gen 2x2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding a USB-C™ (20Gbps) port.

Add a 20 Gbps USB Type-C Port to Your Desktop Computer

The controller card enables you to connect USB-C Gen 2x2 (20 Gbps) devices to your desktop computer. The USB-C port is ideal for connecting USB devices such as external hard drives and solid state drives or charging and syncing your mobile devices. The USB-C port provides up to 15W (5V/3A) of power and is backward compatible with USB 3.2 Gen 2 (10 Gbps) and USB 3.2 Gen 1 (5 Gbps) devices.

Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.0 and USB 3.1 (5 Gbps).

SuperSpeed USB 3.2 Gen 2x2 (20 Gbps) Performance

The USB 3.2 Gen 2x2 card features an ASMedia ASM3242 host controller that utilizes x4 lanes of the PCIe 3.0 bus, making the card capable of speeds up to 20Gbps and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller card supports Multiple INs to reduce bandwidth loss when multiple devices are connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices.

Wide Installation Compatibility

This add-on card includes both full-profile and low-profile installation brackets ensuring you can install it into either a full or low-profile PCIe 3.0 x4 slot (backward compatible w/PCIe 2.0). For wide platform support the card is compatible with Windows, Linux and macOS. For hassle-free installation the drivers install automatically on computers running Windows 8 or higher. Works w/USB 3.1/3.0/2.0 devices

Specifications

Connector(s)

Connector Type(s)

1 - PCI Express x4

External Ports

1 - USB Type-C (24 pin, Gen 2x2, 20Gbps)

Environmental

Operating Temperature

0°C to 85°C (32°F to 185°F)

Storage Temperature

-25°C to 85°C (-13°F to 185°F)

Humidity

15% ~ 90% RH

Hardware

Ports

1

Interface

PCI Express x4

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Industry Standards

USB 3.2 Specification Rev. 1.0
PCI Express Base Specification Rev. 3.0
Intel xHCI Specification Rev. 1.1
UASP (USB Attached SCSI Protocol) Rev. 1.0

Chipset ID

ASMedia - ASM3242

Packaging Information

Package Height

1.2 in [3.0 cm]

Package Length

6.7 in [17.0 cm]

Shipping (Package) Weight

3.6 oz [101.0 g]

Package Width

5.6 in [14.2 cm]

Performance

Maximum Data Transfer Rate

20Gbps

Type and Rate

USB 3.2 Gen 2x2 (20Gbps)

UASP Support

Yes

MTBF

3,126,209 Hours

Physical Characteristics

Product Height

0.9 in [2.2 cm]

Product Length

2.0 in [5.1 cm]

Weight of Product

1.3 oz [37.0 g]

Product Width

3.1 in [8.0 cm]

Color

Red

Software

OS Compatibility

Windows® 8, 8.1, 10, 11
Windows Server® 2012 R2, 2016, 2019
macOS 10.13 to 10.15, 11.0, 12.0
Linux® 3.5 or later LTS version only

Special Notes / Requirements

System and Cable Requirements

PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)

Note

The card's USB-C ports are standard data throughput port. They do not support DP Alt Mode or USB Power Delivery.
The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 10Gbps. A PCI Express Gen 2 or Gen 3 port is required to reach speeds up to 20Gbps.

What's in the Box

Included in Package

1 - PCI Express USB Card
1 - Full Profile Bracket (Installed)
1 - Low Profile Bracket
1 - Quick-Start Guide

Manufacturer Part No:
PEXUSB321C
Brand:
Product Type:
-
UPC
065030891264
Product Family:
-
Shipping Weight:
0.1 kg
PB Part No:
ADPSTT5196140
Product Model:
PEXUSB321C
Warranty: 24 months *
