StarTech.com PEXUSB3S24 2 Port PCIe USB3.0 Card Adapter with UASP

With promo code $43.12

Save 25%

NZD $ 57 .83

$ 57 .83

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

StarTech.com PEXUSB3S24 2 Port PCIe USB3.0 Card Adapter with UASP

Name: StarTech.com PEXUSB3S24 2 Port PCIe USB3.0 Card Adapter with UASP
Brand: StarTech.com
SKU: ADPSTT690113
Price: 57.83 NZD
Availability: InStock
Rating: 5 (5 reviews)

Brand: StarTech.com
MPN: PEXUSB3S24
Part #: ADPSTT690113
UPC: 065030855587

CLEARANCE

With promo code $43.12

Save 25% with code CLEARANCE

Without promo code

NZD $ 57 .83

Part of Clearance Zone

In stock

Delivery: Order now and it ships today

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: StarTech.com
MPN: PEXUSB3S24
Part #: ADPSTT690113
UPC: 065030855587

5 reviews

Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"Has a SATA power connector - when used, this allows delivery of higher power via the connected USB ports. I haven't seen it "kick in" yet but could conceivably be useful to avoid i ...view more"

By: JohnB4794 02/02/26

Verified Owner

"It does what's advertised, easy to set up, and I'm two USB ports richer. Good purchase!"

By: StuartW563 22/11/22

Verified Owner

""Dose exactly what it says on the tin"". No need to load driver from disk, Win 10 found it immediately and it worked straight away."

By: PhilipP93 03/01/22

Verified Owner

Features

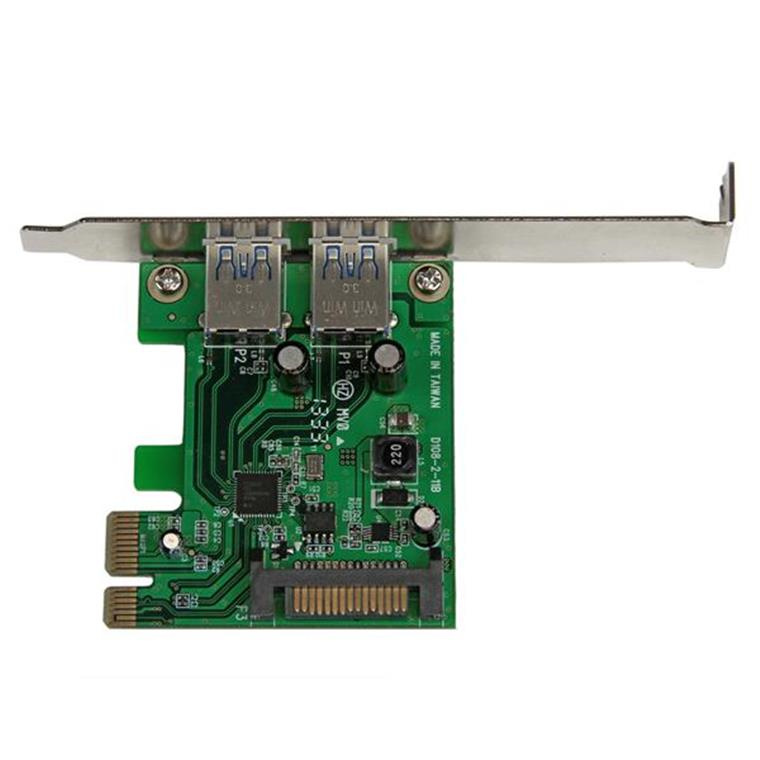

The PEXUSB3S24 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

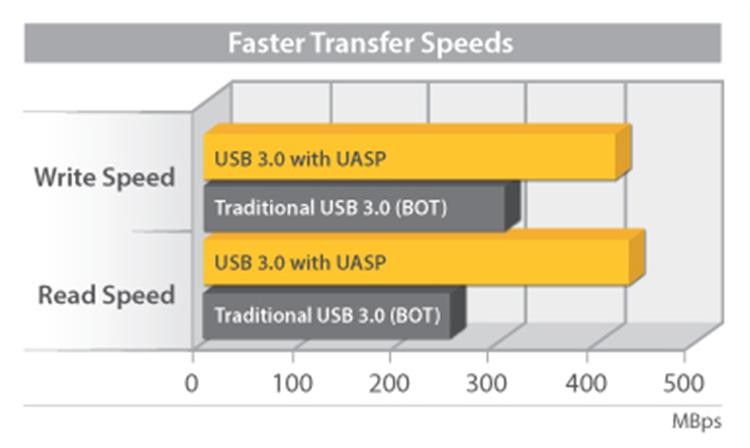

Improved Performance with UASP

UASP is supported in Windows® 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.

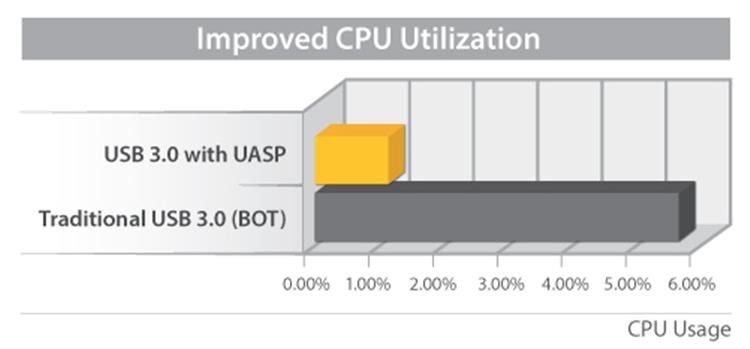

At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.

https://www.pbtech.co.nz/fileslib/_20170119163339_StarTech_2_Port_USB_Adapter_descr_002.jpg

Specifications

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Interface

USB 3.0

Port Style

Integrated on Card

Ports

Maximum Cable Length

9.8 ft [3 m]

Maximum Data Transfer Rate

5 Gbps

Type and Rate

USB 3.0 - 5 Gbit/s

UASP Support

Yes

Connector Type

1 - PCI Express x1 Male

External Ports

2 - USB Type-A (9 pin) USB 3.0 Female

Internal Ports

1 - SATA Power (15 pin) Plug

OS Compatibility

Windows Vista, 7, 8, 8.1, 10
Windows Server 2008 R2, 2012, 2012 R2, 2016
Linux 2.6.31 to 4.4.x LTS versions only

Special Notes / Requirements

The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.

System and Cable Requirements

Available PCI Express slot

Humidity

20-80% RH

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

Dimensions

Height: 4.7 in (120 mm)
Length: 2.6 in (65 mm)
Width: 0.7 in (18 mm)

Manufacturer Part No:

PEXUSB3S24

Brand:

StarTech.com

Product Type:

UPC

065030855587

Product Family:

Shipping Weight:

0.2 kg

PB Part No:

ADPSTT690113

Product Model:

PEXUSB3S24

Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 5 reviews

5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

write a review

learn more

SORT BY

Verified Owners Only Images Only

Does exactly what it says on the tin, no issues at all. Can confirm this USB host adapter works well for Oculus Rift sensors.

By: KeithW3 01/05/17

Verified Owner

2 out of 2 users found this review helpful

Seems a Quality Product

Has a SATA power connector - when used, this allows delivery of higher power via the connected USB ports. I haven't seen it "kick in" yet but could conceivably be useful to avoid issues down the track.
This may not be the cheapest option out there but quality seems good and documentation is available on the StarTech.com website, which is more than can be said for some of the others!

Well worth your consideration!

By: JohnB4794 02/02/26

Verified Owner

0 out of 0 users found this review helpful

Reliable purchase

It does what's advertised, easy to set up, and I'm two USB ports richer. Good purchase!

By: StuartW563 22/11/22

Verified Owner

0 out of 0 users found this review helpful

Simply works

"Dose exactly what it says on the tin"". No need to load driver from disk, Win 10 found it immediately and it worked straight away.

By: PhilipP93 03/01/22

Verified Owner

0 out of 0 users found this review helpful

Works great in low profile (1U) servers that didn't have USB3. Quick to install, great transfer speed.

By: GraemeS95 01/06/17

Verified Owner

0 out of 0 users found this review helpful
