Adeunis MODBUS LoRaWAN EU863-870, External power supply (not included)

PB Tech price

NZD $ 149 .57

$ 149 .57

Adeunis MODBUS LoRaWAN EU863-870, External power supply (not included)

Brand: Adeunis
MPN: ARF8240AA
Part #: ADU1016
UPC:

PB Tech price

NZD $ 149 .57

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Adeunis
MPN: ARF8240AA
Part #: ADU1016
UPC:

Be the first to review this product

Colour

White

Returns & Warranty Bulk Quote Print Page

Features

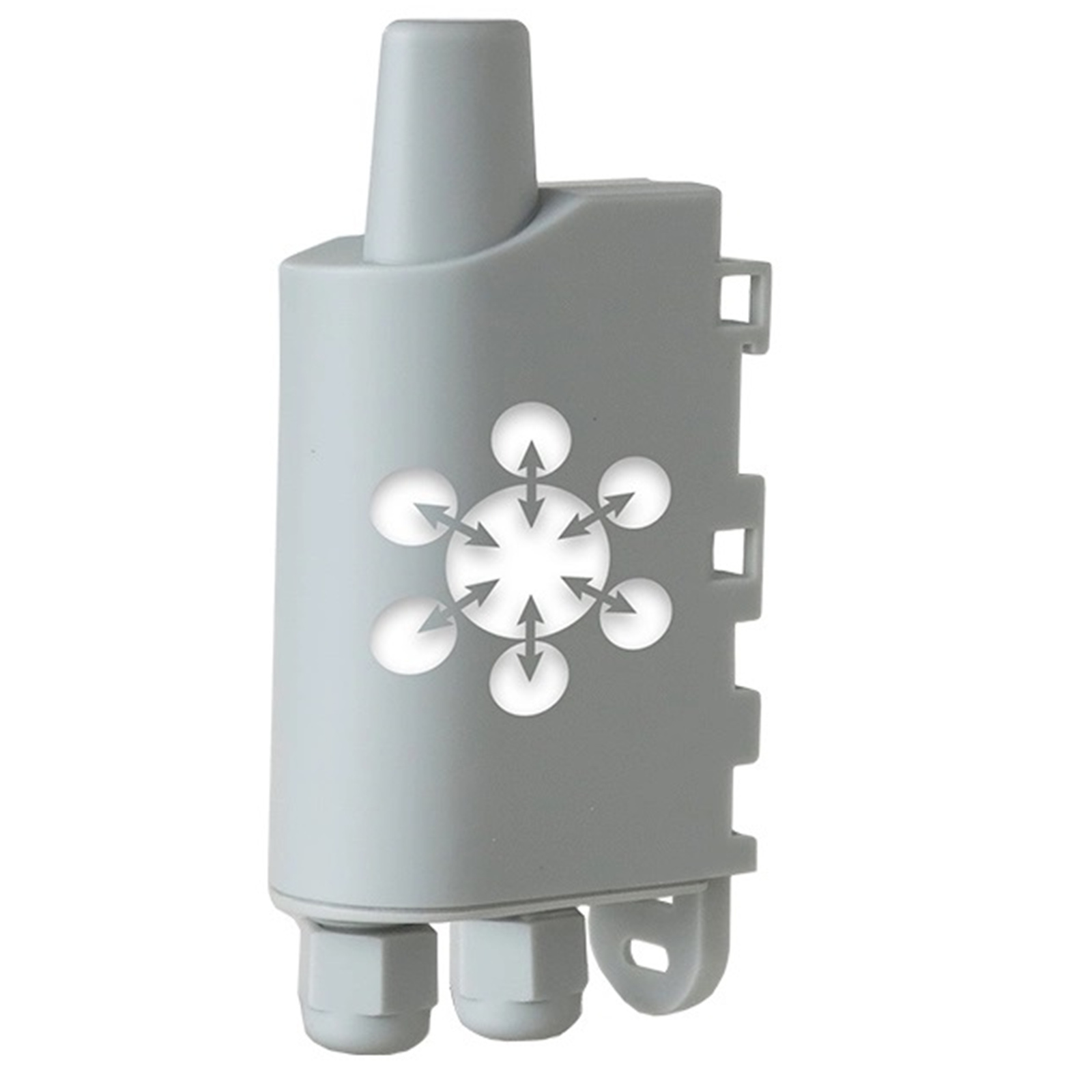

The Adeunis ARF8240AA is a MODBUS MASTER that supports external power supply (not included) for LoRaWAN EU863-870.

It is a ready-to-use radio transmitter with a MODBUS IoT interface. This product meets the needs of users to communicate with one or several MODBUS slaves and transmit their information via a LoRaWAN network.

It uses the Remote Terminal Unit (RTU) Modbus protocol to communicate with the slaves. The frame of the product can contain 24 registers (of 2 bytes) maximum per periodic frame. These registers can be distributed between the monitored slaves (20 slaves maximum) knowing that for each slave 15 registers can be configured per frame. The product transmits the data from the slaves periodically through one or several frames (up to 6) with the same or different periods of transmission.

It transmits the data from slave(s) either periodically or in an event-related way based on high or low thresholds. The product is able to read or write in the registers of a slave through the network. The LoRaWAN MODBUS MASTER can be configured in Class A or Class C depending on user requirements.

The configuration of the transmitter is accessible by the user via a micro-USB port or remotely via the LoRaWAN network, allowing in particular a choice of modes of transmission, periodicity or triggering thresholds. The LoRaWAN MODBUS MASTER is powered by an external power supply (not included). The product is able to provide and control the power supply for a slave.

- Compatible with EU863-870 LoRaWAN™ networks
- RS485/RS232 compatible
- Supervision of up to 20 slaves
- Several periodic frames with different frequencies
- Indicator lights for installation assistance
- Enable "Word Swap" for some registers configured as alarms
- Repetition of an alarm at regular intervals as long as it is active
- Test live reading and writing in a slave with the IoT
- Local and remote configuration
- Ready to use solution
- External power supply required (not included)

FEATURES OF THE MODBUS IoT SENSOR

ALERT
Send new parameters or actions to be carried out to Modbus slaves

ACT
- Reading a slave's registers from the network
- Write to a slave's registrers from the network

MEASURE
Receive feedback on faults and alerts from Modbus slaves

Specifications

Product Code

ARF8240AA

Modes

Periodic or Event

Periodic Frame

6 Configurable

Pre-wired With 2 Cables

2 wires + 6 connectable wires

External Power Supply

6-30V (not included)

Dimensions

105 x 50 x 27 mm

Weight

70 g

Casing

IP67

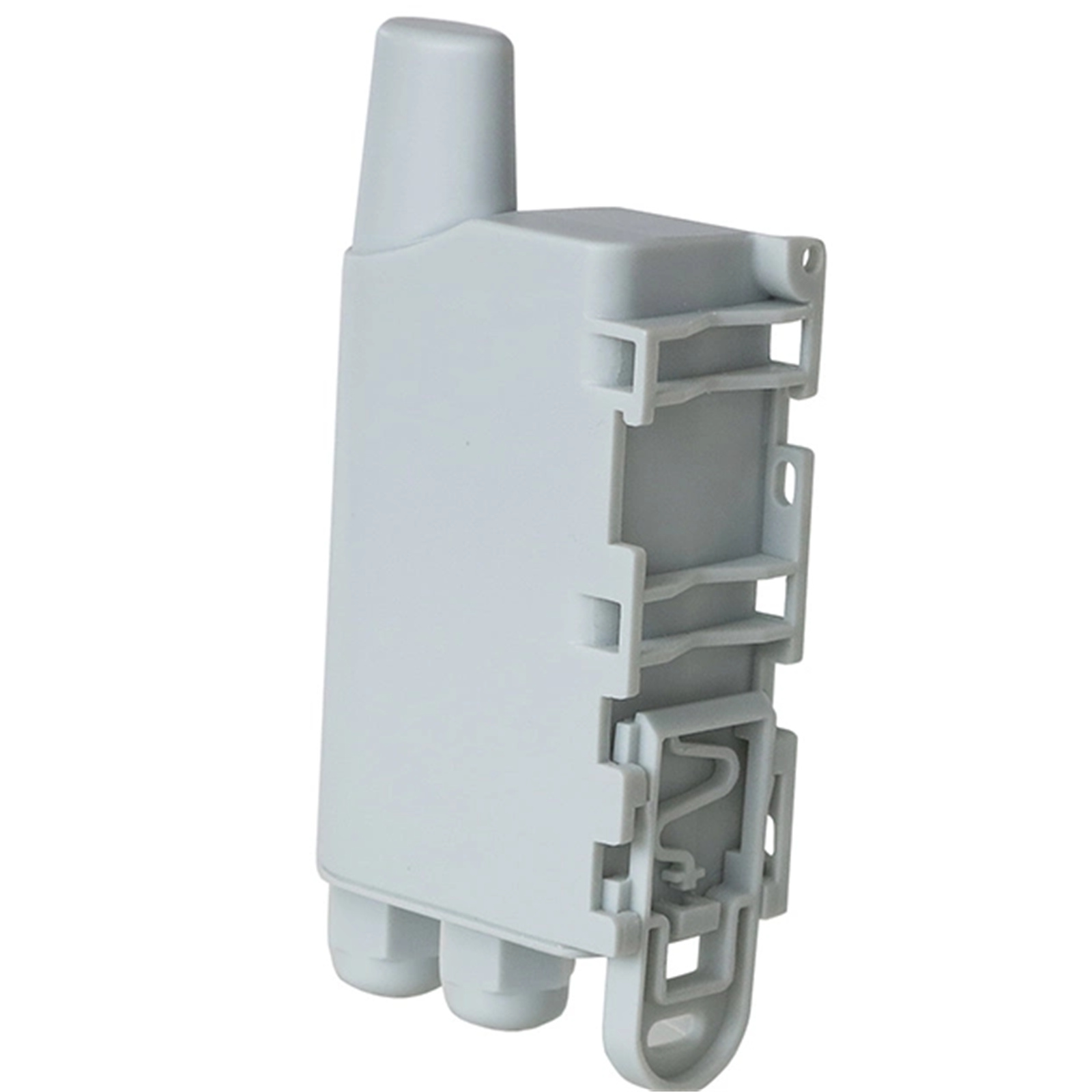

Integrated Fastening System

DIN rail, tube, wall mount, flange

Operating Temperature Range

-25°C to + 70°C

Zone

LoRaWAN: EU863-870

Manufacturer Part No:

ARF8240AA

Brand:

Adeunis

Product Type:

UPC

Product Family:

Shipping Weight:

1.2 kg

PB Part No:

ADU1016

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
