AKG C411PP PICKUP W/XLR FOR STRINGED INSTRUMENTS
- Brand: AKG
- MPN: C411PP
- Part #: AUDAKG0012

Product URL: https://www.pbtech.com/pacific/product/AUDAKG0012/AKG-C411PP-PICKUP-WXLR-FOR-STRINGED-INSTRUMENTS
Features
Mini-condenser Vibration Pickup With XLR for Stringed Instruments

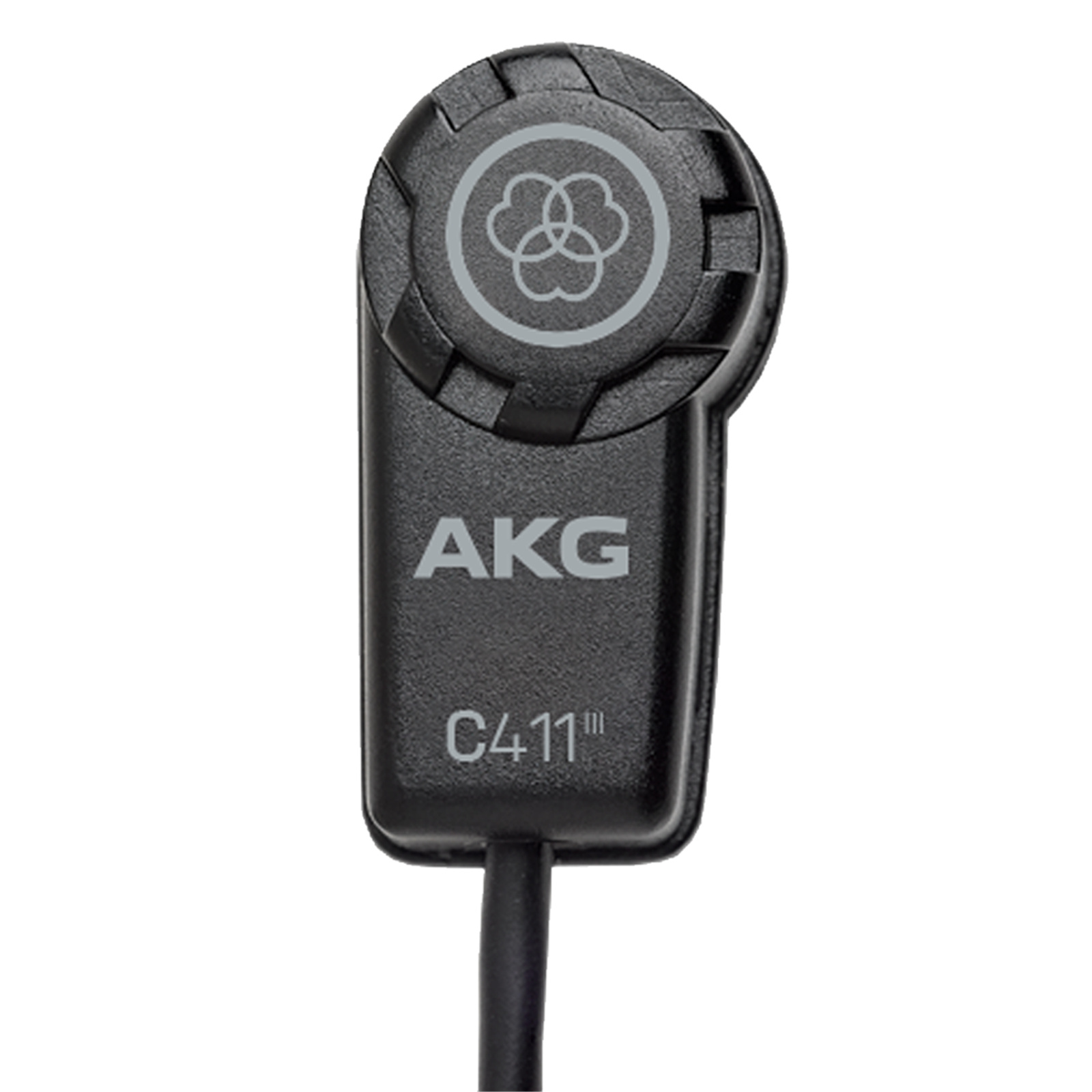

The C411 is a miniature vibration pickup for acoustic guitar, mandolin, violin and most other string instruments. Its integrated condenser capsule will reproduce the sound of the instrument clearly and without colouration.
Versions
The C411 ultralight pickup (18g/0.6oz) can be easily attached on or near the bridge with the included nonmarking, solvent-free adhesive pad without changing the balance of the instrument.
AKG C411 PP: For hardwire applications, with standard XLR connector for phantom powering.
Application Examples
- Live sound
- Concert hall
- Sound/AV company
- Stringed Instruments
Specifications
General
Type
Pre-polarized condenser transducer
Polar Pattern
Figure of eight
Audio frequency bandwidth
10 - 18000 Hz
Sensitivity
2 mV/Pa
Electrical impedance
200 Ohms
Recommended load impedance
1000 Ohms
Max. SPL for 1%/3% THD
96 dB / 103 dB
Current consumption
Approx. 2.2 mA
Dimensions
Length
9.7 mm
Width
14.2 mm
Height
26.7 mm
Net Weight
225 g (8 oz.)
Cable length
3 m (10 ft.)
Design
Body
Plastic
Finish
Matte black
Audio Output
Type
MPAV standard XLR connector
Gender
Female
Contacts
3-pin
Powering Interface
Voltage
9 to 52 V
Current
2 mA
