AXIUM AXSIR1 AX SIR1: Single IR Emitter (Blink) - Only 2mm thick! Single High Output Blink emitter with White feedback LED.

With promo code $11.17

Save 44%

NZD $ 20 .00

$ 20 .00

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

AXIUM AXSIR1 AX SIR1: Single IR Emitter (Blink) - Only 2mm thick! Single High Output Blink emitter with White feedback LED.

Brand: AXIUM
MPN: AXSIR1
Part #: AUDAXI1017
UPC:

CLEARANCE

With promo code $11.17

Save 44% with code CLEARANCE

Without promo code

NZD $ 20 .00

Part of Clearance Zone

In stock

Delivery: Order now and it ships on 09 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: AXIUM
MPN: AXSIR1
Part #: AUDAXI1017
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

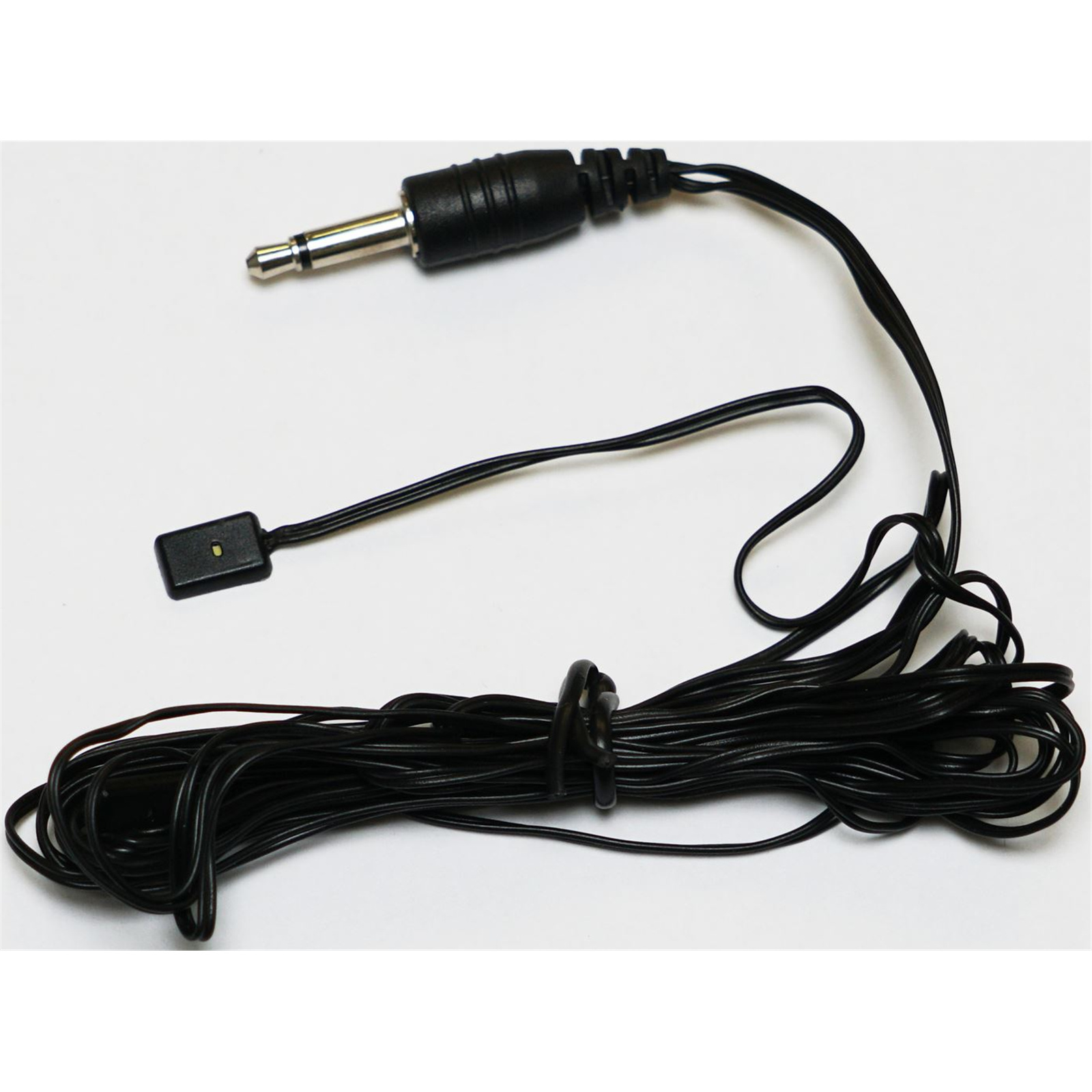

AXIUM AX SIR1: Single IR Emitter (Blink) - Only 2mm thick! Single High Output Blink emitter with White feedback LED.

The Axium EM series emitters needed to be small to match the AXIRFX3, so that is how we made them, tiny discrete and effective. Each model either uses a non-blinking infra-red LED with high output or a visible red LED which has lower IR emission and the advantage of visible operation. Both the diode variants are available in a Dual or Single configuration. The emitters are housed in a miniature low profile plastic injection moulded case with a 3M adhesive strip applied to the back, with additional adhesive tabs provided in the packaging. As the use of a boot to cover the emitter can assist in preventing IR system issues, we provide one for each emitter.

FEATURES:

Only 1.88mm high
Blink, single or dual emitters types
Emitters have high output 940nm Infrared emission
Visible White feedback LED
- Black feedback cover pad supplied
3m cable with 3.5mm plug
Micro-sized low profile with a tiny footprint
Strong acrylic adhesive mounts supplied including spares
IR dispersion angle <25°
Maximum current: 20mA
Emitter Case dimensions
- Width - 6.1mm
- Length- 9.4mm
- Height - 1.88mm

Specifications

Infrared Wavelength

940nm

Cable Length

Plug Type

3.5mm

IR dispersion angle

<25°

Maximum current

20mA

Emitter Case dimensions

Width - 6.1mm
Length- 9.4mm
Height - 1.88mm

Manufacturer Part No:

AXSIR1

Brand:

AXIUM

Product Type:

UPC

Product Family:

Shipping Weight:

0.05 kg

PB Part No:

AUDAXI1017

Product Model:

AXSIR1

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
