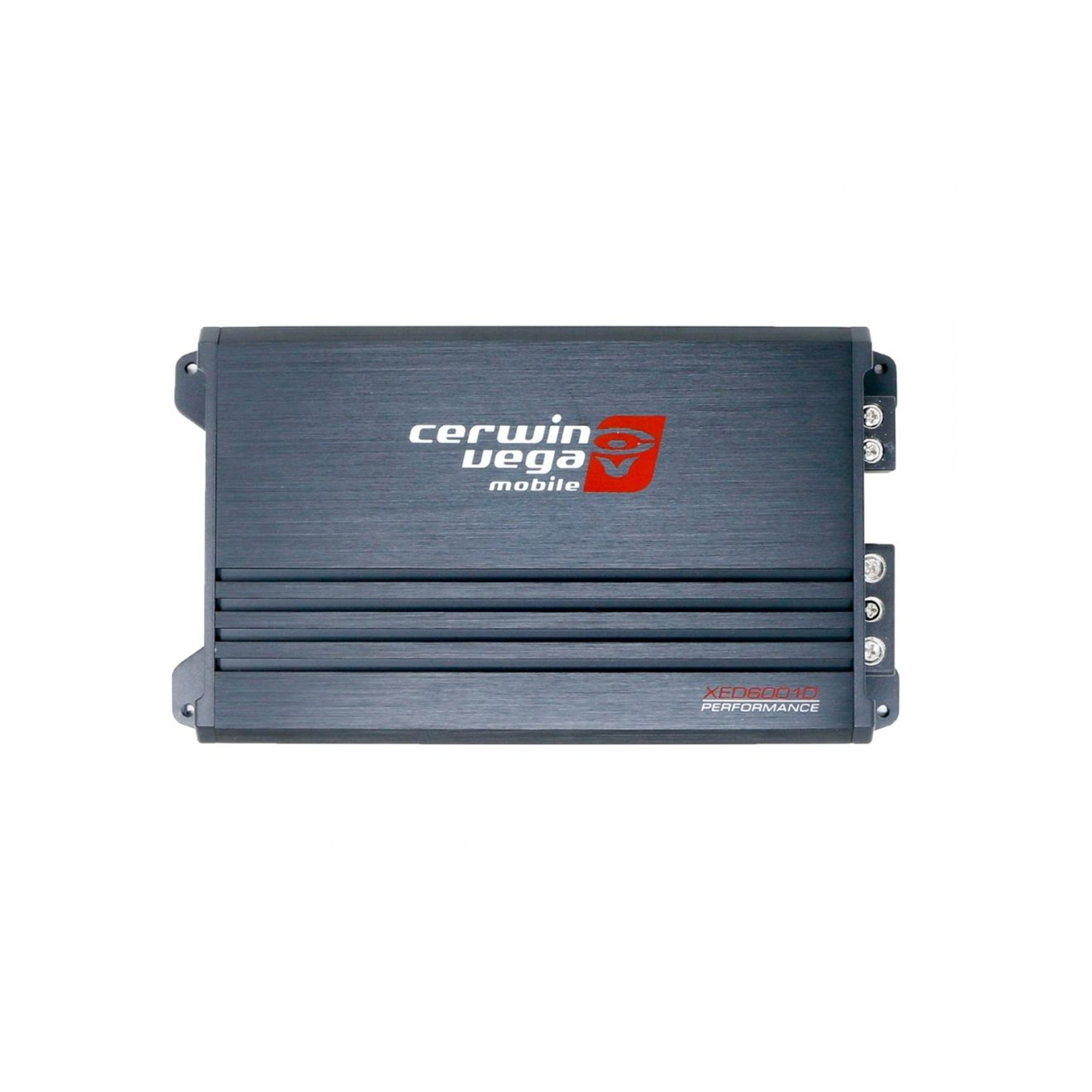

Cerwin-Vega CERWIN VEGA XED6001D AMPLIFIER XED SERIES MONO 320W RMS 4OHM / 600W RMS 2OHM

PB Tech price

NZD $ 228 .70

$ 228 .70

Cerwin-Vega CERWIN VEGA XED6001D AMPLIFIER XED SERIES MONO 320W RMS 4OHM / 600W RMS 2OHM

Brand: Cerwin-Vega
MPN: XED6001D
Part #: AUDCWV1047
UPC:

PB Tech price

NZD $ 228 .70

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Cerwin-Vega
MPN: XED6001D
Part #: AUDCWV1047
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Latest High-Efficiency Class D Topology
Compact Size with Ambient backlit logo
RCA "Pass Thru" output for easy system expansion
Fully Variable Crossovers (12dB per octave)
Handles HI and LO level input to 12V
2 O Stable Stereo and 4O Mono (CH3/4) for 3 Ch mode
Proprietary Vega Bass Boost EQ Up To 12dB

Specifications

MAX Power Rating

600W MAX

RMS Power(2O)

1 x 600 W

RMS Power (4O)

1 x 320 W

Types

Class D

Power Supply

Full PWM

Power Supply (Threshold)

10.0DVC - 16.0DVC

Idle Current

(0.7A)

Distortion - THD (1KHz @ 4O)

<0.1%

Distortion - S/N Ratio (A weight @ 1W)

-85dBA

Distortion - S/N Ratio (A weight @ FP)

-101.1dBA

Input Sensitivity - Hi/Low Input Level

1.1V ~>20.0V / 250mV - 6.0V

Input Impedance - High Input Level

100 KO

Input Impedance - Low Input Level

20 KO

Output Impedance

2 O

Damping Factor (50Hz @ 4O)

>70

Bandwidth (-3dB)

10Hz-250Hz

Crossover (-12 dB/ Oct) Variable High-Pass

N/A

Crossover (-12 dB/ Oct) Variable Low-Pass

35Hz-250Hz

Crossover (-12 dB/ Oct) Variable Sub-Sonic

10Hz-50Hz

FUSE Ratings - ATC

2 x 30A

Dimension - Length x Width x Height - Inches(mm)

7.1 x 4.7 x 1.8 (180 x 120 x 46.5)

Manufacturer Part No:

XED6001D

Brand:

Cerwin-Vega

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

AUDCWV1047

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
