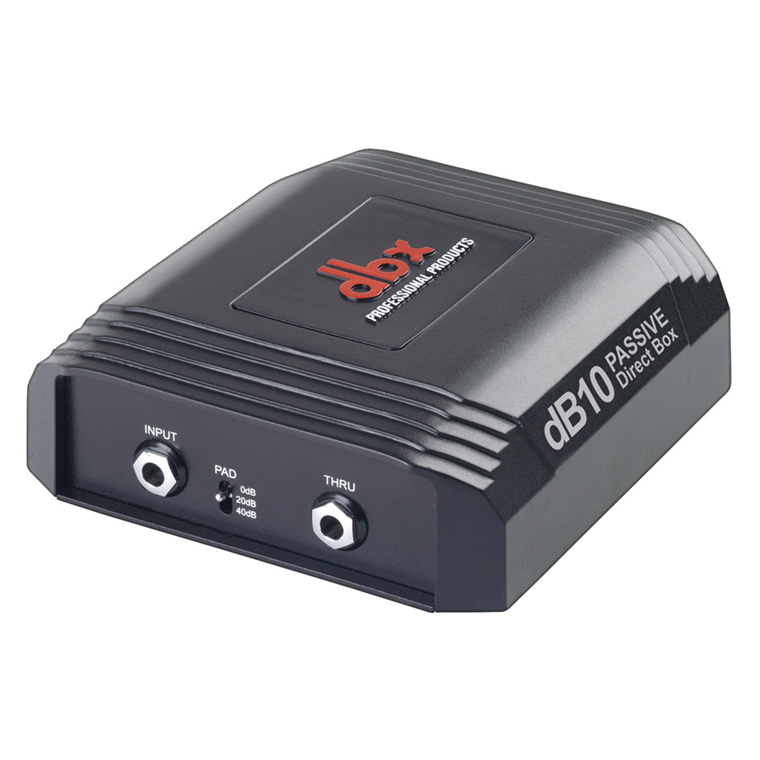

DBX DB10 PROFESSIONAL GRADE PASSIVE DI BOX
- Brand: DBX
- MPN: DB10
- Part #: AUDDBX1008

Product URL: https://www.pbtech.com/pacific/product/AUDDBX1008/DBX-DB10-PROFESSIONAL-GRADE-PASSIVE-DI-BOX
Features
High performance, professional grade passive direct injection box housed in an industrial strength enclosure to endure the demands of stage performance and heavy-duty portable use.
Utilising custom dbx mu-metal-shielded audio transformers, high-quality Neutrik connectors and low-noise circuitry to preserve the sonic integrity and true characteristics of the signal source, ensuring high-quality audio for professional audio performances and studio recording.
DB10 includes a pad switch that accommodates instrument, line and speaker level signals. Take even more control of your sound by using the polarity invert switch to set the phase relationship between the direct and mic'd sound.
Being a passive DI Box, the DB10 does not need phantom power or other external power sources to operate.
- Premium Performance
- Rugged Design
- Stackable Chassis with Durable Rubber Foot
- Gold-plated Neutrik® XLR Connector
- Premium Chrome Toggle Switches
- Hi-Z 1/4" Input Jack
- Parallel 1/4" Thru Jack
- Transformer Isolated
- Premium Shielded Custom dbx Transformer
- Balanced XLR Lo-Z Output
- 3-Way 0/20/40 dB Pad Switch
- Flat/High-Cut Filter Switch
- Output Polarity Invert Switch
- Ground Lift Switch
Specifications
Input Section
Input
1 instrument/line/speaker level
Connector
1/4" jack
Type
Unbalanced, RF filtered
Impedance
150kohm typical
Max Input Level
+20dBu (0dB pad)
+40dBu (20dB pad)
+60dBu (40dB pad)
Output Section
Thru Output
1 parallel connection from input jack
Connector
1/4" jack
Type
Unbalanced, RF filtered
Main Output
1 line level
Connector
XLR male jack
Type
Balanced
Impedance
150ohm typical
Max Output Level
0dBu
Performance
Transformer
Custom dbx mu-metal-shielded
Frequency Response
20Hz to 20kHz, +/-2.5dB
Noise
<-105dB unweighted, 22kHz BW
THD
< 0.01%, 20Hz to 20kHz
< 0.005%, 1kHz, 1kHz
General
Dimensions (L x W x H)
5.82" x 5.44" x 2.20" (148 x 138 x 56 mm)
Weight
1.4 lbs / 0.65 kg
