ARCO ARC-1373 Compact IR REPEATER KIT
- Brand: ARCO
- MPN: ARC-1373
- Part #: AVEARO1023

Product URL: https://www.pbtech.com/pacific/product/AVEARO1023/ARCO-ARC-1373-Compact-IR-REPEATER-KIT
Features
Compact IR Repeater Kit
Arco ARC-1373: Four emitter output connections, power receptacle with LED indicator, large detachable IR target connection with compact size for mounting near audio equipment.
- Four emitter output connections.
- Power receptacle with LED indicator.
- Large detachable IR target connection.
- Compact size for mounting near audio equipment

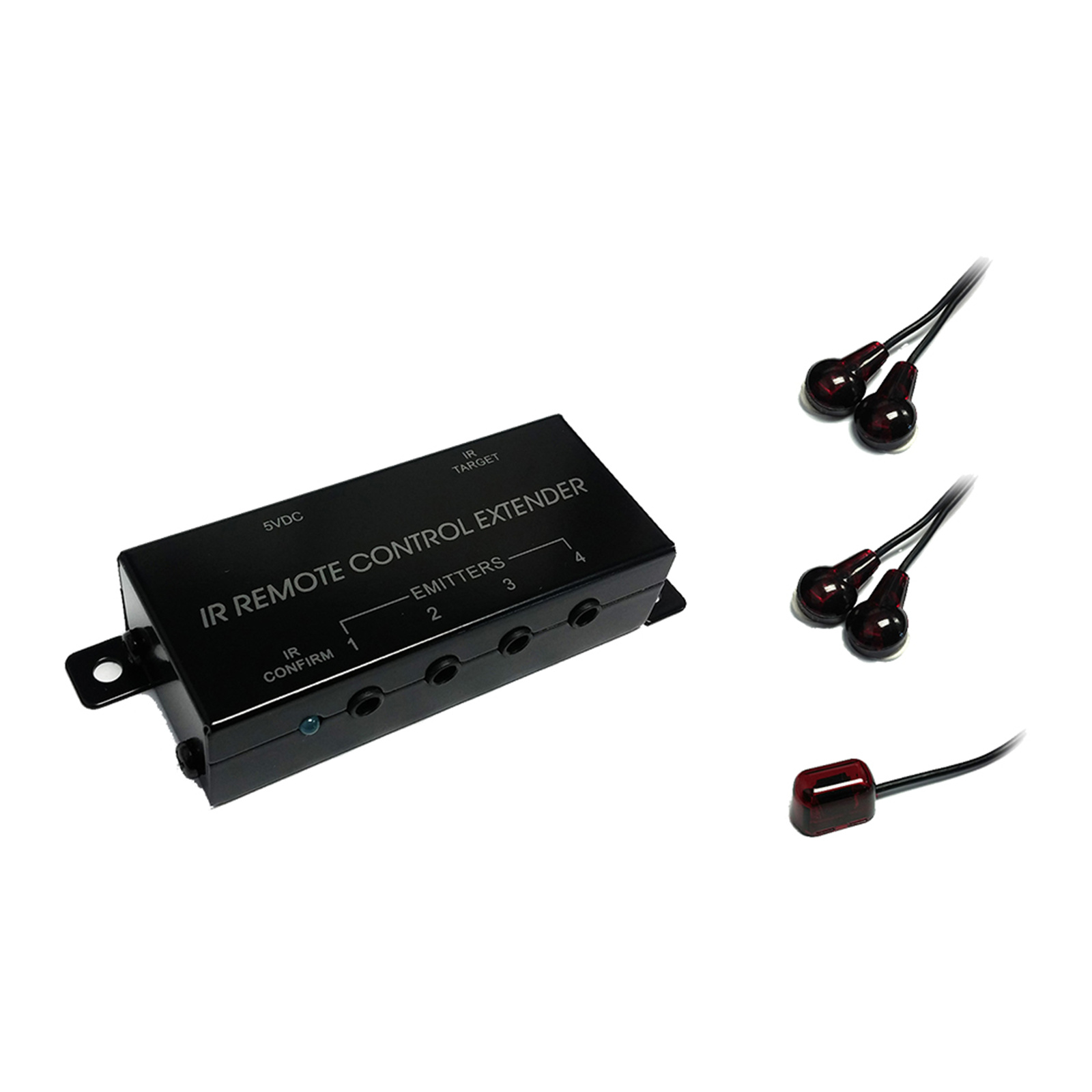

Kit Included
- 1 x Compact IR Repeater Box
- 1 x Surface Mount Mini IR Target
- 2 x Dual IR Emitter
- 1 x Power Supply
Specifications
Main Unit
Transmit Frequencies
38 kHz & 56 kHz
Power
5VDC 500mA
Dimensions
93 x 32 x 20 mm (L x W x H)
IR Target
Receive Frequency Range
34 kHz to 60 kHz
Range
40ft. @ 38 kHz, 25ft. @ 56 kHz
Connector Type
1/8" (3.5mm) TRS mini plug
Connections
Tip->Signal, Collar->+Voltage, Ring->Ground
Cable Length
3 Meters
Emitter
Connect cable
3 Meters
Connect plug
3.5mm Mono mini-plug
Connections
Tip Signal, Ring Ground
Wavelength
940n
