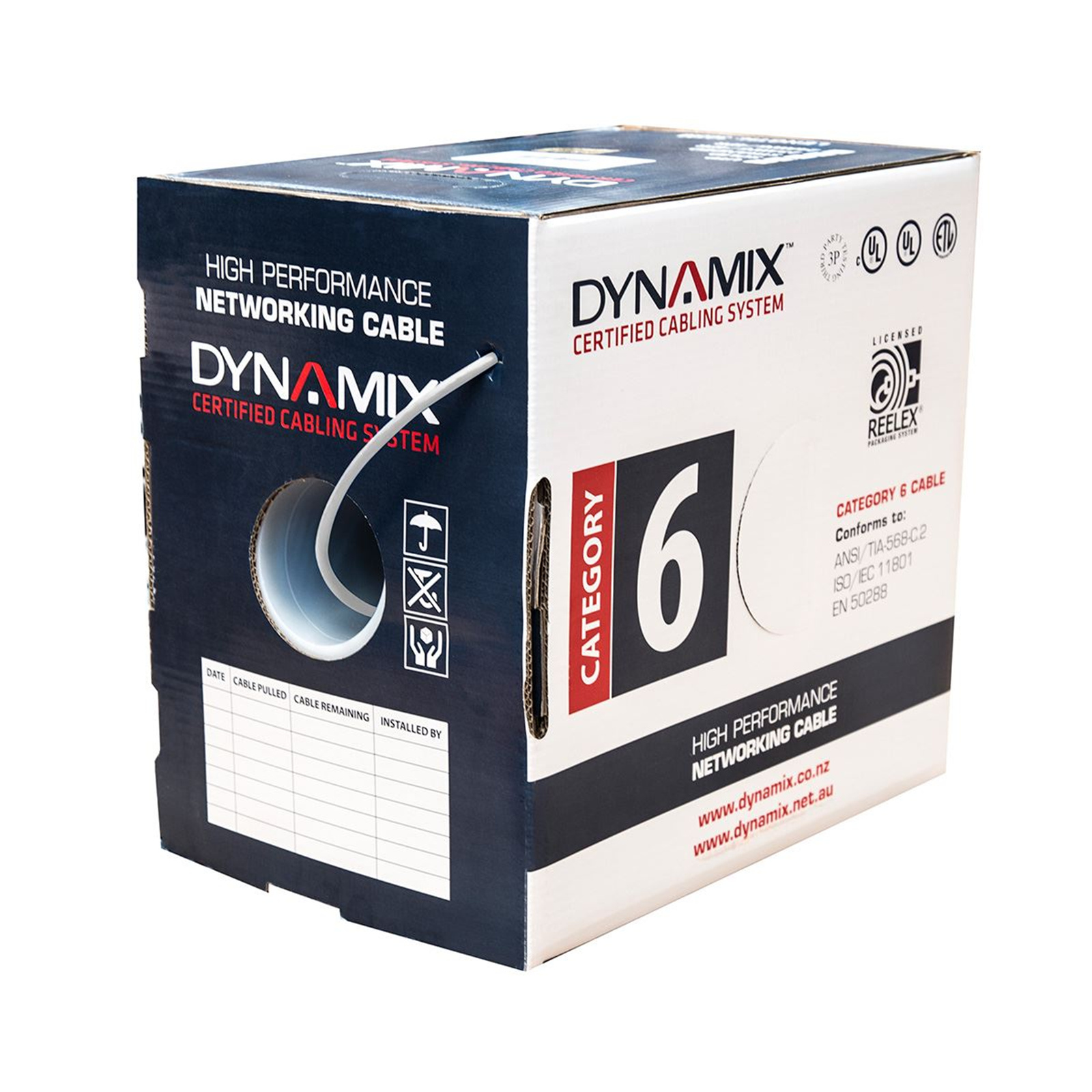

Dynamix C-C6-SLD24-WH Cat6 UTP Solid Cable Roll - 305m - White

250MHz - 24AWG x 4P - External O.D. 4.9mm - PVC Jacket - REELEX II Pull Box

PB Tech price

NZD $ 222 .61

$ 222 .61

Dynamix C-C6-SLD24-WH Cat6 UTP Solid Cable Roll - 305m - White

250MHz - 24AWG x 4P - External O.D. 4.9mm - PVC Jacket - REELEX II Pull Box

Brand: Dynamix
MPN: C-C6-SLD24-WH
Part #: CABDNX0364
UPC:

PB Tech price

NZD $ 222 .61

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 16 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Dynamix
MPN: C-C6-SLD24-WH
Part #: CABDNX0364
UPC:

Be the first to review this product

Cable Length

305m

Colour

White

Connector 1

Bare End

Connector 2

Bare End

Braided

HDMI Version

N/A

View full specs

Returns & Warranty Bulk Quote Print Page

Similar in-stock products available at PB Tech right now

D-Link Cat6 UTP Solid Networking Cable - 305m - Blue

Full Copper - 250MHz - 23AWGx4P

100% Copper - UL Listed Cabling

1 review

Wishlist Compare

Cable Length:

305m

Colour:

Blue

Connector 1:

Bare End

Connector 2:

Bare End

Braided:

HDMI Version:

N/A

Part #:

CABDLK811350

1 review

PB Tech price

$199 .00

$199.00

1 review

Ships tomorrow

Wishlist Compare

D-Link Cat6 UTP Solid Networking Cable - 305m - Grey

Full Copper - 250MHz - 23AWGx4P

100% Copper - UL Listed Cabling

Wishlist Compare

Cable Length:

305m

Colour:

Grey

Connector 1:

Bare End

Connector 2:

Bare End

Braided:

HDMI Version:

N/A

Part #:

CABDLK811353

PB Tech price

$199 .00

$199.00

Ships on 09 Sep

Wishlist Compare

D-Link Cat6 UTP Solid Networking Cable - 305m - Black

Full Copper - 250MHz - 23AWGx4P

100% Copper - UL Listed Cabling

Wishlist Compare

Cable Length:

300m

Colour:

Black

Connector 1:

Bare End

Connector 2:

Bare End

Braided:

HDMI Version:

N/A

Part #:

CABDLK811351

PB Tech price

$199 .00

$199.00

Ships on 09 Sep

Wishlist Compare

Dynamix C-C6-SLD24-BLUE Cat6 UTP Solid Cable Roll - 305m - Blue

250MHz - 24AWG x 4P - External O.D. 4.9mm - PVC Jacket - REELEX II Pull Box

Wishlist Compare

Cable Length:

305m

Colour:

Blue

Connector 1:

N/A

Connector 2:

N/A

Braided:

HDMI Version:

N/A

MPN:

C-C6-SLD24-BLUE

Part #:

CABDNX2940

PB Tech price

$247 .47

$247.47

Ships tomorrow

Wishlist Compare

Dynamix C-C6-SLDBLUE Cat6 UTP Solid Cable Roll - 305m - Blue

250MHz - 23AWG x 4P - PVC Jacket - Supplied on Plastic Reel in Box

Delivering beyond expectations with our robust 23AWG cable, perfect for your RJ45 plugs!

13 reviews

Wishlist Compare

Cable Length:

305m

Colour:

Blue

Connector 1:

Bare End

Connector 2:

Bare End

Braided:

N/A

HDMI Version:

N/A

MPN:

C-C6-SLDBLUE

Part #:

CABDNX2916

13 reviews

PB Tech price

$274 .35

$274.35

13 reviews

Ships tomorrow

Wishlist Compare

COMBO DEALS: Buy Together and SAVE!

Dynamix C-C6-SLD24-WH Cat6 UTP Solid Cable Roll - 305m - White 250MHz - 24AWG x 4P - External O.D. 4.9mm - PVC Jacket - REELEX II Pull Box

Total:

NZD $ 235 .21

Buy together and save $16.40 $16.40

Trend Micro OEM TICIWWMFXSBWEO Internet Security - 1 Device - 12 Months Subscription Add-On PC & Mac...

Ships on 12 Sep

$29.00 $29.00

NZD

$12.60

You save 56% You save 56%

Features

DYNAMIX 305m Cat6 White UTP SOLID Cable Roll, 250MHz, 24AWGx4P, PVC Jacket. Supplied in a REELEX box.

- 305m Roll
- 250MHz, 24AWGx4P
- PVC Jacket
- Colour: White

REELEX II™ is a trademark, which incorporates both the tube design and the coil itself. Sometimes called "wide mouth" packages, REELEX II coils are made by weaving a much larger payout hole into the coil and thus require a larger diameter tube.

This winding method was developed to improve the payout performance of all products and to increase the bend radius of the Category cable. The larger payout hole and tube were found to help significantly with LAN cable signal performance while also smoothing the payout of cables with inherent twisting.

Specifications

Conductor

Material

SOLID-Bare Copper

AWG

24AWG

Insulation

Material

HDPE

Diameter

0.87 ±0.03mm

Colour

A. White-Blue, Blue
B. White-Orange, Orange
C. White-Green, Green
D. White-Brown, Brown

Rip-cord

Yes

Drain Wire

Sheath

Thickness

0.55 ±0.05mm

External O.D.

4.9 ±0.4mm.

Surface

Clean, Frap, Satiation

Material

PVC (RoHS Complied) & CM rated (UL E225668)

Colour

White

Sheath Physical Properties

Before Aging

Tensile Strength (Mpa) =13.5/Elongation (%) =150

Ageing Period (°C x hrs)

100°C x 24h x 7d

After Aging

Tensile Strength (Mpa) =12.5/Elongation (%) =125

Cold Blend (-20 ±2°C x4h)

No visible cracks

Electrical Characteristics (20°C)

1.0-250.0MHz, Characteristic impedance (O)

100 ±15

1.0-250.0MHz, Delay Shew (ns/100m)

=45

DC Resistance (O/100m) max

11.0

DC Conductor Resistance Unbalance (%) max

5.0

Manufacturer Part No:

C-C6-SLD24-WH

Brand:

Dynamix

Product Type:

Solid Cable Roll

UPC

Product Family:

Shipping Weight:

11.4 kg

PB Part No:

CABDNX0364

Product Model:

C-C6-SLD24-WH

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
