Dynamix RJ-45PTC6S-100J Cat6 RJ45 Connector - 100pc
STP - Internal Ground - Push Through - 3 Prong - 50u Gold - Max 1.15mm Conductor
Dynamix RJ-45PTC6S-100J Cat6 RJ45 Connector - 100pc
STP - Internal Ground - Push Through - 3 Prong - 50u Gold - Max 1.15mm Conductor
- Brand: Dynamix
- MPN: RJ-45PTC6S-100J
- Part #: CABDNX0826
- UPC:
- Brand: Dynamix
- MPN: RJ-45PTC6S-100J
- Part #: CABDNX0826
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network & Telephone Cables





Dynamix RJ-45PTC6S-100J Cat6 RJ45 Connector - 100pc STP - Internal Ground - Push Through - 3 Prong - 50u Gold - Max 1.15mm Conductor
- Brand: Dynamix
- MPN: RJ-45PTC6S-100J
- Part #: CABDNX0826

Product URL: https://www.pbtech.com/pacific/product/CABDNX0826/Dynamix-RJ-45PTC6S-100J-Cat6-RJ45-Connector---100p
Features

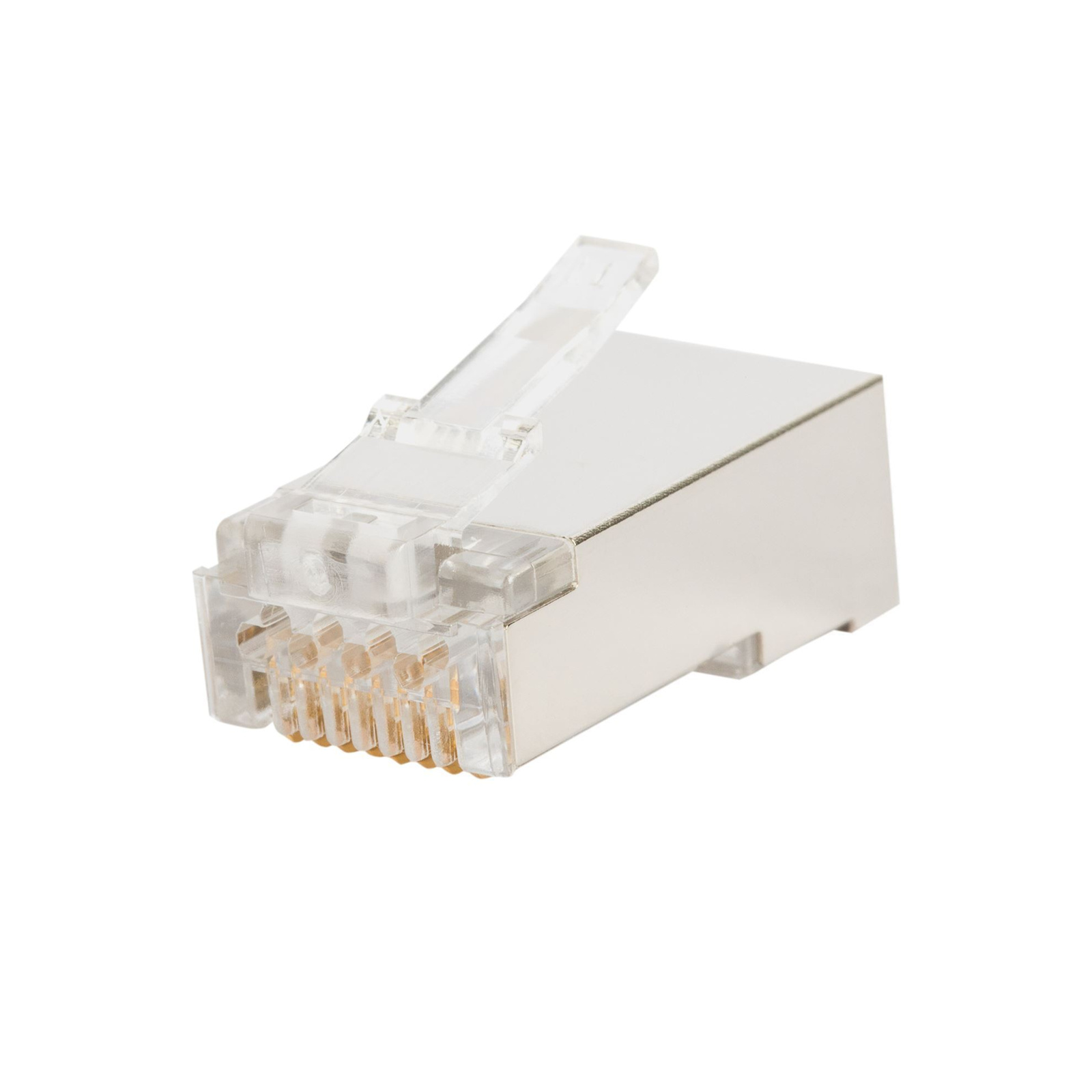

DYNAMIX Cat6 STP Internal Ground Push Through Plug

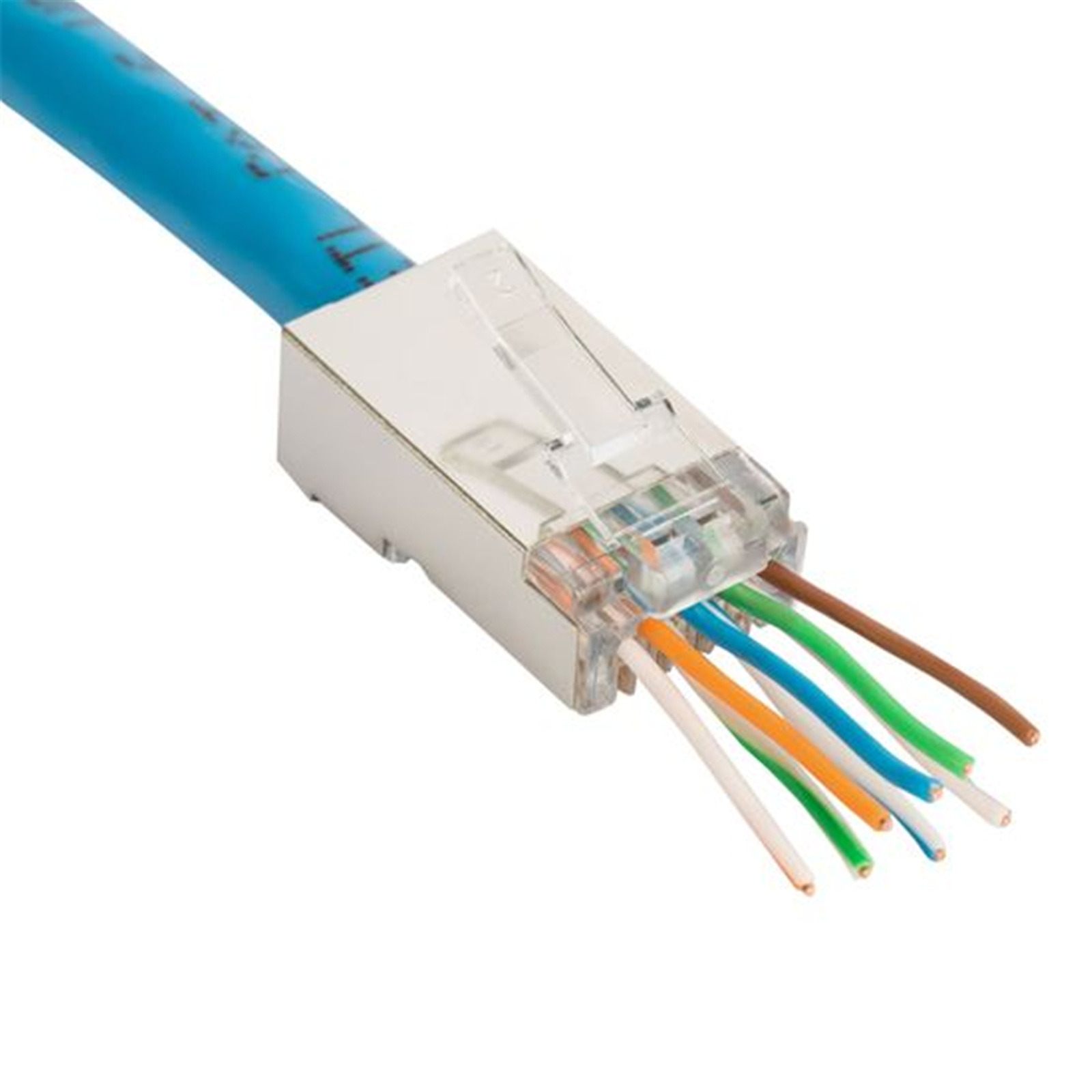

Our DYNAMIX RJ45 Pass-through modular plug connectors are designed to simplify the process of terminating RJ45 modular plugs, by allowing the wires to be inserted through the connector and out the front to easily verify the proper wiring order. Pulling the connector down over the cable jacket and seating it tightly in the rear of the connector this optimizes the performance of the termination.
FEATURES:
- Wire conductor up to 23AWG
- Gold plated 50 Micron rated connectors
- Supports Solid and Stranded Cables
- Transparent polycarbonate
- Meets or Exceeds ANSI/TIA568-D.2; ISO/ IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
- Compatible with "Platinum Tools" crimping/cutting tools
Specifications
Wire Conductor
23AWG
Flame Auto-extinguish
UL94V-2
Shielded Material
Hard Brass (CAT6/6A STP Plugs Only)
Plug Material
Transparent Polycarbonate
Insertion Life
2000 Minimum cycles
Certification
ANSI/TIA568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
