Legrand MLTOS212 OS2 Cable - 12F - Blue Mini Loose - Indoor / Outdoor
- Brand: Legrand
- MPN: MLTOS212
- Part #: CABLGD1889

Product URL: https://www.pbtech.com/pacific/product/CABLGD1889/Legrand-MLTOS212-OS2-Cable---12F---Blue-Mini-Loose
Features

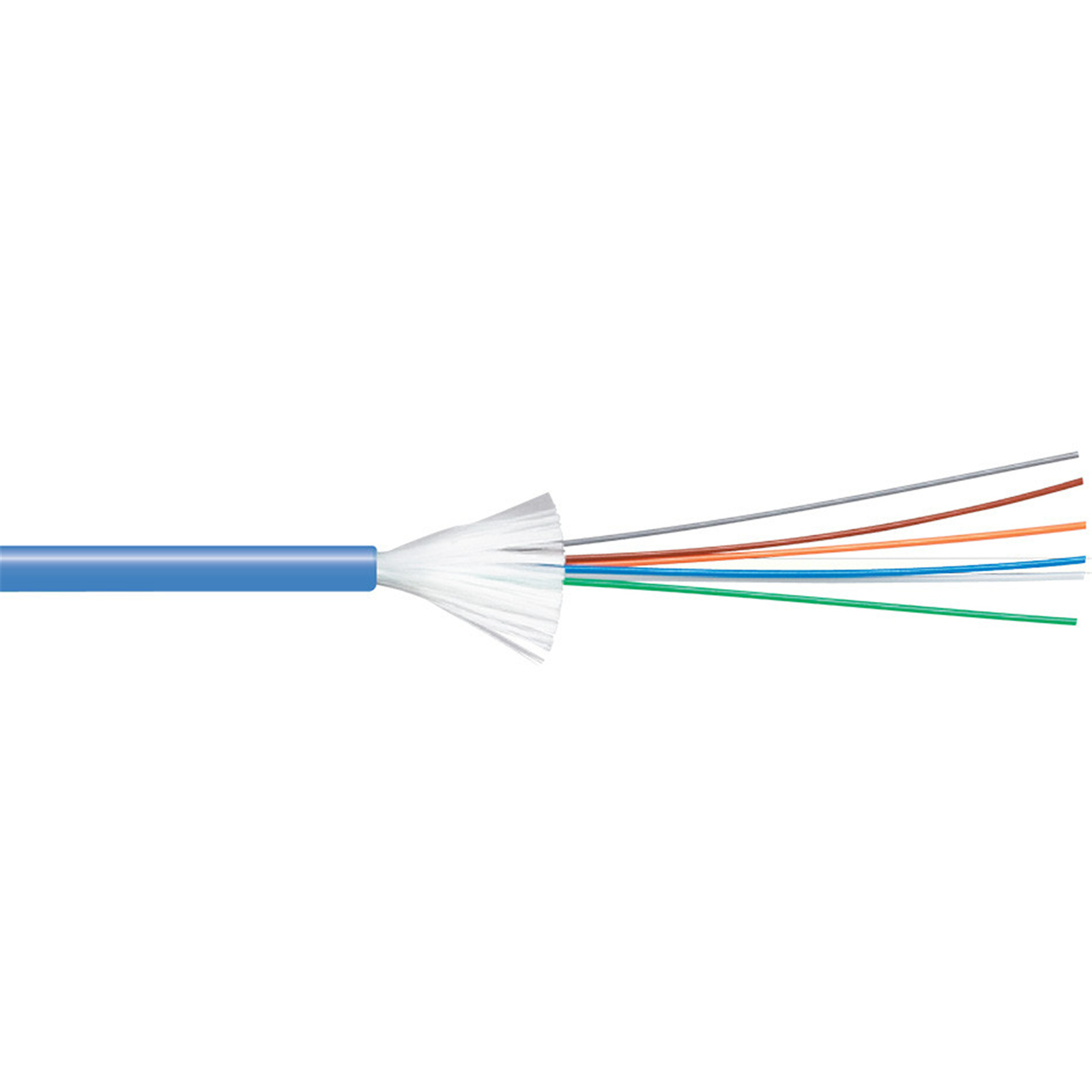

Legrand MLTOS212 OS2 Mini Loose 12 Fibre In-Out Blue Sheath
This loose tube dielectric optical cable is designed for external underground installations in (micro) ducts by pulling, blowing or floating techniques or by direct burial in open-cut trenches. Polyamide provides anti-termite protection. Optimised for blowing into mini ducts of 10 mm diameter.
- IEC 60794-5
- Multi-loose tube construction - Single layer 2 to 48 fibres
- Central strength member (CSM): Glass fibre reinforced plastic material (GRP) with over-sheathing
- Tube: Thermoplastic material, containing up to 12 optical fibres filled with a low viscosity, thixotropic, non-melting gel fully compatible with fibre coating and tube material
- Stranding: The required numbers of elements (tubes and filters) are SZ stranded around the central strength member
- Longitudinal water tightness: Water swellable elements (dry-core)
- Sheath: UV stabilised polyethylene in compliance with AS 1049. Two ripcords provided beneath the sheath for easy removal
- Outer jacket: UV stabilised polyamide (Nylon) in compliance with AS1049 integrally bonded to PE sheath
Specifications
Product Type
Fibre Cable
Brand
Legrand
Number of fibres
12
Number of elements
6
Tube/ Filler diameter
1.55 mm
Cable Nominal diameter
6.3 mm
Cable Nominal weight
33 kg/km
Max. Installation tension
1.0 kN
Max. Crush resistance
2.0 kN/100 mm
Min. Bending Radius At full load
130 mm or at no load 65 mm
Temperature range
Installation: 0°C to +50°C
Transport & Storage: -20°C to +70°C
Operation: -10°C to +70°C
