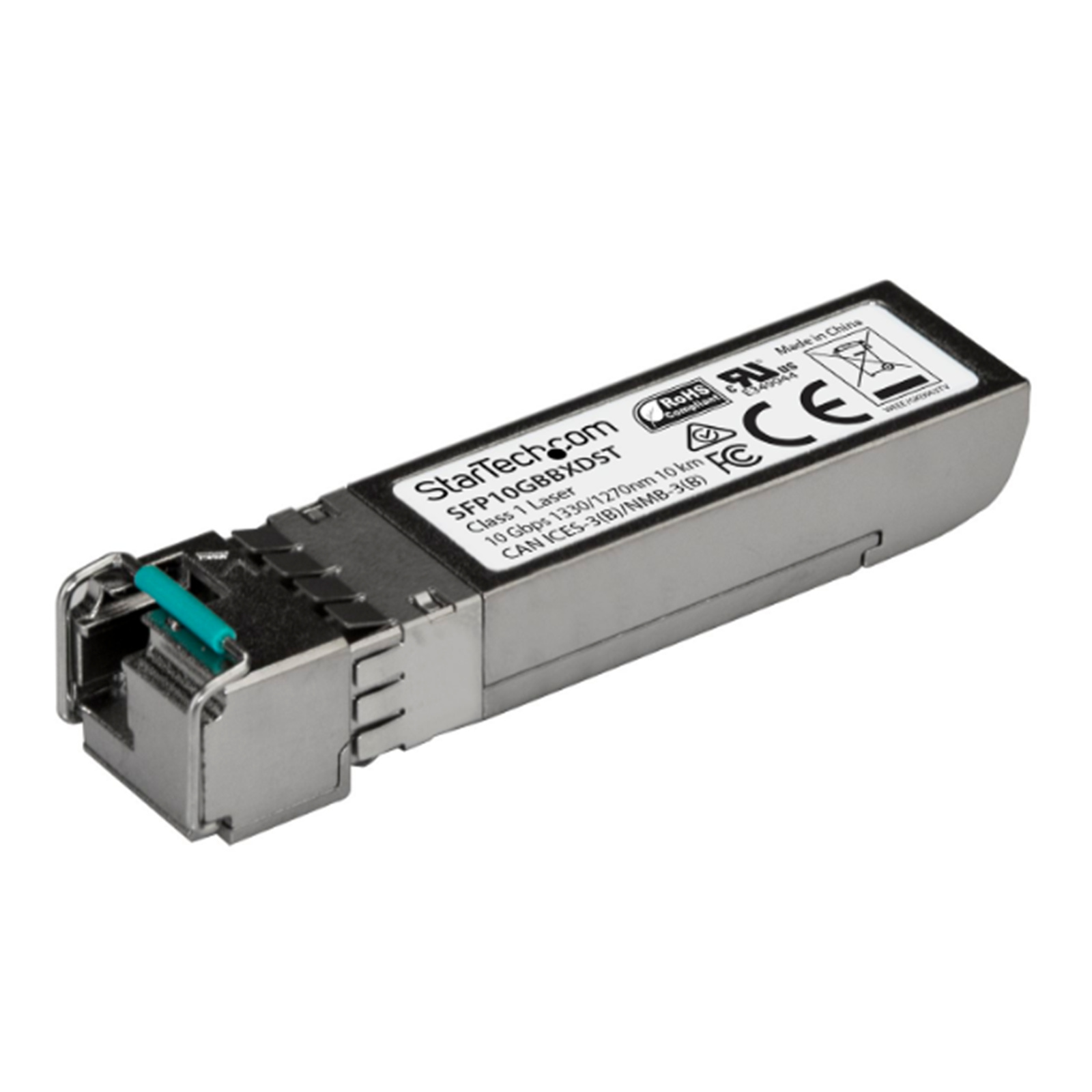

StarTech.com 10GBASE-BX - 10GbE - BiDi SFP+ Module - 10km
MSA Uncoded SFP+ Module - 10GBASE-BX - 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ Transceiver / LC / MSA Compliant
Out of stock
StarTech.com 10GBASE-BX - 10GbE - BiDi SFP+ Module - 10km
MSA Uncoded SFP+ Module - 10GBASE-BX - 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ Transceiver / LC / MSA Compliant
- Brand: StarTech.com
- MPN: SFP10GBBXDST
- Part #: CABSTT3715542
- UPC:
- Brand: StarTech.com
- MPN: SFP10GBBXDST
- Part #: CABSTT3715542
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular SFP Cables





StarTech.com 10GBASE-BX - 10GbE - BiDi SFP+ Module - 10km MSA Uncoded SFP+ Module - 10GBASE-BX - 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ Transceiver / LC / MSA Compliant
- Brand: StarTech.com
- MPN: SFP10GBBXDST
- Part #: CABSTT3715542

Product URL: https://www.pbtech.com/pacific/product/CABSTT3715542/StarTechcom-10GBASE-BX---10GbE---BiDi-SFP-Module
Features
The SFP10GBBXDST is an MSA compliant downstream fiber SFP transceiver which pairs with StarTech.com's SFP10GBBXUST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1330nmTx/1270nmRx
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: Less than 1 Watt
DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
MSA UNCODED SFP+ TRANSCEIVER: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 10GbE connectivity
INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
TECHNICAL SPECS: 10GBASE-BX | 10Gbps | 10G Bi-Directional Downstream | Single Mode (SMF) | LC Connector | 1330nmTx/1270nmRx | Digital Diagnostic Monitoring (DDM) | Distances up to 10km (6.2mi).
WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Specifications
Connector(s)
Local Unit Connectors
1 - Fiber Optic LC Duplex
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5~95% RH
Hardware
Compatible Brand
MSA Compliant
WDM
Yes
Industry Standards
IEEE 802.3ae 10GBASE-BX
Packaging Information
Package Length
4.5 in [11.5 cm]
Package Width
3.5 in [90.0 mm]
Package Height
1.2 in [30.0 mm]
Shipping (Package) Weight
1.9 oz [54.0 g]
Performance
Maximum Data Transfer Rate
10 Gbps
Max Transfer Distance
10 km (6.2 mi)
Type
Single Mode
Wavelength
1330nmTx/1270nmRx
Fiber Operating Mode
Full-Duplex
DDM
Yes
Compatible Networks
10 Gbps
Power Consumption (In Watts)
< 1 W
Physical Characteristics
Product Length
2.3 in [58.4 mm]
Product Width
0.5 in [13.9 mm]
Product Height
0.5 in [1.3 cm]
Weight of Product
0.8 oz [24.0 g]
What's in the Box
Included in Package
1 - SFP+ transceiver
