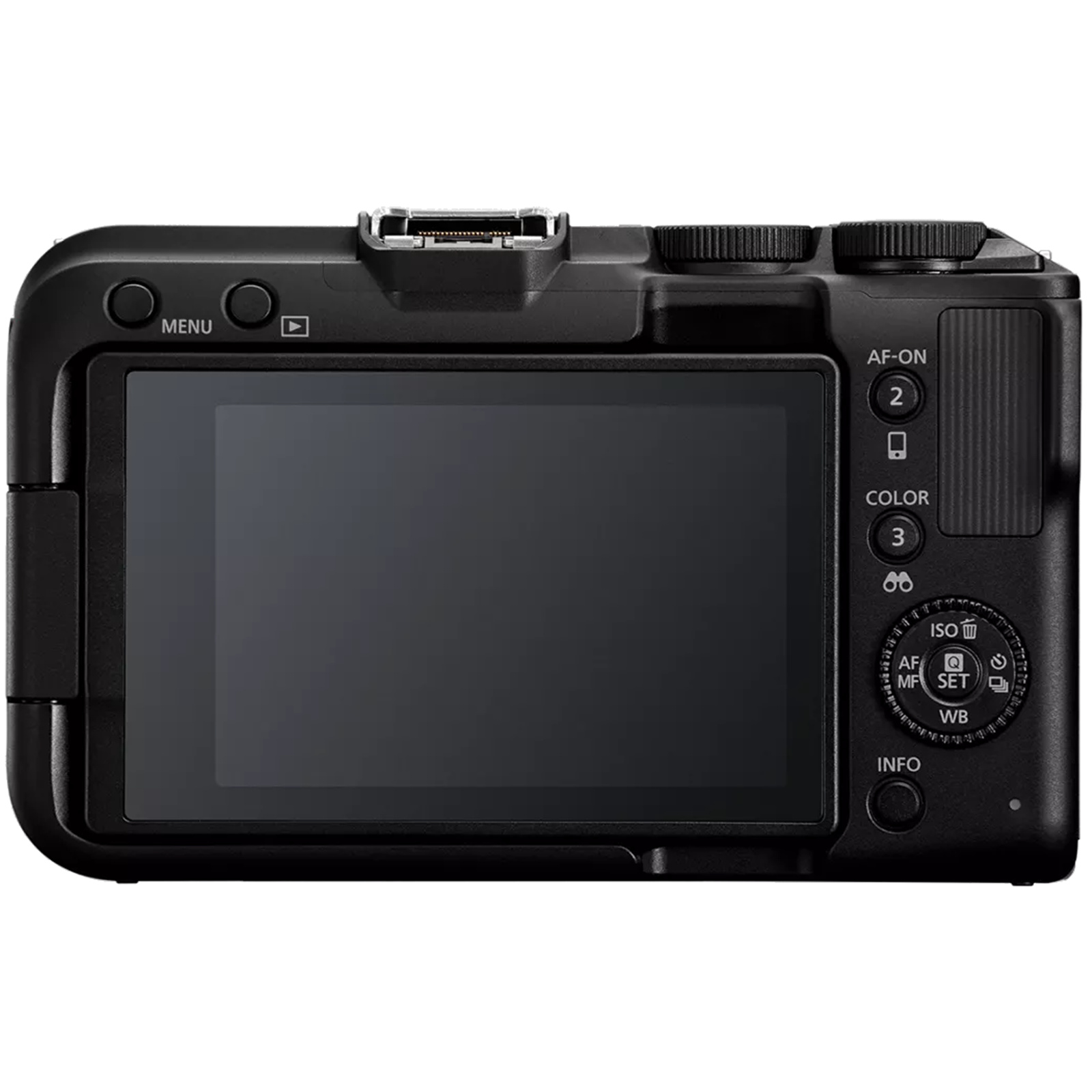

Canon EOS R50 V Digital Camera with RF-S 14-30mm f/4-6.3 IS STM PZ - Black
- Brand: Canon
- MPN: R50VKIS
- Part #: CAMCNP41624
Product URL: https://www.pbtech.com/pacific/product/CAMCNP41624/Canon-EOS-R50-V-Digital-Camera-with-RF-S-14-30mm-f
Features
Step up to interchangeable lens video creation with the versatile EOS R50 V. This APS-C Mirrorless EOS V Series camera lets you take control of your next video production by blending some of the best features of the Cinema EOS and EOS camera lines together. This EOS R50 V lens kit comes with our RF-S14-30mm F4-6.3 IS STM PZ lens - A lightweight, travel friendly, ultra-wide angle to standard zoom lens created with power zooming capability to create beautiful videos.
UI Designed for the Creator
The EOS R50 V was designed through creator feedback to solve many of the pain points of creators. Its' exterior was completely redesigned to be bold, modern, and untraditional in appearance. An appearance that clearly indocates that this camera is meant to be taken with you wherever your videos take you! The convenience and power of this camera goes far beyond portability. Enjoy smooth powered zooming with an on camera zoom lever (for Power Zoom compatible lenses), a 3-micrphone array for clear audio and unwanted noise reduction, and the latest Canon Multi-function shoe to attach and power additional compatible accessories.
Vertically Versatile
As a product made for today's video content creator, it comes equipped with both a vertical and horizontal tripod mount. These are available on the side of the camera's grip, and also on the bottom of the camera body. When in Movie mode, the on-screen menu's automatically rotate based on the camera's orientation.
Always Ready, and Never Surprised
Since many creators spend a lot of time in-front of the camera, two Record buttons are available, one on the front of the camera so you can start your recording with confidence when vlogging, and another in the traditional Shutter button position when you're behind the camera. Additionally, it is equipped with a red tally (visible from the front and top of the camera), and an LCD screen that displays a red-colored recording emphasis border around your LCD image to let you know when the camera is actively recording, so you or your subject are never surprised.
Ready to Create
The EOS R50 V comes equipped with a zoom lever allowing Power Zoom lenses such as the RF-S14-30mm F4-6.3 IS STM PZ lens to be controlled at the camera body. Control of the zoom speed can be fully customized in the camera's menu allowing separate control of the speed for before recording, and separately for during recording. The camera also comes equipped with Mic, Headphone, and an E3 Remote port.
Pro Look Settings Simplified
A new mode dial experience now features 7-different video focused modes at your fingertips. Newcomers to video can utilize the fully Automatic video exposure mode functionality, including the Scene mode featuring a dedicated video mode for "close-up demos" perfect for Video, or Small Business Creators doing E-commerce product demonstrations. This mode is ideal for creators who want to present an object close to the lens, and quickly have the focus return back to them. There's also a mode dedicated to Movie Image Stabilization - for those recording vlogs on the go. And because appearance is important on-camera, a dedicated Smooth Skin movie mode is also included.
Control Time with Slow and Fast Mode
New to the EOS R50 V mode dial is the Slow and Fast mode - selecting this mode allows creative control of both the video frame rate and playback speed separately and in-camera, for slow-motion recordings, or fast-motion time-lapse sequences. Simply select your recording resolution of UHD 4K, UHD 4K Crop or Full-HD, then select your frame rate with options as fast as 59.94p in 4K Crop, or 119.8p in Full-HD, then simply determine your playback speed your desiring to match your project.
Focused On You
The EOS R50 V comes with Canon's powerful Dual Pixel CMOS AF II focusing system, providing tenacious tracking that follows you or your subject when recording or taking photos. Easy to use Subject Detection modes include People, Animals, Vehicles, and Auto mode, allowing high precision autofocus with ease and reliability. The EOS R50 V even has the Register People Priority Autofocus mode found in our flagship EOS R1, EOS R3 and EOS R5 Mark II mirrorless cameras. Simply take a photo of your subject to register them, and they'll be prioritized over other subjects in the scene based on your ranking, so the important subjects in your videos and photos will be in focus.
For the Stills Photographer
As an EOS V-series product, optimized for video, you might think that we forgot about still photography features, but rest assured, we packed lots of incredible image capturing capabilities into this very travel friendly camera. It has a full-fledged "Photo" mode with a host of manual and automatic shooting modes available. With a powerful 24.2-megapixel, APS-C image sensor, a DIGIC X image processor, and as a mirrorless interchangeable lens camera, it is built with the Canon RF mount - allowing the use of over 50-different RF, and RF-S lenses to empower your creativity.
Go LIVE to Connect to Your Audience
This camera also offers tremendous networking capability - offering 5 and 2.4Ghz Wi-Fi, Bluetooth, and built-in Wireless Livestreaming capability via both the Canon Camera Connect app, and the Live Switcher Mobile app. Additionally, its USB C terminal offers USB UVC/UAC streaming for use of the camera as a webcam, and separately an HDMI streaming mode offers a clean HDMI connection to HDMI capture cards and switchers, providing multiple options to connect with your audience. All of these settings can now be accessed through the Live button, but if Livestreaming isn't your thing, it is one of 8 different customizable video buttons on the camera!
Specifications
Type
Type
Digital interchangeable lens mirrorless camera
Image Processor
DIGIC X
Recording Media
(One) SD card slot
- Compatible with UHS-II/UHS-I/UHS speed class/SD speed class
- Eye-Fi cards and Multimedia cards (MMC) are not supported.
Compatible Lenses
Canon RF lenes (including RF-S lenses)
Canon RF-S3.9mm F3.5 STM Dual Fisheye lens and RF-S7.8mm F4 STM Dual lens
* When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)
Lens Mount
Canon RF mount
Image Sensor
Type
APS-C CMOS sensor (compatible with Dual Pixel CMOS AF)
Effective Pixels
Approx. 24.0 megapixels
Aspect Ratio
3:2 (Horizontal: Vertical)
Color Filter System
RGB primary color filter
Low Pass Filter
Installed in front of the image sensor, non-detachable
Dust Deletion Feature
Self Cleaning Sensor Unit not provided.
Manual cleaning (by hand) not supported.
Dust Delete Data acquisition and appending
- The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.
- The dust coordinate data appended to the image is used by the EOS software to automatically erase the dust spots.
- Not available during focus bracket shooting.
Recording System
Recording Format
Compliant to Design rule for Camera File system 2.0 and Exif 2.31*
*Supports time offset information
Image Format
JPEG (.JPG), HEIF (.HIF), RAW, C-RAW (.CR3)
Movies: XF-HEVC S YCC422 10 bit
XF-HEVC S YCC420 10 bit
XF-AVC S YCC422 10 bit
XF-AVC S YCC420 8 bit
*1: When a movie is recorded with [Add CP file: On] set when [Custom Picture] is active,a ".CPF" file will be created.
Still image resolution
RAW, C-RAW -- 24.0 MP (6000 x 4000)
Large (L) -- 24.0 MP (6000 x 4000)
Medium (M) -- Approx. 10.6 MP (3984 x 2656)
S1 -- Approx. 5.9 MP (2976 x 1984)
File Numbering
The following file numbers can be set:
1. File numbering methods
a. Continuous numbering
i. The numbering of captured images continues even after you replace the card.
b. Auto reset
i. When you replace the card, the numbering will be reset to start from 0001. If the new SD card already contains images, the numbering will continue from the last recorded image in the card.
2. Manual reset
a. Resets the file number to 0001, and creates a new folder automatically.
* When manually resetting the file number, folders can also be renamed.
RAW + JPEG / HEIF Simultaneous Recording
Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.
Color Space (sill images)
sRGB
(HDR PQ images - BT.2020)
Picture Style
(Set via Color Mode menu or Color Mode button)
(1) Auto
(2) Standard
(3) Portrait
(4) Landscape
(5) Fine Detail
(6) Neutral
(7) Faithful
(8) Monochrome
(9) User Defined 1-3
* Picture Style files can be registered to user-defined settings 1-3.
White Balance
Settings
(1) Auto (Ambience priority/White priority)
(2) Daylight
(3) Shade
(4) Cloudy*1
(5) Tungsten light
(6) White fluorescent light
(7) Flash*2
(8) Manual
(9) Color temperature 1
(10) Color temperature 2 Approx. 2500K-10000K*
(11) Color temperature 2 Set in 100K increments
(12) Color temperature 4
*1: Effective also in twilight and sunset.
*2: With an EX / EL-series Speedlite having the color temperature information transmission feature, the color temperature setting changes to match the color temperature when the flash is fired. Set to approx. 6000 K if the flash unit does not have the color temperature communication feature.
* Can also be changed during movie recording when Creative (Movie) Zone is set.
* Color temperature 1-4 can be switched with [Customize buttons for shooting: Switch color temperature]
Auto White Balance
Option between ambience priority and white priority settings, using SET button
White Balance Shift
Blue/amber bias: ±9 levels
Magenta/green bias: ±9 levels
- Shifted from the color temperatue of the current WB mode.
- Blue/amber and magenta/green shift can be set at the same time.
(WB Bracketing not supported)
Autofocus
Focus Method
Dual Pixel CMOS AF
Number of AF zones available forAutomatic Selection
AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%
(100% x 100% AF coverage in Face Detect + Tracking AF; coverage can vary, depending upon lens being used)
Stills: Max. 651 zones (31 x 21)
Movies: Max. 527 zones (31 x17)
Selectable Positions for AF Point
AF area: Horizontal: Approx. 90% x Vertical: Approx. 100%
Stills: Max. 4503 positions (79 x 57)
Movies: Max 3713 positions (79 x 47)
Focusing brightness range(still photo shooting)
EV -5.0 to 20 (with an f/1.2 lens,* center AF point, One-Shot AF at room temperature, and ISO 100)
* Except RF lenses with a Defocus Smoothing (DS) coating.
Focusing brightness range(movie recording)
EV -2.5 to 20 (with an f/1.2 lens,* center AF point, One-Shot AF at room temperature, ISO 100, and29.97 / 25.00 fps.)
* Except RF lenses with a Defocus Smoothing (DS) coating.
Available AF Areas (still images and movies)
- Spot AF
- 1-point AF
- Expand AF area: Above/below/left/right
- Expand AF area: Around
- Flexible Zone AF 1
- Flexible Zone AF 2
- Flexible Zone AF 3
- Whole area AF
Available Subject Detection (still images and movies)
- Auto
- People
- Animals (dogs / cats / birds/ horses)
- Vehicles (motorsports cars / motorcycles / airplanes / trains)
* Certain types of animals or vehicles may not be detected, depending on shape and appearance
Eye Detection
Auto:
- Selects the eye closer to the camera (as detected from the angle of the face).
- At the same distance from the camera, selects the eye closer to the center of the AF area.
Left/right eye detection: Supported (refers to subject's left/right eye)
Customization
Available Functions
Dial direction during Tv/Av; Control ring rotation direction; Customize buttons; Customize dials
Exposure Control
Metering Modes
Real-time metering from CMOS image sensor (384 [24x16] metering zones)
(1) Evaluative metering (AF point-linked)
(2) Partial metering (approx. 5.8% of the area at the center of the screen)
(3) Spot metering (approx. 2.9% of the area at the center of the screen)
(4) Center-weighted average metering
* Movie recording: Evaluative metering only
Metering Range
Still Photo Shooting: EV -5 to 20
Movie Recording: EV -2.5 to 20 (4K) / EV -3.0 to 20 (Full HD)
Exposure Modes
Still photo shooting:
- Full Auto (A+), P, Tv, Av, M
- Self-portrait, Portrait, Smooth skin, Panoramic shot, Food, Handheld Night Scene
Movie recording:
- Movie auto exposure, Shutter-priority (Tv), Aperture-priority (Av), Movie Manual exposure
Shutter
Type
Electronically controlled focal-plane shutter.
Rolling shutter, using the image sensor.
(1) Electronic first curtain
(2) Electronic shutter
* When set to [Electronic], the camera makes no mechanical shutter sound. (An electronic shutter sound can be configured in [Beep] and [Volume: Shutter volume]). Note that the camera may make sounds other than the shutter release sound, such as sounds for aperture adjustment or the lens focus drive, or beeps. Moreover, using long exposure noise reduction with shutter speeds of 1 sec.or longer involves a mechanical second-curtain shutter, which produces a mechanical sound.
* Bands of light may be displayed and captured images may be affected by light and dark banding when shooting under fluorescent lighting or other flickering light sources with the camera set to [Anti-flicker shoot.: Disable].
Shutter Speeds
Electronic 1st-curtain shutter:
1/4000th sec - 30 seconds, in 1/3-step increments
Electronic shutter:
1/8000th sec - 30 seconds, in 1/3-step increments
X-sync Speed
Elec. 1st-curtain: 1/250 sec. (flash not possible with Electronic shutter)
Shutter Release
Soft-touch electromagnetic release
Self Timer
10-sec. delay, 2-sec. delay, Continuous
Image Stabilization (IS mode)
Still Photo IS
In-body IS not provided.
(lens optical Image Stabilization supported)
External Speedlite
E-TTL flash metering
Evaluative (Face Priority) / Evaluative / Average
Accessory Shoe
Canon Multi-function accessory shoe
-Optional Canon AD-E1 adapter required for conventional shoe-mount flashes and accessories
-No traditional flash contacts on accessory shoe
E-TTL balance
Ambience priority, standard, flash priority
Flash Exposure Compensation
±3 stops (in 1/3-stop increments)
Continuous flash control
E-TTL each shot / E-TTL 1st shot
HDR Shooting
Still-image HDR shooting
- HDR PQ (HEIF images)
- HDR mode (final image composited from three initial images)
- HDR PQ and HDR can be combined
Disable / Enable
* Can be used in conjunction with Auto Lighting Optimizer.
Movie HDR PQ
According to setting of movie recording format
* Cannot be set for XF-AVC S YCC420 8 bit
Continuous HDR Shooting (still images)
1 shot only / Every shot (HDR mode shooting only)
Video Shooting
Video resolution
4K (UHD only; 3840 x 2160 (16:9) - oversampled from 6K recording
4K Crop (3840 x 2160; not oversampled)
Full HD (1920 x 1080)
Video compression
LongGOP (equivalent to IPB); Intra (= All-I) for Time Lapse video recording
Video Gamma, Color Space options (in CP/Custom Picture menu)
Canon 709
Canon Log 3
PQ (HDR PQ; BT.2020
HLG (BT.2020)
BT.709 Standard
Vertical video recording
Available (video shooting info display can be rotated, for shooting & playback)
Vertical tripod socket on grip side of camera
Auto Level display available during video recording
Audio recording
Built-in microphone; separate Left & Right Stereo inputs
- Noise detection microphone (for AF focus drive noise, white/floor noise)
- 16-bit/2 CH or 24-bit/4 CH recording possible (2 channel for built-in mic)
- 48 kHz sampling frequency
3.5mm stereo mini-jack (3-pin) for external mics
Digital mic input at Multi-function Shoe (Canon DM-E1D Stereo MIcrophone, etc.)
Auto or Manual sound recording levels (64 manual levels available)
3.5mm Headphone terminal (stereo mini-jack)
Video AF
One Shot AF; Movie Servo AF available in AF Menu
Exposure Compensation
±3 stops (in 1/3-stop increments)
Time Code
Yes (Count up, Start time setting, Movie recording count, Movie play count, HDMI time code on/off, HDMI rec. command on/off, Drop frame enable/disable)
Movie Pre-recording
Not supported
Special frame rates
High Frame Rate recording (FHD only) up to 119.98 fps
S & F (Slow & Fast recording mode): 120p, 60p, 30p, 12p, 6p, 3p
- User-selectable playback speed: 23.98p, 29.97p, or 59.94p
- Full HD only
- Audio not recorded
Time-lapse Playback Frame Rate
29.97 (set to NTSC); 25.00fps (set to PAL)
LCD Screen
Type
TFT color, liquid-crystal monitor
Monitor Size
3.0-inch (screen aspect ratio of 3:2)
2.95 in./7.5cm diagonal (2.44 in./6.2cm width, 1.65 in./4.2cm height)
Dots
Approx. 1.04 million dots
Coverage
Approx. 100% vertically/horizontally
Brightness Control
Manually adjustable to one of seven brightness levels
Touch-screen Operation
Supported for AF Point selection; Touch AF; Touch Shutter; Menu selection; Quick Control Menu; Magnified View; Volume Touch Sounds: 0 (silent) to 5
Coating
Anti-smudge coating not provided.
Anti-reflection coating not provided.
Interface Languages
29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)
Quick Control Function
Function
The Quick Control screen can be accessed by pressing the Quick Control button during shooting, recording, or playback.
Quick Control Screen
The following settings can be set in the [Quick Ctrl screen] menu during movierecording.
Three options during video recording:
- Q1; Q2; Q3
- Display position selectable in Q1
- User-selectable in red Shooting Menu* When [Q]1 is set, [Lock disp. position: Enable/Disable], [Disp. position: Alignright/Align left], and [Vertical position: Align top/Align bottom] in [Quick Ctrldisp position] are settable.
Image Protection and Erase
Protection
(1) Single image (select image)
(2) Select range
(3) All images in a folder
(4) All images on card
- Image browsing and image search can be based on ratings.
- Ratings-based image selections also possible with DPP.
(5) All found images (only during image search)
Erase
Except protected images
(1) Select images to erase
(2) Select range
(3) All images in folder
(4) All images on card
(5) All found images (only during image search)
Wi-Fi®
Supporting Standards
Equivalent to IEEE 802.11b/g/n/a/ac Standards
Transmission Method
DS-SS modulation (IEEE 802.11b)
OFDM modulation - CSMA / CA (IEEE 802.11g/n/a/ac)
Transition Frequency (Central Frequency)
2.4 GHz band
Frequency: 2412 to 2462 MHz
Channels: 1 to 11 channels
5.0 GHz band
Frequency: 5180 to 5825 MHz
Channels: 36 to 165 channels
Connection Method
(1) Camera access point mode
(2) Infrastructure mode
Communication with a Smartphone
- Images can be viewed, controlled, and received using a smartphone.
- Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
- Images can be sent to a smartphone.
- NFC connection: Not supported
- Supported images: JPEG, HEIF, RAW/C-RAW, MP4 video files
- Transcoding while sending: Size to send (original / reduced size); Quality to send (original / compressed)
Remote Operation Using EOS Utility
The camera can be controlled via Wi-Fi® or USB, with Canon EOS Utility software installed in acompatible Mac or Windows computer.
Print from Wi-Fi® Printers
Supported
Send Images to a Web Service
image.canon: Video files (MP4) and JPEG, HEIF, RAW or C-RAW still images can be uploaded to image.canon servers.
From image.canon, images can be sent to specific social media and 3rd-party cloud image services.
Bluetooth®
Standards Compliance
Bluetooth Specification Version 4.2 compliant (Bluetooth Low Energy technology)
Transmission Method
GFSK modulation
Bluetooth Pairing
Smartphone - up to 10 devices; BR-E1 remote controller - 1 unit
Video Calls / Streaming
USB Video Class (UVC)
Available
* The camera is accessible to software (such as Zoom™, MS Teams™, Skype™, etc.) on a computer once connected via USB
Live Switcher Mobile streaming
Available.
* Connect devices (smartphone) to multiple cameras via Wi-Fi, the actual video to be streamed can be selected/switched using the app while streaming. Streaming is possible with YouTube, Facebook, etc.
HDMI Streaming
Available.
* Connect devices (PC, external screen, video switcher) and the camera with an HDMI cable. Using apps suchas OBS Studio, streaming is possible with Teams, Skype, YouTube, Facebook, etc.
Camera Connect streaming
Available.
* Connect devices (smartphone) and the camera with Bluetooth, set up streaming, then stream via Wi-Fi.Streaming is possible with YouTube, Facebook, Twitch, etc.
Interface
USB Terminal
Equivalent to Super-Speed Plus USB (USB 3.2 Gen 2)
- For PC communication / smartphone communication (Live streaming not possible through USB)
- Terminal type: USB Type-C
- Shared with terminal for in-camera charging with USB Power Adapter PD-E1.
HDMI Out Terminal
HDMI micro OUT terminal (Type D)
* HDMI CEC not supported
* Images not displayed unless [For NTSC] or [For PAL] is set correctly for the TV video system
Clean HDMI Output
Provided
Microphone terminal
3-Pin Microphone IN
Headphone terminal
3.5mm diameter stereo mini-plug
Remote Control terminal
Canon E3 type (single pin socket)
Power Source
Battery
Canon LP-E17 battery pack
- Battery charger: Canon LC-E17 charger; supplied with camera
- With the AC Adapter AC-E6N + DC Coupler DR-E18, AC power is possible (AC Adapter Kit ACK-E18can also be used).
- USB Power Adapter PD-E1 or PD-E2 supports in-camera charging of Battery Pack LP-E17 when the camera is turned off and can supply power when the camera is turned on.
Optional Battery Grip
Not supported
Battery Check
Automatic battery check with 4-level display when the power switch is turned ON.
Start-up Time
Approx. 0.4 sec.
- Based on CIPA testing standards.
Dimensions and Weight
Dimensions (W x H x D)
Approx. 4.7 x2.9 x 4.2 in. / 119.3 x 73.7 x 106.7mm
- Based on CIPA standards.
Operating Environment
Temperature Range
32-104°F / 0-40°C working range
Humidity Range
85% or less working range
Lens
Focal length
14mm - 30mm
Maximum and Minimum Aperture
f/4 - f/6.3 - f/22 - f/36
Lens Mount Type
RF Mount (Plastic)
Compatible Cameras
Canon EOS R-series, APS-C and full-frame
Minimum Focusing Distance
0.15m (9.4 in)
Maximum Magnification
0.38x (at 30mm)
Field of View, at Minimum Focus Distance
Approx. 126 × 84mm (7.2" x 4.8") at 14mm; Approx. 57 × 38mm (7.2" x 4.8") at 30mm
Angle of View (Diagonal)
Approx. 88º 30' - 48º 50'
Optical Design
Lens Construction
10 elements in 9 groups
Special Elements
One UD Lens, Two Aspheric Lenses
Lens Coating
Canon SSC (Super Spectra Coating)
Filter Size Diameter
ø58 mm
Aperture Blades
7
Image Stabilization (yaw/pitch directions)
Provided via gyro sensors (1 each for yaw and pitch)
Focusing
Focusing Drive System
Two Nano USM focus motors
Full-time Manual Focusing
Yes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-seriescameras)
Dual Pixel CMOS AF Coverage (Horizontal x Vertical)
- EOS R - Approx. 88% x 100%
- EOS R5/R6 - Approx. 90% x100%
- EOS R7/R10/R50 - Approx. 100% x 100%
